Simpson Anchors | SKU:

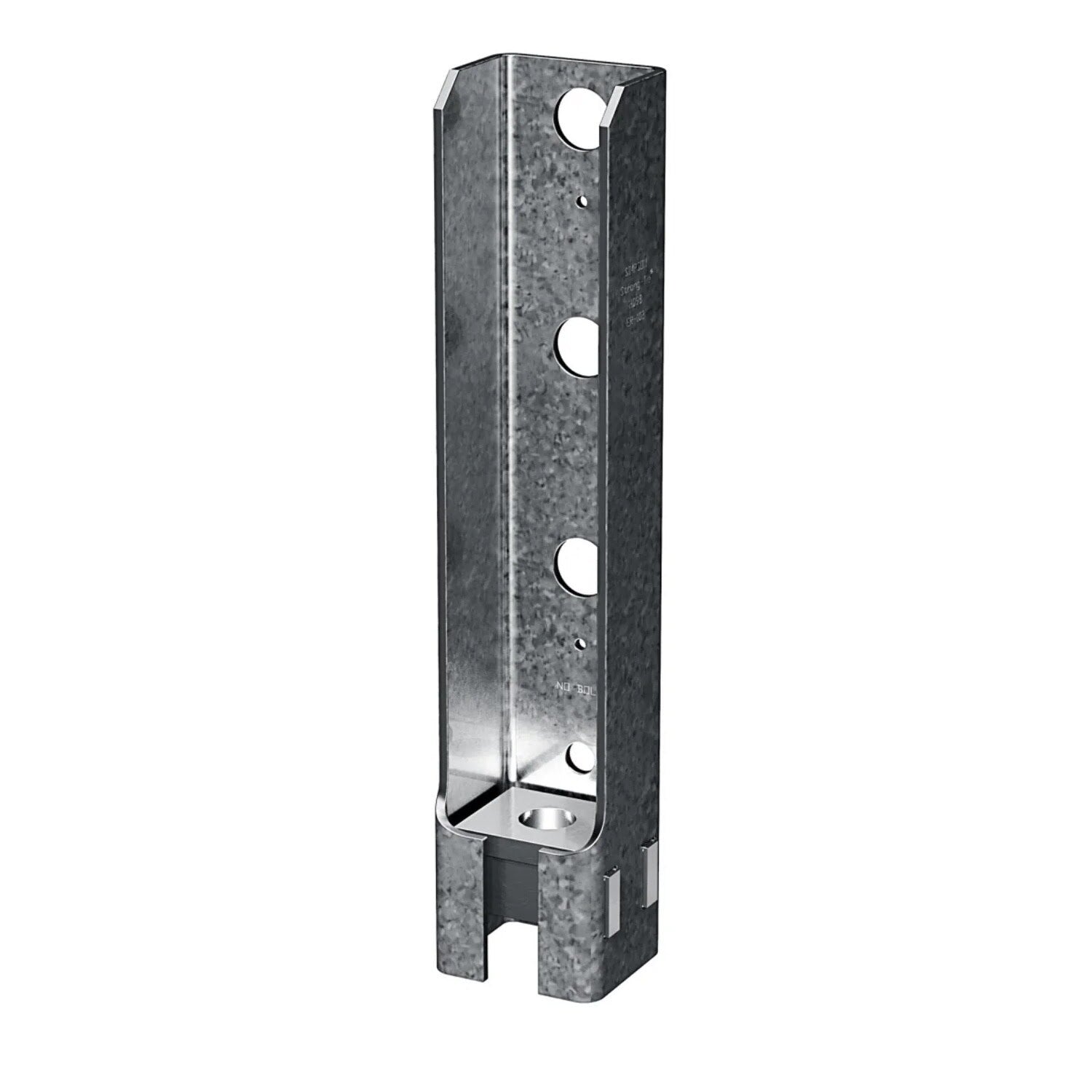

Simpson Strong-Tie HD9B (3/8" 7 Gauge) Bolted Holdown - G90 Galvanized
$61.16
$69.66
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HD9B Description
The HD9B Bolted Holdown by Simpson Strong-Tie offers low-deflection performance for intermediate-load-range shearwalls and lateral applications. Featuring a unique seat design, it minimizes deflection under load and ensures code compliance.
Simpson HD9B Includes
- (1) Bolted Holdown G90 Galvanized
Simpson HD9B Features
- Low-deflection performance for a range of load requirements
- Tested in accordance with ICC-ES's AC 155 acceptance criteria
- Unique seat design minimizes deflection under load
- Self-jigging design ensures code compliance
- Suitable for vertical and horizontal applications
- Can be installed directly on the sill plate or raised above it
- Designed for intermediate-load-range shearwalls and braced-wall panels
Simpson HD9B Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications
- Vertical and horizontal structural support

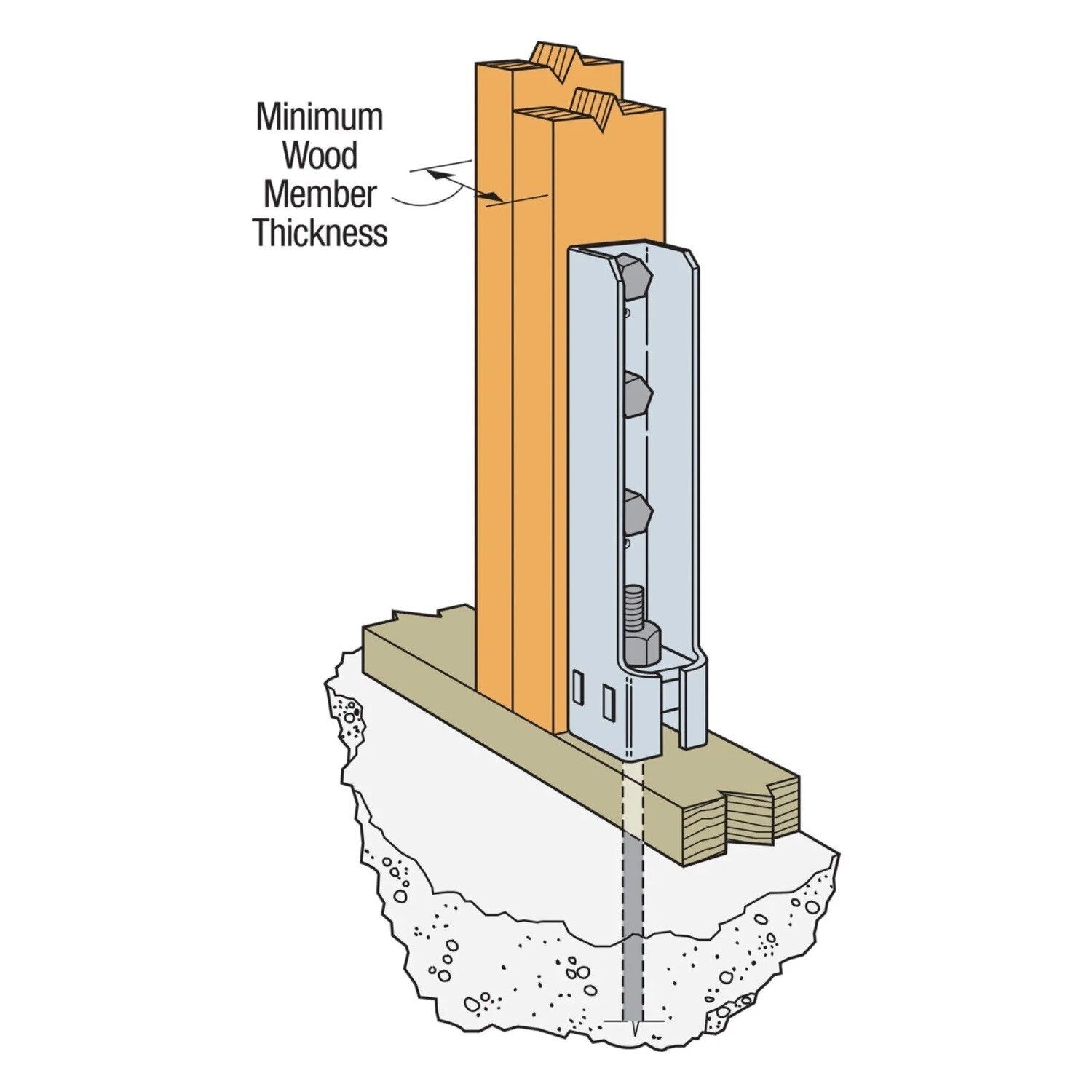

Simpson HD9B Installation Overview
- Use all specified fasteners
- Ensure bolt holes are within the specified size range
- Tighten stud bolts snugly with standard cut washers
- Install flush with the sill plate for minimum bolt end distance
- Use standard cut washers under anchor nuts for specific anchors
Simpson HD9B Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 14" |
| Fasteners required | (3) 7/8" Machine Bolts, (1) 7/8" Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
