Simpson Anchors | SKU:
HDIA25
Simpson Strong-Tie HDIA25 Hollow Drop-In Anchor for 1/4-in. Rod (100 Pack)
$57.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDIA25 Description

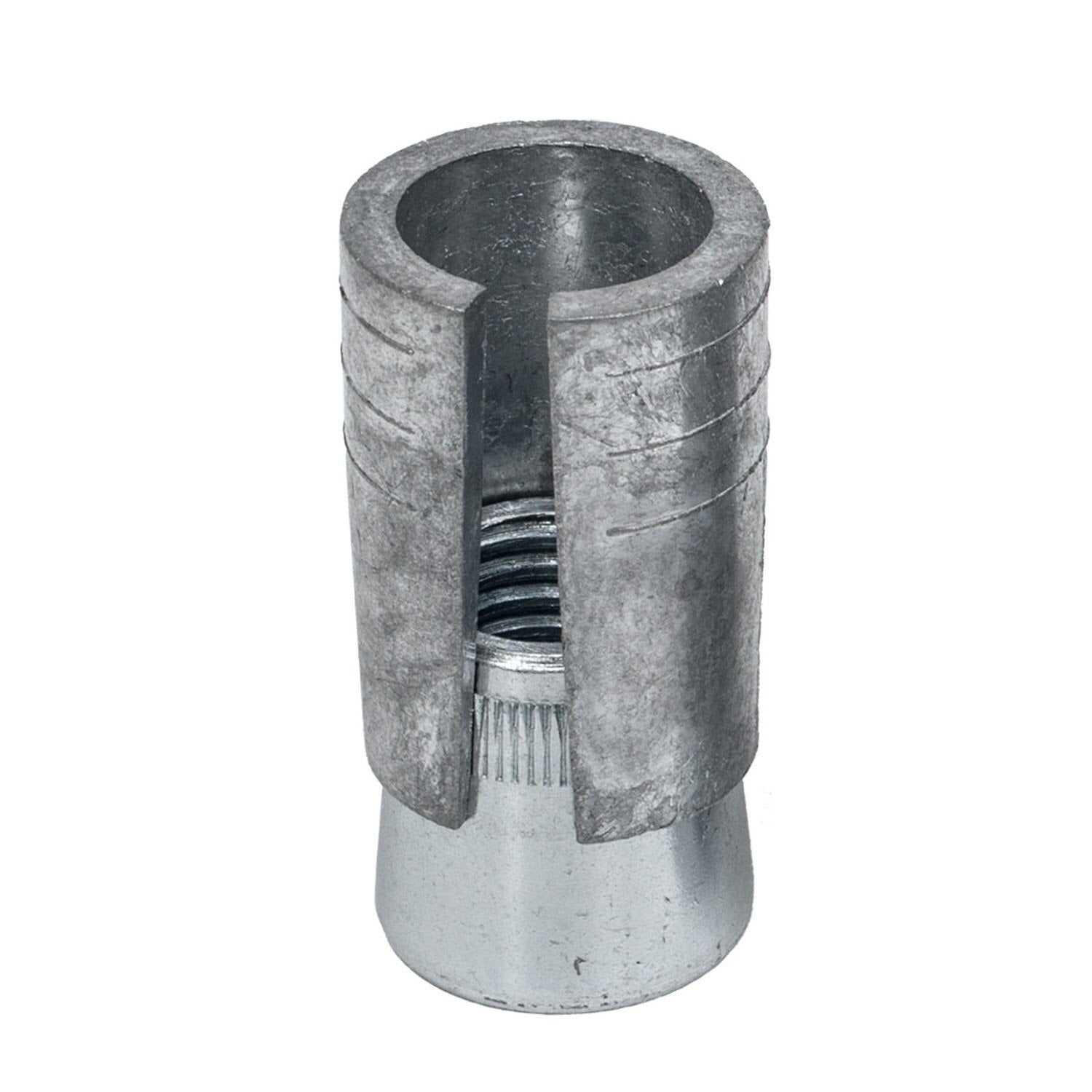

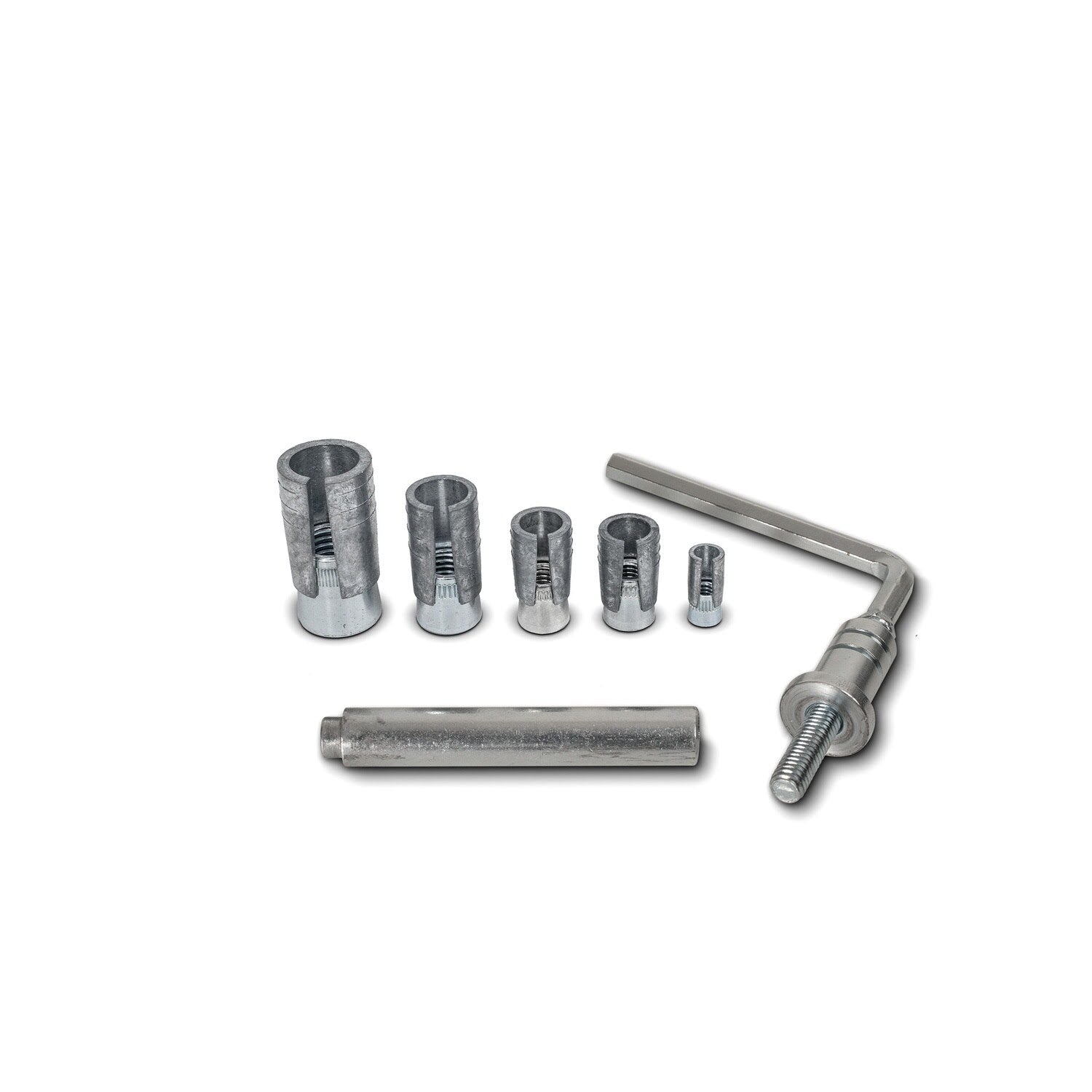

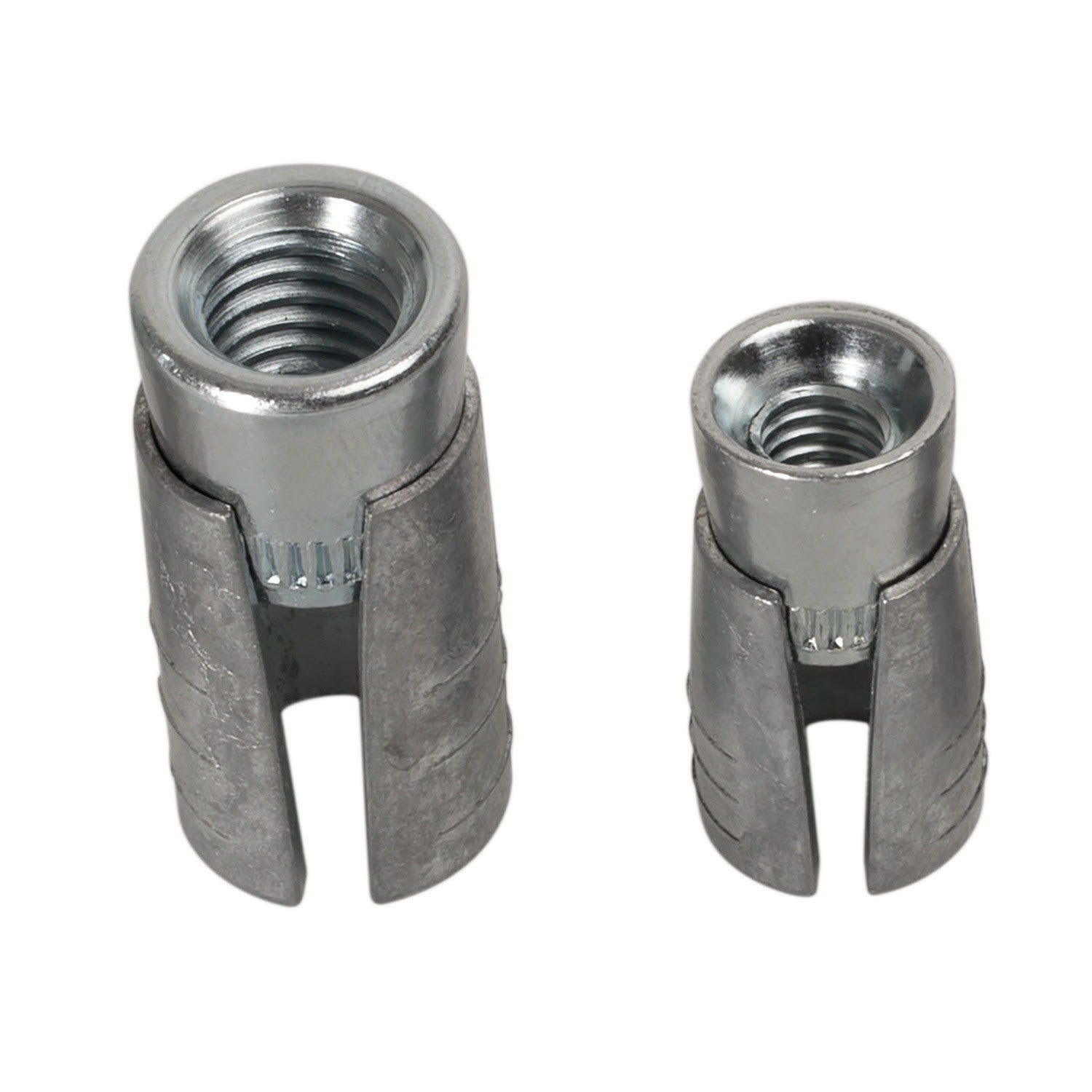

The Simpson Strong-Tie Hollow Drop-In Anchor (HDIA) is an internally threaded, flush-mount expansion anchor designed for use in hollow materials like CMU and hollow-core plank, as well as solid base materials such as brick and concrete.
Simpson Strong-Tie HDIA25 Includes
- (100) Hollow Drop-In Internally Threaded Anchor
Simpson Strong-Tie HDIA25 Features
- Suitable for suspending conduit, cable trays, pipe supports, fire sprinklers, and suspended lighting into concrete
- Expansion design allows anchoring into CMU, hollow-core plank, brick, normal-weight concrete, and lightweight concrete
- Internally threaded anchor allows for easy bolt removal
Simpson Strong-Tie HDIA25 Applications
- Suspending conduit and cable trays
- Pipe supports and fire sprinklers
- Suspended lighting into concrete
Simpson Strong-Tie HDIA25 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Blow the hole clean using compressed air.
- Insert the HDIA into the hole and tap with a hammer until flush against the surface.

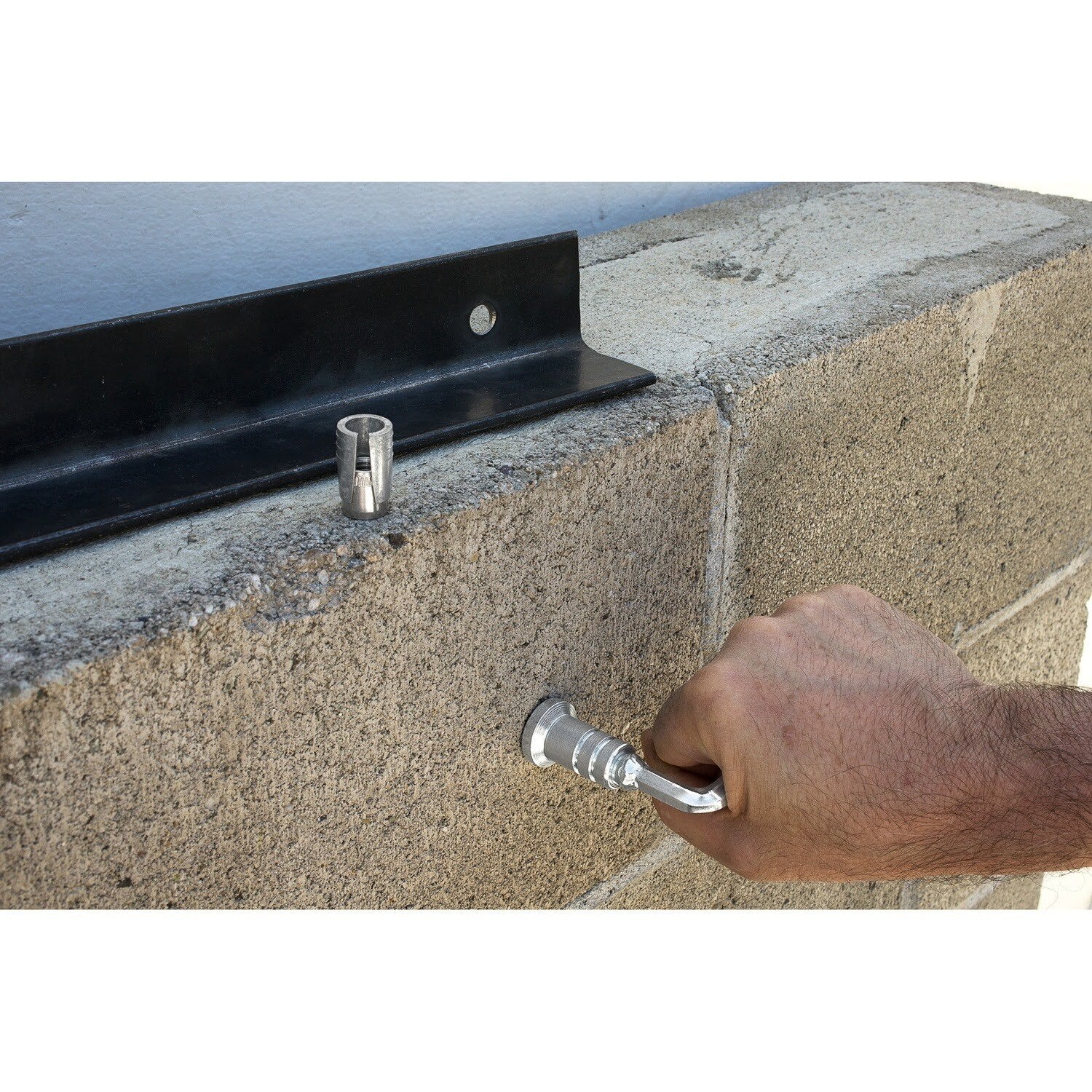

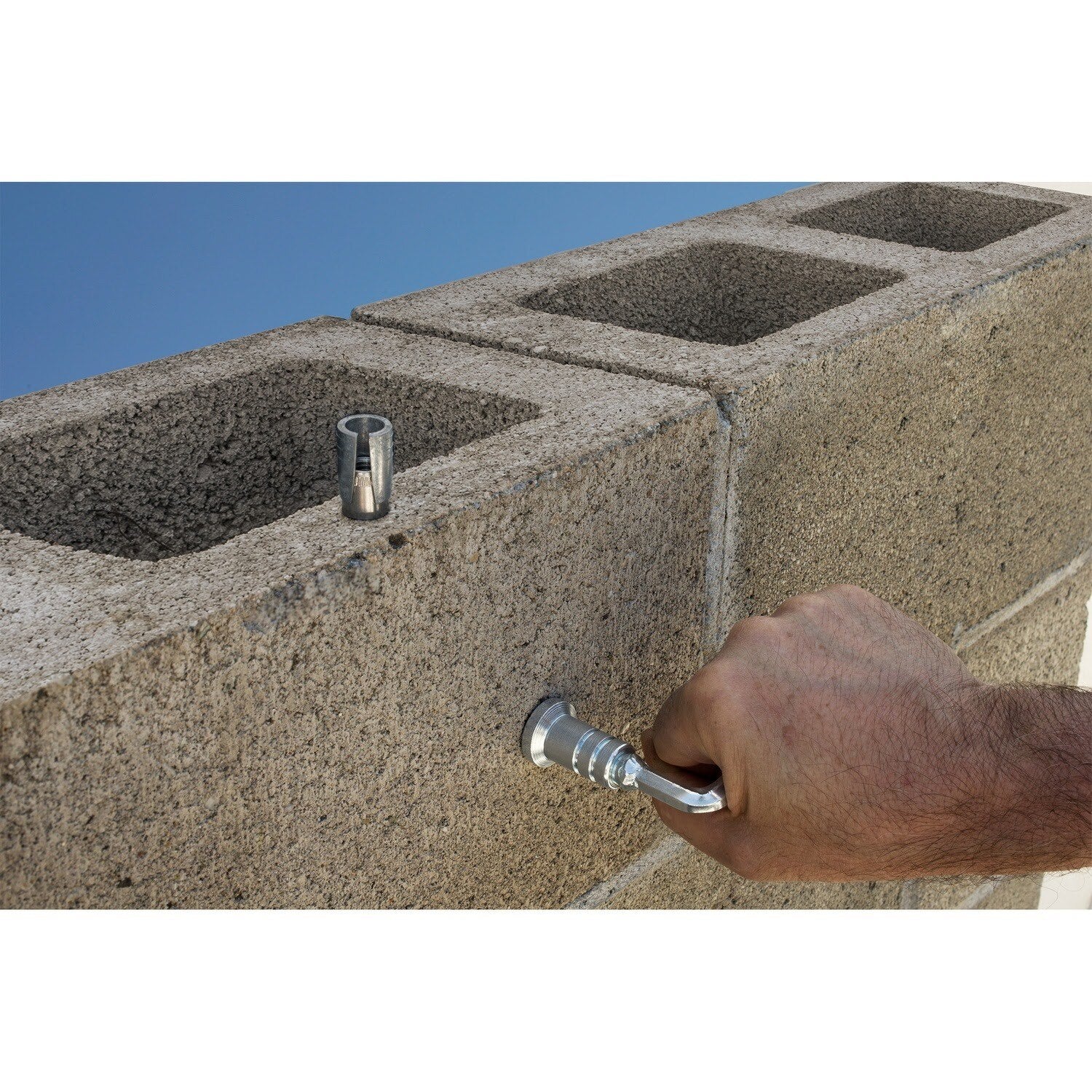

- Using the designated setting tool, drive the anchor to the bottom of the drilled hole.
- Position the fixture, insert the fastener, and tighten.
Simpson Strong-Tie HDIA25 Specifications
| Material | Zamac 3 |
| Length | 3/4" |
| Accepts rod size | 1/4" |
| Drill bit size | 3/8" |
| For Treated Lumber | Yes |
| Quantity | 100 |
