Simpson Anchors | SKU:
HDIA37SS
Simpson Strong-Tie HDIA37SS (3/8") Hollow Drop-In Anchor for Rod (50 Pack)
$100.00
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDIA37SS Description

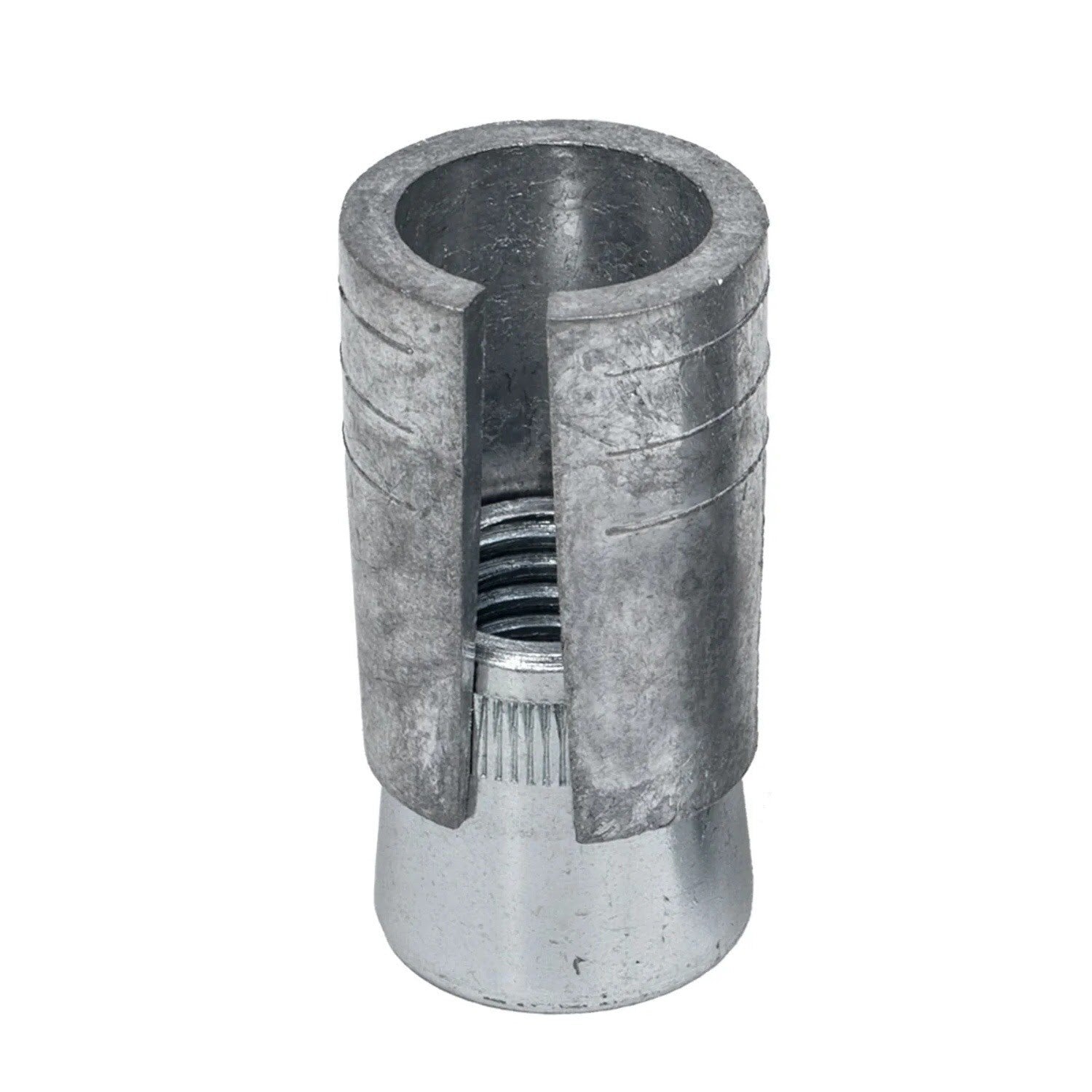

The Simpson Strong-Tie Hollow Drop-In Anchor (HDIA) is an internally threaded, flush-mount expansion anchor designed for hollow and solid base materials.
Simpson Strong-Tie HDIA37SS Includes
- (50) Hollow Drop-In Anchor
Simpson Strong-Tie HDIA37SS Features
- Suitable for suspending conduit, cable trays, pipe supports, fire sprinklers, and suspended lighting into concrete
- Expansion design allows anchoring into CMU, hollow-core plank, brick, normal-weight concrete, and lightweight concrete
- Internally threaded anchor allows for easy bolt removal
- Made from Zamac 3 alloy shell with stainless steel cone for corrosion resistance
Simpson Strong-Tie HDIA37SS Applications
- Suspending conduit and cable trays
- Pipe supports and fire sprinklers
- Suspended lighting installations
- Anchoring into concrete, CMU, hollow-core plank, and brick
Simpson Strong-Tie HDIA37SS Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit
- Blow the hole clean using compressed air
- Insert the HDIA into the hole and tap with a hammer until flush against the surface
- Use the designated setting tool to drive the anchor to the bottom of the drilled hole
- Position the fixture, insert the fastener, and tighten
Simpson Strong-Tie HDIA37SS Specifications
| Material | Zamac 3 |
| Accepts rod size | 3/8" |
| Drill bit size | 5/8" |
| Length | 1-1/4" |
| For Treated Lumber | Yes |
| Quantity | 50 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
