Simpson Strong-Tie HDIA50 Description

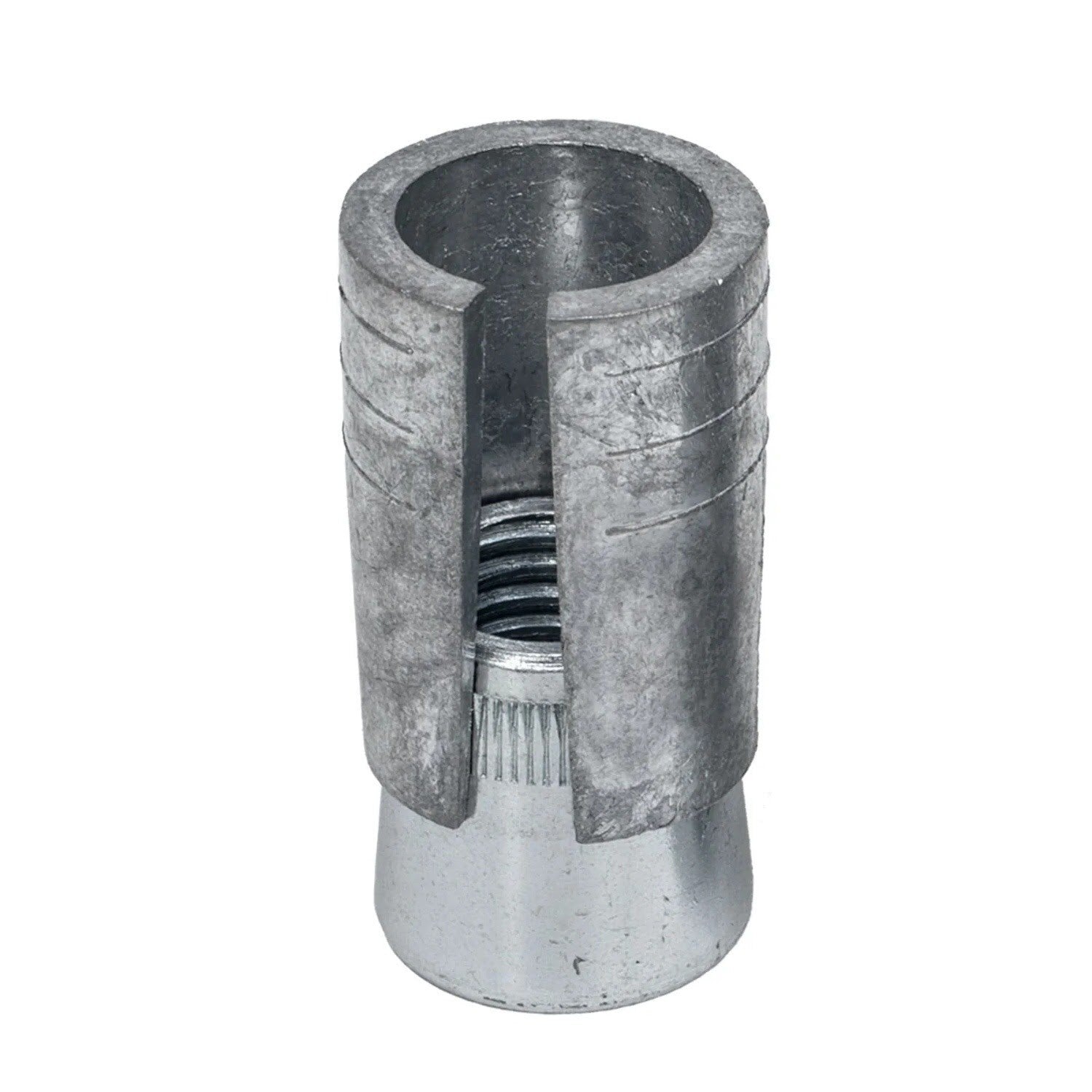

The Simpson Strong-Tie Hollow Drop-In Anchor (HDIA) is an internally threaded, flush-mount expansion anchor designed for use in hollow materials like CMU and hollow-core plank, as well as solid base materials such as brick and concrete.
Simpson Strong-Tie HDIA50 Includes
- (50) Hollow Drop-In Internally Threaded Anchors
Simpson Strong-Tie HDIA50 Features
- Internally threaded for easy bolt removal
- Flush-mount expansion anchor for hollow and solid materials
- Suitable for suspending conduit, cable trays, and pipe supports
- Compatible with fire sprinklers and suspended lighting
- Made from durable Zamac 3 alloy
Simpson Strong-Tie HDIA50 Applications
- Suspending conduit and cable trays
- Supporting pipe systems and fire sprinklers
- Installing suspended lighting into concrete
- Anchoring into CMU, hollow-core plank, and brick
Simpson Strong-Tie HDIA50 Installation Overview
- Drill a hole using the specified carbide drill bit
- Blow the hole clean using compressed air
- Insert the HDIA anchor and tap until flush with the surface
- Use the designated setting tool to drive the anchor into place
- Position the fixture and tighten the fastener
Simpson Strong-Tie HDIA50 Specifications
| Material | Zamac 3 |
| Length | 1-3/4" |
| Rod Diameter | 1/2" |
| Drill Bit Diameter | 3/4" |
| Quantity | 50 |
Toolup Part # :
825937
