Simpson Anchors | SKU:
HDQ8-SDS3HDG

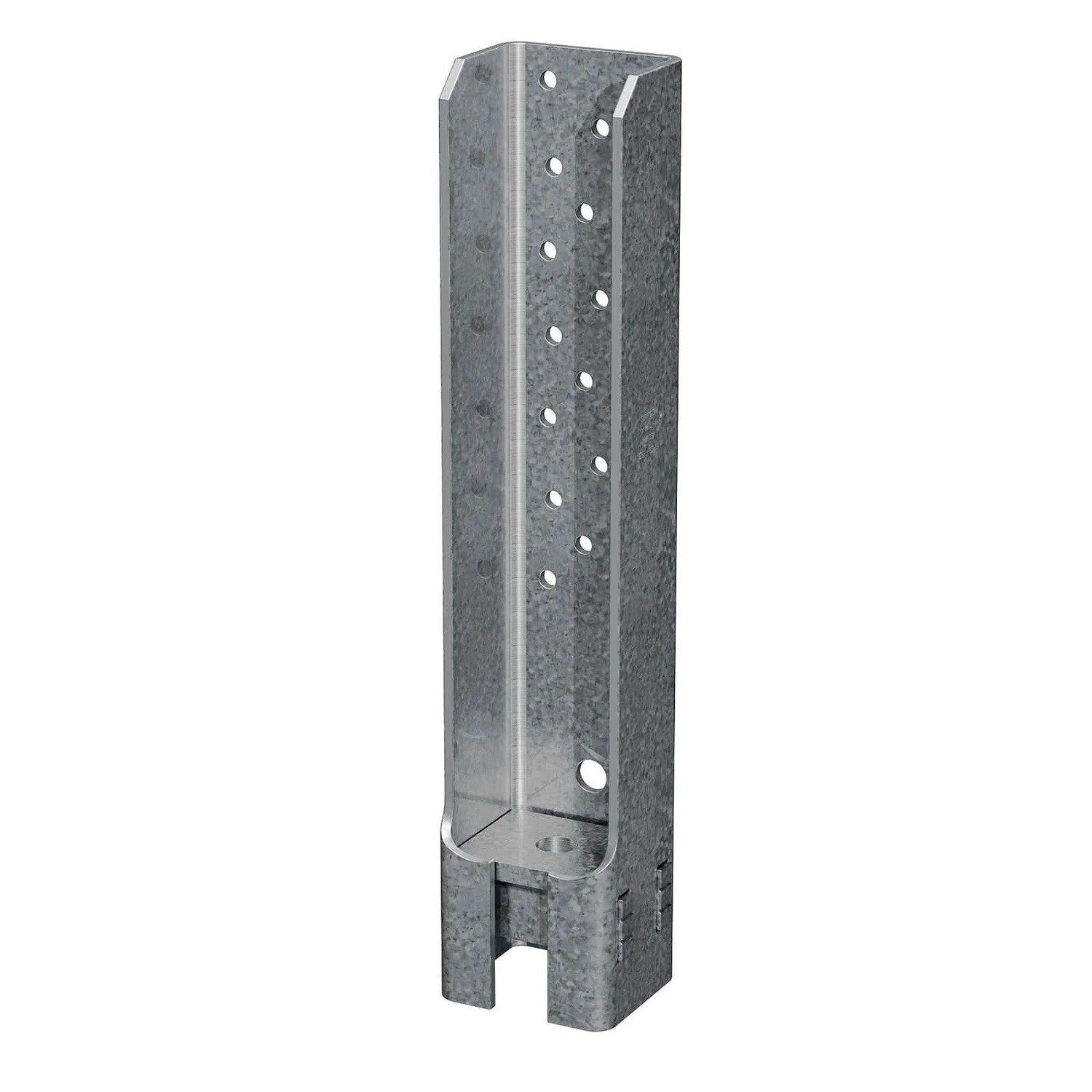

Simpson Strong-Tie HDQ8-SDS3HDG (14") Quick-Install Holdown - Hot Dip Galvanized
$108.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDQ8-SDS3HDG Description
The Simpson HDQ8-SDS3HDG Quick-Install Holdown is designed for high loads and ease of installation, featuring a unique seat design to minimize deflection under load.
Simpson Strong-Tie HDQ8-SDS3HDG Includes
- (1) 14" Quick-Install Holdown
- (20) 1/4" x 3" SDS Screws
Simpson Strong-Tie HDQ8-SDS3HDG Features
- Strong-Drive SDS Heavy-Duty Connector screws are supplied with the holdowns to ensure proper fasteners are used
- Screws may be installed either flush or raised off the mudsill without a reduction in load value
- No stud bolts to countersink at openings
Simpson Strong-Tie HDQ8-SDS3HDG Applications
- High-load structural connections requiring minimized deflection
- Raised installation above sill plates for enhanced performance

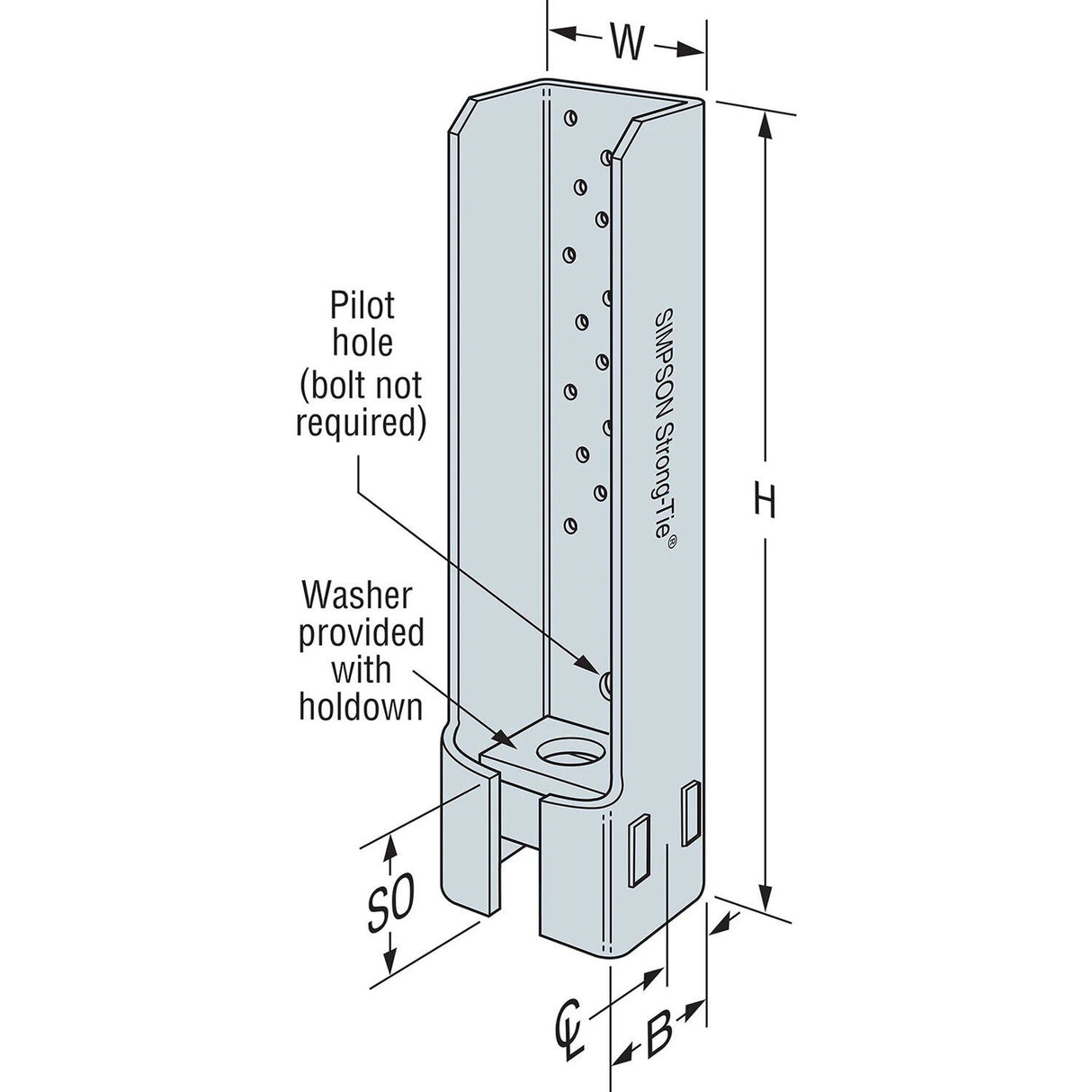

Simpson Strong-Tie HDQ8-SDS3HDG Installation Overview
- No additional washer is required
- Install screws using a low-speed, high-torque drill equipped with a 3/8" hex-head driver
- Provides 5/8" of adjustability perpendicular to the wall
Simpson Strong-Tie HDQ8-SDS3HDG Specifications
| Finish | Hot Dip Galvanized |
| Fasteners required | (20) - 1/4" x 3" SDS Screws |
| For Treated Lumber | No |
| Height | 14" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
