Simpson Anchors | SKU:
HDU11-SDS2.5

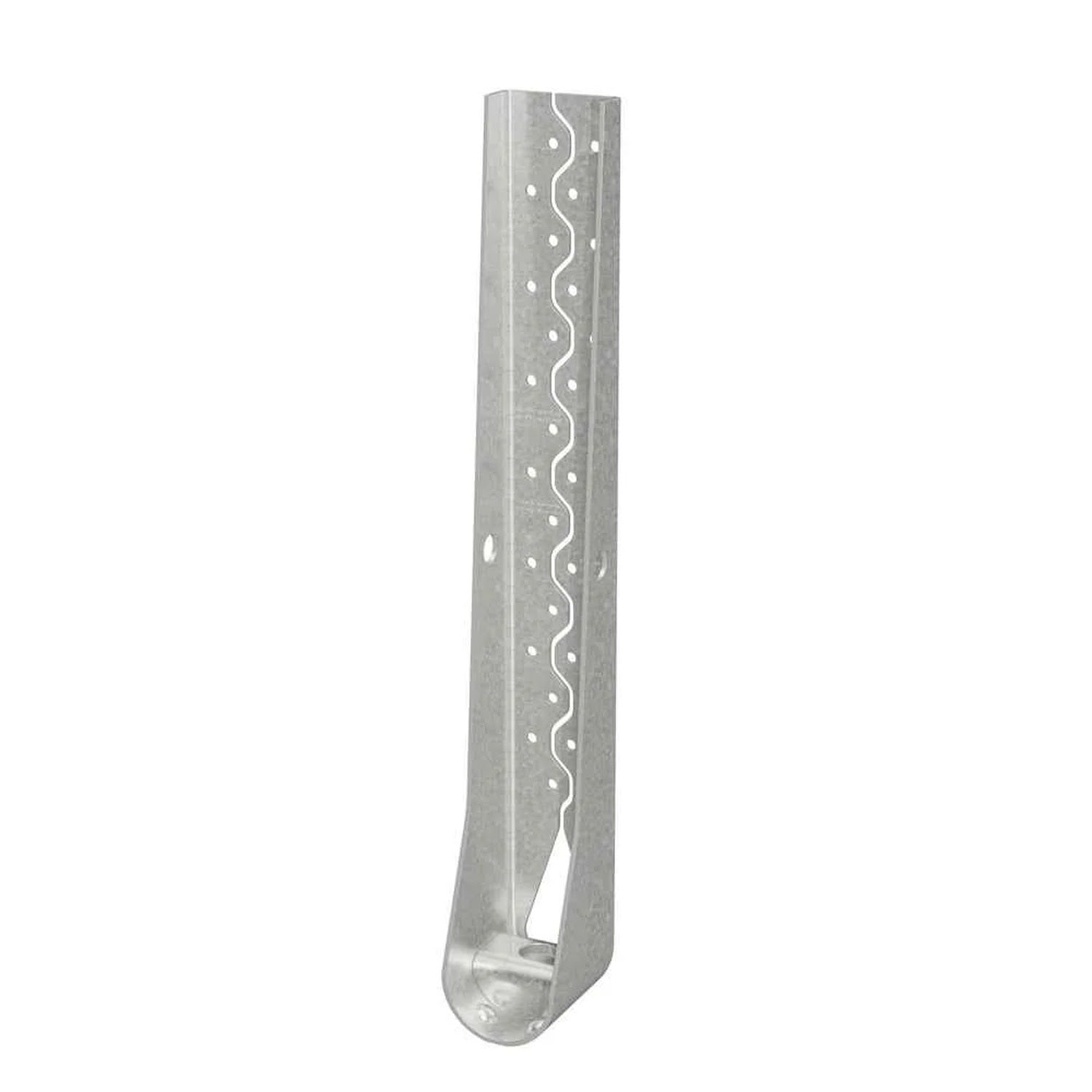

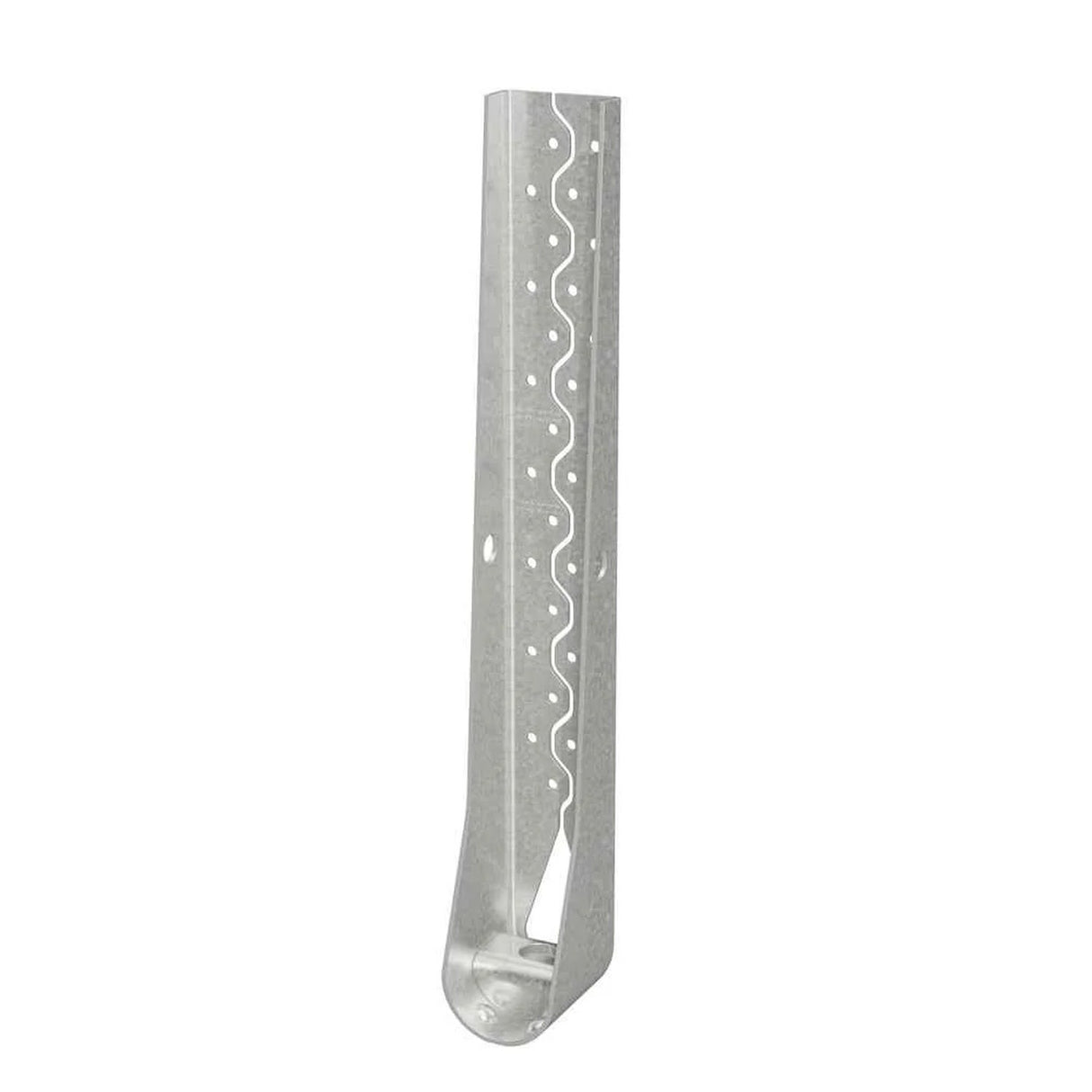

Simpson Strong-Tie HDU11-SDS2.5 (22-1/4") 10Ga Predeflected Holdown with Screws - G90 Galvanized
$73.50
$105.71
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HDU11-SDS2.5 Description
The Simpson HDU11-SDS2.5 is a predeflected holdown designed for wood construction, featuring included screws for secure installation and reduced deflection under load.
Simpson HDU11-SDS2.5 Includes
- (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent washer
Simpson HDU11-SDS2.5 Features
- Predeflected seat eliminating deflection under load
- Strong-Drive SDS Heavy-Duty Connector screws included
- No stud bolts to countersink at openings
- Galvanized finish for corrosion resistance
Simpson HDU11-SDS2.5 Applications
- High-Wind Construction
- Wood framing requiring secure holdown connections
Simpson HDU11-SDS2.5 Installation Overview
- Use all specified fasteners
- No additional washer required
- Install screws with a low-speed, high-torque drill equipped with a 3/8" hex-head driver
Simpson HDU11-SDS2.5 Specifications
| Gauge | 10 |
| Width | 3 in. |
| Height | 22-1/4 in. |
| Base Width | 3-1/2 in. |
| Centerline | 1-3/8 in. |
| Seat Offset | 1-1/2 in. |
| Coating/Material | Zinc Galvanized, G90 |
| Weight | 6.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
