Simpson Anchors | SKU:
HDU5-SDS2.5
Simpson Strong-Tie HDU5-SDS2.5 (13-3/16") 14Ga Predeflected Holdown with Screws - G90 Galvanized
$41.52
$61.63
Unit price
/
Unavailable
Description
Description
Simpson HDU5-SDS2.5 Description

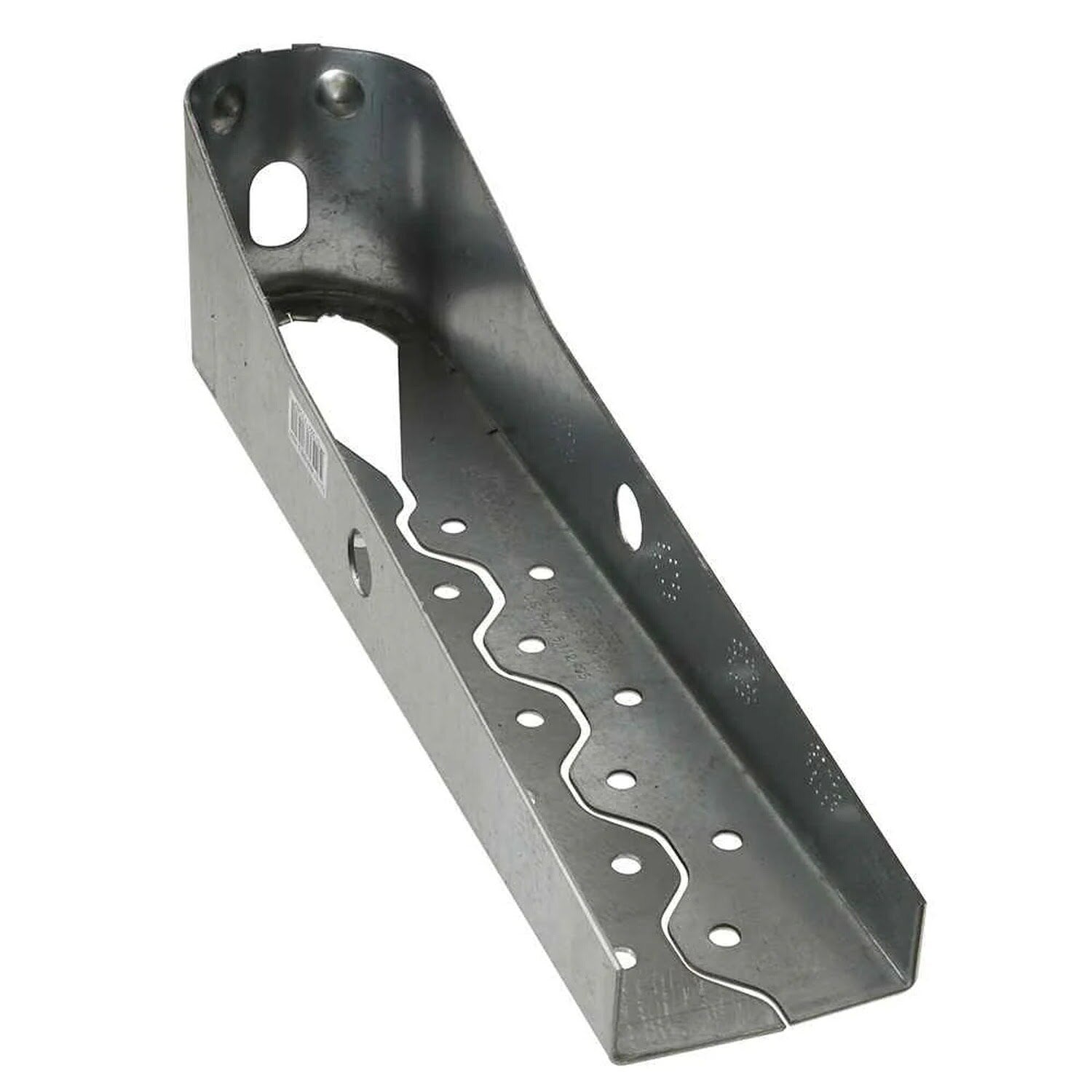

The HDU5-SDS2.5 Predeflected Holdown from Simpson Strong-Tie is designed to virtually eliminate deflection under load due to material stretch, ensuring reliable performance in structural applications.

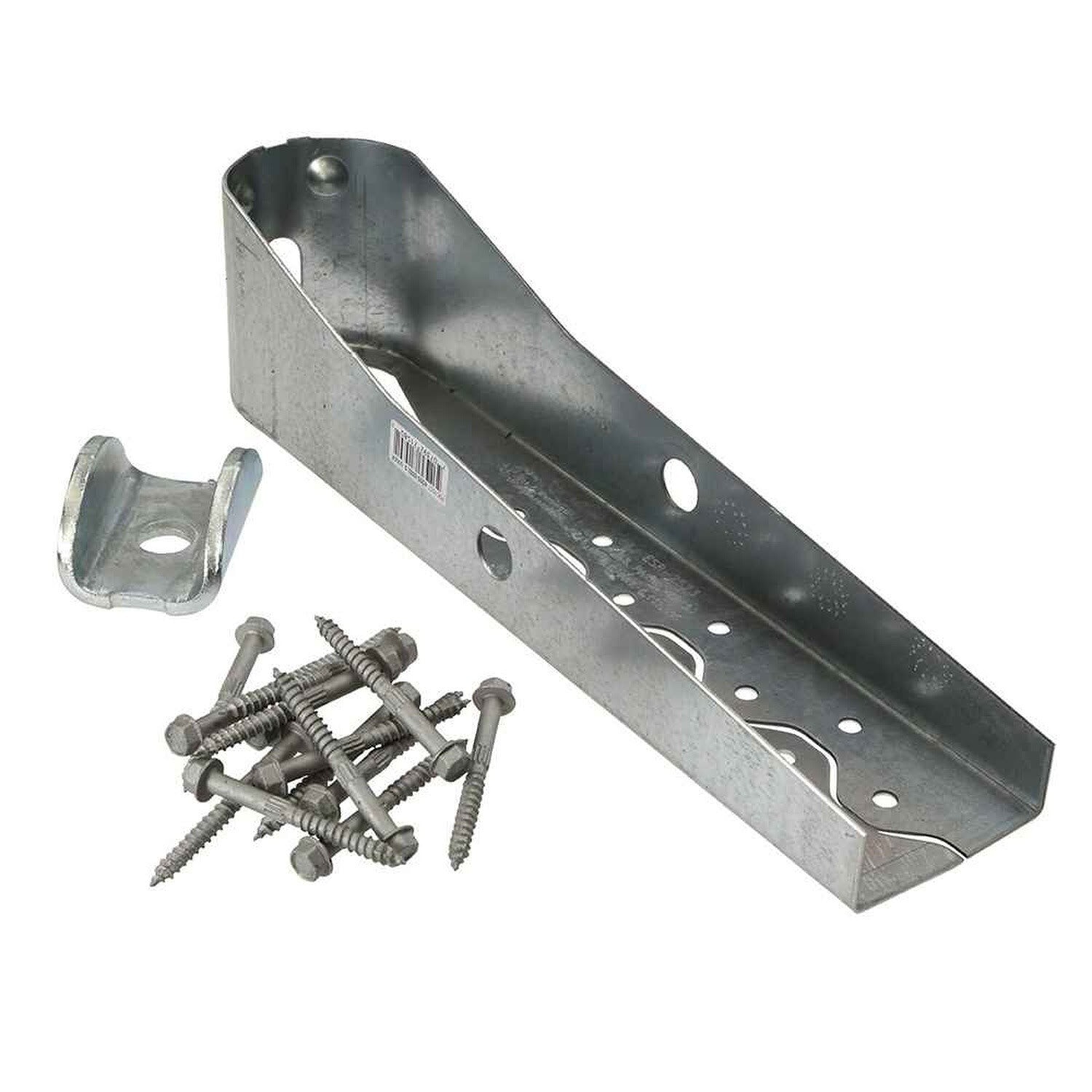

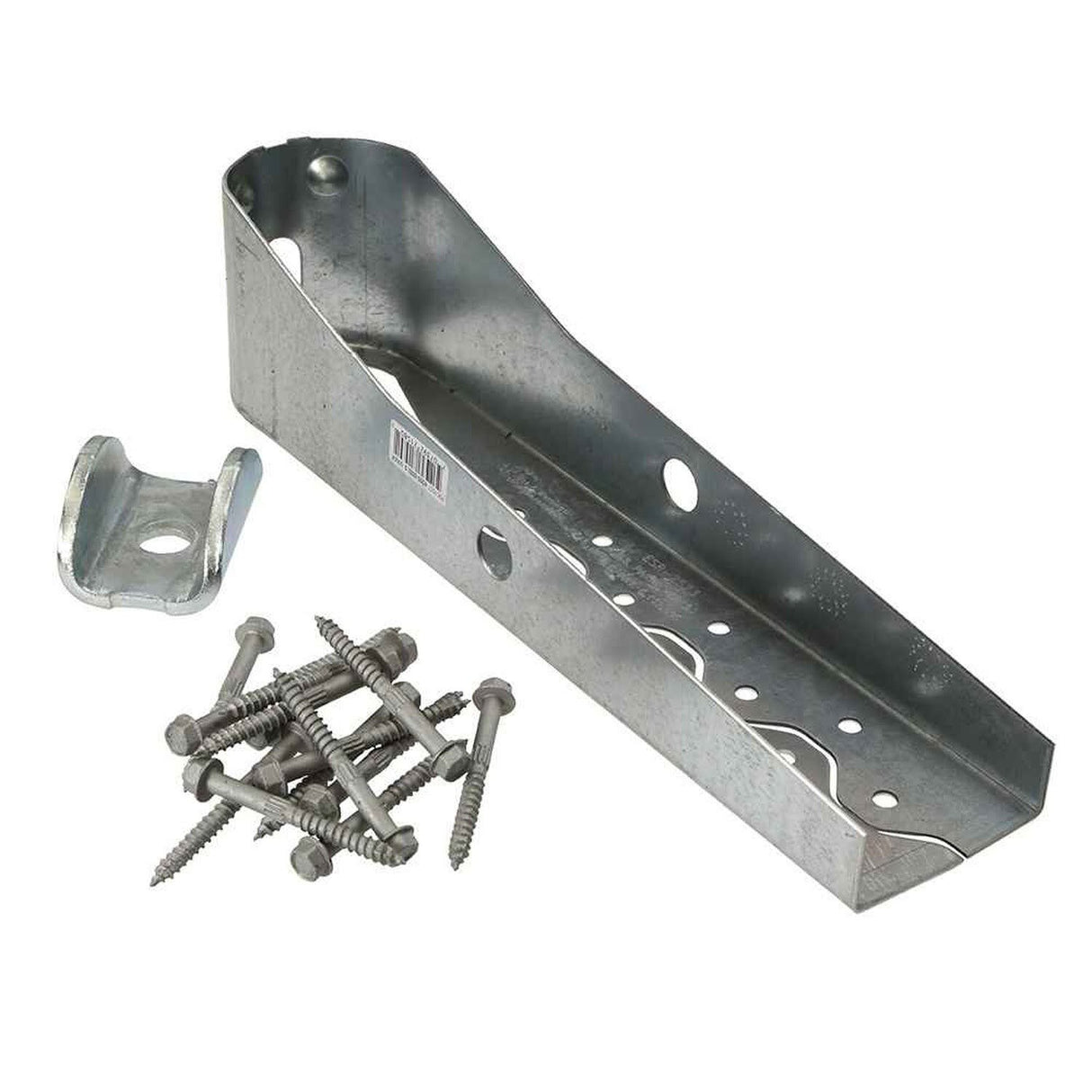

Simpson HDU5-SDS2.5 Includes
- (1) Predeflected Holdown
- (1) Set of Strong-Drive SDS Heavy-Duty Connector Screws
Simpson HDU5-SDS2.5 Features
- Predeflected design minimizes deflection under load
- Includes Strong-Drive SDS Heavy-Duty Connector screws
- No need for stud bolts to countersink at openings
- Easy installation with low-speed high-torque drill
Simpson HDU5-SDS2.5 Applications
- Structural reinforcement in wood-framed construction
- Securing posts and beams in residential and commercial buildings
- Providing reliable load-bearing support in framing applications
Simpson HDU5-SDS2.5 Installation Overview
- Use all specified fasteners
- No additional washer required for HDU; DTT requires a standard cut washer
- Install screws using a low-speed high-torque drill with a 3/8" hex head driver
Simpson HDU5-SDS2.5 Specifications
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Height | 13-3/16" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
