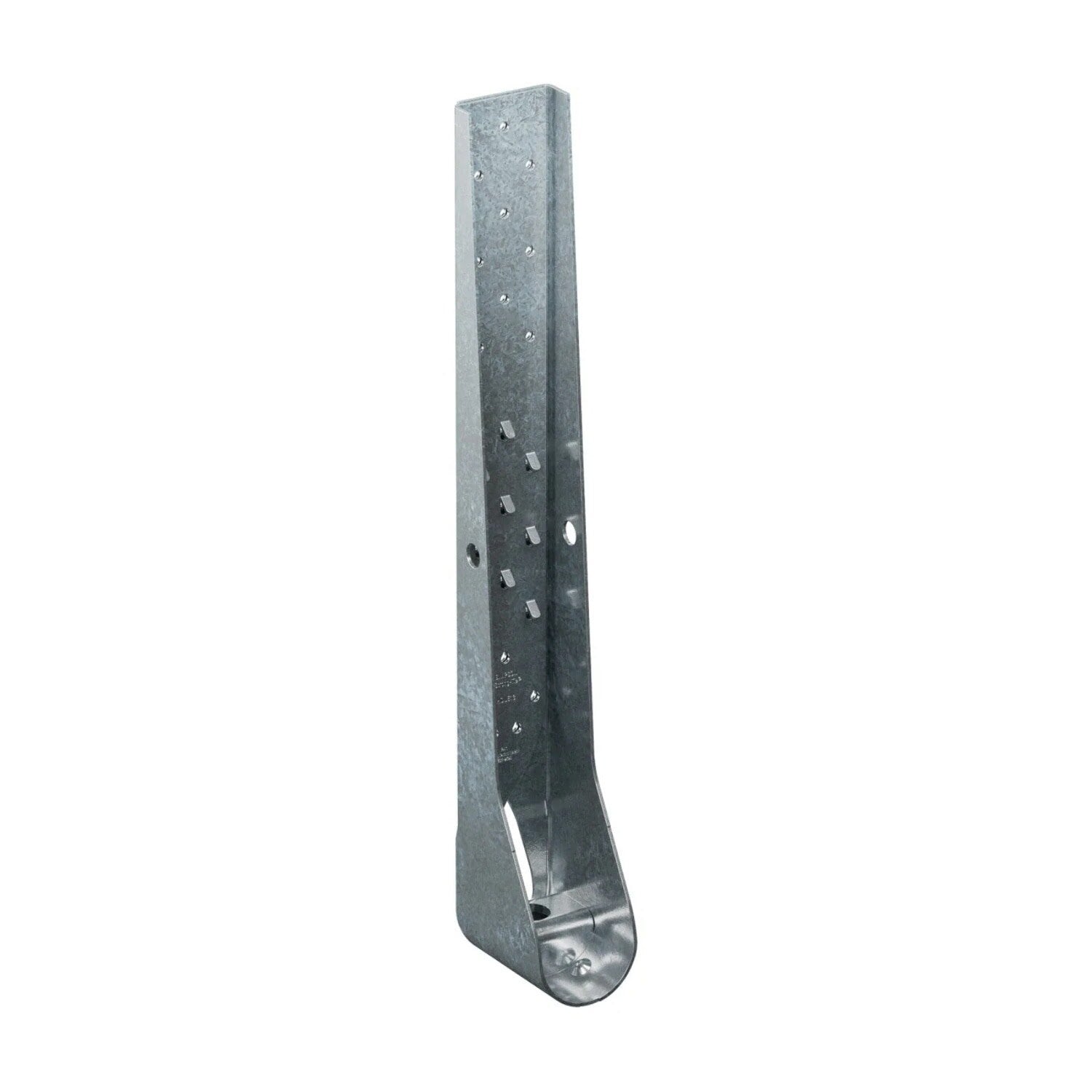

Simpson Strong-Tie HDUE13 Description
The Simpson Strong-Tie HDUE Holdown series delivers exceptional lateral-load resistance for demanding residential and multi-story applications. Designed with modern construction needs in mind, HDUE holdowns ensure strong, reliable connections for shearwalls, braced wall panels, and other structural elements.
(Screws not included. For screws, purchase the corresponding SDS part number.)
Simpson Strong-Tie HDUE13 Includes
- (1) Predeflected Holdown G90 Galvanized
- (23) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
- (1) Heavy-Hex Anchor Nut
Simpson Strong-Tie HDUE13 Features
- Enhanced load capacity for demanding residential construction.
- Innovative angled fastening for higher allowable loads.
- Predeflected seat design for improved structural stability.
- Overlapping back plate to reinforce steel strength.
- Optimized screw patterns to reduce wood splitting.
Simpson Strong-Tie HDUE13 Applications
- Shearwalls in residential and multi-story buildings.
- Braced wall panels for structural stability.
- General structural elements requiring lateral-load resistance.

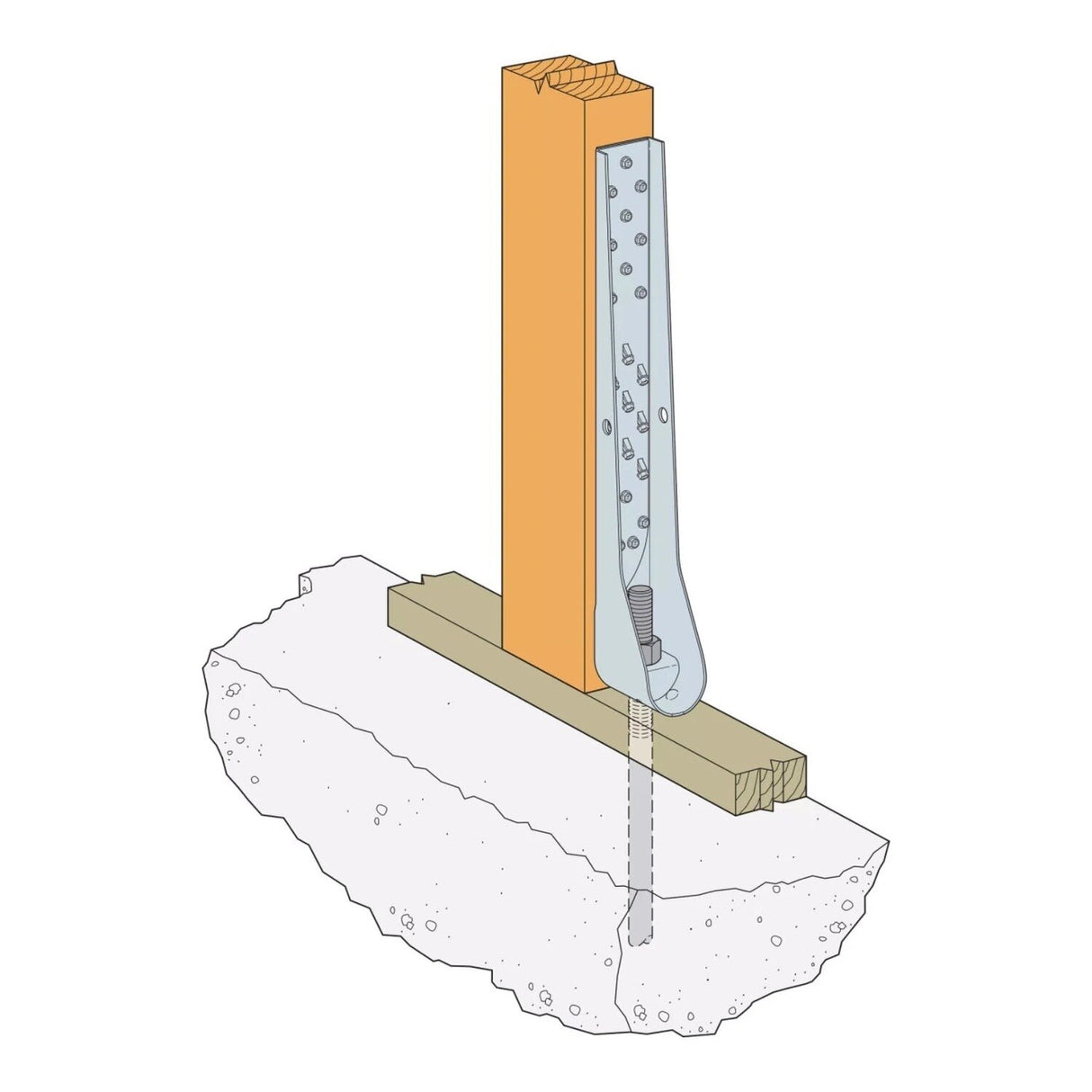

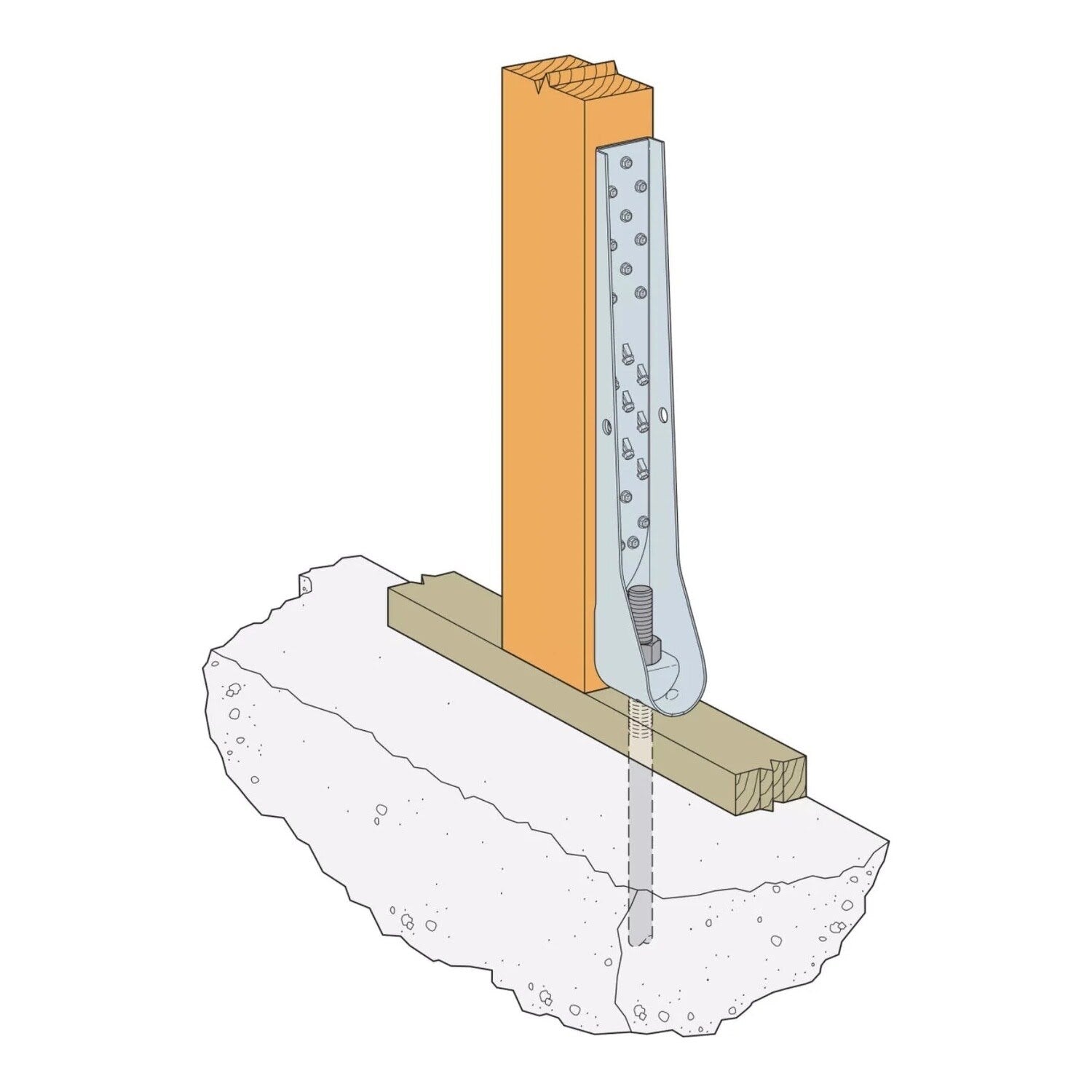

Simpson Strong-Tie HDUE13 Installation Overview
- Install using Strong-Drive SDS Heavy-Duty Connector screws.
- Ensure correct fasteners are used in the correct positions.
- Follow manufacturer guidelines for optimal performance.

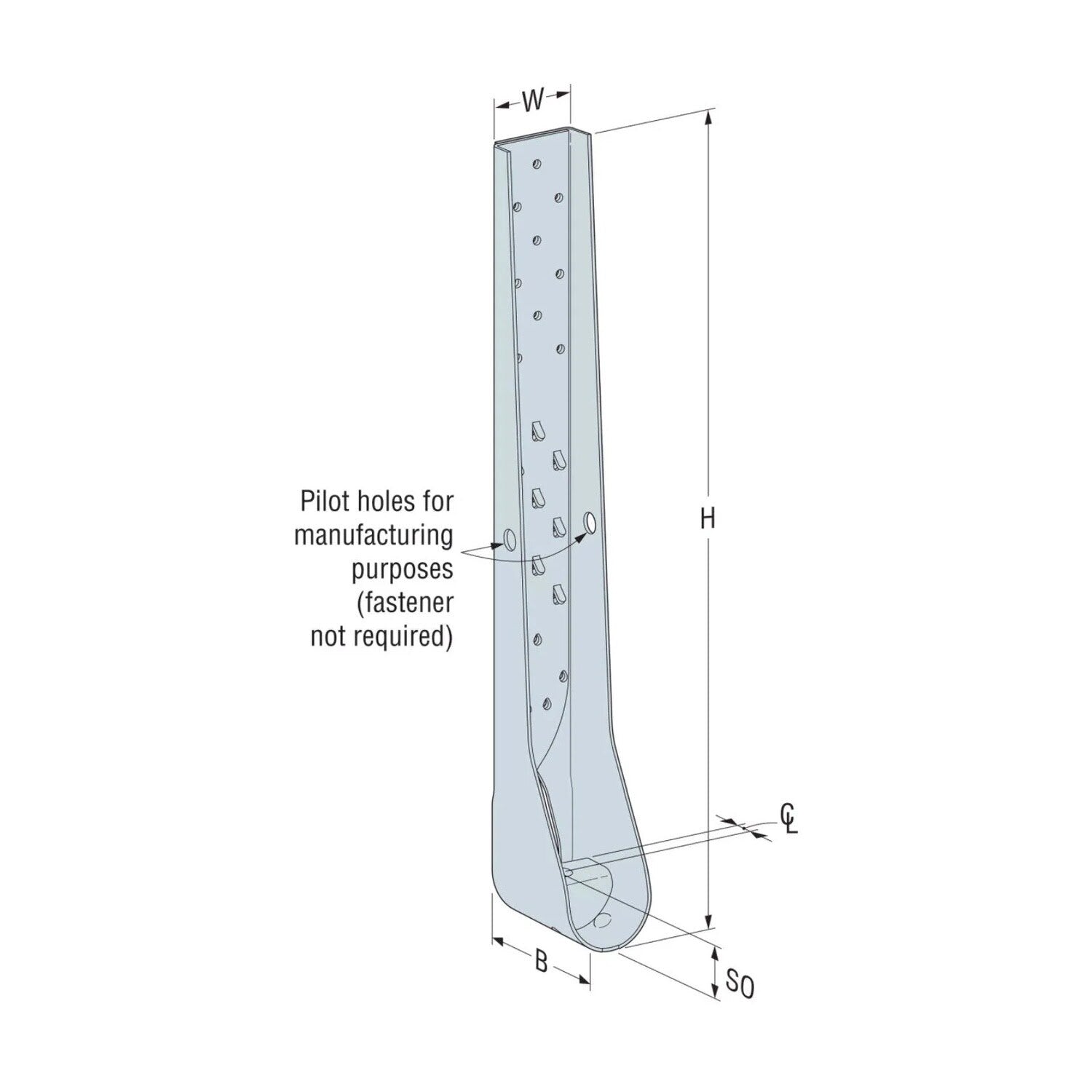

Simpson Strong-Tie HDUE13 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Base width | 4-5/16" |
| Height | 23-1/16" |
| Thickness | 12 Gauge |
| Width | 3" |
| Screws Included | No |
| For Treated Lumber |
No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
