Simpson Anchors | SKU:
HDUE5-SDS3

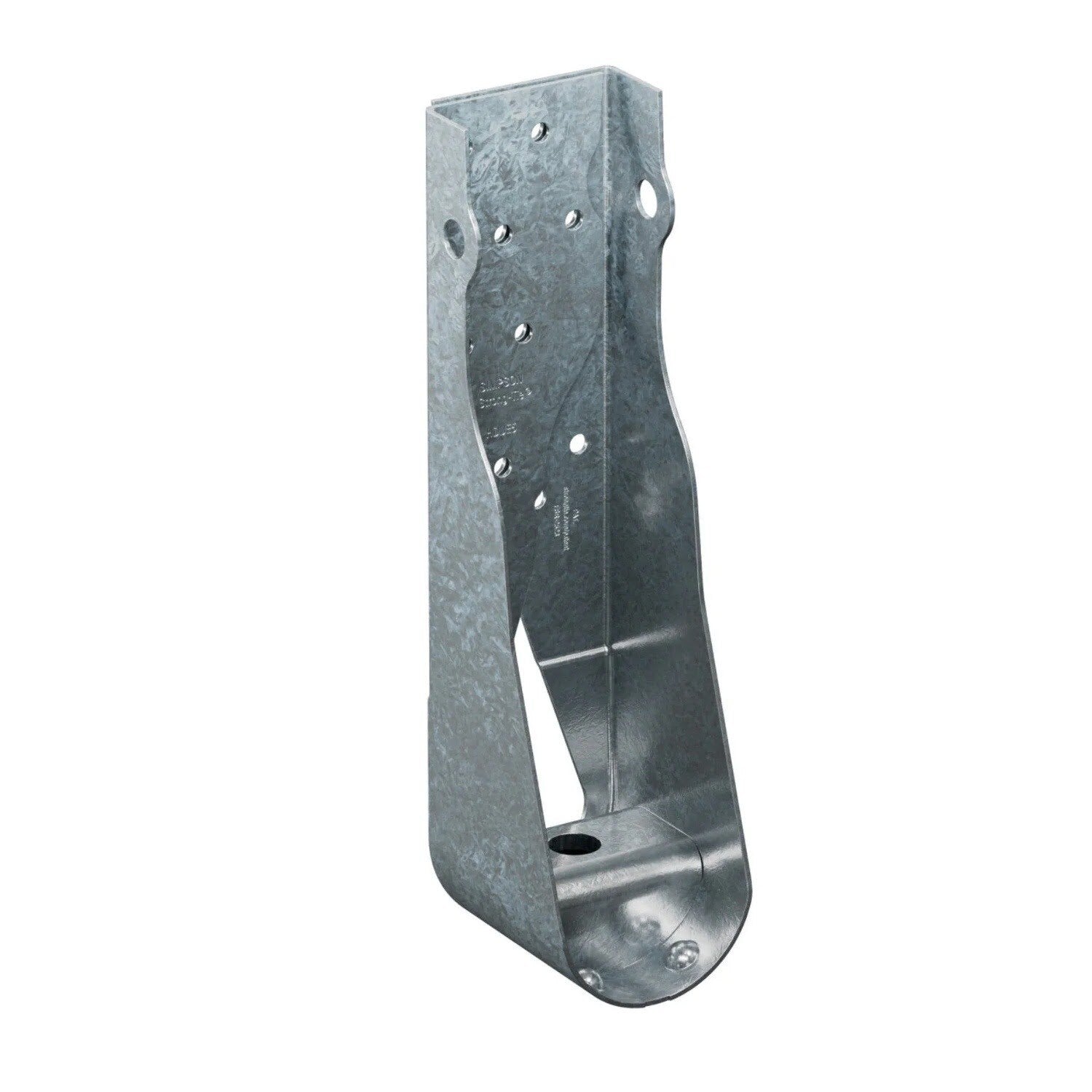

Simpson Strong-Tie HDUE5-SDS3 (11-5/16") Predeflected Holdown with SDS Screws - G90 Galvanized
$45.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDUE5-SDS3 Description
The Simpson Strong-Tie HDUE5-SDS3 Predeflected Holdown offers exceptional lateral-load resistance for demanding residential and multi-story applications, ensuring strong, reliable connections for shearwalls and braced wall panels.

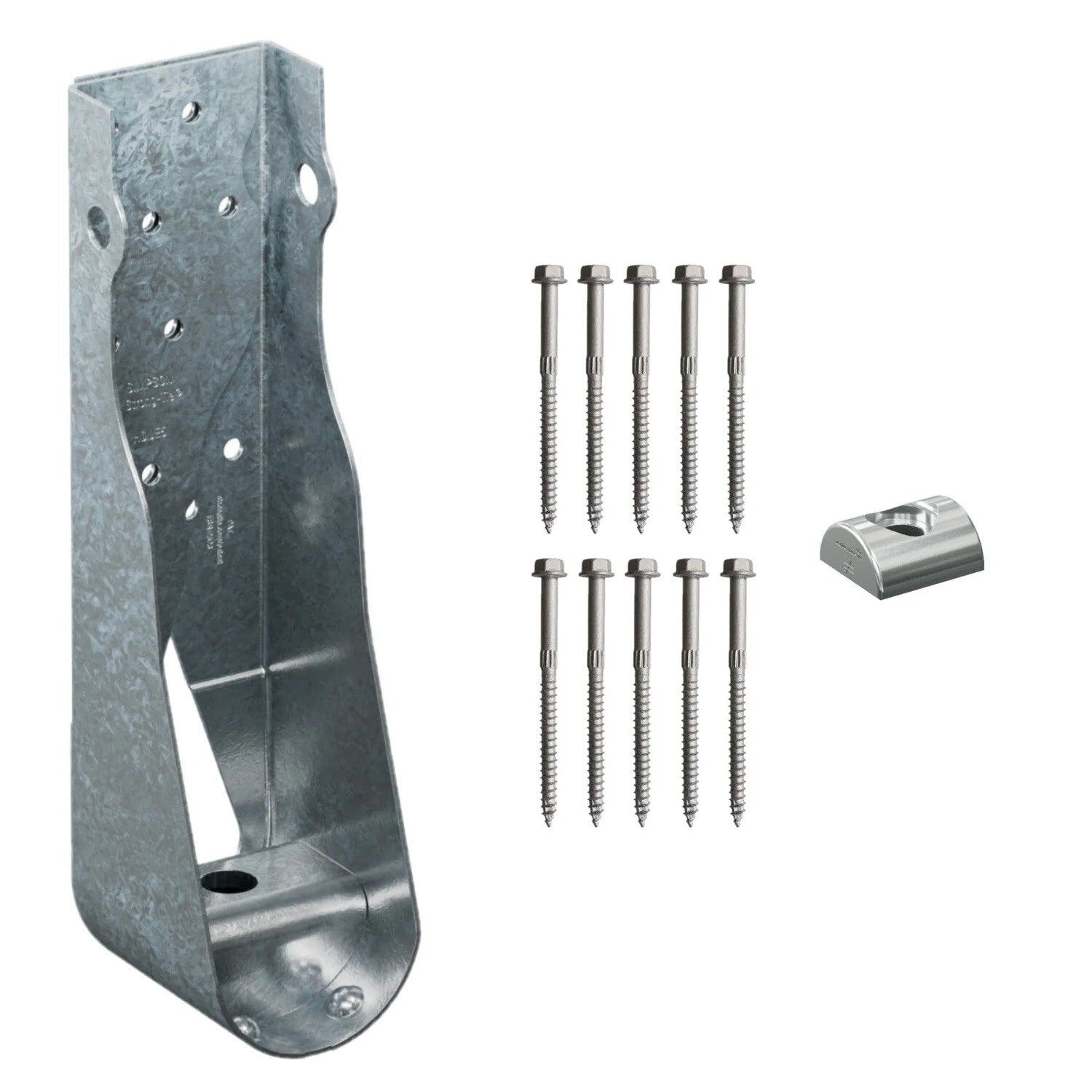

Simpson Strong-Tie HDUE5-SDS3 Includes
- (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
Simpson Strong-Tie HDUE5-SDS3 Features
- Enhanced Load Capacity: Engineered to meet increased demands in residential construction, especially for large openings and taller walls.
- Innovative Angled Fastening: Larger models feature screw placement that engages both tension and shear for higher allowable loads with fewer fasteners.
- Predeflected Seat Design: Rounded seat minimizes deflection under load, improving structural stability.
- Overlapping Back Plate: Reinforces steel strength while helping prevent post splitting.
- Optimized Screw Patterns: Designed to reduce wood splitting and maximize fastener performance at the post end.
Simpson Strong-Tie HDUE5-SDS3 Applications
- Residential construction requiring strong lateral-load resistance.
- Multi-story applications demanding reliable connections for structural elements.
- Shearwalls and braced wall panels in modern construction.

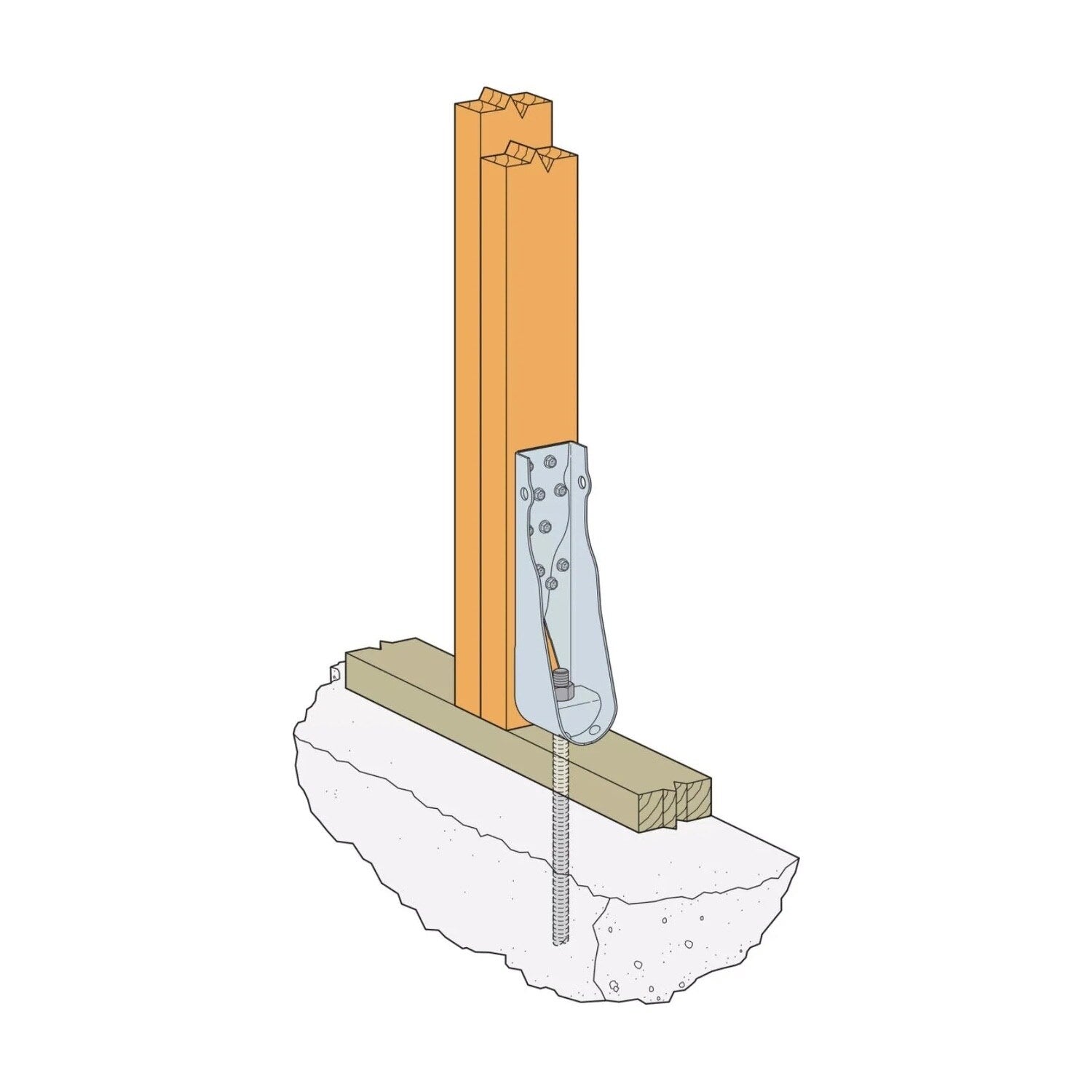

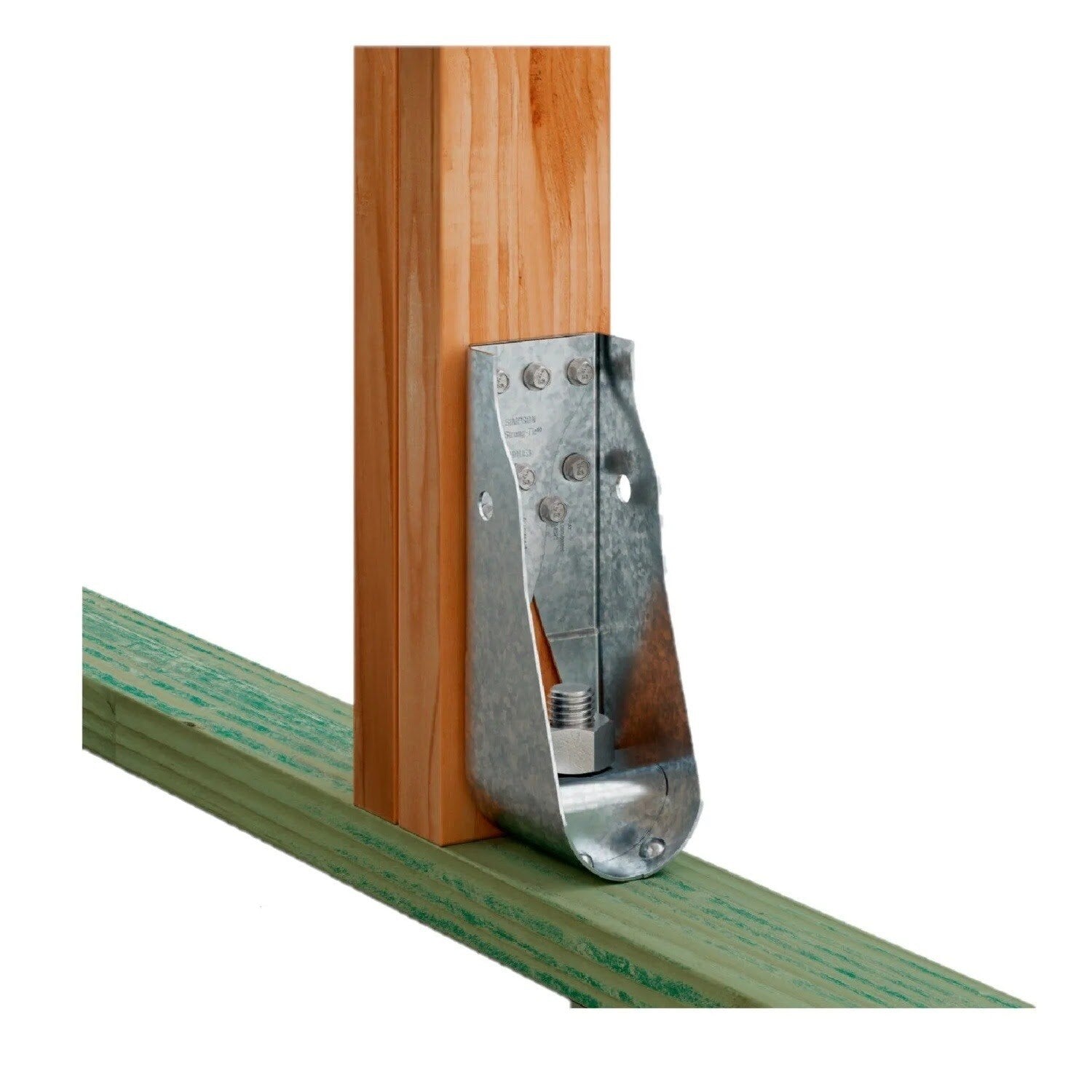

Simpson Strong-Tie HDUE5-SDS3 Installation Overview
- Install using the included Strong-Tie SDS Heavy Duty Connector Screws.
- Ensure correct fasteners are installed in the correct position to achieve published load values.

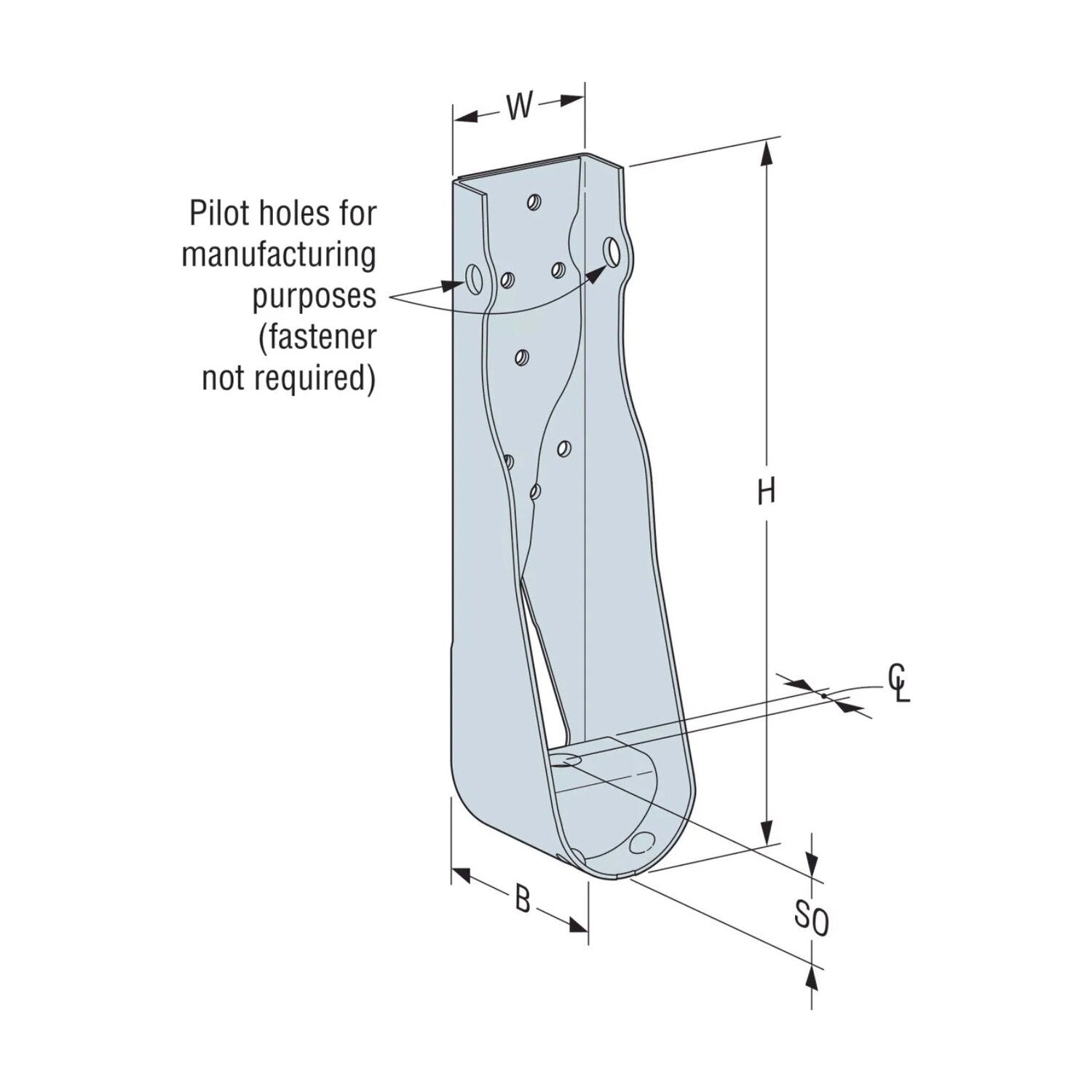

Simpson Strong-Tie HDUE5-SDS3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Base width | 3-3/8" |
| Fasteners required | ALL FASTENERS INCLUDED: (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws, (1) crescent washer |
| For Treated Lumber | No |
| Height | 11-5/16" |
| Thickness | 14 Gauge |
| Width | 2-7/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
