Simpson Anchors | SKU:
HDUE5-SDS3HDG
Simpson Strong-Tie HDUE5-SDS3HDG (11-5/16") Predeflected Holdown with SDS Screws - Hot Dip Galvanized
$50.79
Unit price
/
Unavailable
Description
Description

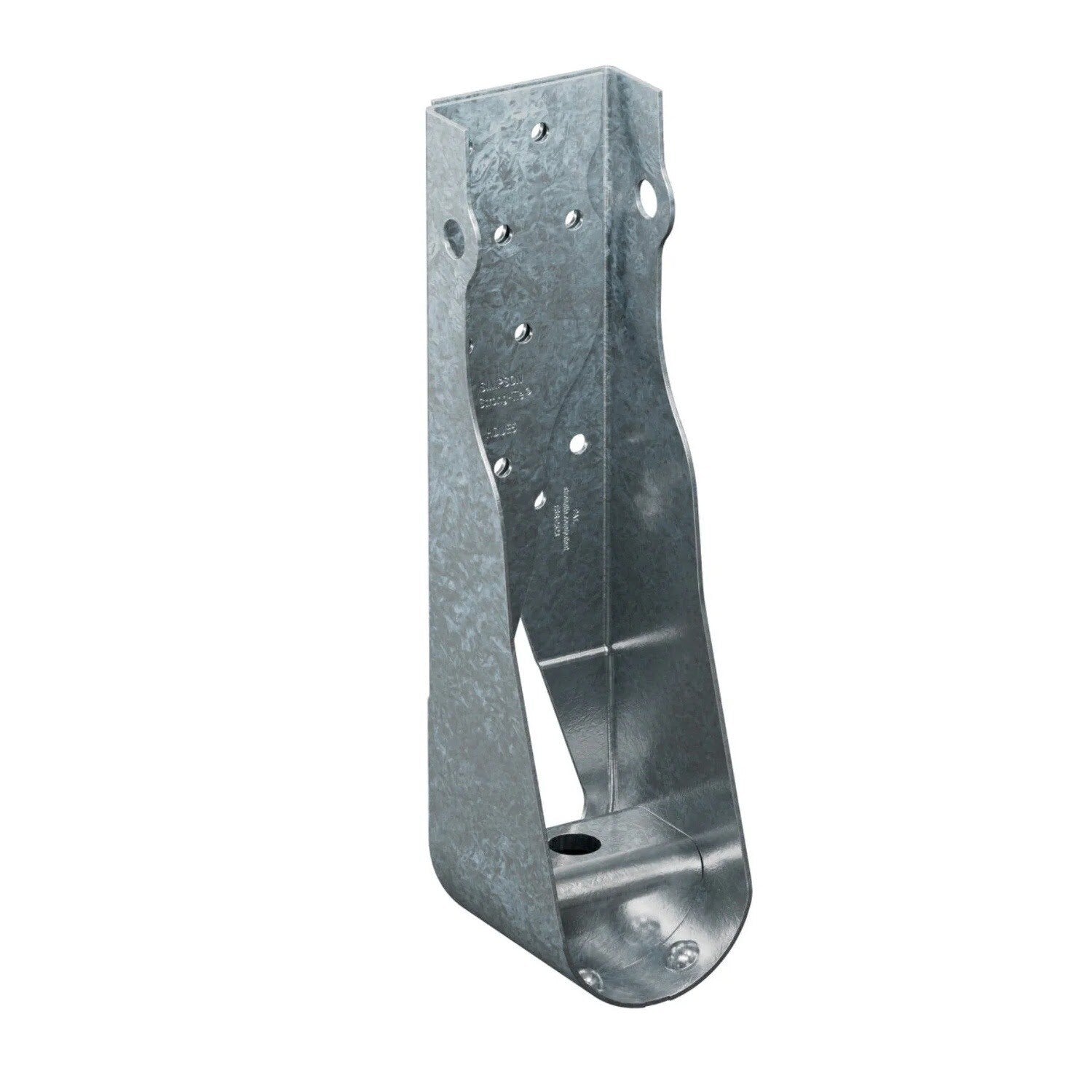

Simpson Strong-Tie HDUE5-SDS3HDG Description
The HDUE5-SDS3HDG is a predeflected holdown designed for wood framing applications, featuring a hot-dip galvanized finish for durability and corrosion resistance.

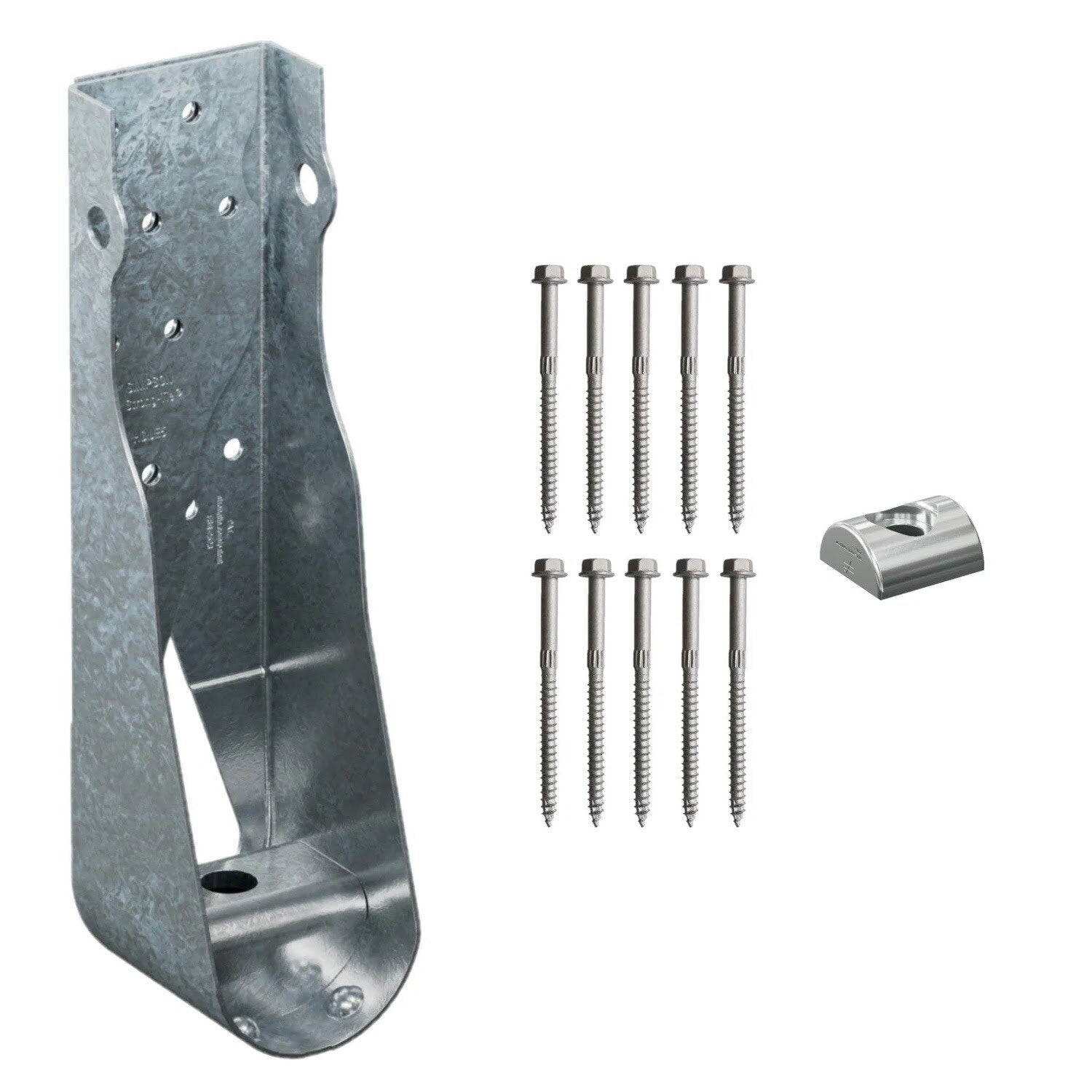

Simpson Strong-Tie HDUE5-SDS3HDG Includes
- (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
Simpson Strong-Tie HDUE5-SDS3HDG Features
- Predeflected seat reduces deflection under load
- Angled fastening in the four larger sizes engages the screws in tension for higher load capacity
- Overlapping back plate increases fastener strength and shear values
- Optimized screw patterns reduce splitting at the end of the post
- Installs with Strong-Drive SDS Heavy-Duty Connector screws
- Extruded seat adds a greater cross-sectional steel section for added strength
- Teardrop holes allow higher and more even distribution of load
Simpson Strong-Tie HDUE5-SDS3HDG Applications
- Framing — Wood

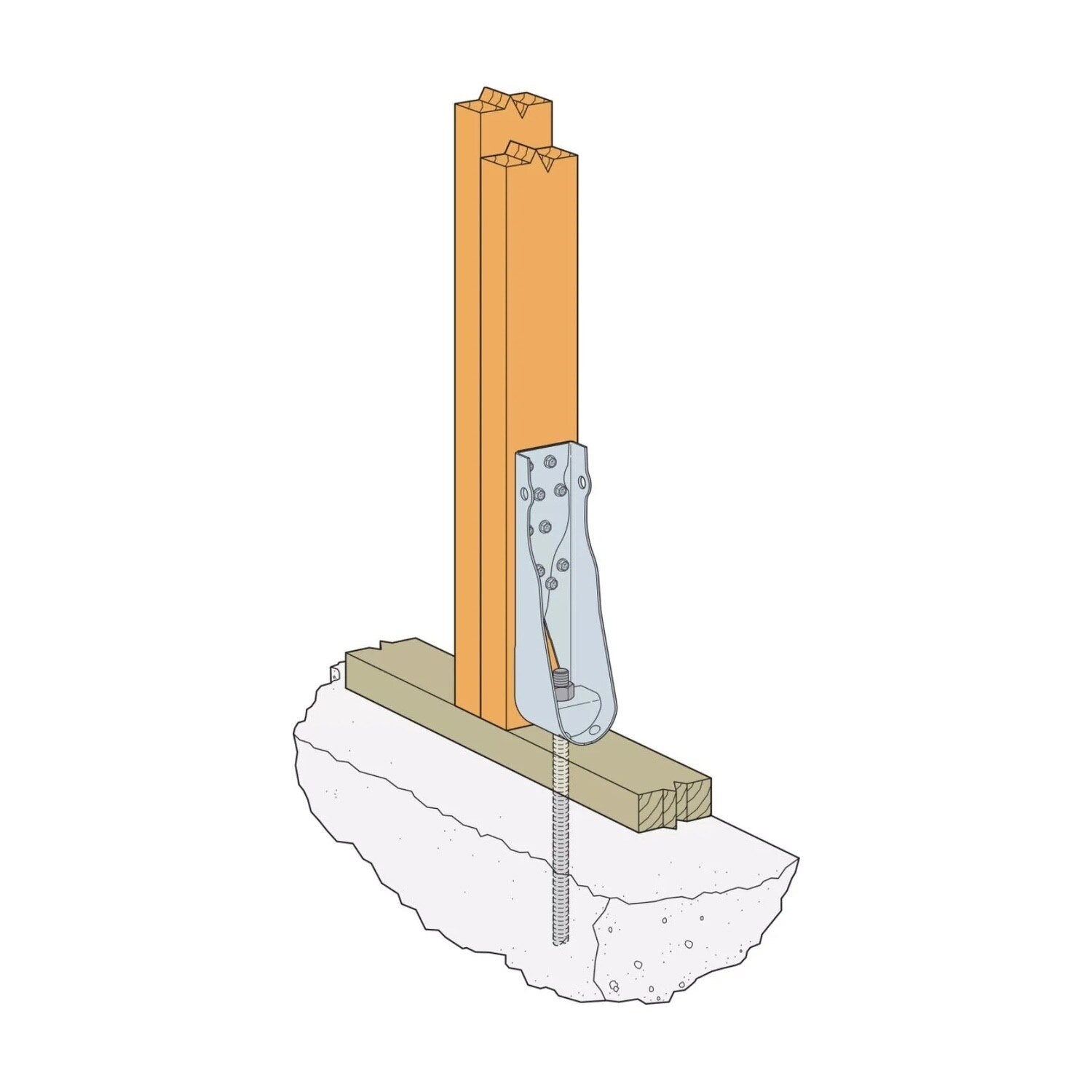

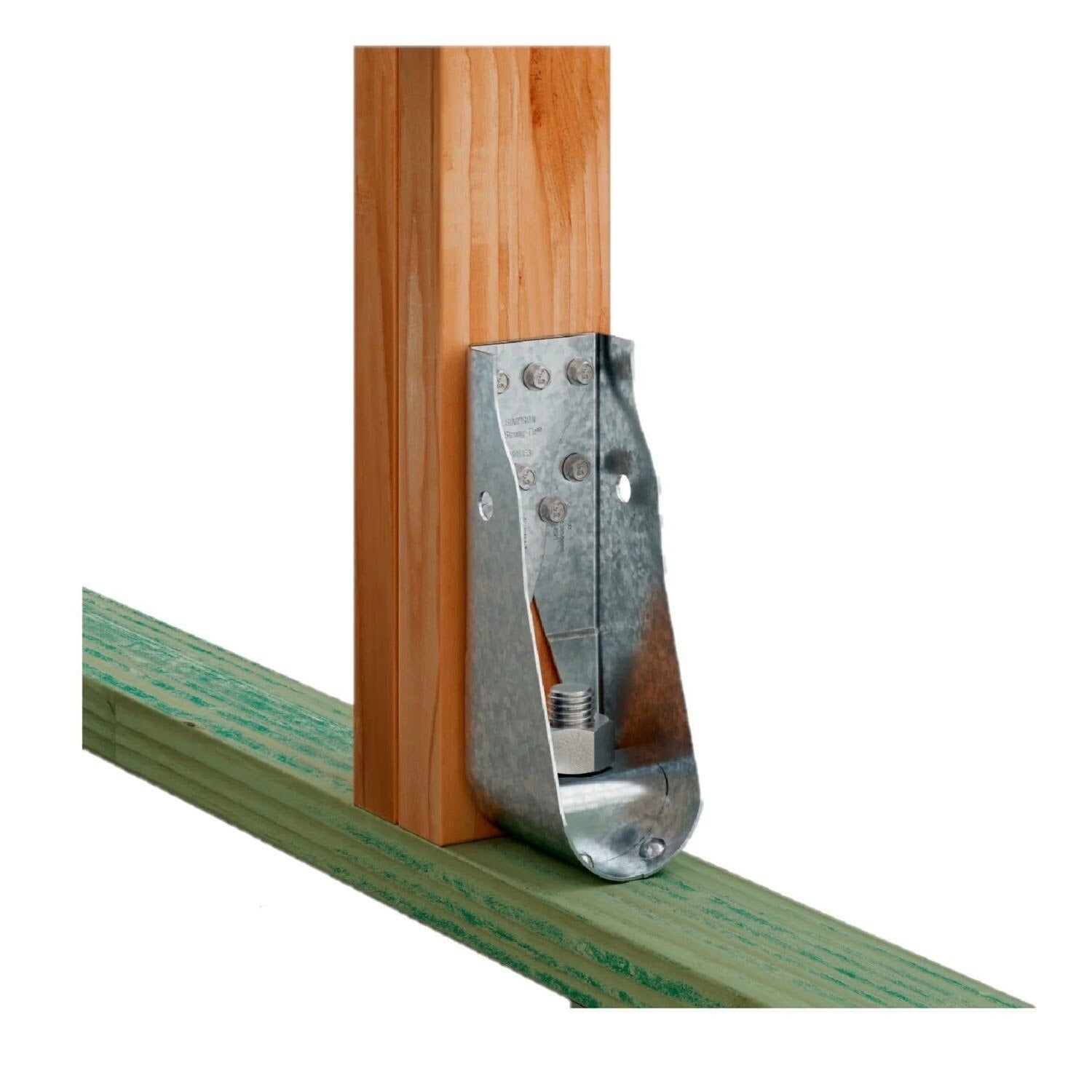

Simpson Strong-Tie HDUE5-SDS3HDG Installation Overview
- Set the correct size cast-in-place anchor bolt
- Place the HDUE holdown over the anchor bolt
- Install all Strong-Drive SDS Heavy-Duty Connector Screws perpendicular into the wood member
- Anchor bolt nut should be finger tight plus 1/3 to 1/2 turn with a hand wrench
Simpson Strong-Tie HDUE5-SDS3HDG Specifications
| Material | 14 Gauge |
| Finish | Hot-Dip Galvanized |
| Width | 2 7/8 in. |
| Height | 11 5/16 in. |
| Base Width | 3 3/8 in. |
| Centerline | 1 3/8 in. |
| Stand-Off | 1 1/2 in. |
