Simpson Anchors | SKU:
HDUE7

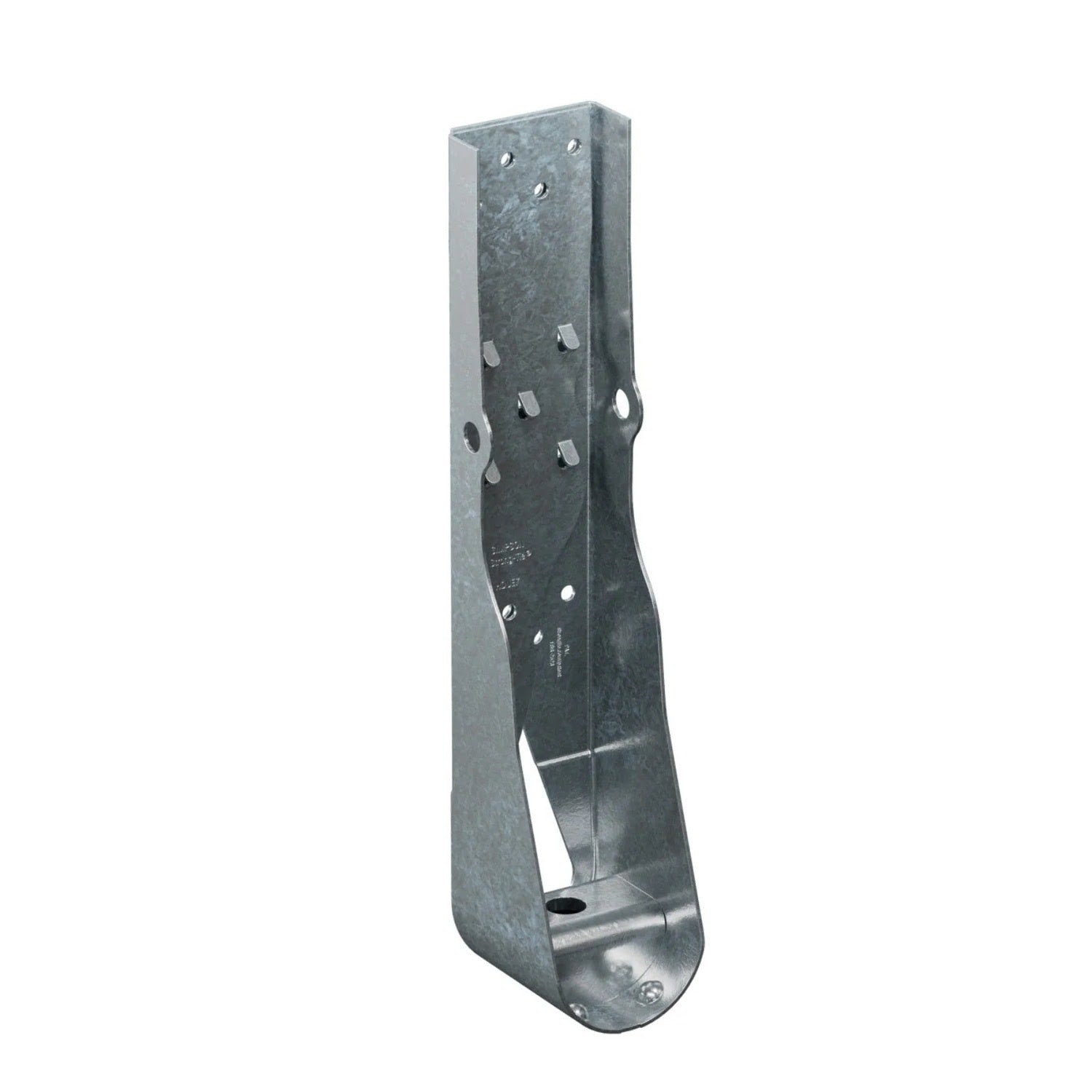

Simpson Strong-Tie HDUE7 (14-11/16") Predeflected Holdown G90 Galvanized
$25.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDUE7 Description
The Simpson Strong-Tie HDUE7 Predeflected Holdown offers exceptional lateral-load resistance for demanding residential and multi-story applications, ensuring strong and reliable connections for structural elements.
Simpson Strong-Tie HDUE7 Includes
- (1) Predeflected Holdown G90 Galvanized
- (13) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
Simpson Strong-Tie HDUE7 Features
- Enhanced Load Capacity: Engineered to meet increased demands in residential construction, especially for large openings and taller walls.
- Innovative Angled Fastening: Larger models feature screw placement that engages both tension and shear for higher allowable loads with fewer fasteners.
- Predeflected Seat Design: Rounded seat minimizes deflection under load, improving structural stability.
- Overlapping Back Plate: Reinforces steel strength while helping prevent post splitting.
- Optimized Screw Patterns: Designed to reduce wood splitting and maximize fastener performance at the post end.
Simpson Strong-Tie HDUE7 Applications
- Shearwalls: Provides strong connections for lateral-load resistance.
- Braced Wall Panels: Ensures stability in multi-story applications.
- Structural Elements: Ideal for demanding residential construction needs.

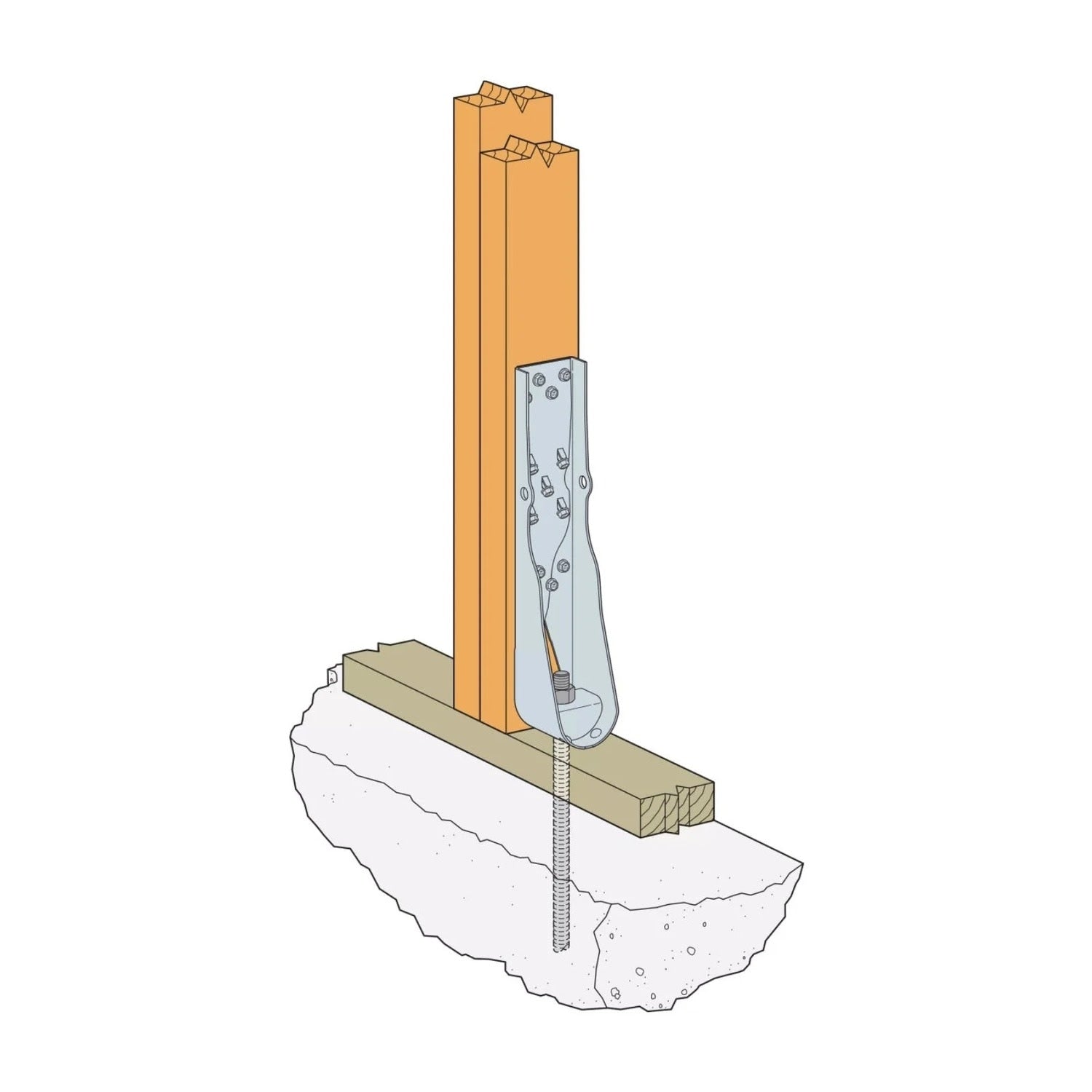

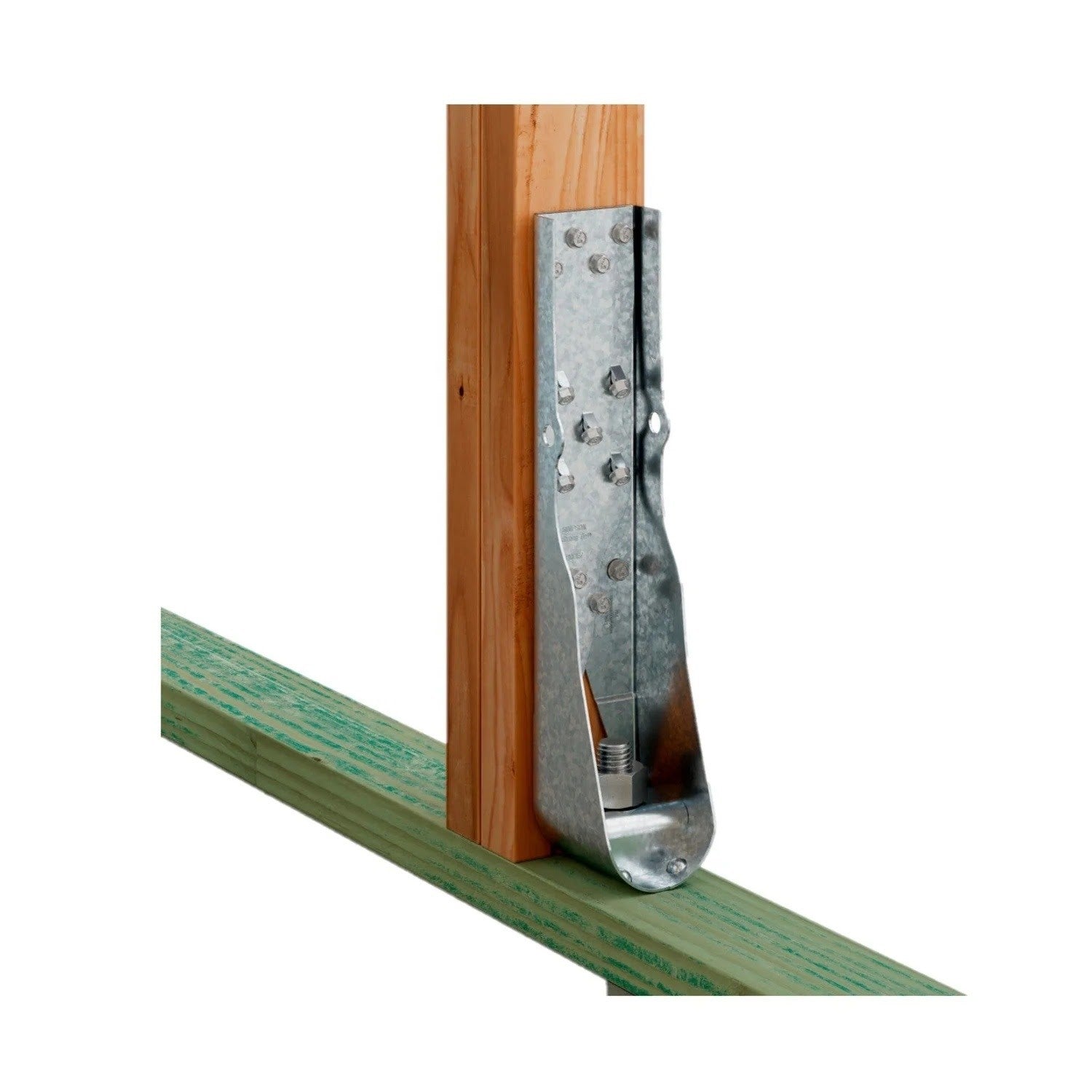

Simpson Strong-Tie HDUE7 Installation Overview
- Install using Strong-Drive SDS Heavy-Duty Connector screws.
- Ensure fasteners are positioned correctly to achieve published load values.
- Minimize fastener slip to preserve wood post's net section.

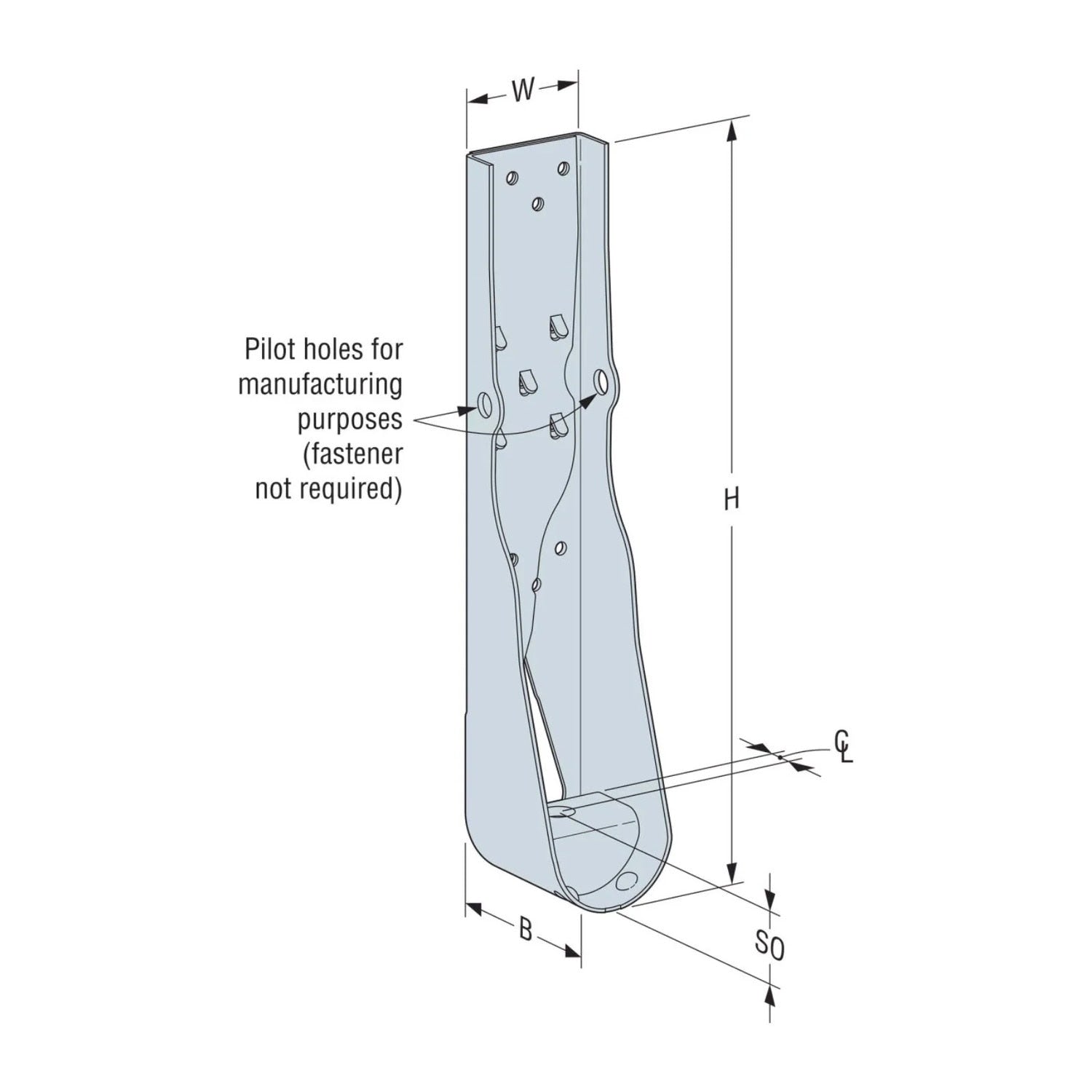

Simpson Strong-Tie HDUE7 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Base width | 3-3/8" |
| Fasteners required | (13) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws, (1) crescent washer |
| For Treated Lumber | No |
| Height | 14-11/16" |
| Thickness | 14 Gauge |
| Width | 2-7/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
