Simpson Anchors | SKU:
HDUE9
Simpson Strong-Tie HDUE9 (17-3/8") Predeflected Holdown - G90 Galvanized
$43.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDUE9 Description
The Simpson Strong-Tie HDUE9 Predeflected Holdown is designed for exceptional lateral-load resistance in residential and multi-story applications, ensuring strong and reliable connections.
Simpson Strong-Tie HDUE9 Includes
- (1) Predeflected Holdown - G90 Galvanized
- (16) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Crescent Washer
Simpson Strong-Tie HDUE9 Features
- Enhanced load capacity for demanding construction needs
- Innovative angled fastening for higher allowable loads
- Predeflected seat design for improved structural stability
- Overlapping back plate to reinforce steel strength
- Optimized screw patterns to reduce wood splitting
Simpson Strong-Tie HDUE9 Applications
- Shearwalls and braced wall panels
- Structural elements in residential and multi-story buildings

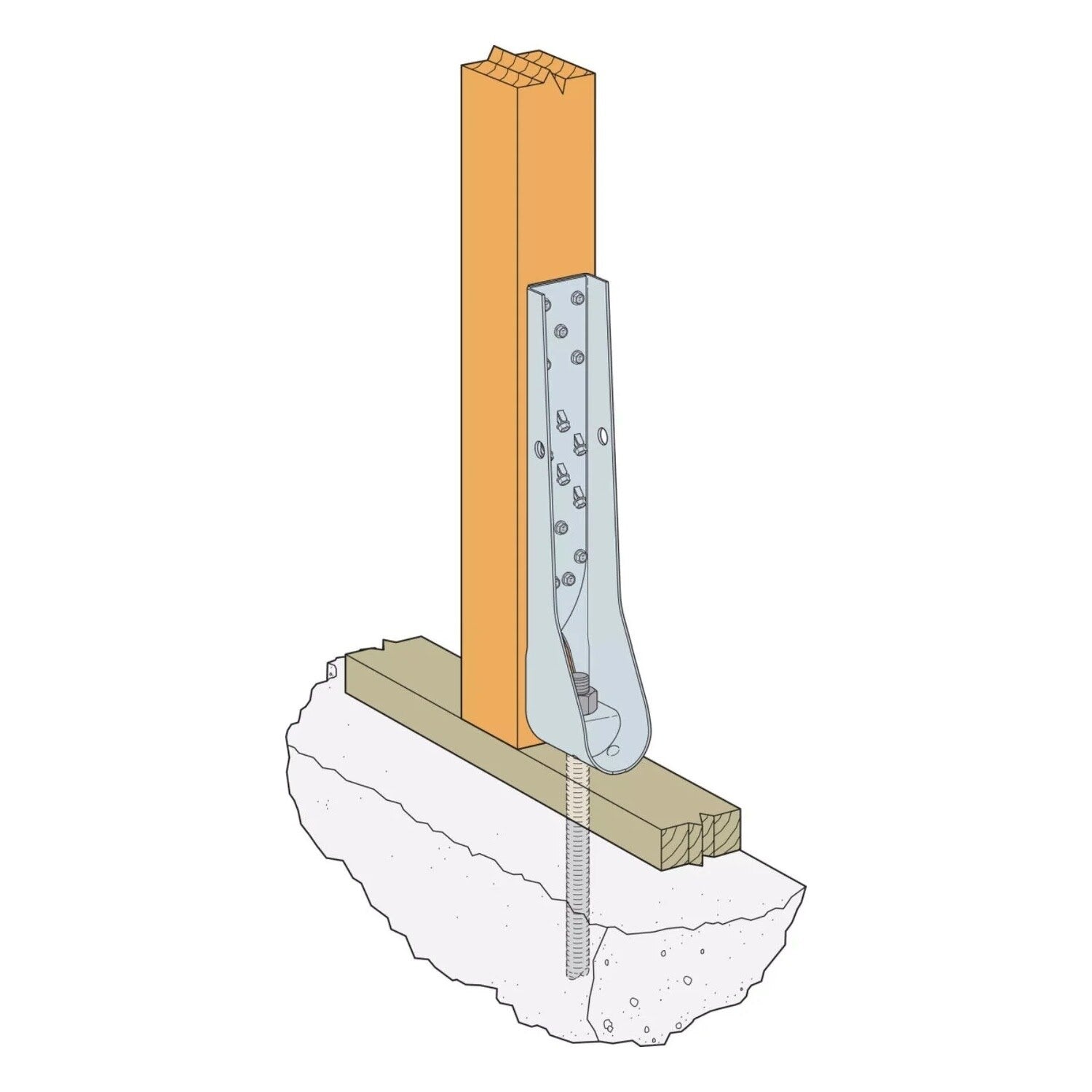

Simpson Strong-Tie HDUE9 Installation Overview
- Install using Strong-Drive SDS Heavy-Duty Connector screws
- Ensure correct fasteners are used in the correct position

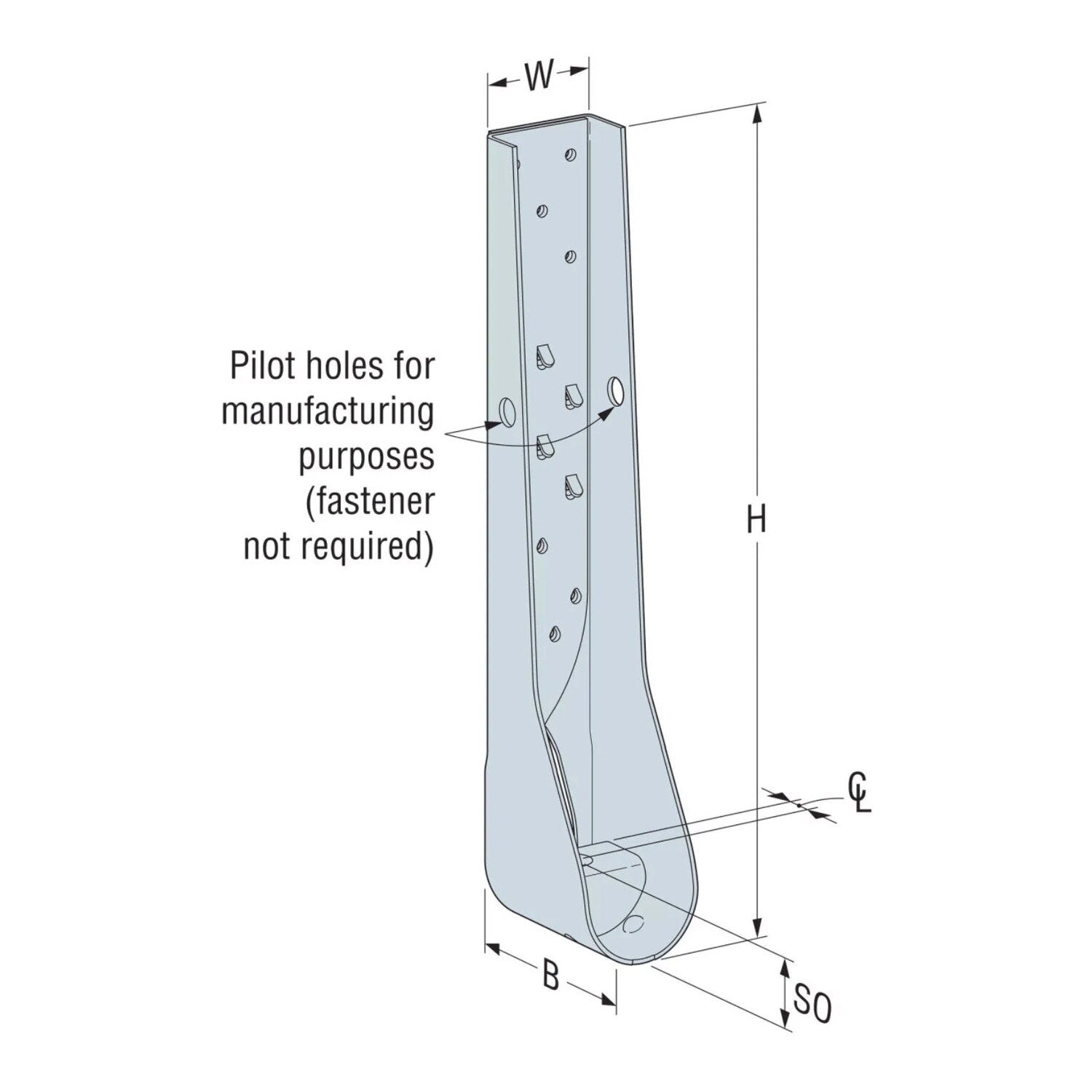

Simpson Strong-Tie HDUE9 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Base width | 4-5/16" |
| Fasteners required | (16) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, (1) Crescent washer |
| For Treated Lumber | No |
| Height | 17-3/8" |
| Thickness | 12 Gauge |
| Width | 3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
