Simpson Hangers | SKU:
HELI371600A
Simpson Strong-Tie HELI371600A (3/8" x 16") Heli-Tie Helical Wall Tie (50 Pack)
Free Shipping
$604.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HELI371600A Description

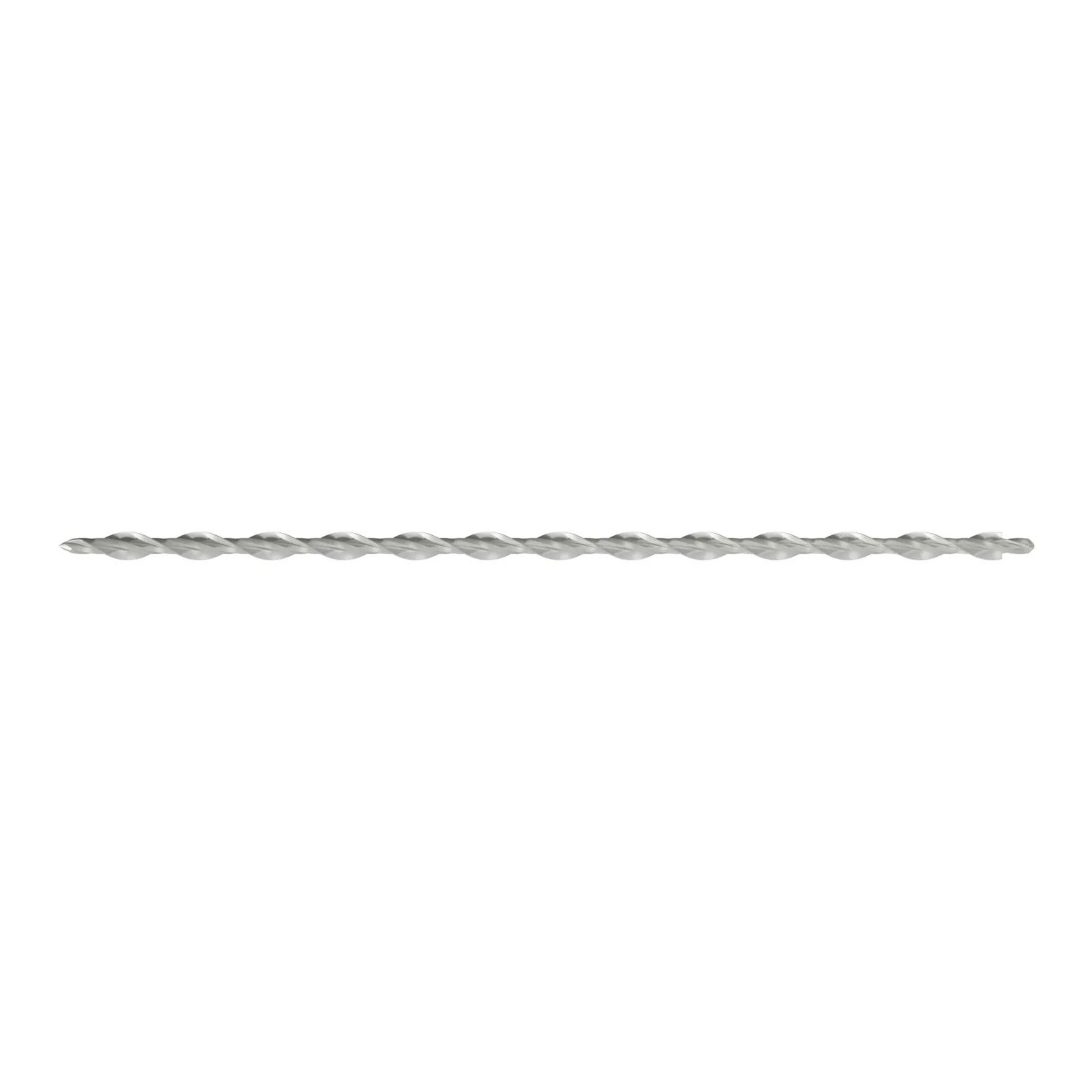

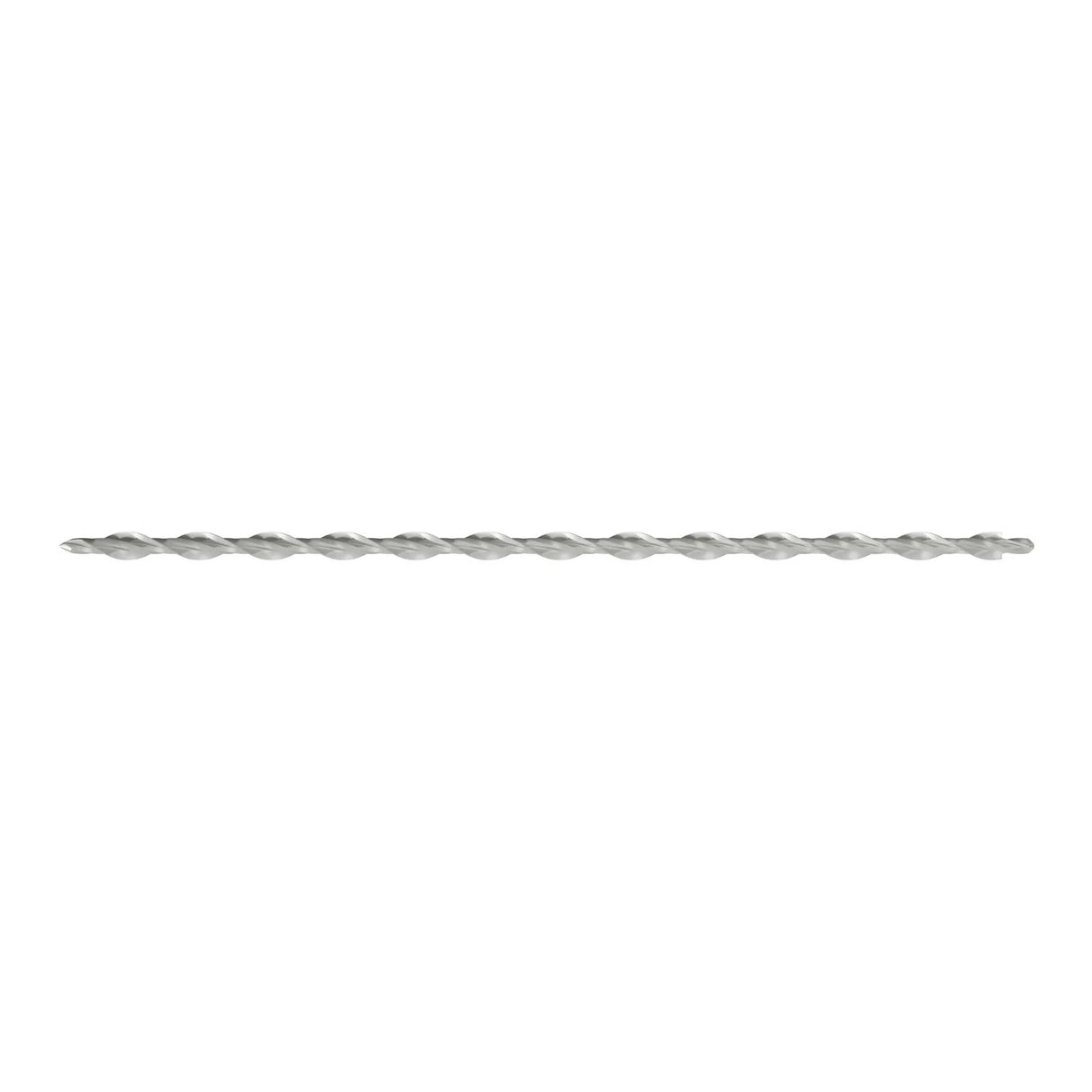

The Simpson Strong-Tie Heli-Ties are designed to anchor building facades to structural members such as concrete block. Made from 304 stainless steel, they offer excellent corrosion resistance and a long service life.
Simpson Strong-Tie HELI371600A Includes
- (50) 3/8 in. x 16 in. Helical Wall Tie
Simpson Strong-Tie HELI371600A Features
- Helical design for quick installation
- Made from 304 stainless steel for corrosion resistance
- Designed for anchoring building facades to structural members
Simpson Strong-Tie HELI371600A Applications
- Anchoring building facades to concrete block
- Securing structural members in masonry construction

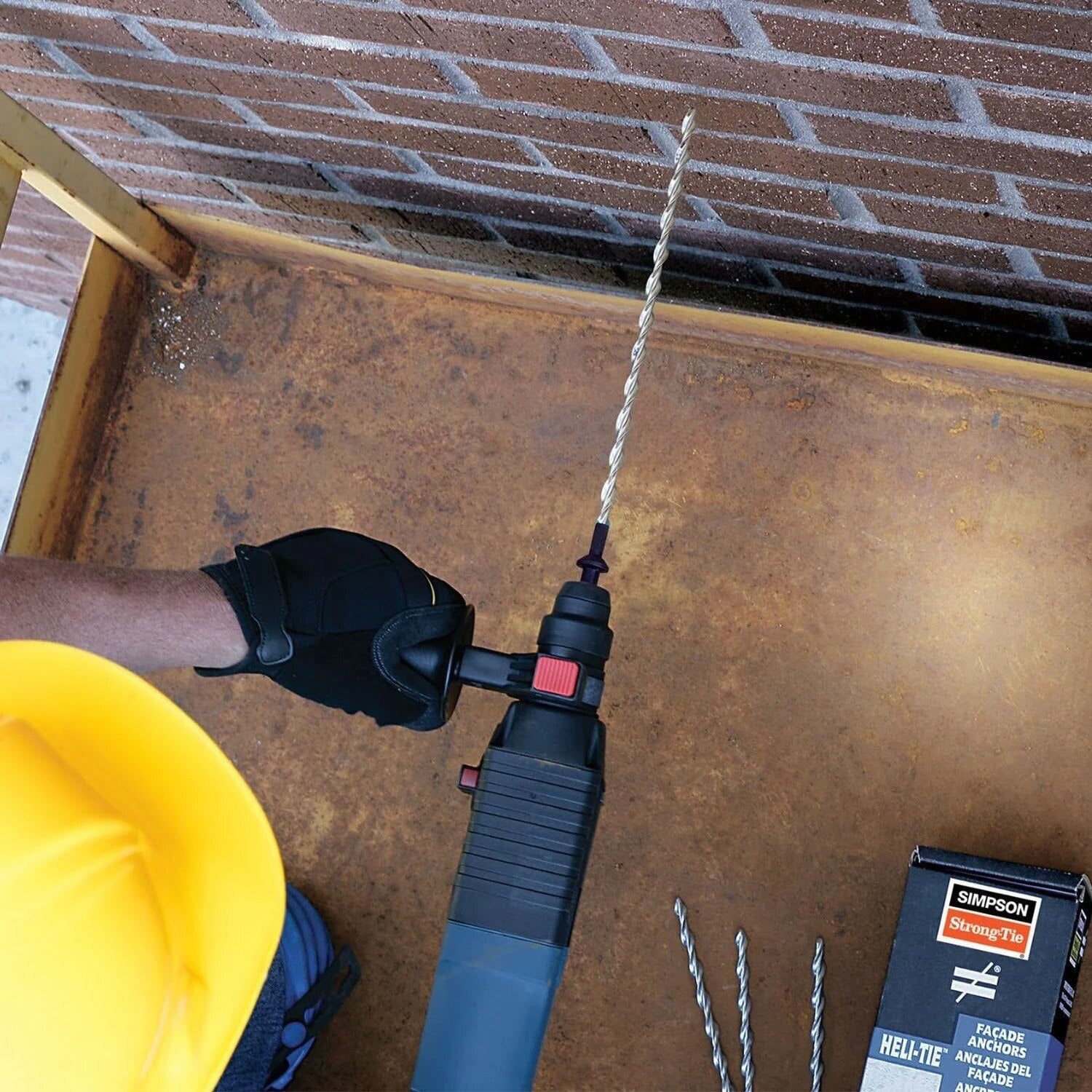

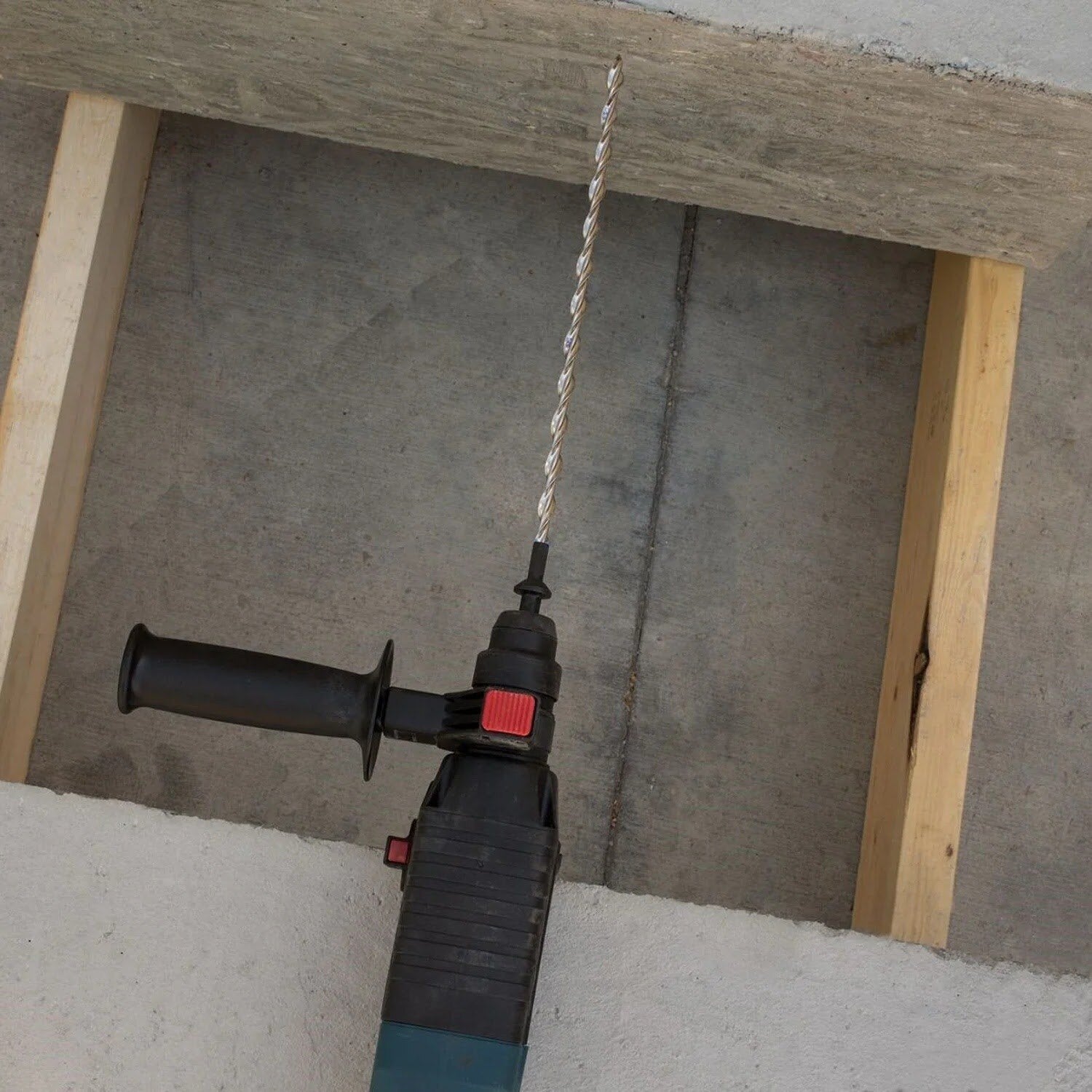

Simpson Strong-Tie HELI371600A Installation Overview
- Drill pilot hole through facade material and into backup material to specified embedment depth + 1" using appropriate drill bit.
- Position blue end of the Heli-Tie fastener in the installation tool and insert the tie into the pilot hole.

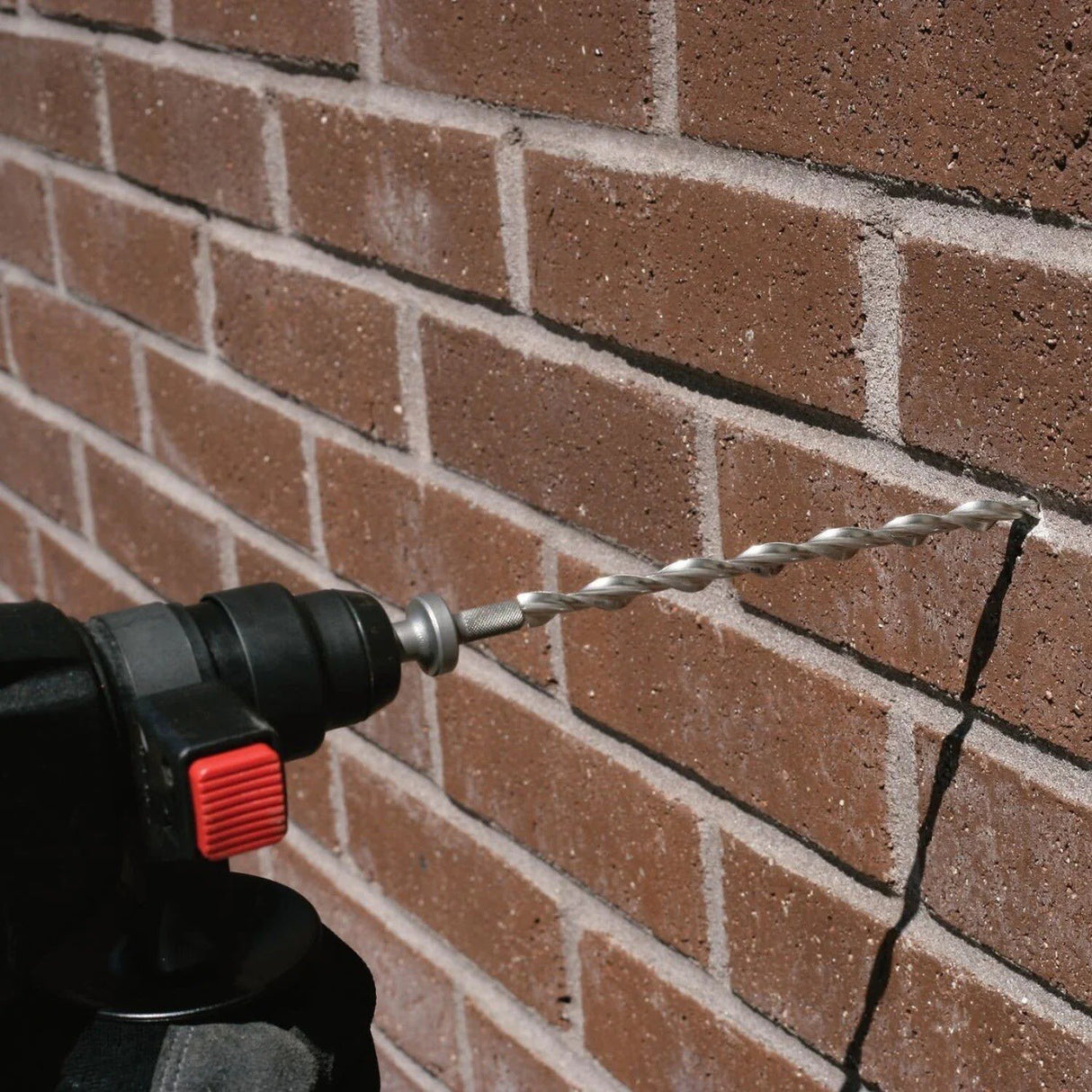

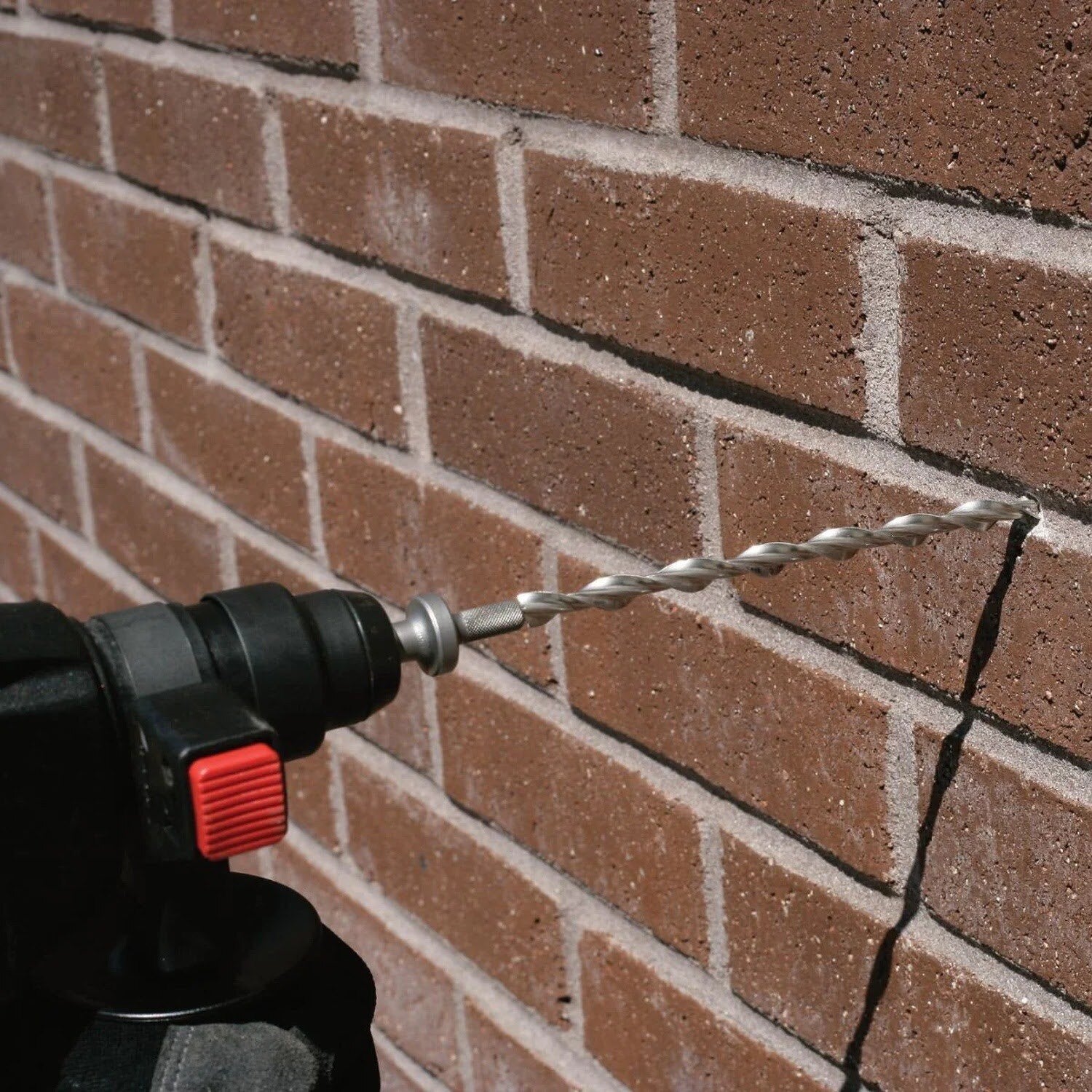

- Drive the tie using an SDS-plus rotohammer in hammer mode until the tip of the installation tool enters the exterior surface of the masonry and countersinks the tie below the surface.
- Patch the hole in the facade with a matching masonry hanger.
Simpson Strong-Tie HELI371600A Specifications
| Diameter | 3/8" |
| Length | 16" |
| Material | 304 Stainless Steel |
| Drill bit size | 7/32" or 1/4" |
