Simpson Anchors | SKU:
HELI372000A

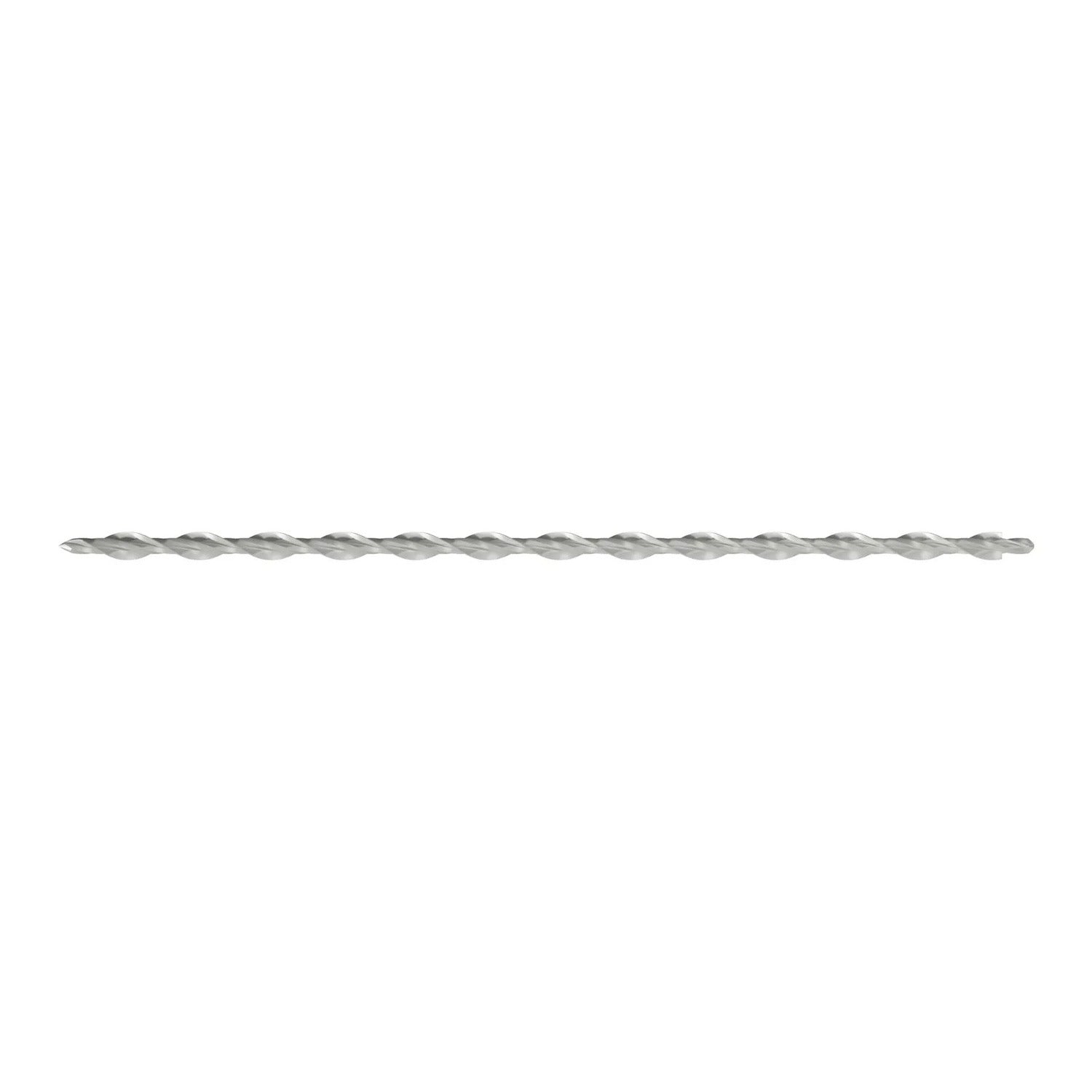

Simpson Strong-Tie HELI372000A (3/8" x 20") Helical Wall Tie (50 Pack)
Free Shipping
$777.56
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HELI372000A Description
The Simpson Strong-Tie Heli-Ties are designed to anchor building facades to structural members such as concrete block. These helical wall ties are made from 304 stainless steel for a long-lasting service life and excellent corrosion resistance.
Simpson Strong-Tie HELI372000A Includes
- (50) Helical Wall Tie 3/8 in. x 20 in.
Simpson Strong-Tie HELI372000A Features
- Installs quickly and easily with the rotohammer in hammer mode.
- Provides an inconspicuous repair that preserves the appearance of the building.
- Larger core diameter provides higher torsional capacity.
- Fractionally sized anchor, no metric drill bits required.
- Patented manufacturing process results in a more uniform helix along the entire tie.
Simpson Strong-Tie HELI372000A Applications
- Anchoring building facades to structural members such as concrete block.
- Repairing cracks in masonry walls.
- Securing brick veneers to backup materials.
Simpson Strong-Tie HELI372000A Installation Overview

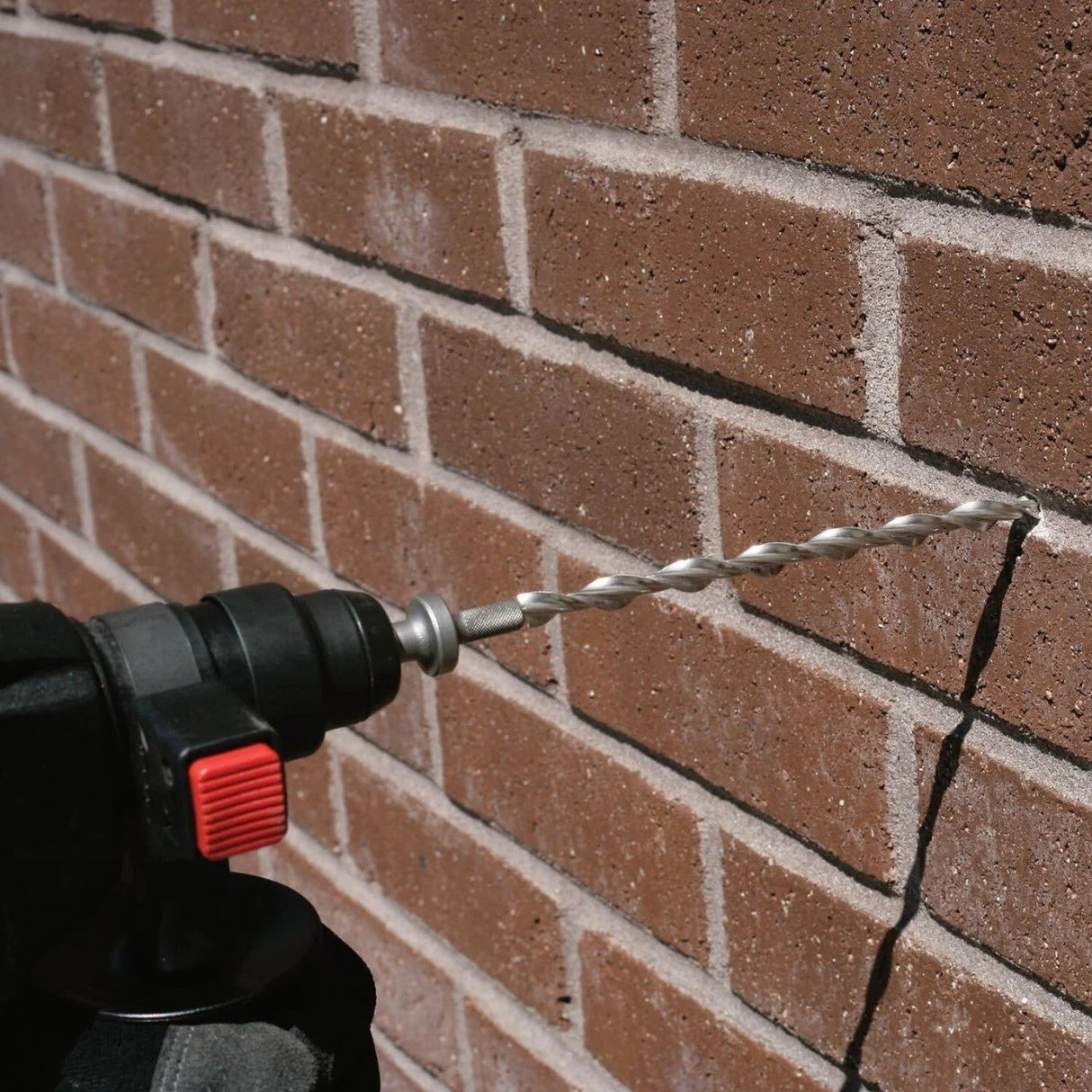

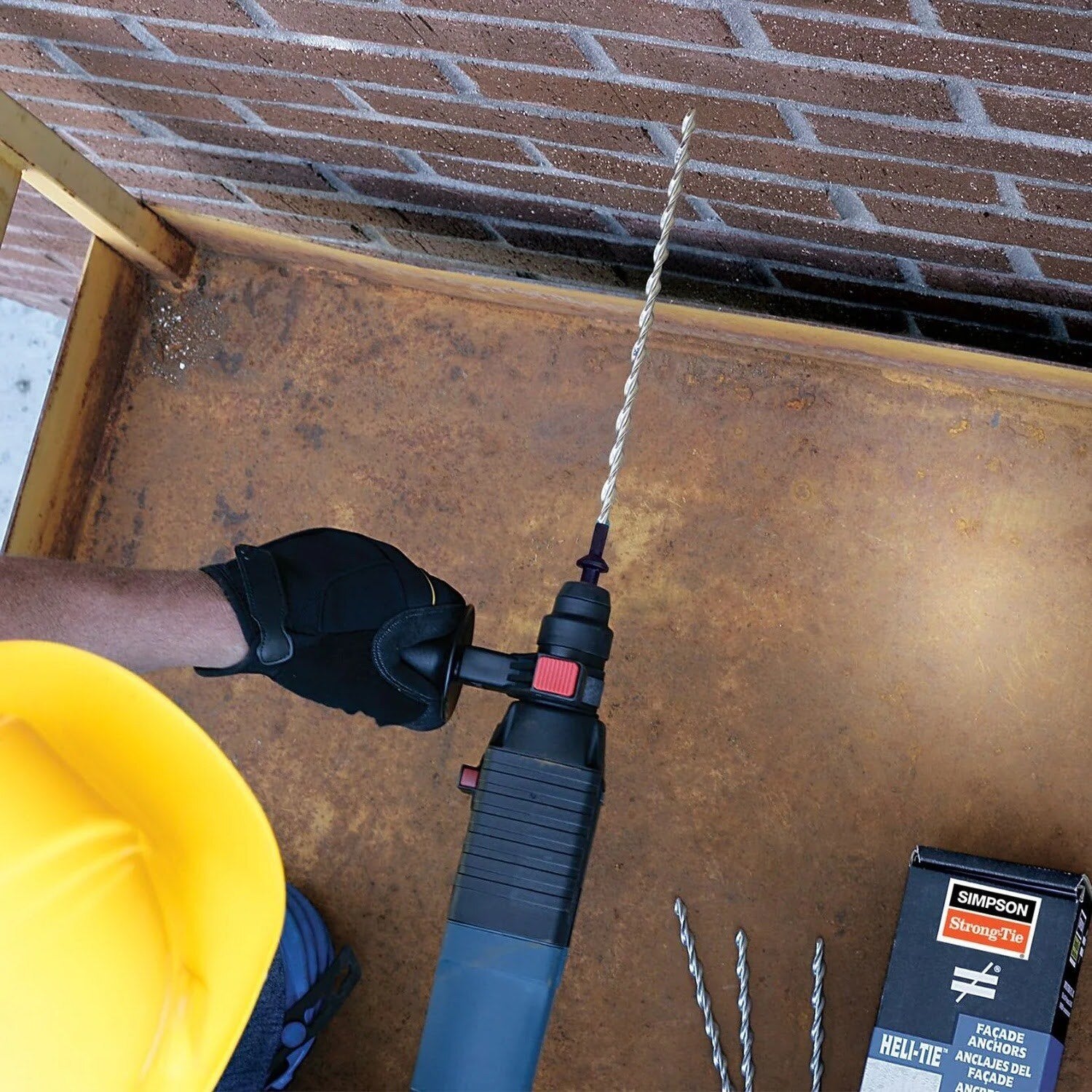

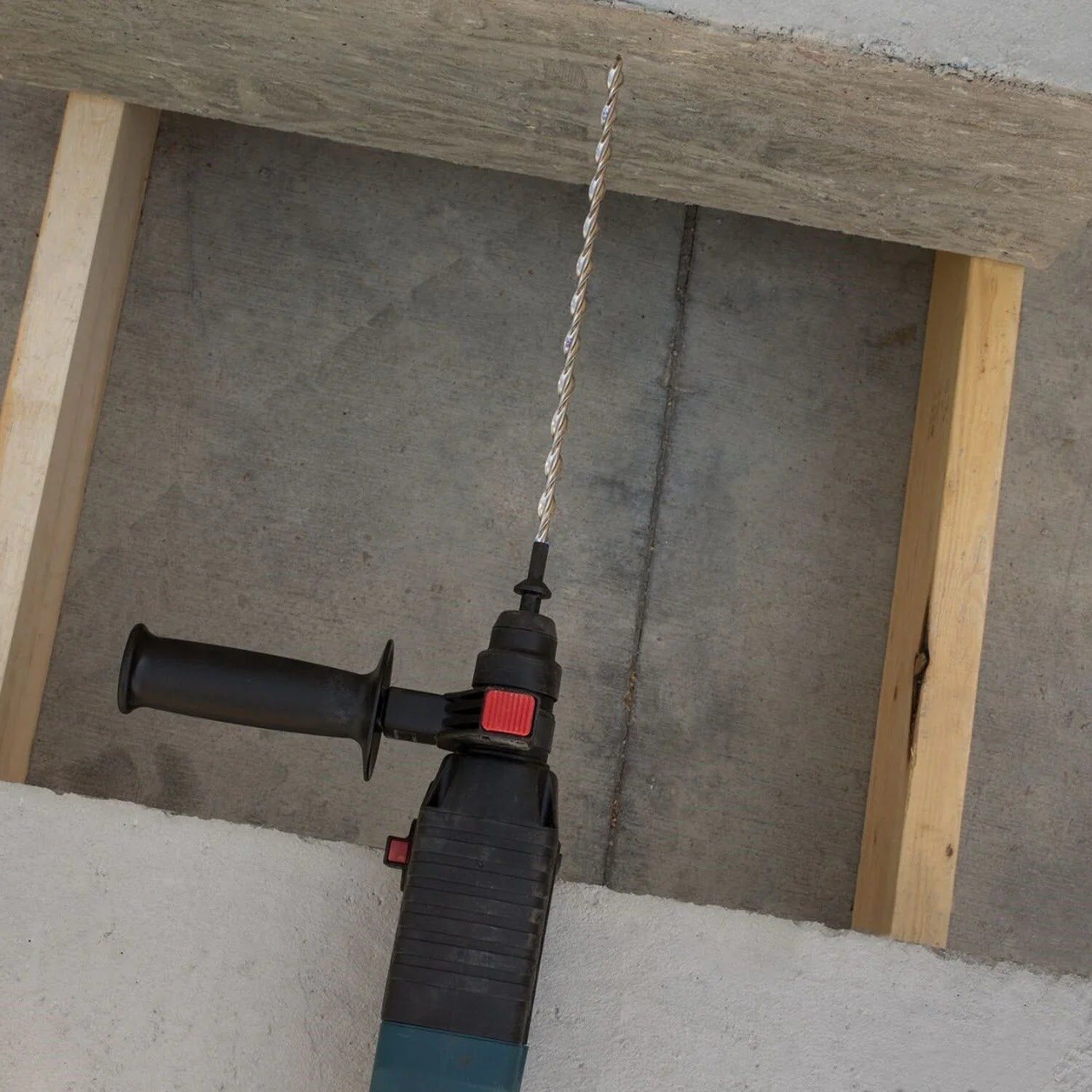

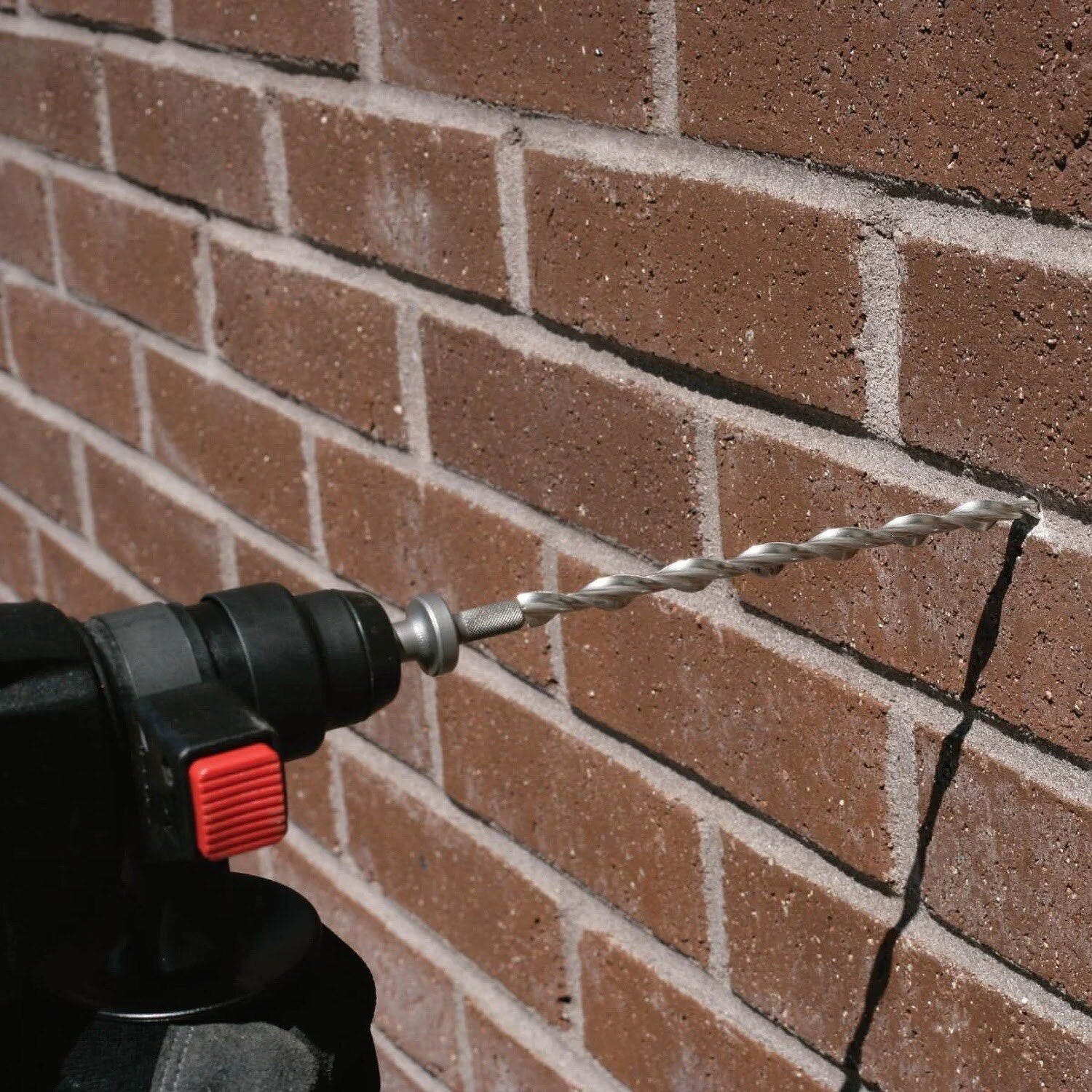

- Drill pilot hole through the facade material and into the backup material to the specified embedment depth.
- Position the drive end of the Heli-Tie fastener in the installation tool and insert the tie into the pilot hole.
- Drive the tie using an SDS-plus rotohammer in hammer mode until countersunk below the surface.
- Patch the hole in the facade with matching masonry mortar.
Simpson Strong-Tie HELI372000A Specifications
| Material | 304 Stainless Steel |
| Diameter | 3/8" |
| Length | 20" |
| Drill Bit Size | 7/32" or 1/4" |
| Pack Quantity | 50 |
NOTE: Special-order lengths are also available; contact Simpson Strong-Tie for details.
