Simpson Strong-Tie HETA12 Description
The HETA12 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, designed for high-wind construction and seismic forces.
Simpson Strong-Tie HETA12 Includes
- (1) HETA12 Embedded Truss Anchor
Simpson Strong-Tie HETA12 Features
- Indented embedment line ensures accurate embedment depth
- Compatible with Simpson Strong-Tie TSS and TBP8 moisture barrier plate
- Load rated for wind and seismic forces
Simpson Strong-Tie HETA12 Applications
- High-wind construction
- Seismic force resistance
Simpson Strong-Tie HETA12 Installation Overview
- Use all specified fasteners as per guidelines.

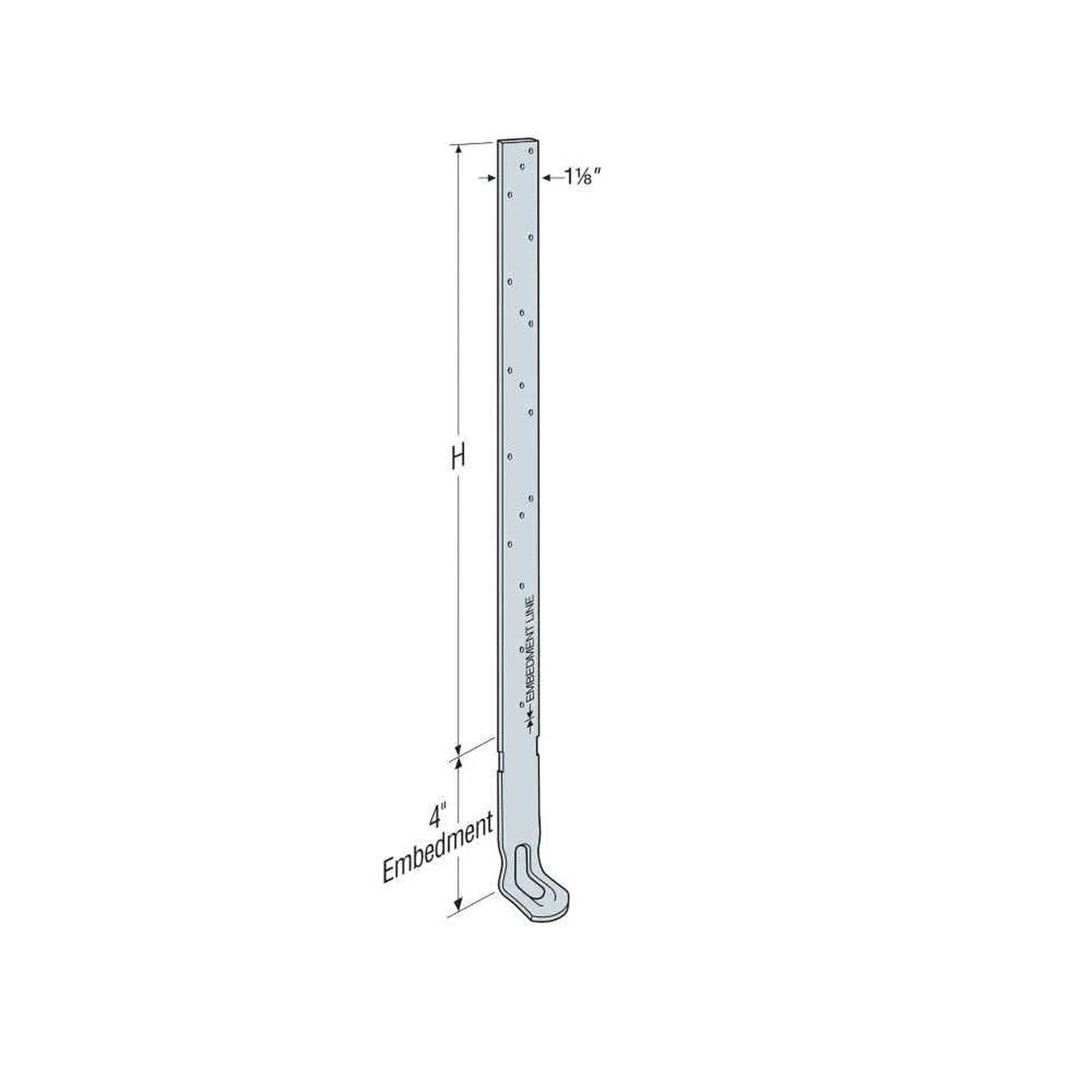

- Embed 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall.
- For mislocated truss anchors, provide a shim if the gap is between 1/8 inch and 1 1/2 inches.
- Ensure minimum spacing of single anchors is twice the embedment depth for full load.
- In double anchor installations, install anchors with spoons facing outward and straps spaced no more than 1/8 inch wider than the rafter/truss width.
Simpson Strong-Tie HETA12 Specifications
| Material | 16 gauge |
| Finish | Galvanized, G90 |
| Height | 8 inches |
| Weight | 0.3 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824274
