Simpson HETA16 Description
The HETA16 Embedded Truss Anchor is engineered for securely attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson HETA16 Includes
- (1) Embedded Truss Anchor
Simpson HETA16 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Preassembled unit with no height adjustment
- Provides a moisture barrier between concrete and truss
- Designed for use with specified fasteners
Simpson HETA16 Applications
- Roof truss attachment to concrete and masonry walls
- Providing moisture barrier between concrete and truss
- Structural support in construction projects
Simpson HETA16 Installation Overview

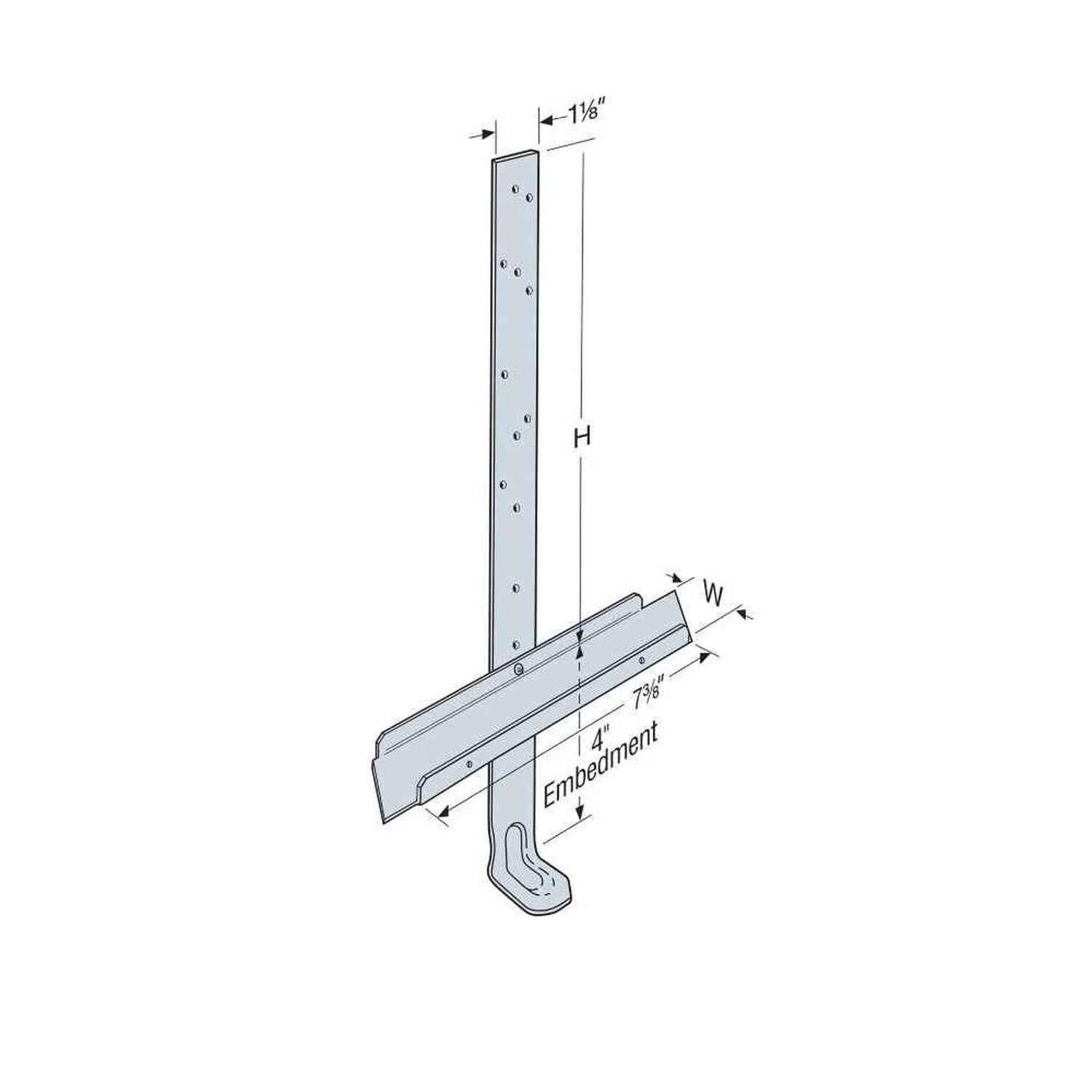

- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Use specified fasteners for installation
- Ensure proper alignment and positioning of the anchor
- Follow guidelines for mislocated truss anchors and shim design
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson HETA16 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 12" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
825589
