Simpson HETA20 Description
The HETA20 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson HETA20 Includes

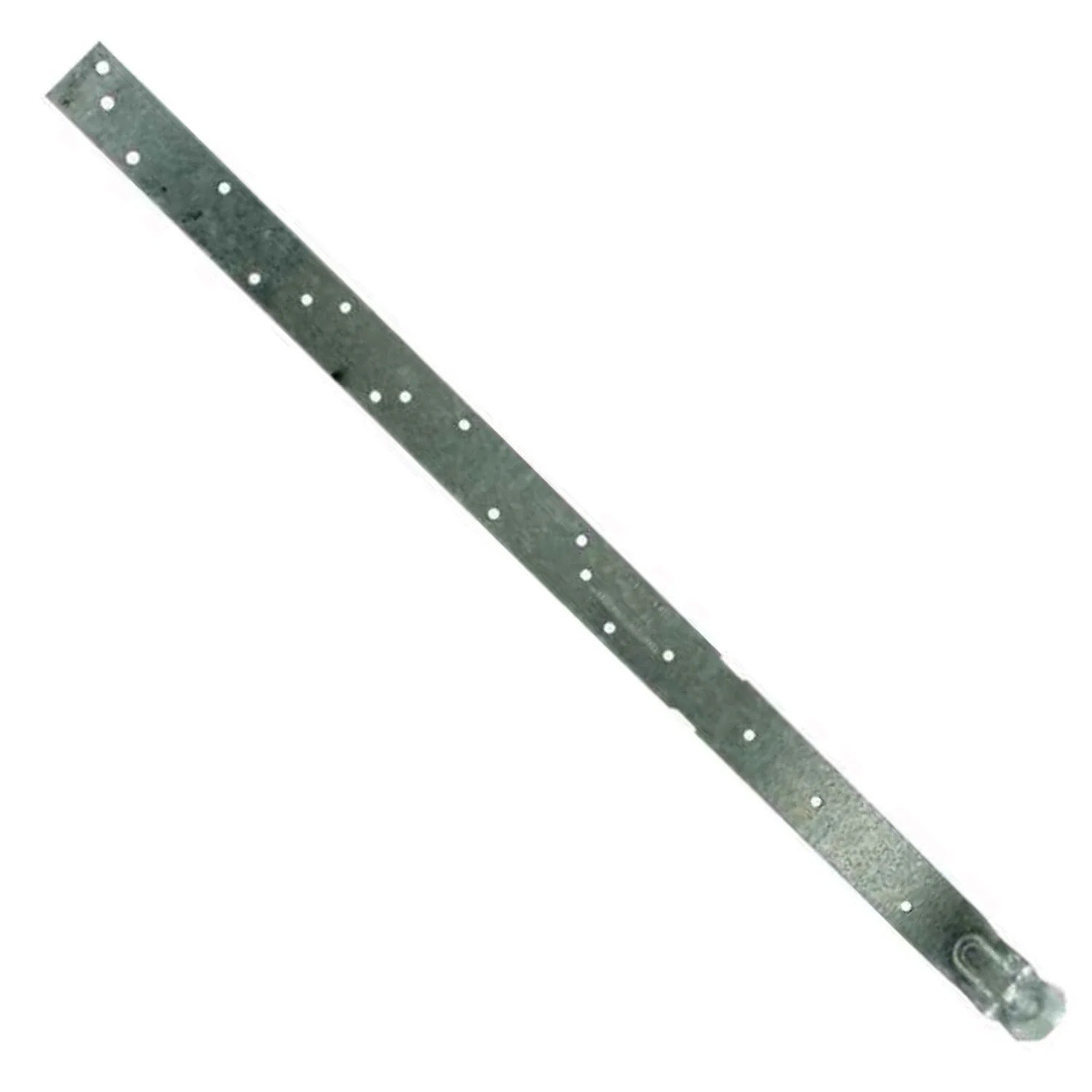

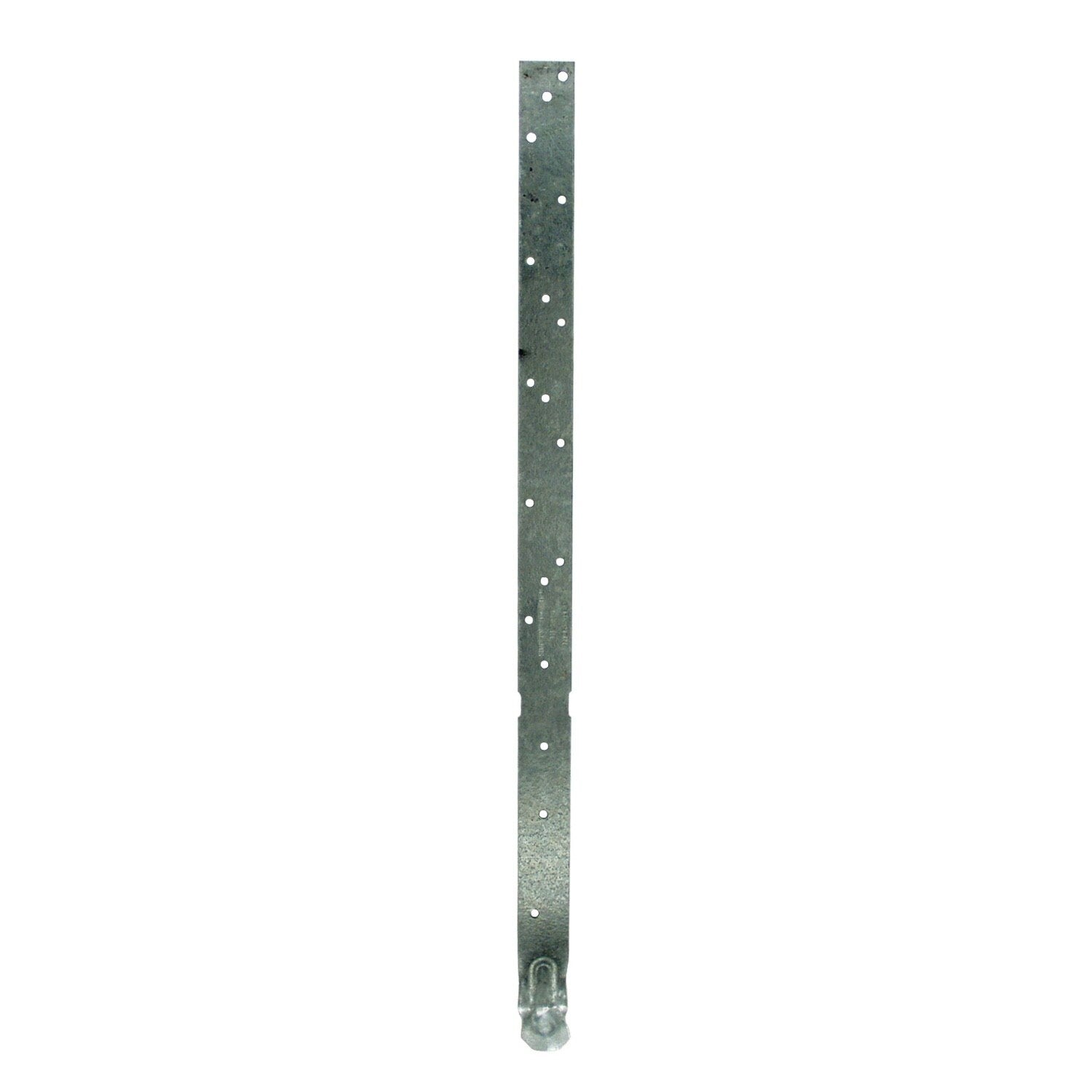

- (1) 20" Embedded Truss Anchor
Simpson HETA20 Features
- Engineered design for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for increased uplift resistance
- Preassembled unit with no height adjustment
- Includes moisture barrier for added protection
- Compatible with single- and multi-ply trusses
Simpson HETA20 Applications
- Roof truss attachment to concrete and masonry walls
- Structural reinforcement in construction projects
- Use in residential and commercial building frameworks
Simpson HETA20 Installation Overview

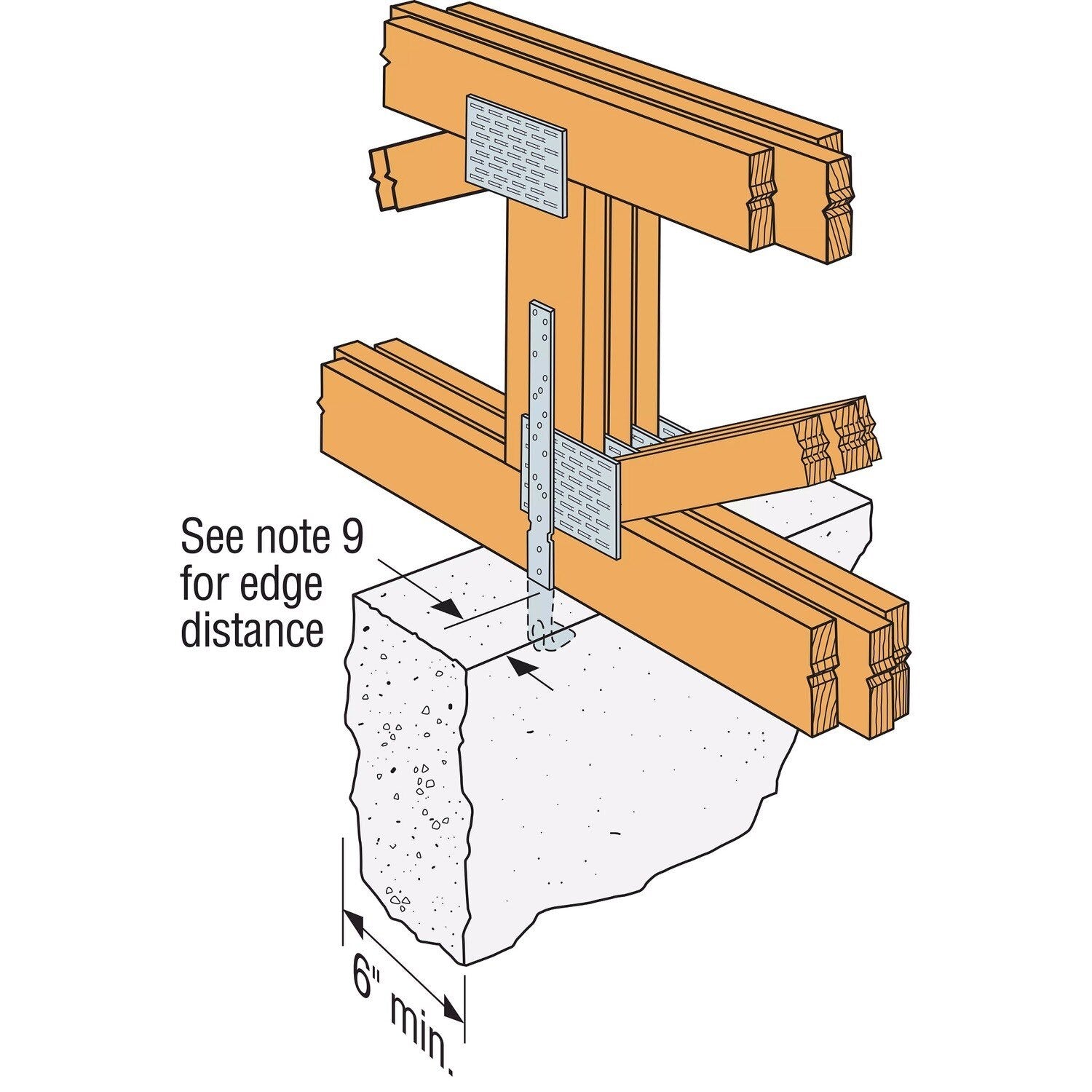

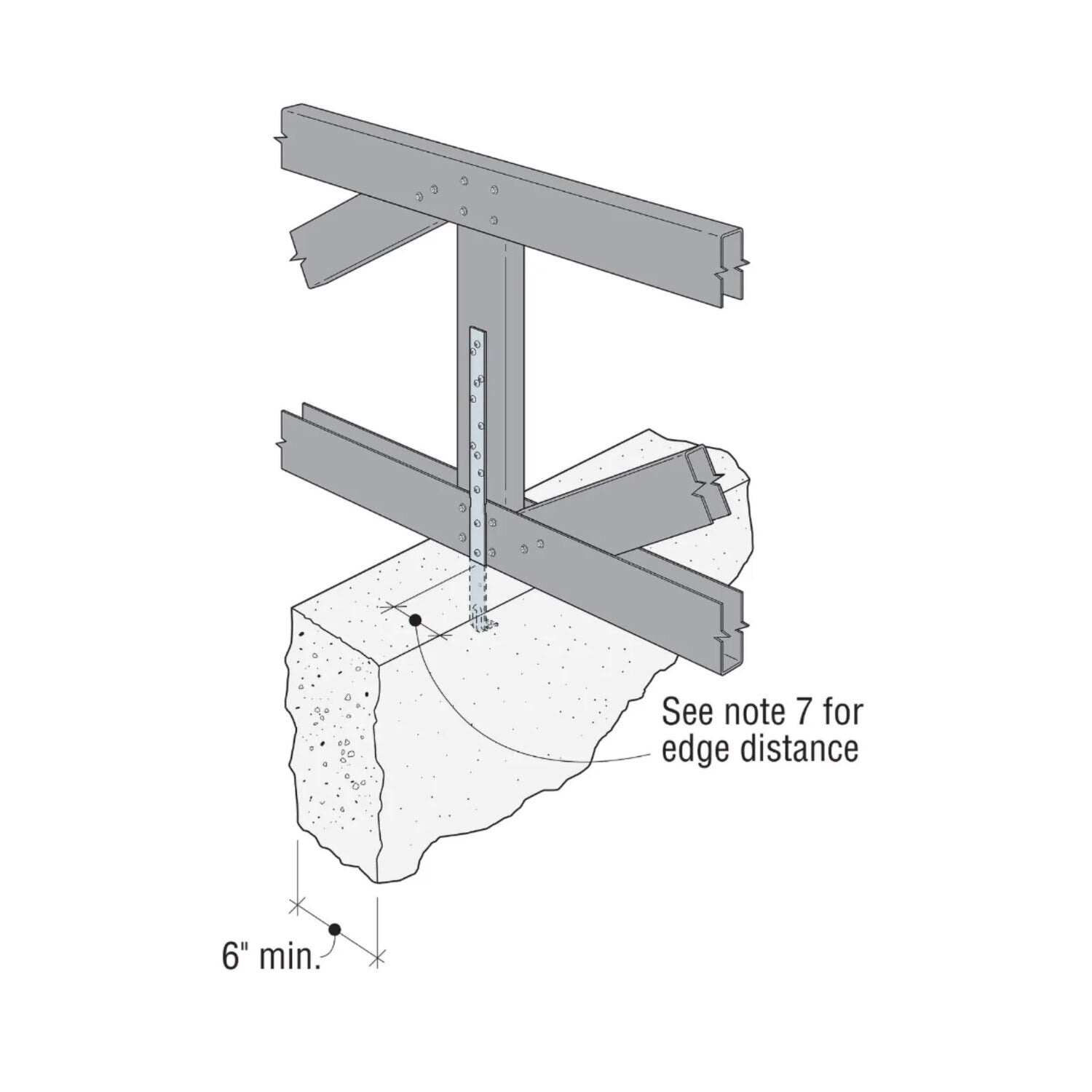

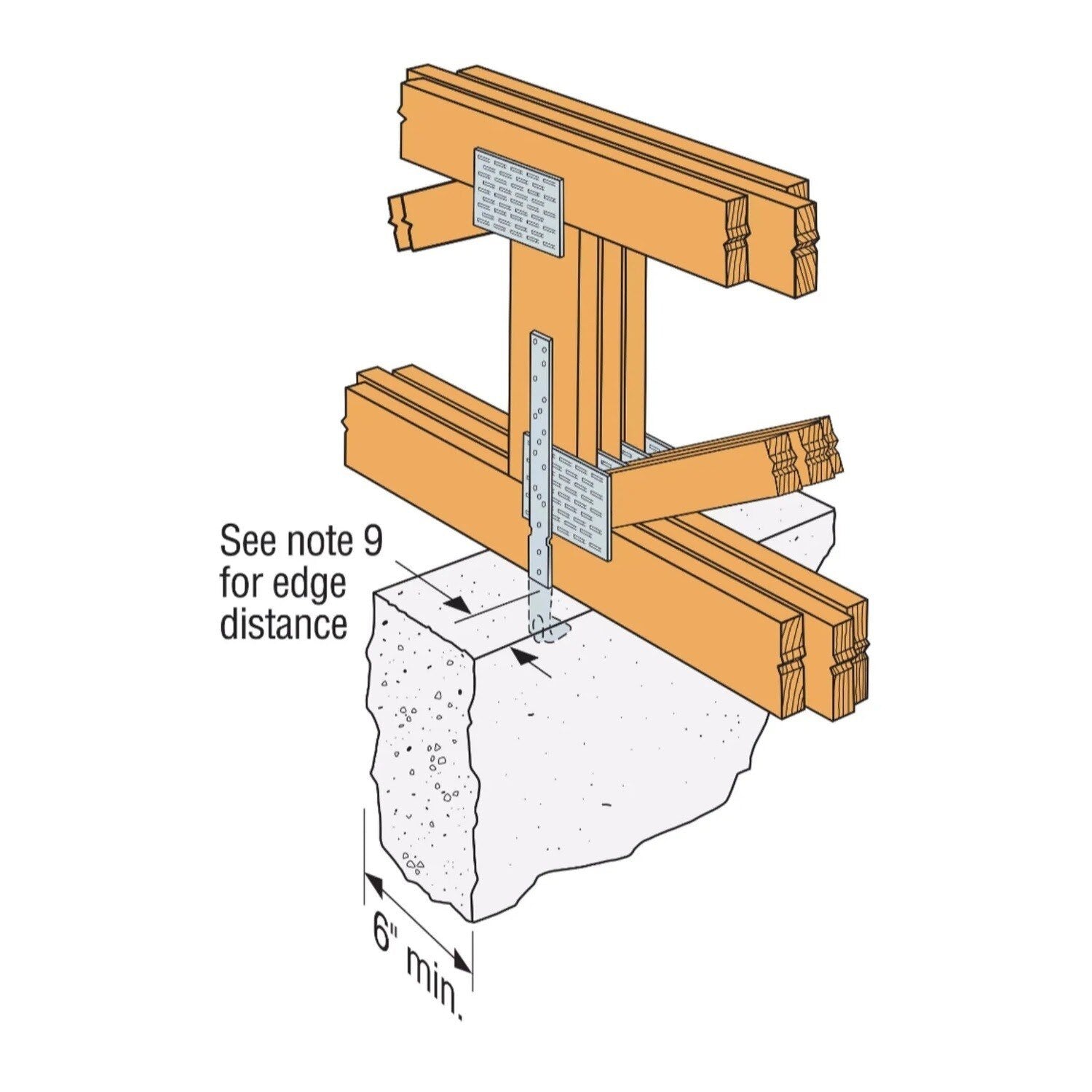

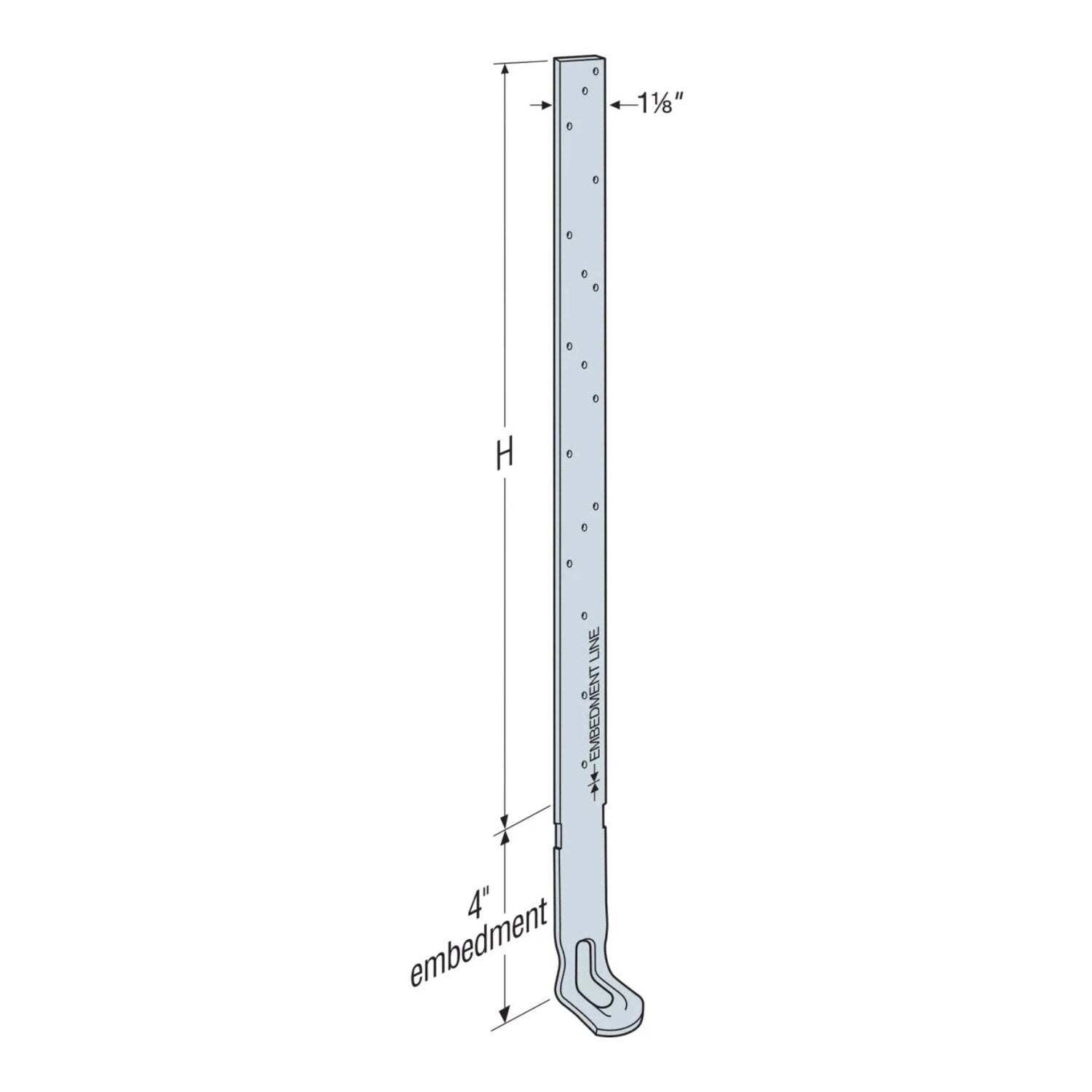

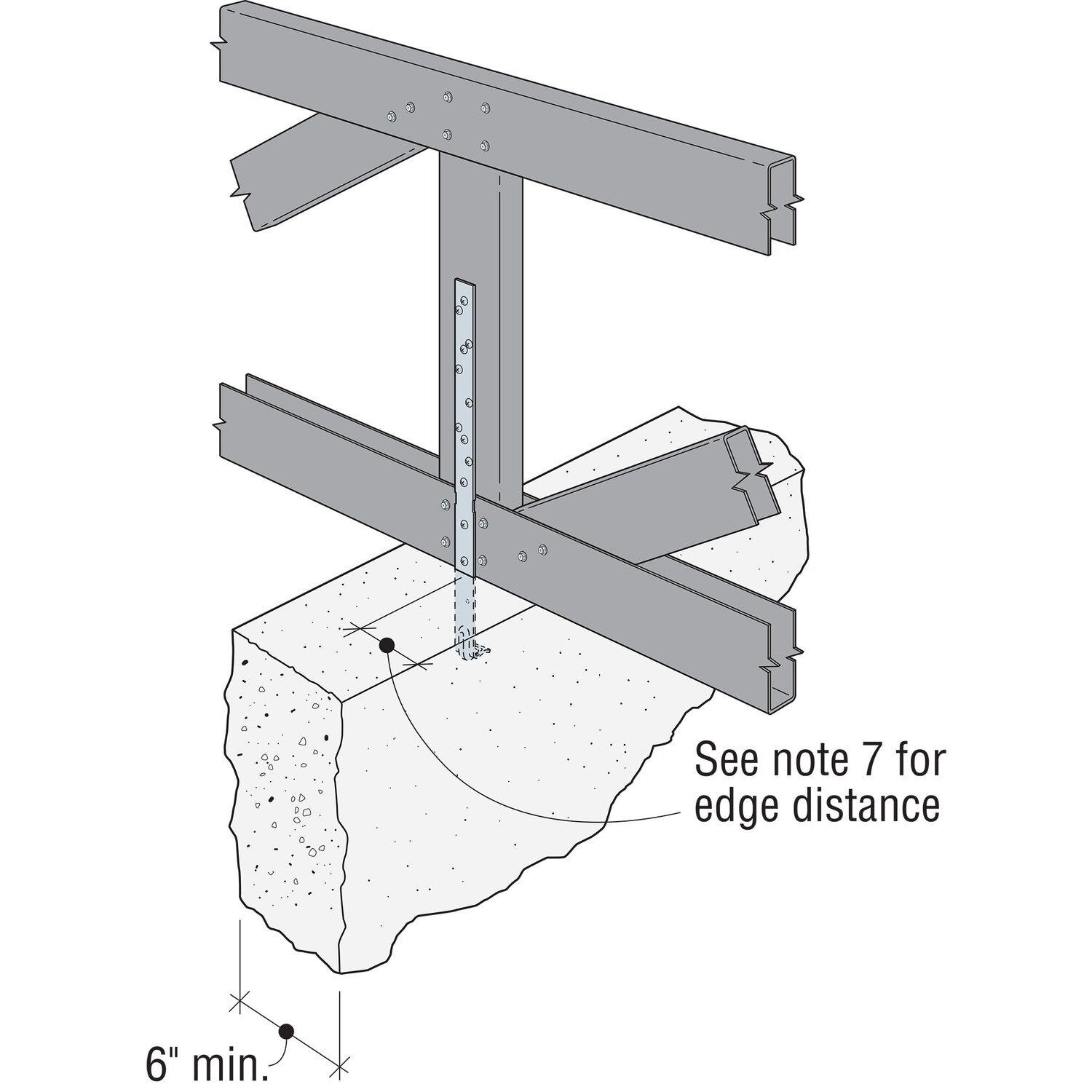

- Embed the anchor 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
- Ensure proper alignment and positioning of the anchor
- Use all specified fasteners as per guidelines
- For mislocated anchors, provide a shim designed by a Truss Engineer
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson HETA20 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
824579
