Simpson Strong-Tie HETA40 Description
The HETA40 embedded truss anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, designed for high-wind construction.
Simpson Strong-Tie HETA40 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie HETA40 Features
- Indented embedment line ensures accurate embedment depth
- Compatible with moisture barrier plates
- Load rated for wind and seismic forces
Simpson Strong-Tie HETA40 Applications
- High-wind construction
- Concrete and masonry wall reinforcement
Simpson Strong-Tie HETA40 Installation Overview
- Use all specified fasteners as per guidelines.

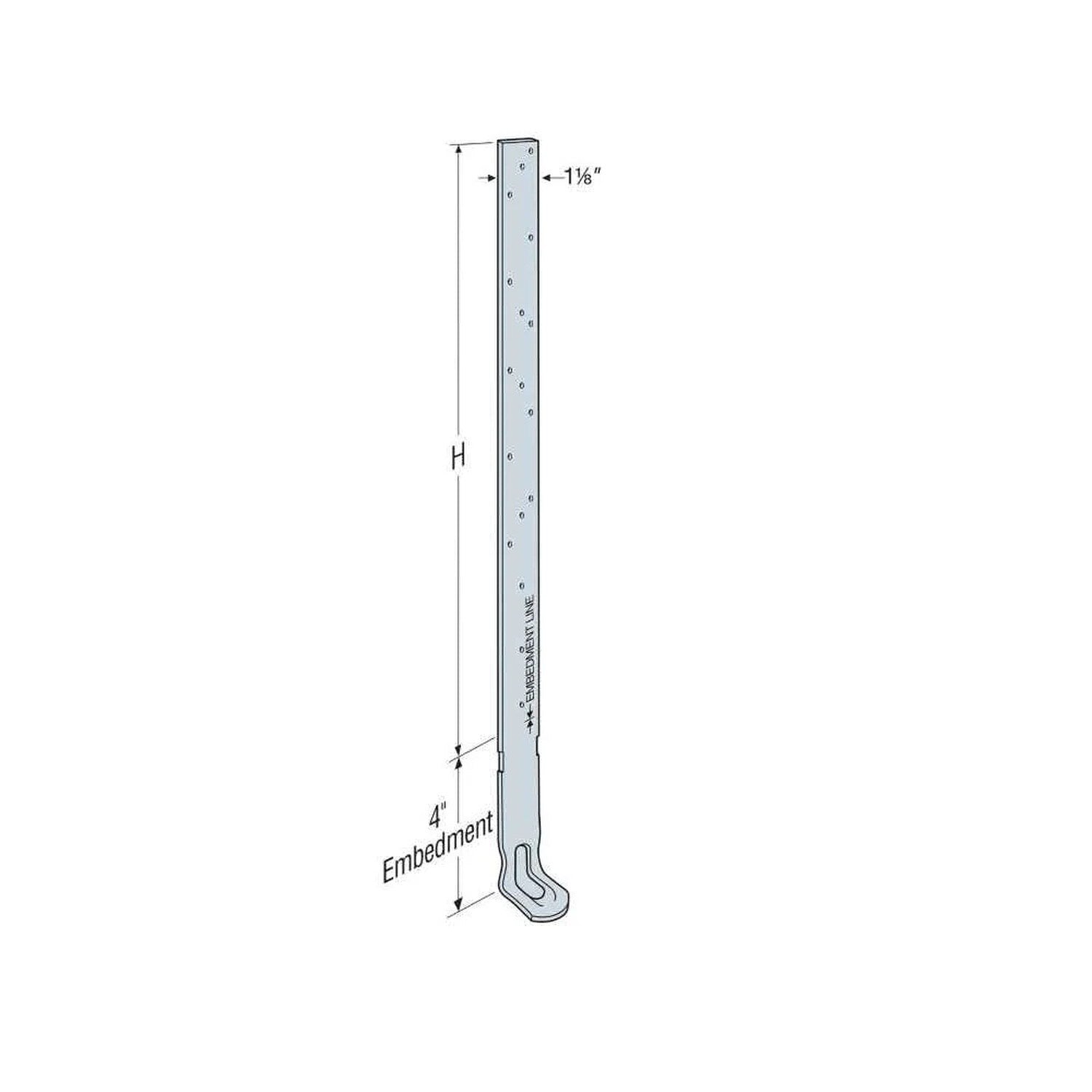

- Embed 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall.
- Provide shim for mislocated truss anchors as per specifications.
- Ensure minimum spacing of single anchors is twice the embedment depth for full load.
- Install double anchors with spoons facing outward and straps spaced appropriately.
Simpson Strong-Tie HETA40 Specifications
| Material | 16 gauge |
| Finish | Galvanized |
| Height | 36" |
| Weight | 0.9 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819228
