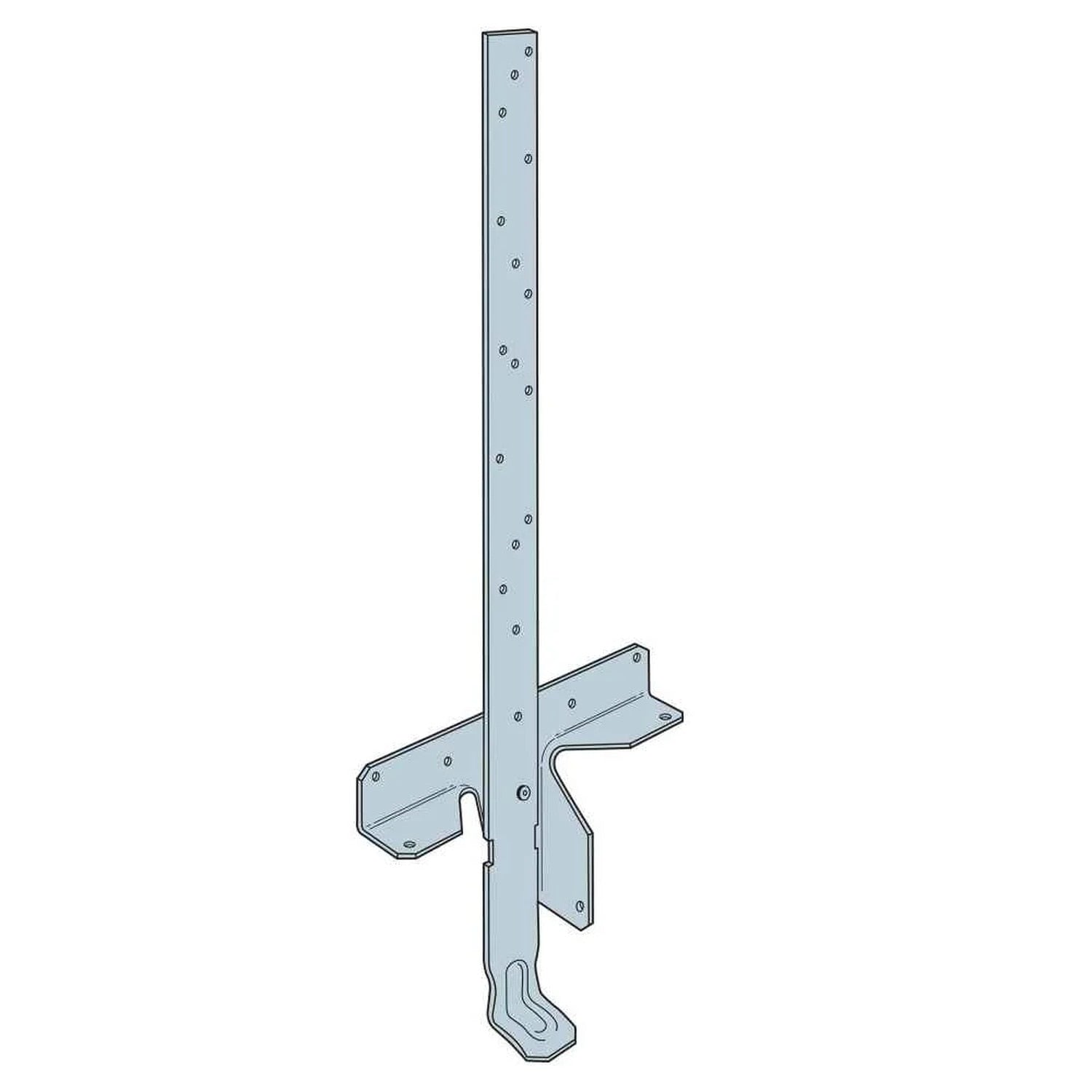

Simpson Strong-Tie HETAL12 Description
The HETAL12 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, designed for high-wind and seismic applications.
Simpson Strong-Tie HETAL12 Includes
- (1) HETAL12 Embedded Truss Anchor
Simpson Strong-Tie HETAL12 Features
- The strap can be installed straight or field-bent around truss or rafter members
- Built-in moisture barrier
- Load rated for wind and seismic forces
Simpson Strong-Tie HETAL12 Applications
- High-Wind Construction: Securely attaches roof trusses to concrete and masonry walls
Simpson Strong-Tie HETAL12 Installation Overview
- Use all specified fasteners as per guidelines.
- Embed the anchor 5 1/16 inches into the concrete or masonry.
- Ensure proper alignment and spacing for optimal load distribution.
- Fill the lowest four nail holes for lateral load applications.
- Straps do not need to be wrapped over the rafter/truss unless specified.
Simpson Strong-Tie HETAL12 Specifications
| Material | Strap 16 gauge, truss seat 18 gauge |
| Finish | Galvanized, G90 |
| Height | 7 in. |
| Weight | 0.7 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
822844
