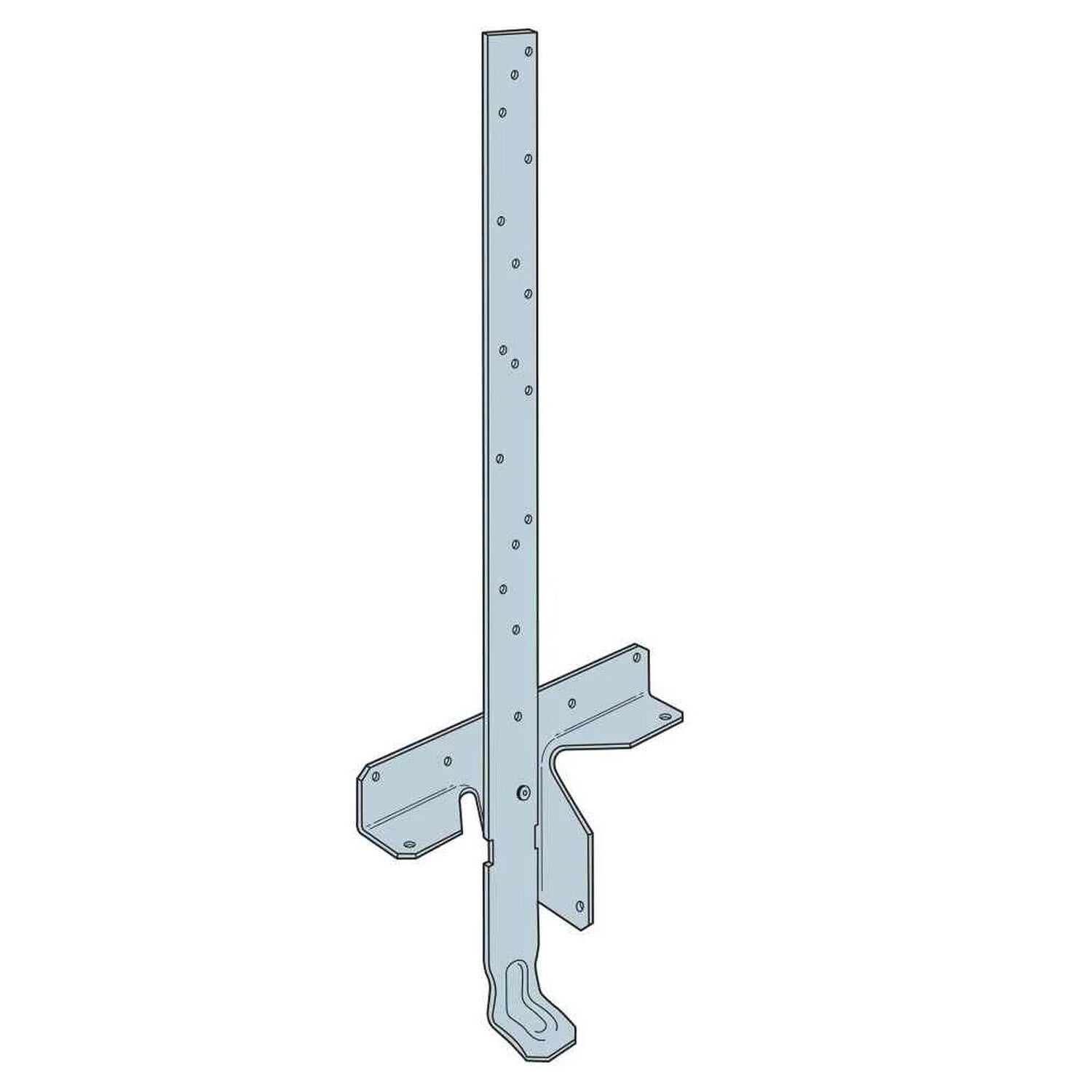

Simpson Strong-Tie HETAL20Z Description
The HETAL20Z Embedded Truss Anchor by Simpson Strong-Tie provides a reliable solution for attaching roof trusses to concrete and masonry walls, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HETAL20Z Includes
- (1) HETAL20Z Embedded Truss Anchor
Simpson Strong-Tie HETAL20Z Features
- The strap can be installed straight or field-bent around truss or rafter members
- Built-in moisture barrier
- Load rated for wind and seismic forces
Simpson Strong-Tie HETAL20Z Applications
- High-Wind Construction: Securely attaches roof trusses to concrete and masonry walls
Simpson Strong-Tie HETAL20Z Installation Overview
- Use all specified fasteners as per guidelines.
- Embed the anchor 5 1/16 inches into the concrete or masonry.
- For mislocated truss anchors, provide a shim if the gap is between 1/8 inch and 1 1/2 inches. For larger gaps, install a new anchor.
- Ensure the lowest four nail holes are filled for lateral loads.
- Straps do not need to be wrapped over the rafter/truss unless specified.
Simpson Strong-Tie HETAL20Z Specifications
| Material | Strap 16 gauge, truss seat 18 gauge |
| Finish | ZMAX Galvanized |
| Height | 15 inches |
| Weight | 0.9 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
823239
