Simpson Anchors | SKU:
HF26N

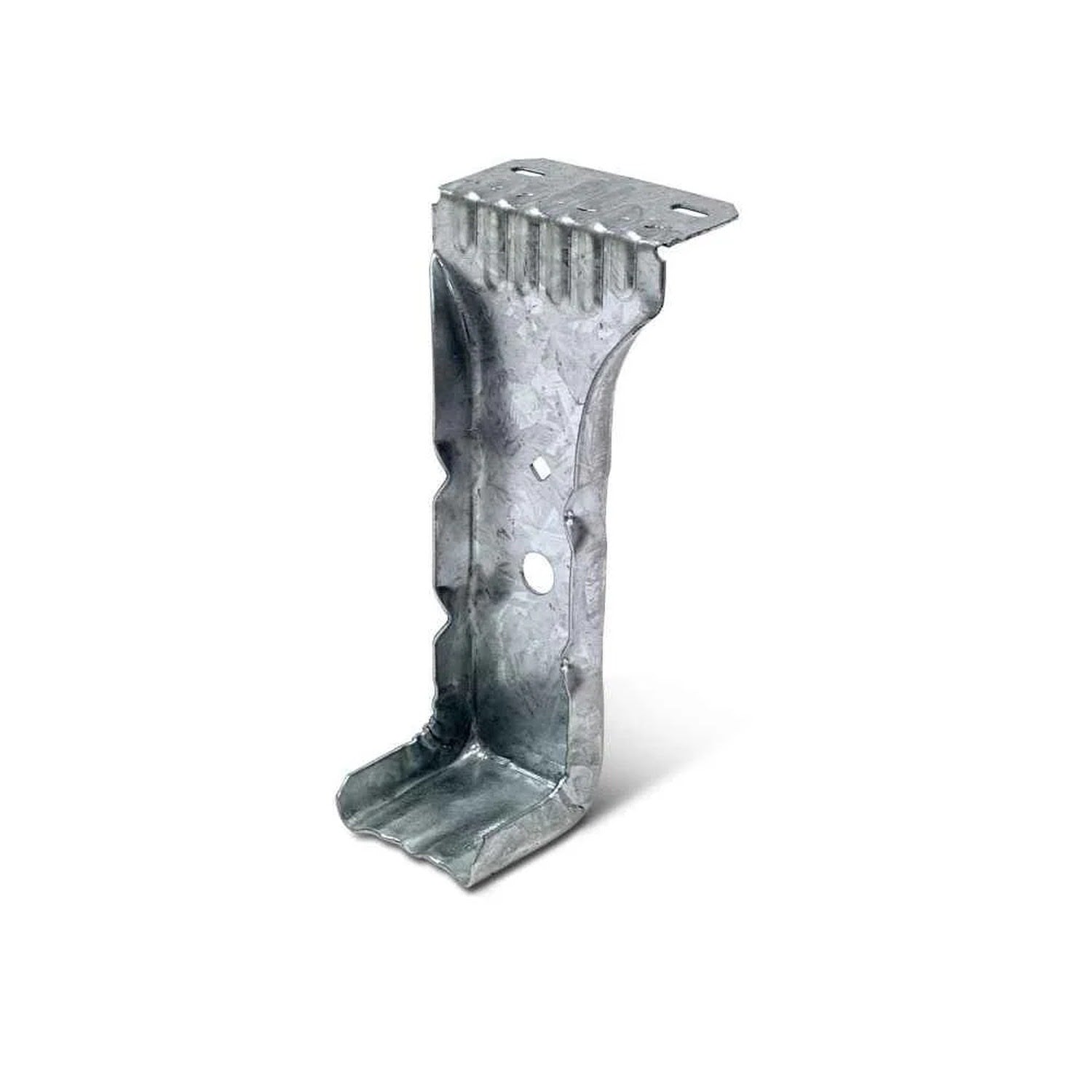

Simpson Strong-Tie HF26N High-Capacity Panelized Construction Hanger for 2x6
$2.33
Unit price
/
Unavailable
Description
Description
Simpson HF26N Description
The Simpson HF26N Panelized Construction Hanger is designed for high-strength performance in wood-frame construction, featuring a ZMAX galvanized coating for enhanced corrosion resistance.
Simpson HF26N Includes
- (1) High-Capacity Panelized Construction Hanger for 2x6
Simpson HF26N Features
- ZMAX Galvanized Coating for superior corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with no field modifications
- Versatile compatibility with various wood types
- Reliable structural connection for stability
Simpson HF26N Applications

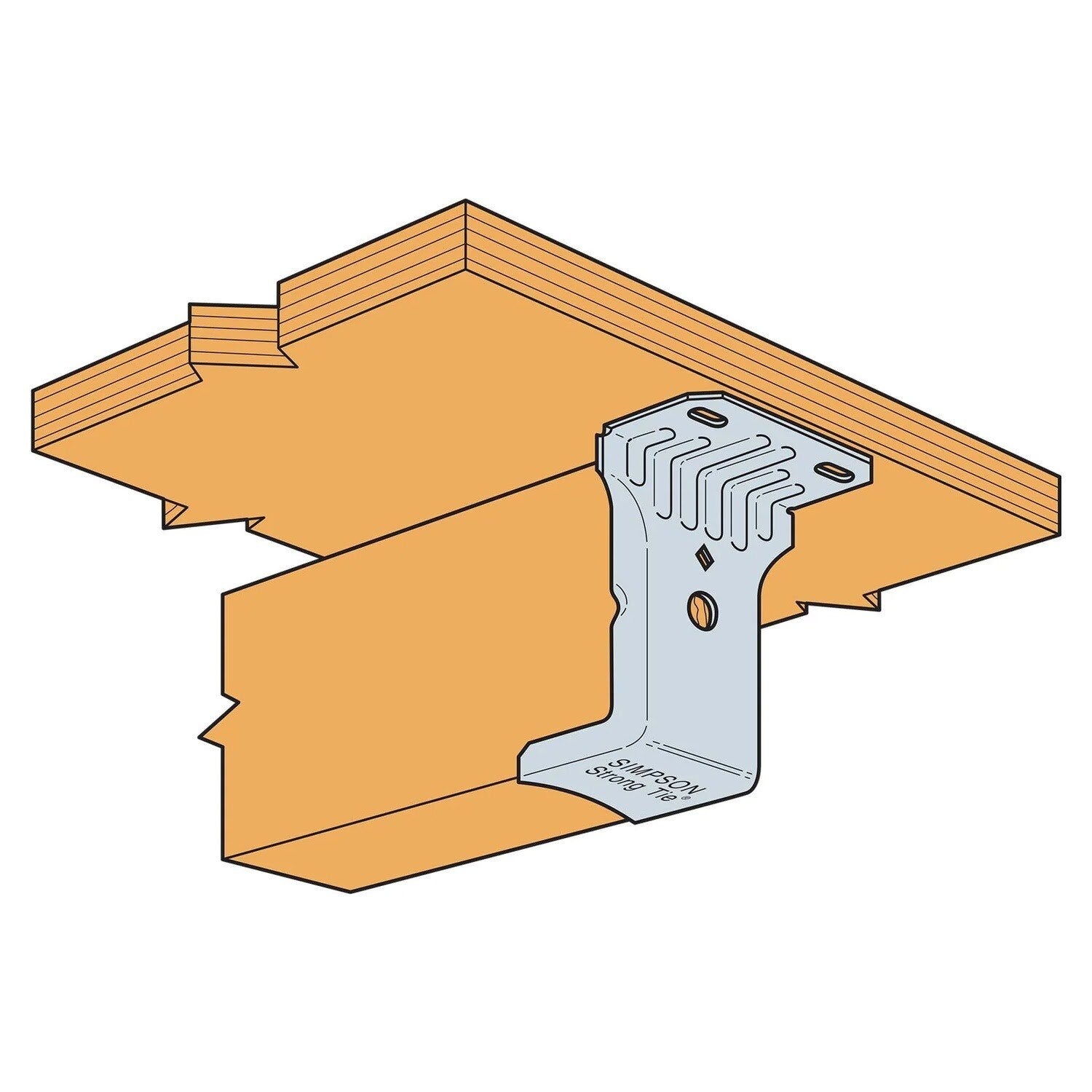

- Panelized Roof Systems: Ensures strong, long-lasting purlin-to-girder connections.
- Solid Sawn Lumber Installations: Provides a reinforced connection for heavy-duty wood framing.
- Glulam Beam Construction: Designed to handle the higher loads of engineered wood beams.
Simpson HF26N Installation Overview

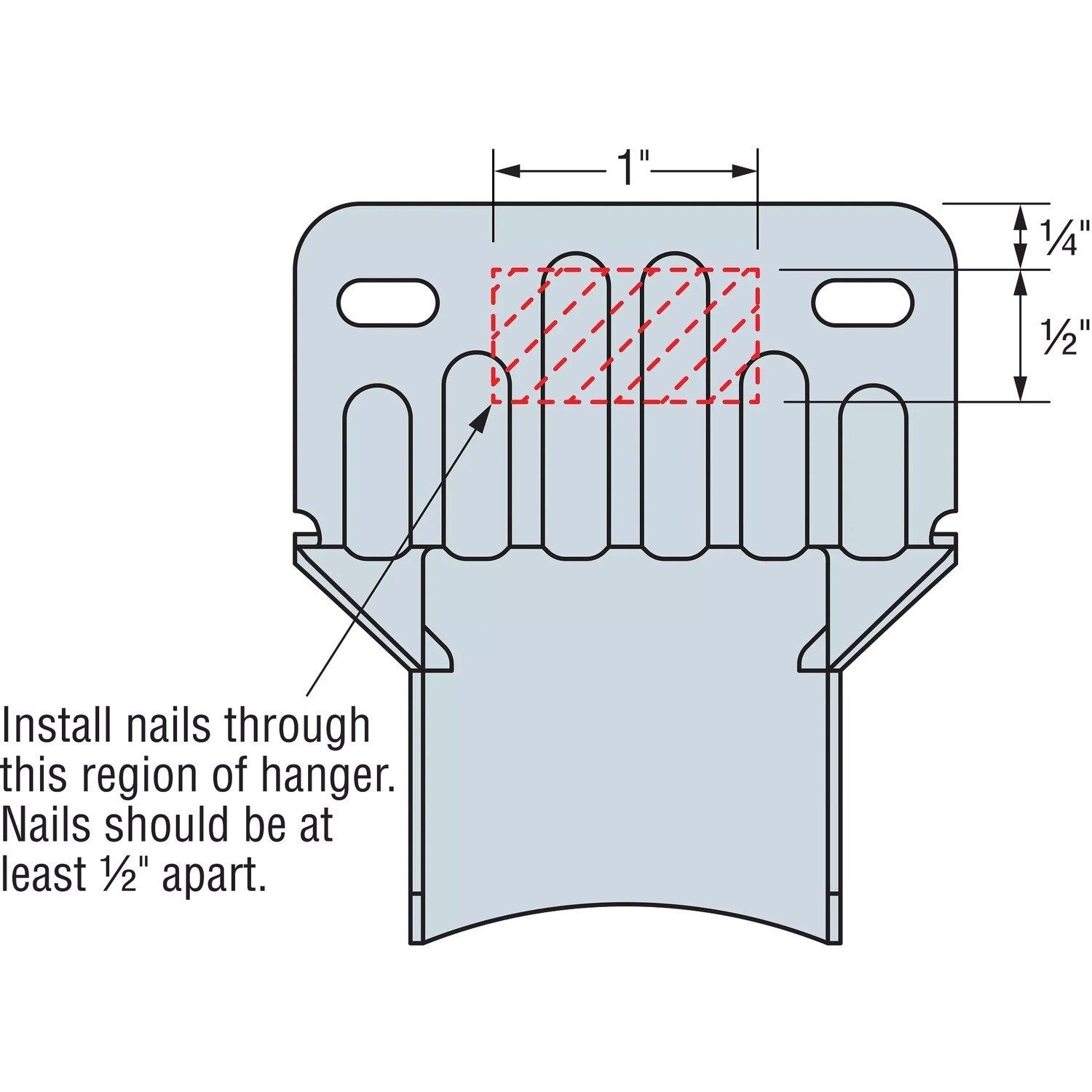

- Use the Correct Fasteners: Install using manufacturer-specified nails or screws.
- Prepare Surfaces: Ensure all connection points are clean, properly aligned, and free of debris.
- Attach in Sequence: Secure the hanger to the supporting beam or girder first, then install the purlin or joist.
- Avoid Field Modifications: The hanger is pre-engineered for easy installation without additional adjustments.
Simpson HF26N Specifications
| Finish | ZMAX |
| Fasteners required | (2) 0.148" x 2-1/8" |
| For Treated Lumber | Yes |
| Height | 5-3/8" |
| Joist size | 2" X 6" |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
NOTE: Ensure all connection points are clean, properly aligned, and free of debris before installation.
