Simpson Anchors | SKU:
HF34N

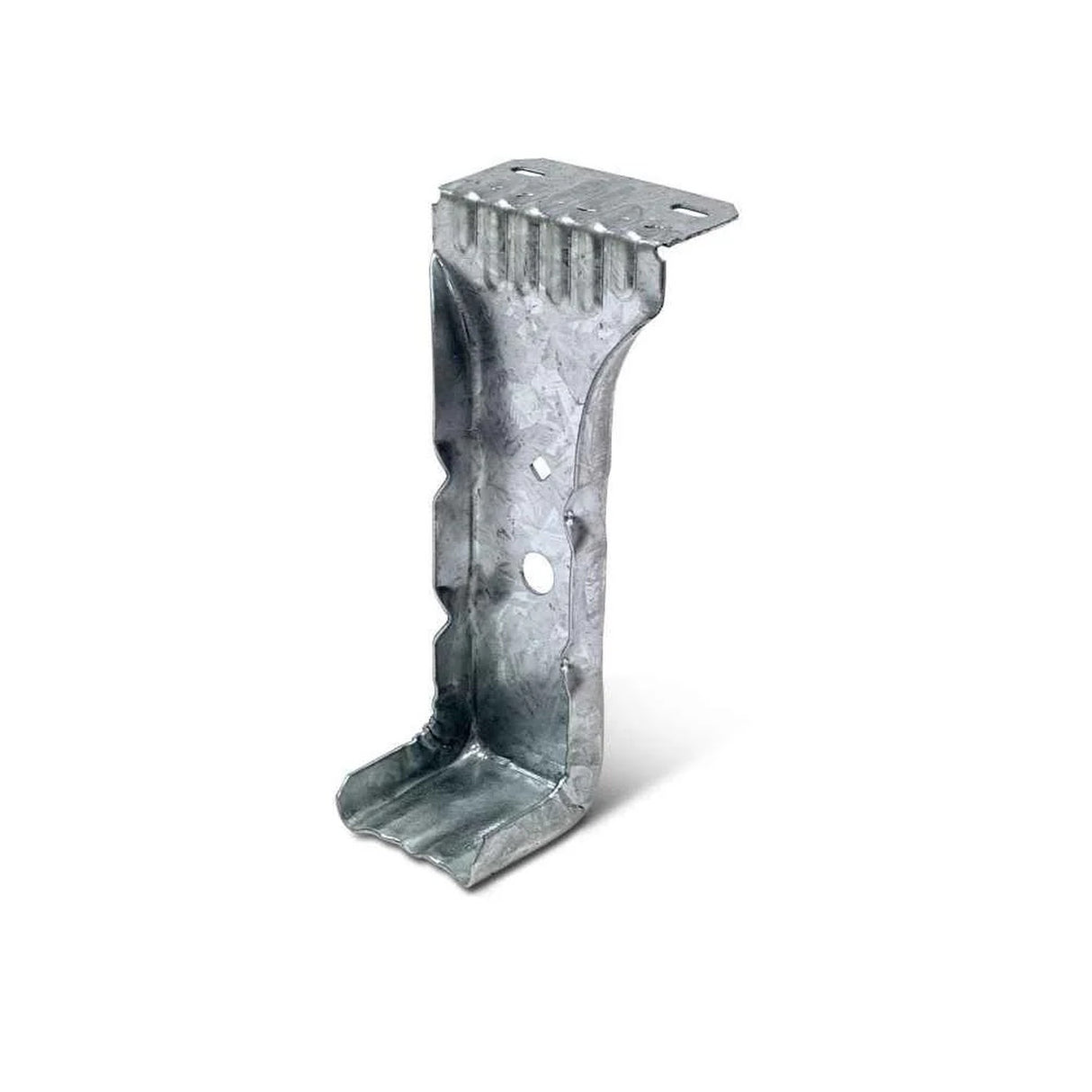

Simpson Strong-Tie HF34N (3" x 4") Panelized Construction Hanger - G90 Galvanized
$2.99
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HF34N Description
The Simpson Strong-Tie HF34N Panelized Construction Hanger is designed for high-strength support in wood-frame construction, featuring G90 galvanized steel for enhanced durability and corrosion resistance.
Simpson Strong-Tie HF34N Includes
- (1) 3x4 Panelized Construction Hanger
Simpson Strong-Tie HF34N Features
- G90 Galvanized Protection for enhanced corrosion resistance
- High-Strength Performance for heavy loads
- Efficient Installation with preconfigured design
- Versatile Compatibility for various wood-frame structures
- Secure & Reliable Connection between purlins and support members
Simpson Strong-Tie HF34N Applications
- Panelized Roof Systems: Ensures secure connections in prefabricated roofing applications.
- Solid Sawn Lumber Installations: Strengthens heavy-duty wood framing connections.
- Glulam Beam Construction: Supports high-load engineered wood structures.
- Warehouse & Industrial Facilities: Ideal for large-scale wood-frame structures.
- Commercial Buildings: Suitable for wood-frame construction in commercial settings.

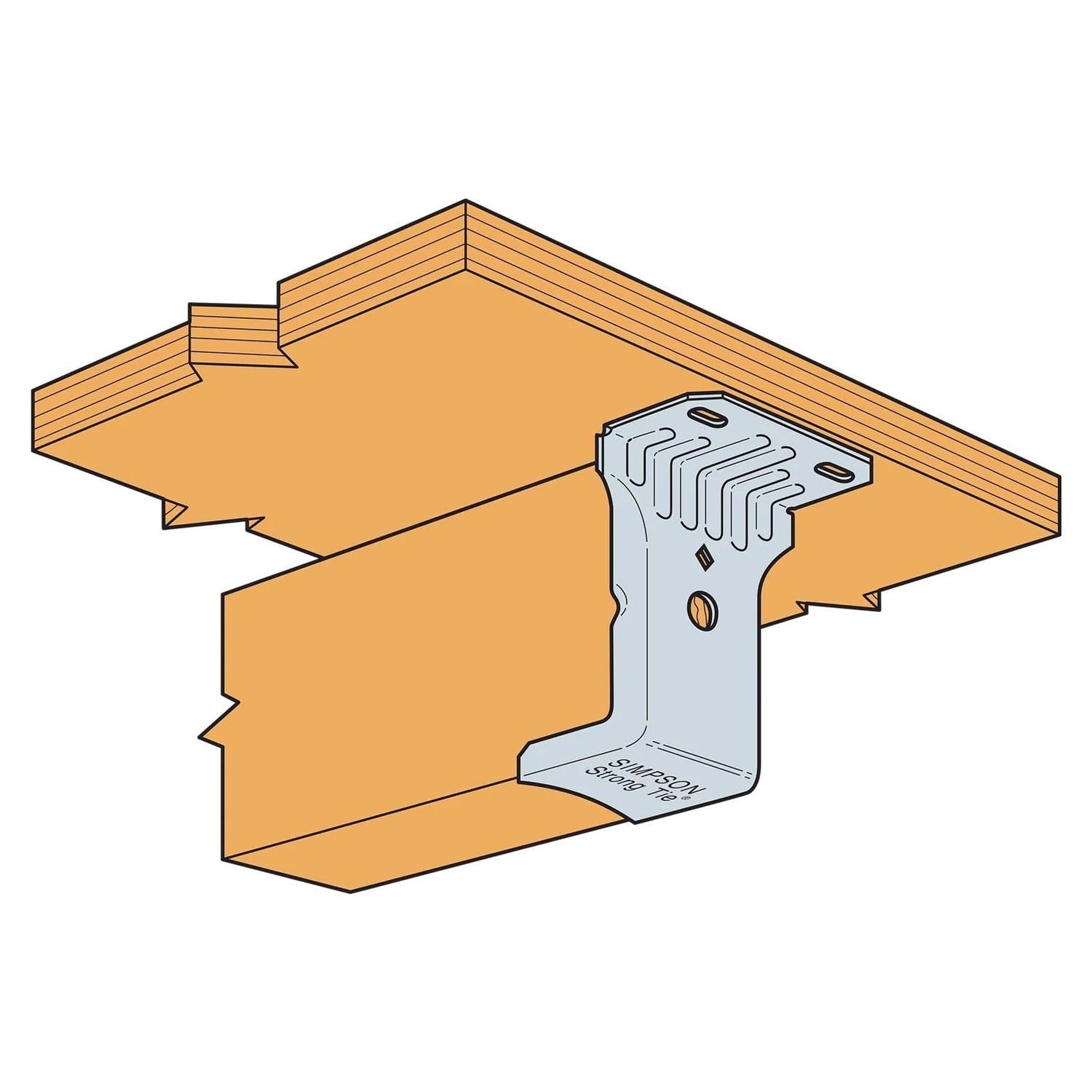

Simpson Strong-Tie HF34N Installation Overview
- Use the Correct Fasteners: Install with manufacturer-specified nails or screws.
- Prepare Surfaces: Ensure all connection points are clean and properly aligned.
- Attach in Sequence: Secure the hanger to the supporting beam first, then install the purlin or joist.
- No Field Modifications: Ready for installation without adjustments.
Simpson Strong-Tie HF34N Specifications
| Finish | G90 Galvanized |
| Fasteners required | (2) 0.148" x 2-1/8" |
| For Treated Lumber | No |
| Height | 3-3/8" |
| Joist size | 3" X 4" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |

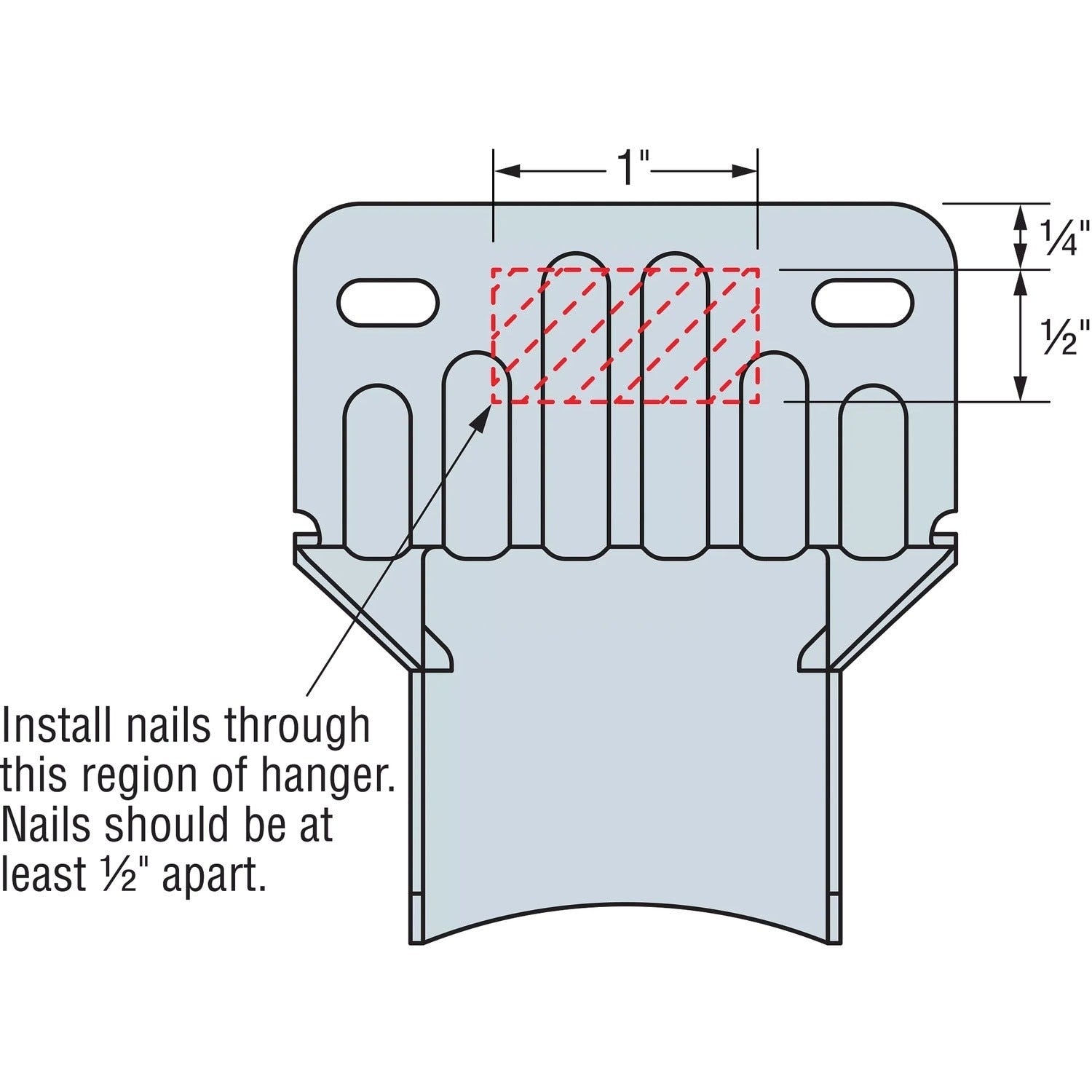

NOTE: Ensure the correct fasteners are installed in the specified positions to achieve the published load values.
