Simpson Anchors | SKU:
HF36N

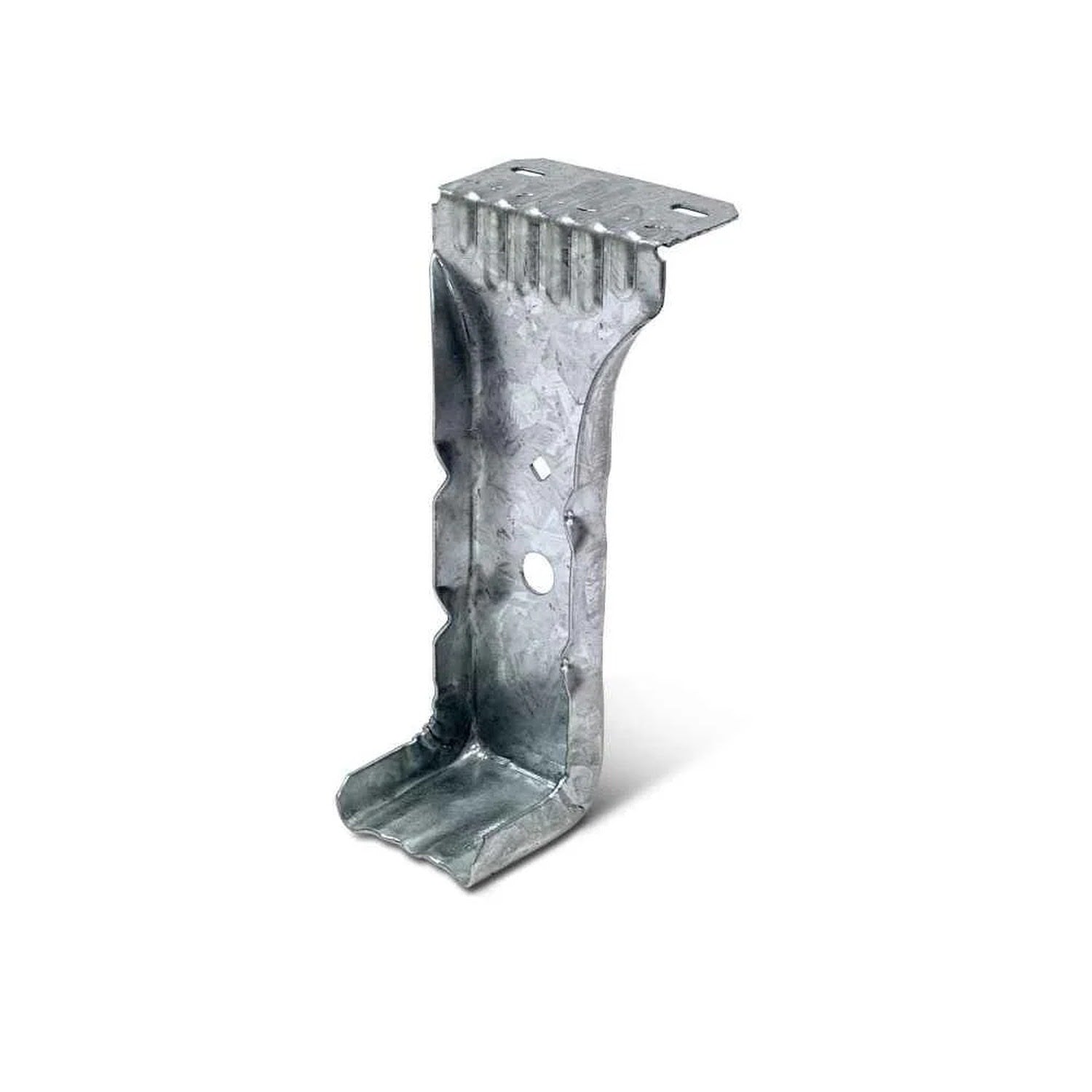

Simpson Strong-Tie HF36N High-Capacity Panelized Construction Hanger for 3x6
$3.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HF36N Description
The Simpson HF36N is a high-capacity panelized construction hanger designed for 3x6 lumber, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HF36N Includes
- (1) High-Capacity Panelized Construction Hanger for 3x6
Simpson Strong-Tie HF36N Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with precision engineering
- Versatile compatibility with various wood types
- Reliable structural connection for purlins and supporting members
Simpson Strong-Tie HF36N Applications

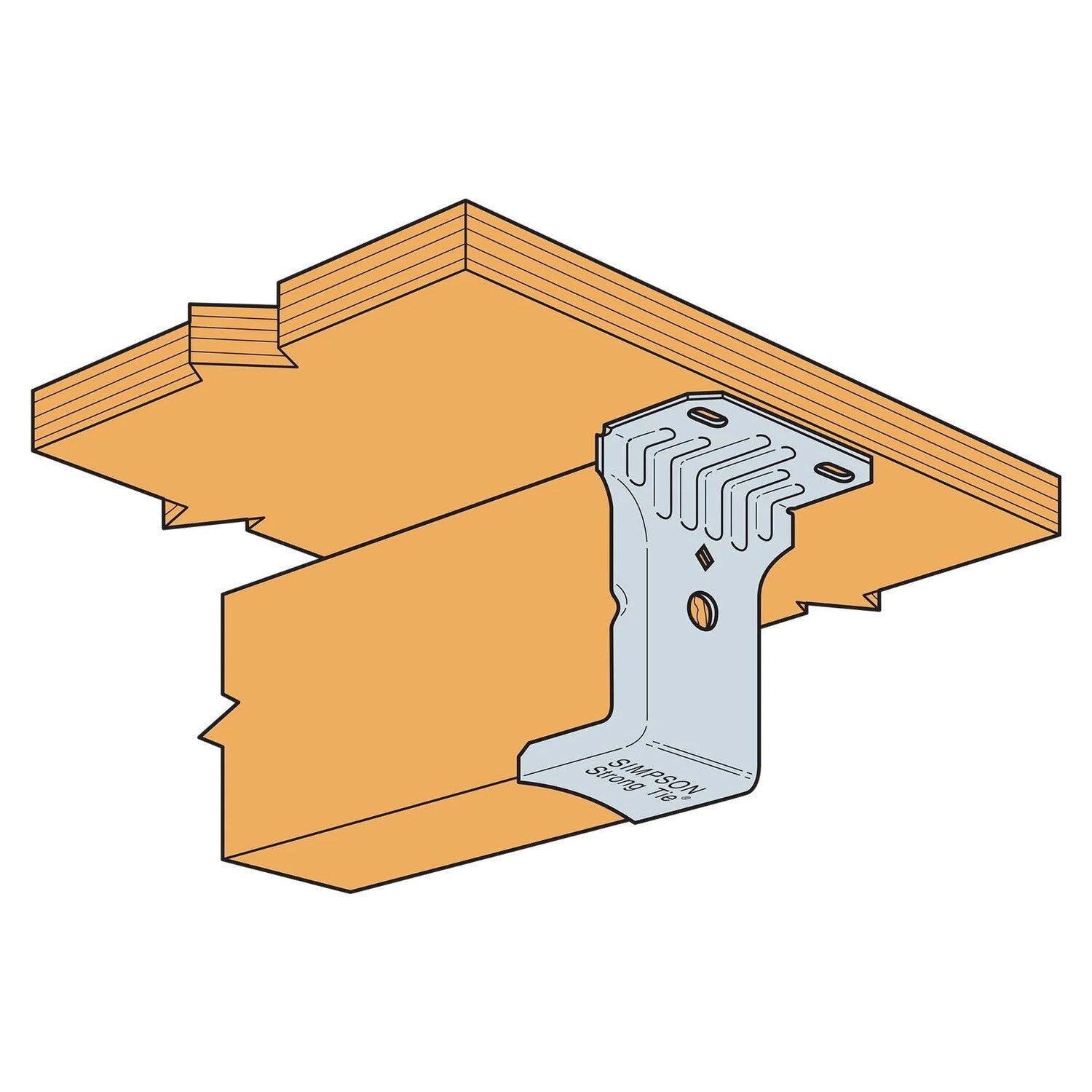

- Panelized roof systems for strong purlin-to-girder connections
- Solid sawn lumber installations for heavy-duty framing
- Glulam beam construction for higher load handling
Simpson Strong-Tie HF36N Installation Overview

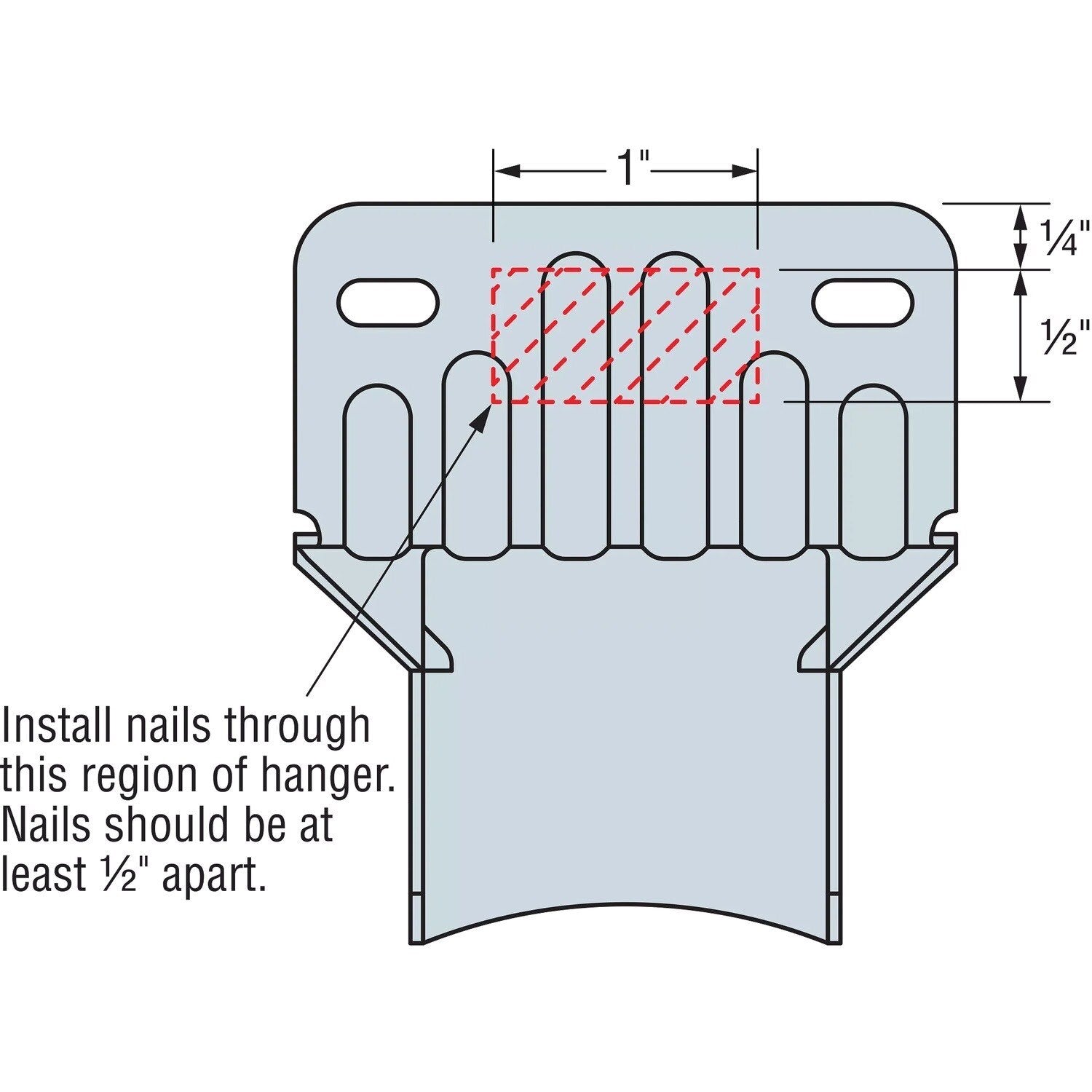

- Use manufacturer-specified nails or screws for secure connection
- Ensure connection points are clean and aligned before installation
- Secure hanger to the supporting beam first, then install the purlin
- Avoid field modifications as the hanger is pre-engineered
Simpson Strong-Tie HF36N Specifications
| Finish | ZMAX |
| Fasteners required | (2) 0.148" x 2-1/8" |
| For Treated Lumber | Yes |
| Height | 5-3/8" |
| Joist size | 3" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
