Simpson Anchors | SKU:
HF36NZ

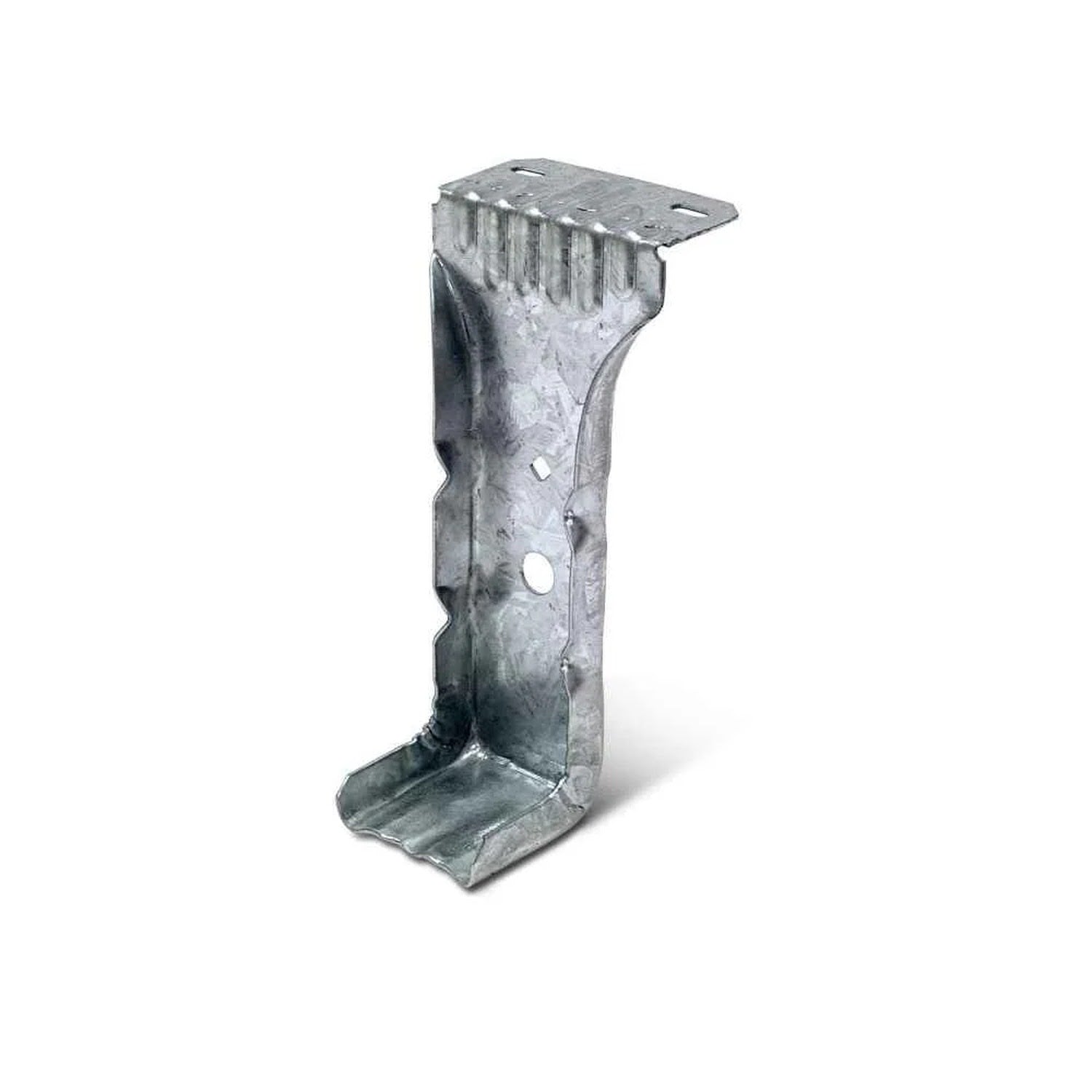

Simpson Strong-Tie HF36NZ (3" x 6") High-Capacity Panelized Construction Hanger
$6.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HF36NZ Description
The Simpson HF36NZ Panelized Construction Hanger is designed for high-strength performance in wood-frame construction, featuring a ZMAX galvanized coating for enhanced corrosion resistance.
Simpson Strong-Tie HF36NZ Includes
- (1) High-Capacity Panelized Construction Hanger for 3x6
Simpson Strong-Tie HF36NZ Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with precision engineering
- Versatile compatibility with various wood materials
- Reliable structural connection for stability
Simpson Strong-Tie HF36NZ Applications

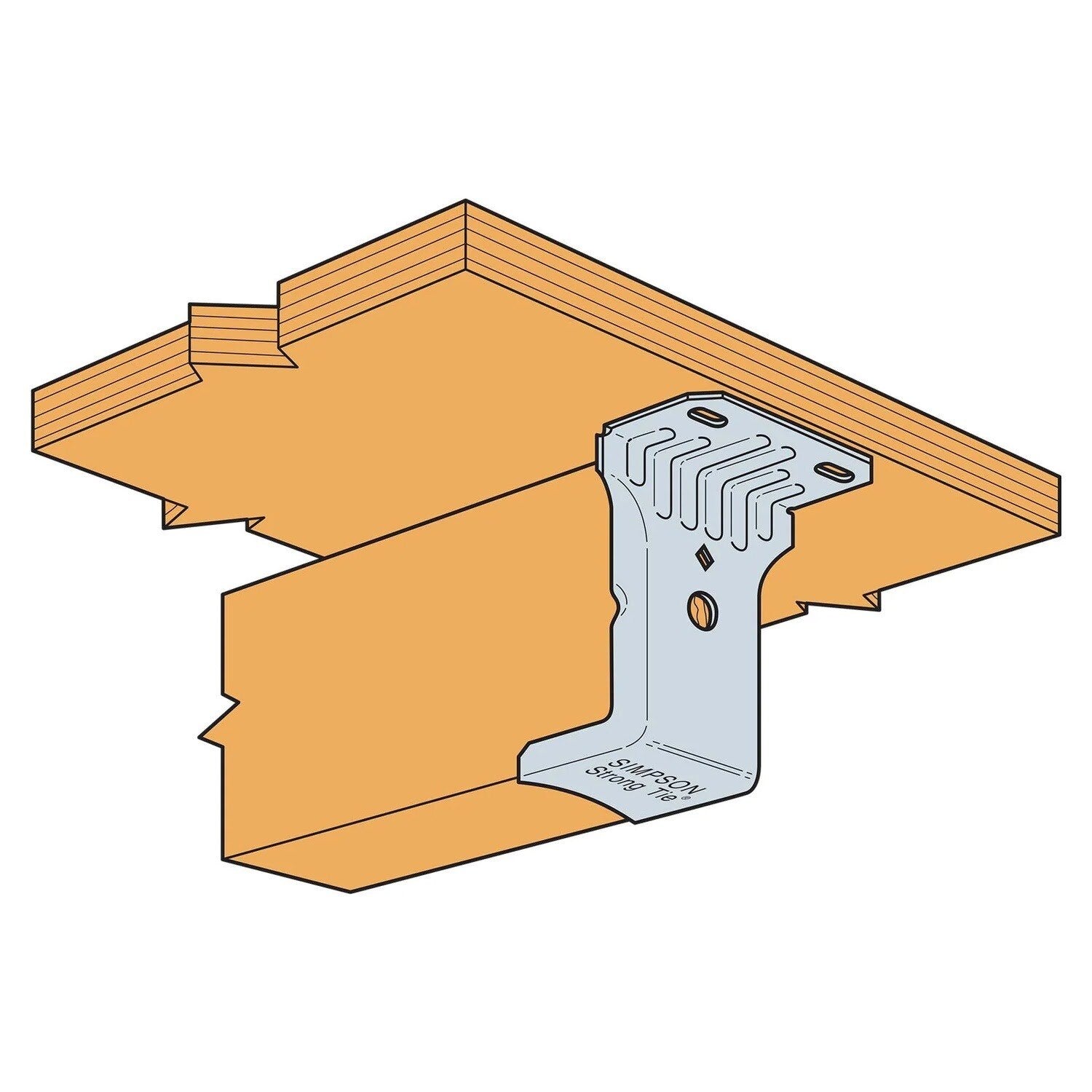

- Panelized roof systems for strong purlin-to-girder connections
- Solid sawn lumber installations for reinforced wood framing
- Glulam beam construction for handling higher loads

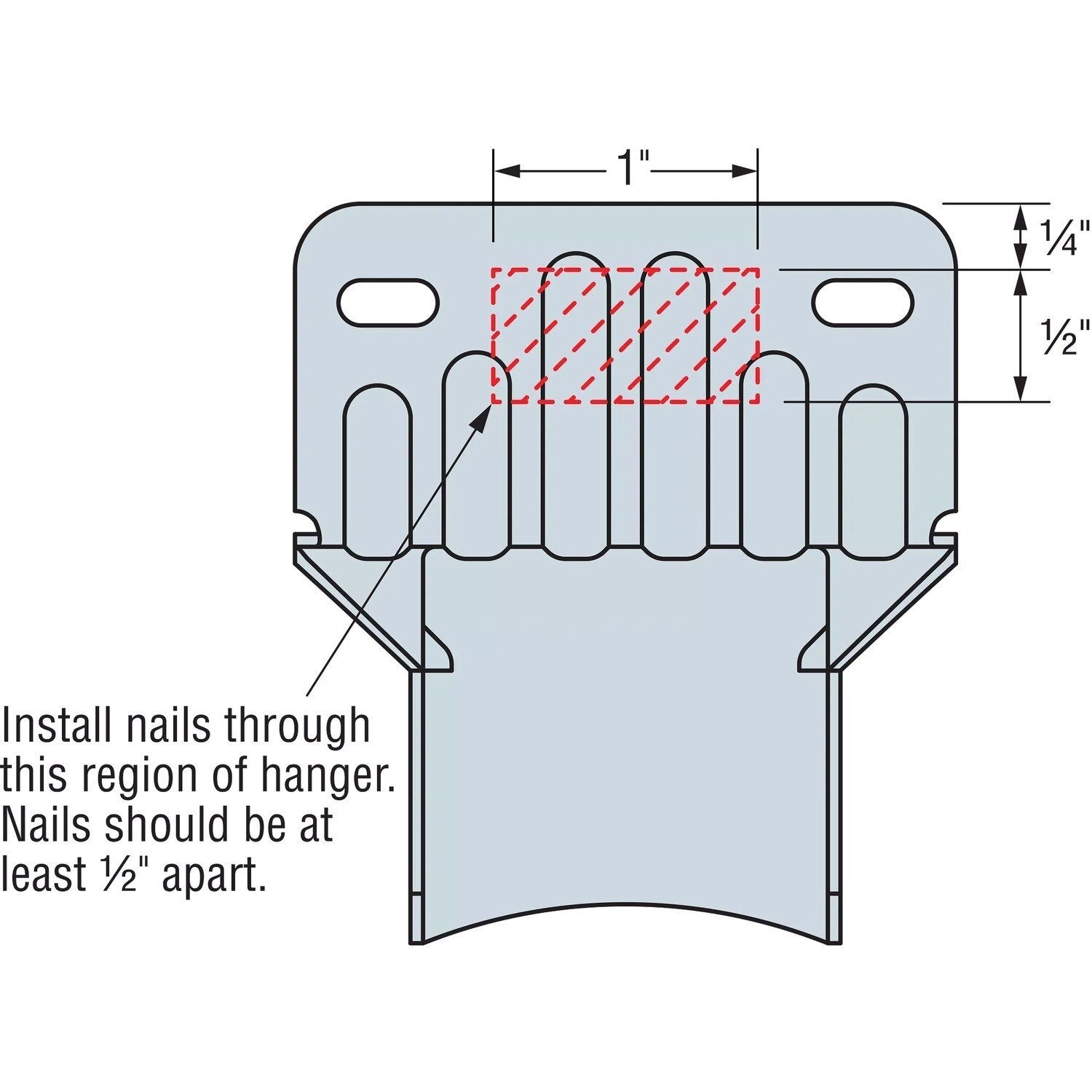

Simpson Strong-Tie HF36NZ Installation Overview
- Install using manufacturer-specified nails or screws
- Ensure all connection points are clean and properly aligned
- Secure the hanger to the supporting beam first
- Install the purlin or joist after securing the hanger
- Avoid field modifications for optimal performance
Simpson Strong-Tie HF36NZ Specifications
| Finish | ZMAX |
| Fasteners required | (2) 0.148" x 2-1/8" |
| For Treated Lumber | Yes |
| Height | 5-3/8" |
| Joist size | 3" X 6" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
NOTE: Ensure all connection points are clean, properly aligned, and free of debris before installation.
