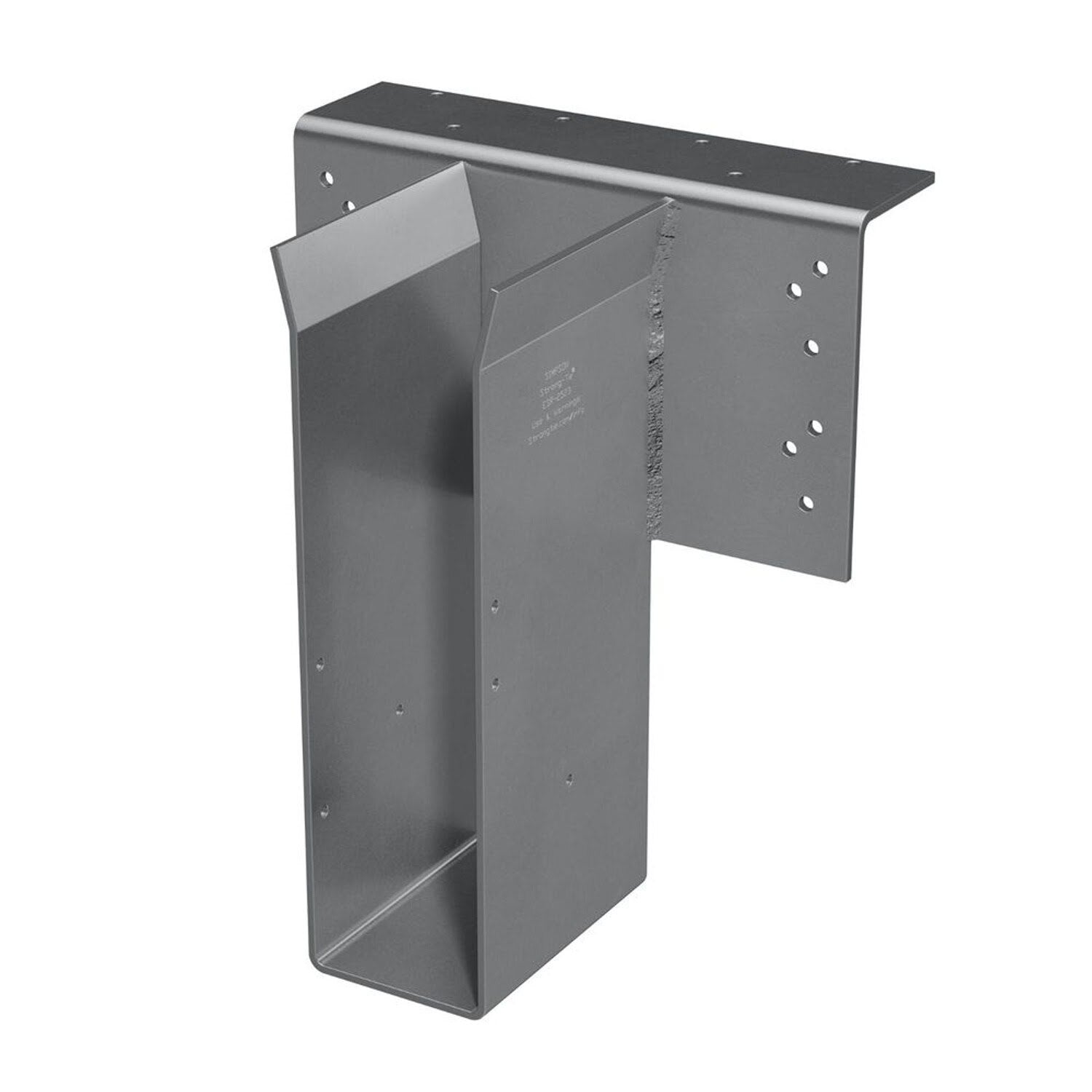

Simpson Strong-Tie HGLTV3.514 (3-1/2" x 14") High-Capacity Top-Flange Joist Hanger for Engineered Wood

Simpson Strong-Tie HGLTV3.514 Features

• High Load Capacity: Engineered to support heavy structural loads in demanding applications.
• Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
• Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
• Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
• Code Compliant: Meets industry performance standards for structural connectors.

Simpson Strong-Tie HGLTV3.514 Applications

• Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
• Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
• Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
• Commercial Wood Construction: Supports large spans and engineered wood framing in commercial builds.
• Garage and Basement Framing: Offers a high-capacity option for long joist runs or point-loaded conditions.

Simpson Strong-Tie HGLTV3.514 Installation Overview

1. Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
2. For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers.
3. Flatten edge of header to match top-flange radius.
4. Bevel-cut the carried beam for skewed hangers.
5. For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table load.
6. May be used for weld-on applications. Minimum required weld is a 1/4" x 2 1/2" fillet weld at each end of the top flange.
7. May be installed on ledgers provided the ledgers are made of 4x solid sawn or 3 1/2" SCL shown in the table below.
