Simpson Hangers | SKU:
HGLTV3.516

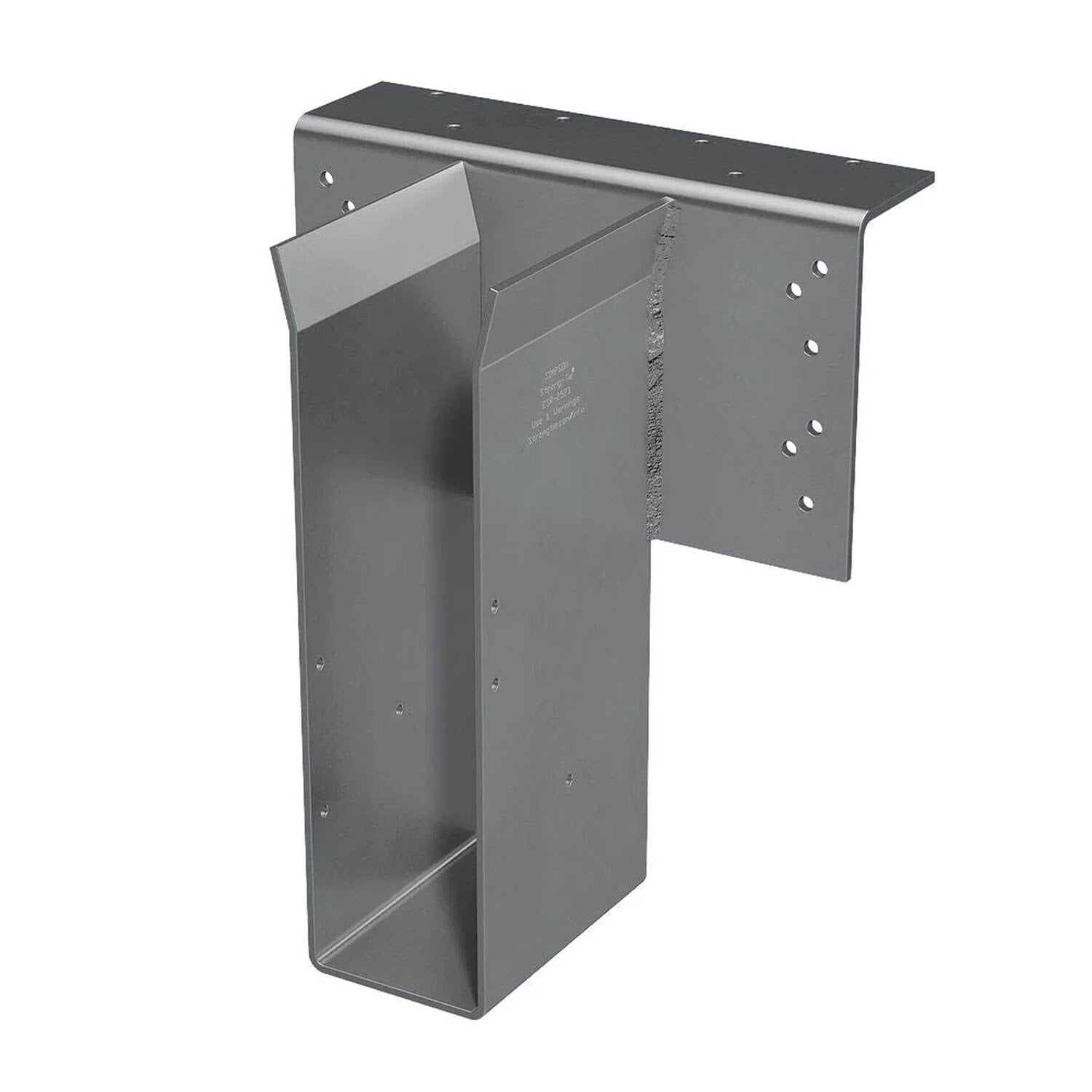

Simpson Strong-Tie HGLTV3.516 (3-1/2" x 16") Heavy-Duty Top-Flange Joist Hanger for Engineered Wood
$125.77
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGLTV3.516 Description
The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams. Engineered specifically for solid sawn lumber and structural composite lumber (SCL) like LVL, PSL, and LSL, this hanger delivers exceptional strength and stiffness where performance matters most.
Simpson Strong-Tie HGLTV3.516 Includes
- (1) Simpson HGLTV3.516 Heavy-Duty Top-Flange Joist Hanger
Simpson Strong-Tie HGLTV3.516 Features
- High Load Capacity: Engineered to support heavy structural loads in demanding applications.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV3.516 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

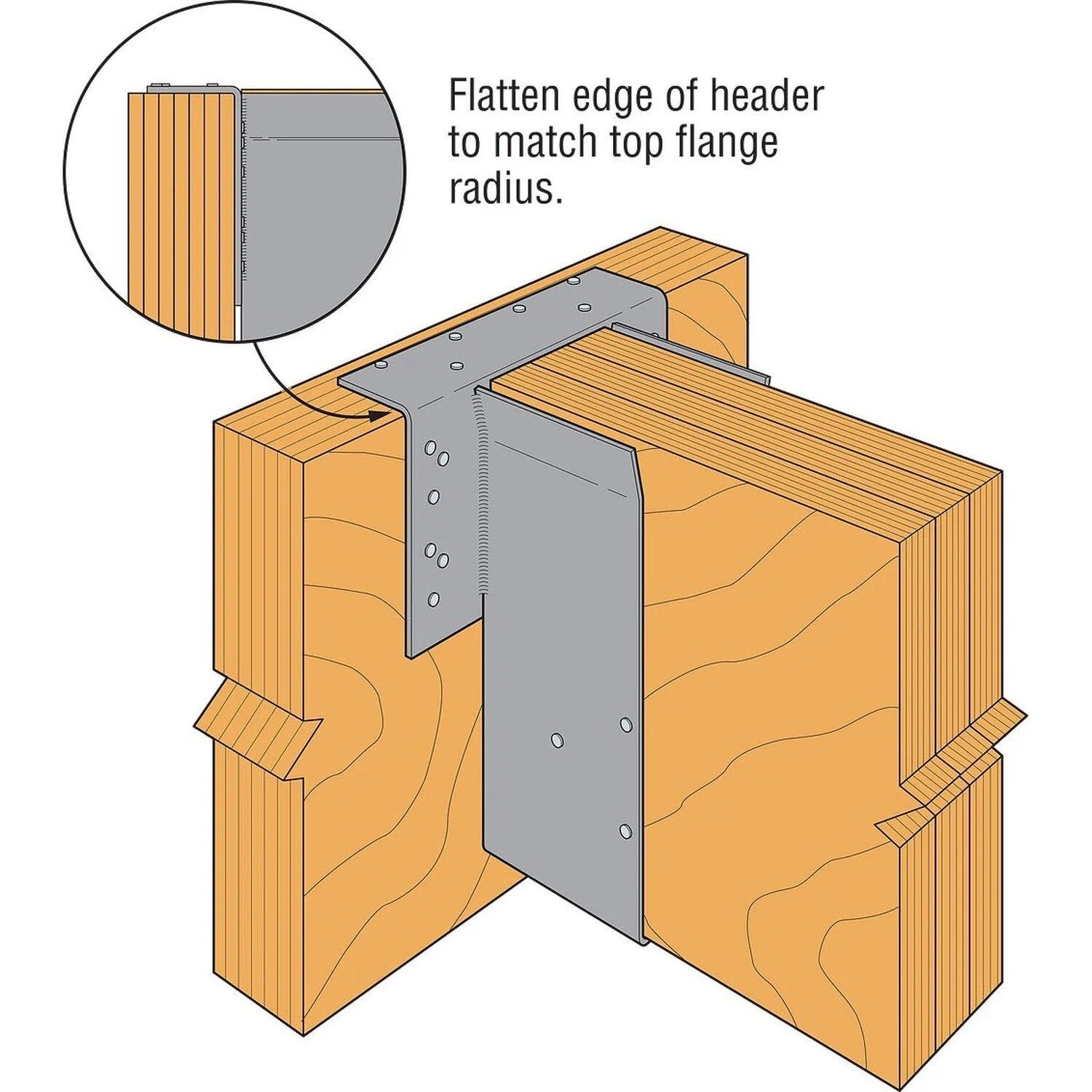

Simpson Strong-Tie HGLTV3.516 Installation Overview
- Requires the use of Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or nails as specified.
- Fasteners must be installed into all designated holes for full load capacity.
- Verify all installations meet applicable building codes and engineered plans.
- Hanger must be installed flush with the header to ensure proper bearing and alignment.
- Not designed for skewed or sloped applications.

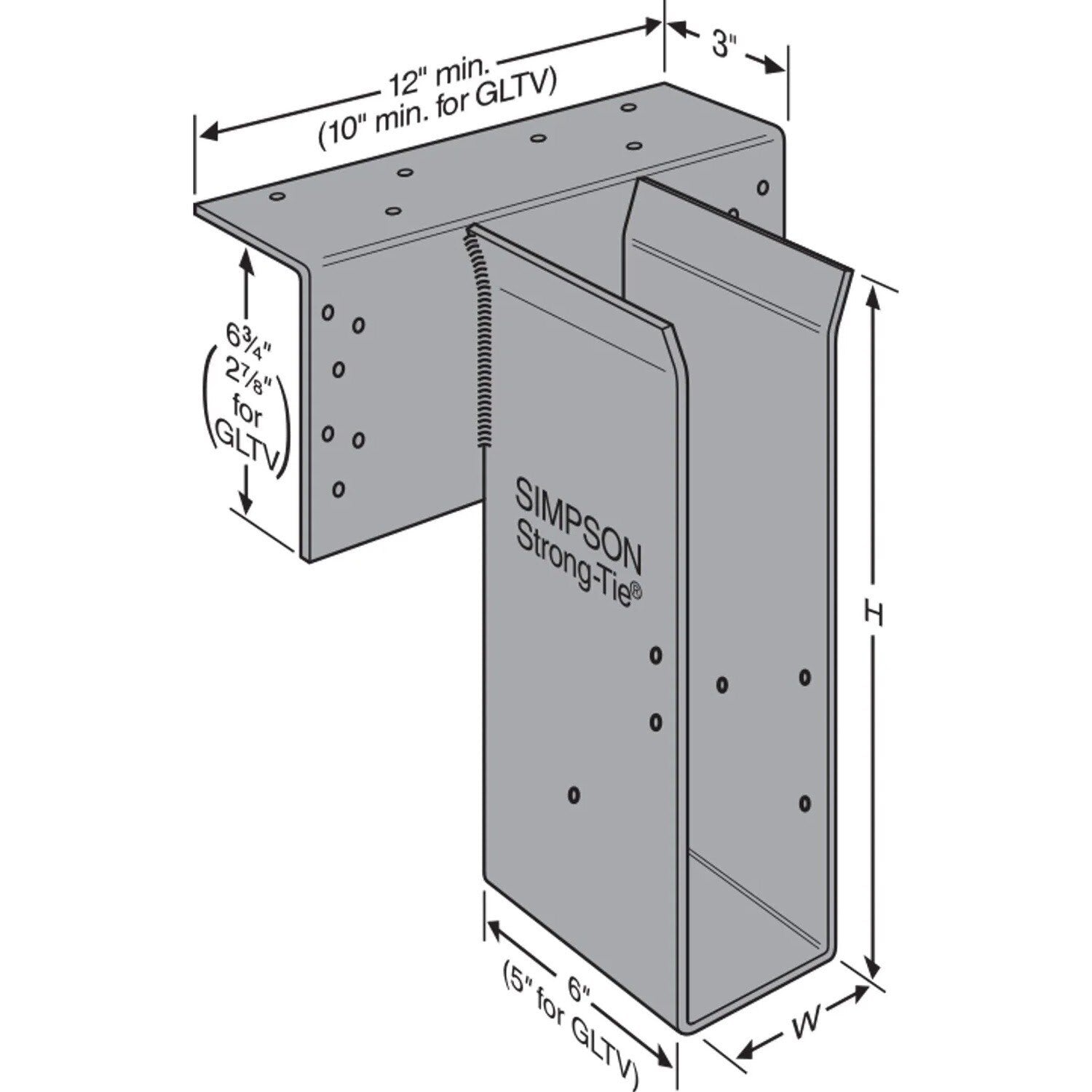

Simpson Strong-Tie HGLTV3.516 Specifications
| Material | Carbon Steel |
| Height | 14" - 16" |
| Joist size | 3-1/2" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | Stirrup: 7 Gauge; Top Flange: 3 Gauge |
| Width | 3.5625" |
