Shop Simpson Hangers Store
SKU: HGLTV3.518  |  Barcode: 044315887406

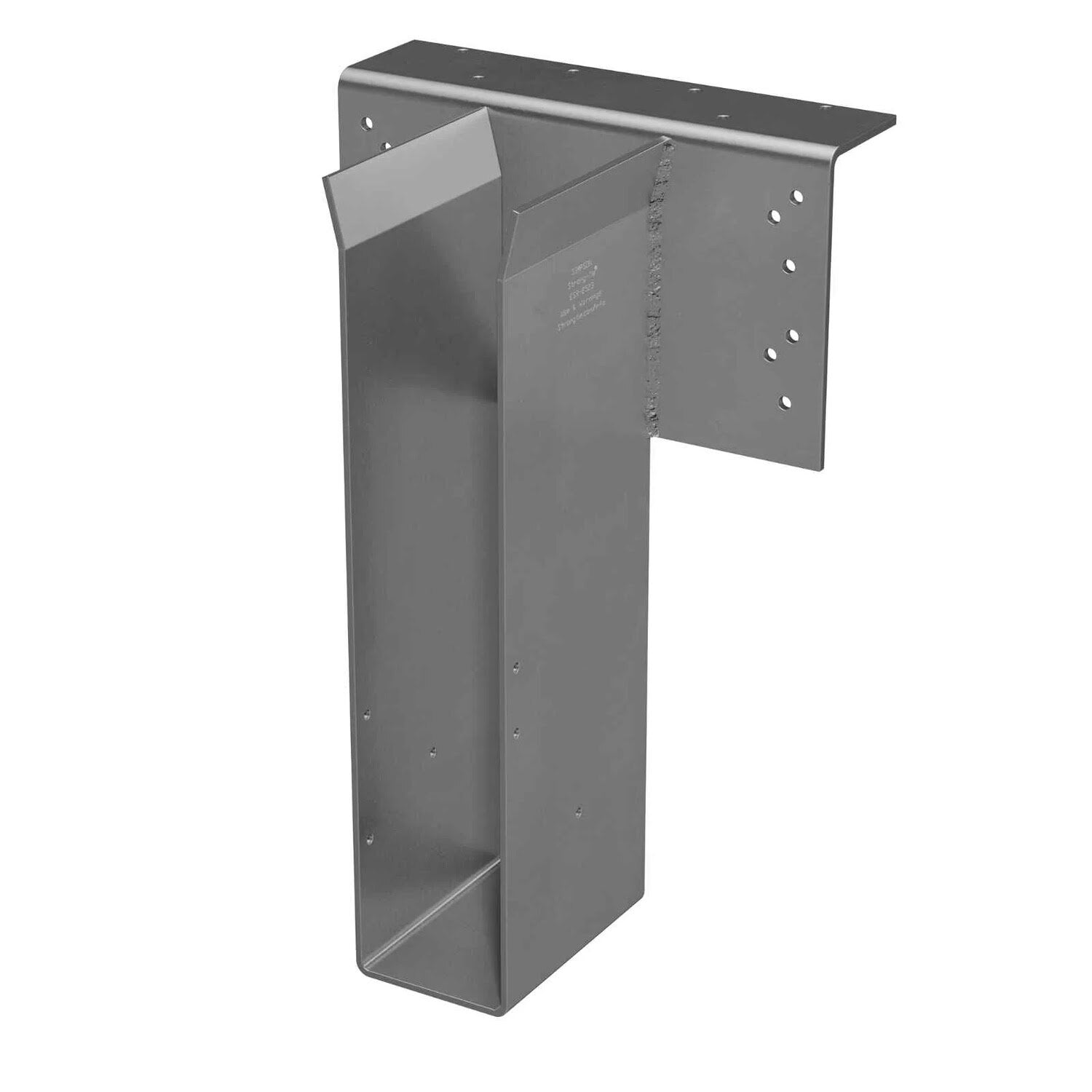

Simpson Strong-Tie HGLTV3.518 (3-1/2" x 18") Heavy-Duty Top-Flange Joist Hanger for Engineered Wood

$132.95
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.

Description

Simpson Strong-Tie HGLTV3.518 Description

The Simpson Strong-Tie HGLTV3.518 is a heavy-duty top-flange joist hanger designed for engineered wood, providing exceptional strength and stability for demanding structural applications.

Simpson Strong-Tie HGLTV3.518 Includes

  • (1) Heavy-Duty Top-Flange Joist Hanger

Simpson Strong-Tie HGLTV3.518 Features

  • High load capacity for demanding applications
  • Compatible with engineered lumber like LVL, PSL, and LSL
  • Heavy-gauge steel construction for durability
  • Top-flange mounting for secure installation
  • Code compliant for structural connectors

Simpson Strong-Tie HGLTV3.518 Applications

  • Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
  • Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
  • Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
  • Commercial Wood Construction: Supports large spans and engineered wood framing in commercial builds.
  • Garage and Basement Framing: Offers a high-capacity option for long joist runs or point-loaded conditions.

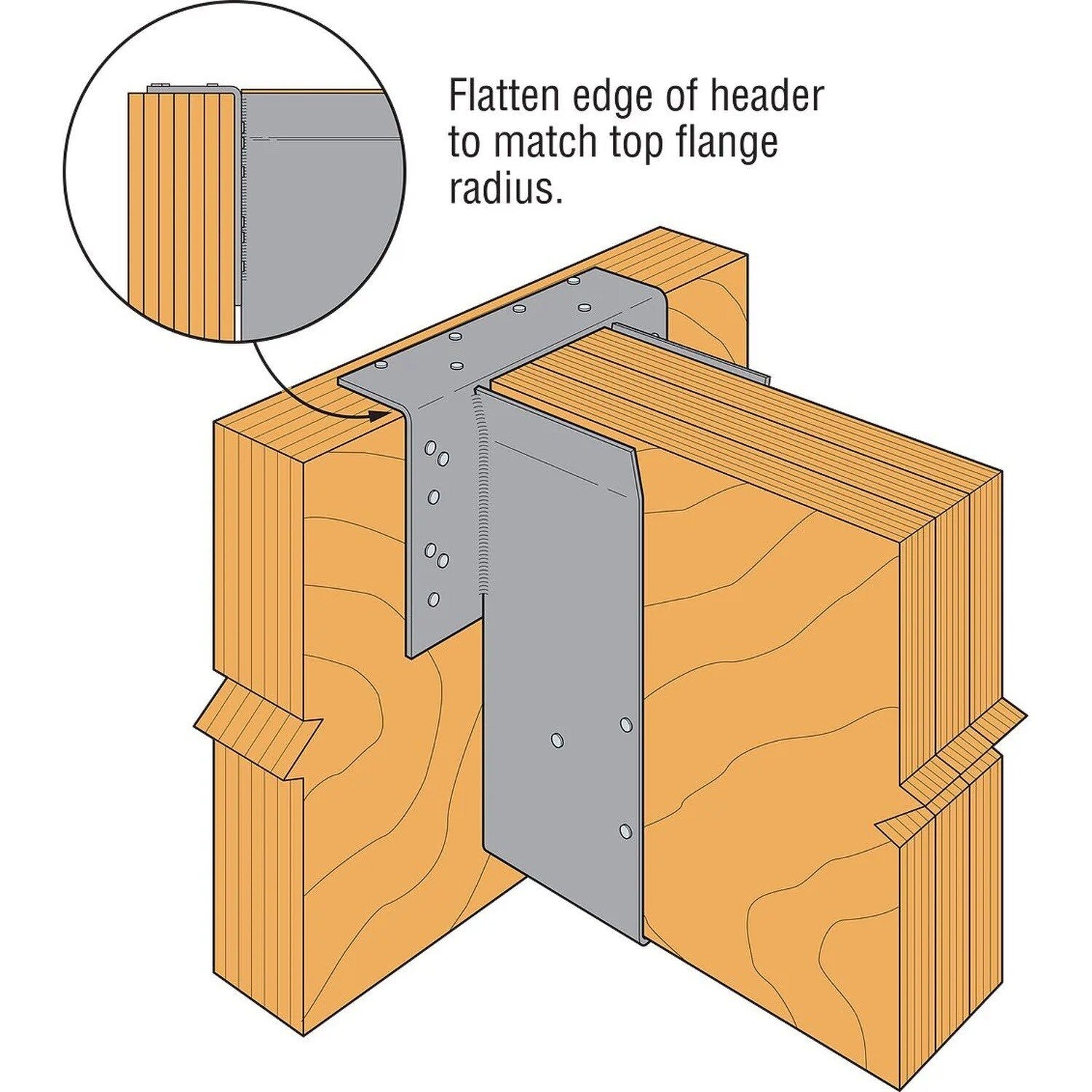

Simpson Strong-Tie HGLTV3.518 Installation Overview

  1. Use all specified fasteners and ensure the header can accommodate them.
  2. Install flush with the header for proper bearing and alignment.
  3. Follow building codes and engineered plans for installation.
  4. Not suitable for skewed or sloped applications.
  5. Use Simpson Strong-Tie screws or nails as specified.

Simpson Strong-Tie HGLTV3.518 Specifications

Finish Gray Paint
Fasteners required Top - (6) 0.162" x 3-1/2" Nails, Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails
For Treated Lumber No
Height 18"
Joist size 3-1/2" X 18"
Manufacturer name Simpson Strong-Tie
Thickness Top Flange: 3 Gauge; Stirrup: 7 Gauge
Width 3-9/16"
Toolup Part # : 819225
