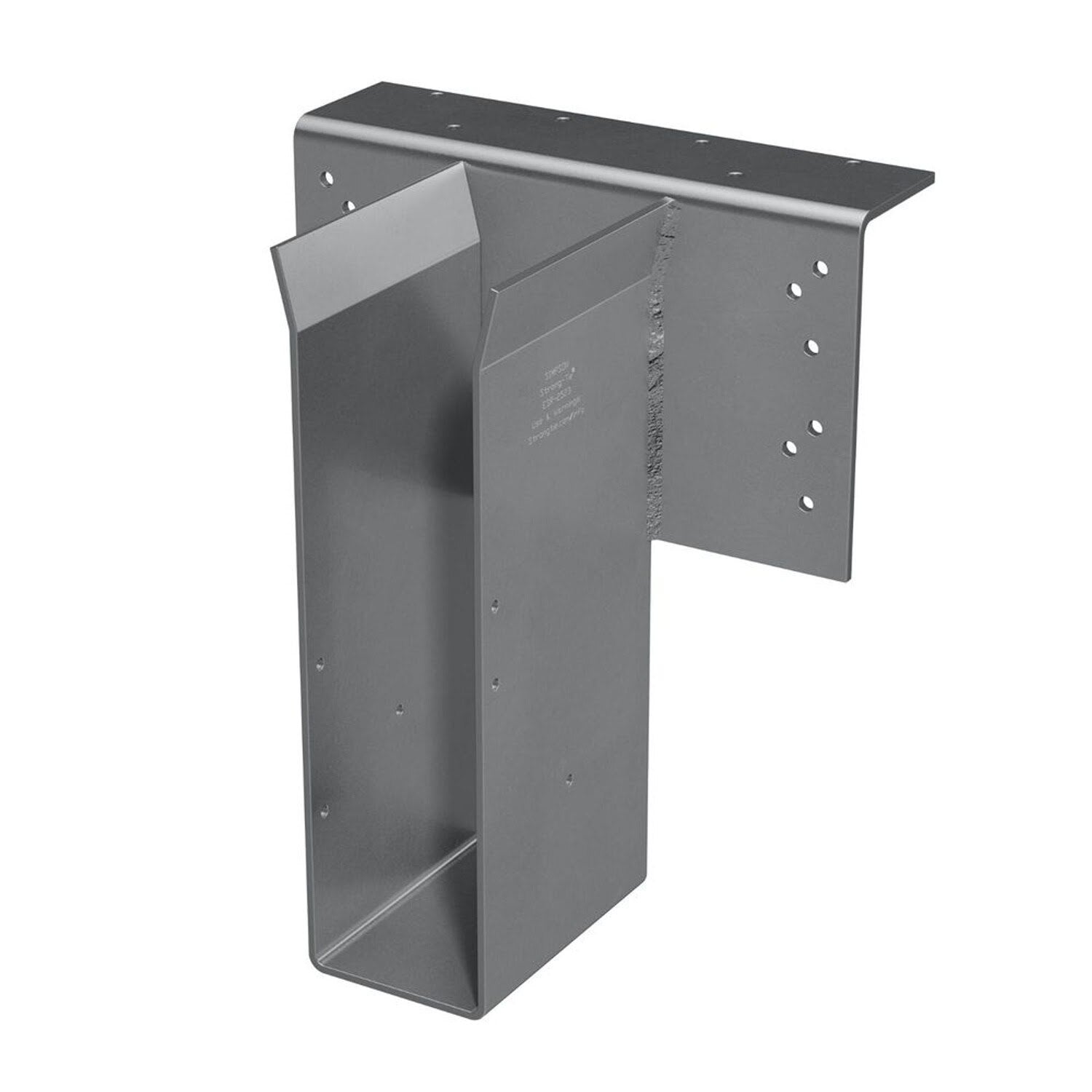

Simpson Strong-Tie HGLTV3.59 (3-1/2" x 9-1/2") High-Capacity Top-Flange Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie HGLTV3.59 (3-1/2" x 9-1/2") High-Capacity Top-Flange Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 819223
Price: 93.34 USD
Availability: BackOrder

$93.34

Description

Simpson Strong-Tie HGLTV3.59 Description

The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams.

Simpson Strong-Tie HGLTV3.59 Includes

(1) Heavy Duty Top Flange I-Joist Hanger

Simpson Strong-Tie HGLTV3.59 Features

High Load Capacity
Engineered Lumber Compatibility
Strong, Secure Fit
Top-Flange Mounting
Code Compliant

Simpson Strong-Tie HGLTV3.59 Applications

Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
Commercial Wood Construction: Supports large spans and engineered wood framing in commercial builds.
Garage and Basement Framing: Offers a high-capacity option for long joist runs or point-loaded conditions.

Simpson Strong-Tie HGLTV3.59 Installation Overview

Use all specified fasteners.
Verify that the header can take the required fasteners specified in the table.
Flatten edge of header to match top-flange radius.
Bevel-cut the carried beam for skewed hangers.
For hangers exceeding the joist height by more than 1/2", allowable load is 50% of the table load.
May be used for weld-on applications.
May be installed on ledgers provided the ledgers are made of 4x solid sawn or 3 1/2" SCL shown in the table below.

Simpson Strong-Tie HGLTV3.59 Specifications

Finish	Gray Paint
Fasteners required	Top - (6) 0.162" x 3-1/2" Nails, Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails
For Treated Lumber	No
Height	9-1/2"
Joist size	3-1/2" X 9-1/2"
Manufacturer name	Simpson Strong-Tie
Quantity	1
Thickness	Top Flange: 3 Gauge; Stirrup: 7 Gauge
Width	3-1/2"

NOTE: Ensure all fasteners are installed in designated holes to achieve full load capacity.
