Simpson Hangers | SKU:
HGLTV411.25-2

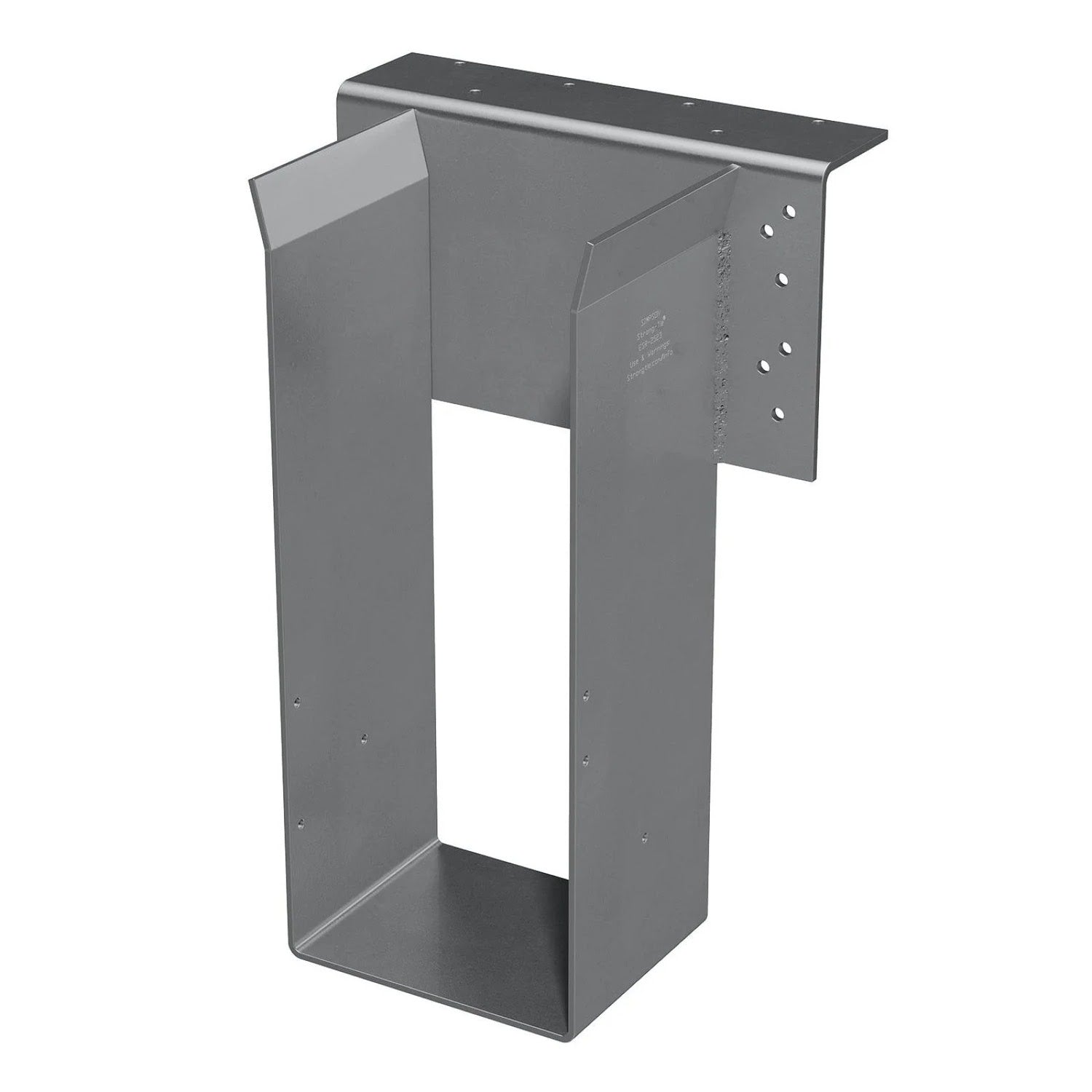

Simpson Strong-Tie HGLTV411.25-2 Heavy Top-Flange Hanger for Double 3-1/2 x 11-1/4 Engineered Joists
$133.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGLTV411.25-2 Description
The Simpson Strong-Tie HGLTV411.25-2 is a heavy-duty top-flange hanger designed for double 3-1/2 x 11-1/4 engineered joists, providing exceptional strength and reliability.
Simpson Strong-Tie HGLTV411.25-2 Includes
- (1) Heavy Top-Flange Hanger
Simpson Strong-Tie HGLTV411.25-2 Features
- High Load Capacity: Engineered to support heavy structural loads.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV411.25-2 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.
Simpson Strong-Tie HGLTV411.25-2 Installation Overview
- Use all specified fasteners and verify header compatibility.

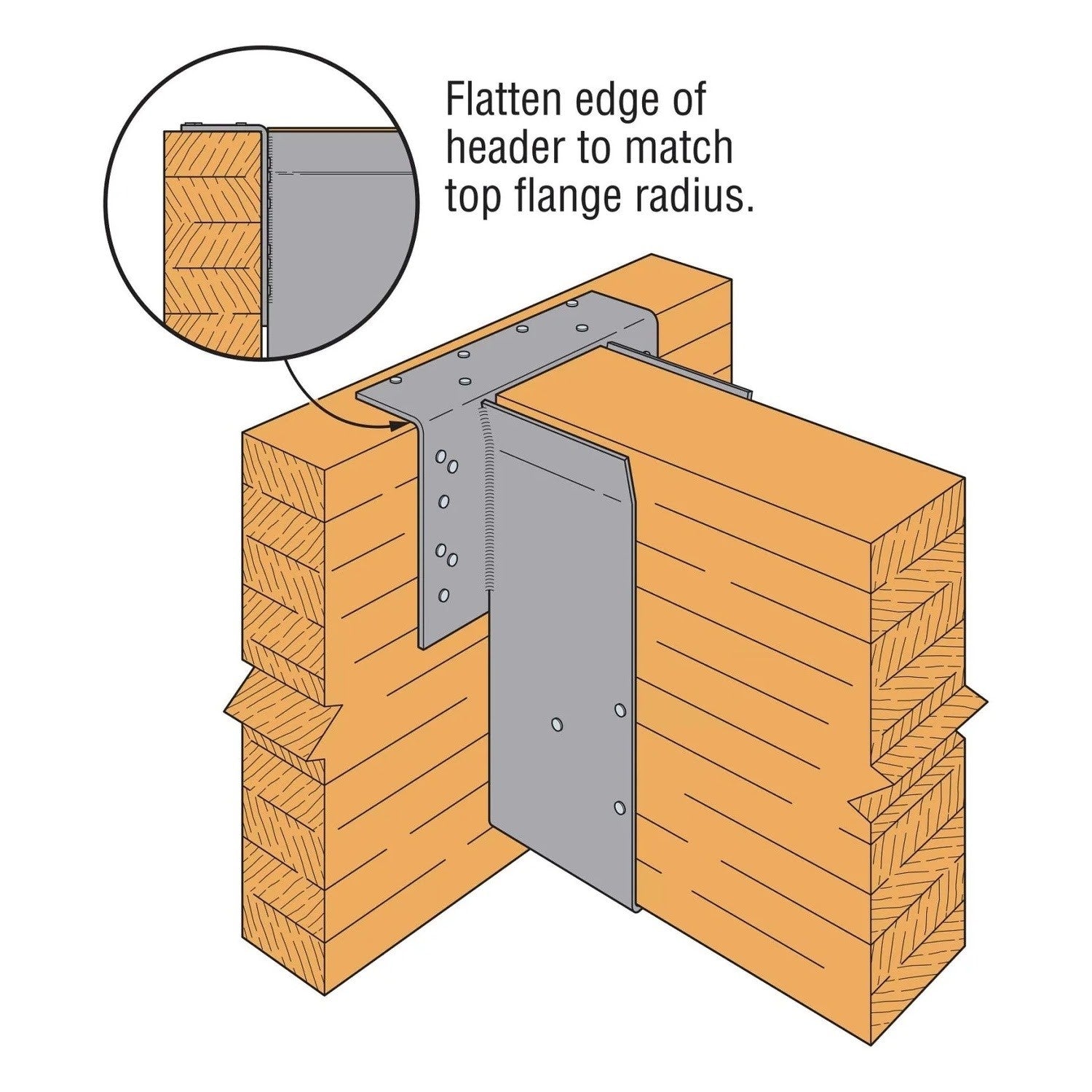

- Flatten edge of header to match top-flange radius.
- Bevel-cut the carried beam for skewed hangers.
- Install flush with the header for proper bearing and alignment.
- Ensure all installations meet applicable building codes and engineered plans.

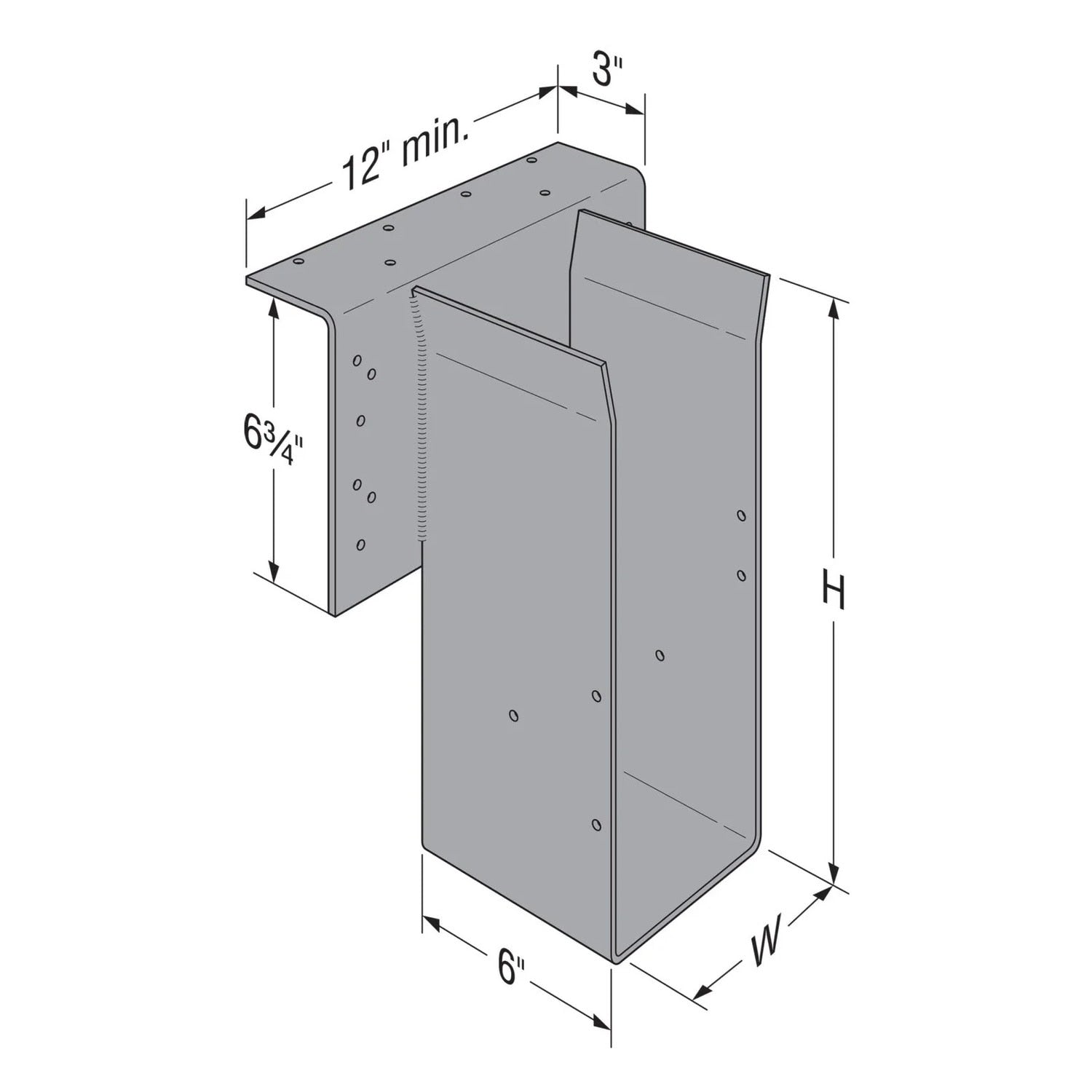

Simpson Strong-Tie HGLTV411.25-2 Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Fasteners required | Top: (6) 0.162 x 3-1/2 Face: (12) 0.162 x 3-1/2 Joist: (6) 0.162 x 3-1/2 |
| For Treated Lumber | No |
| Height | 11-1/4" |
| Joist size | Double 3-1/2" X 11-1/4" |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 3-1/2" |
NOTE: Ensure all fasteners are installed correctly to achieve the specified load values.
