Simpson Strong-Tie HGLTV414-2 Description

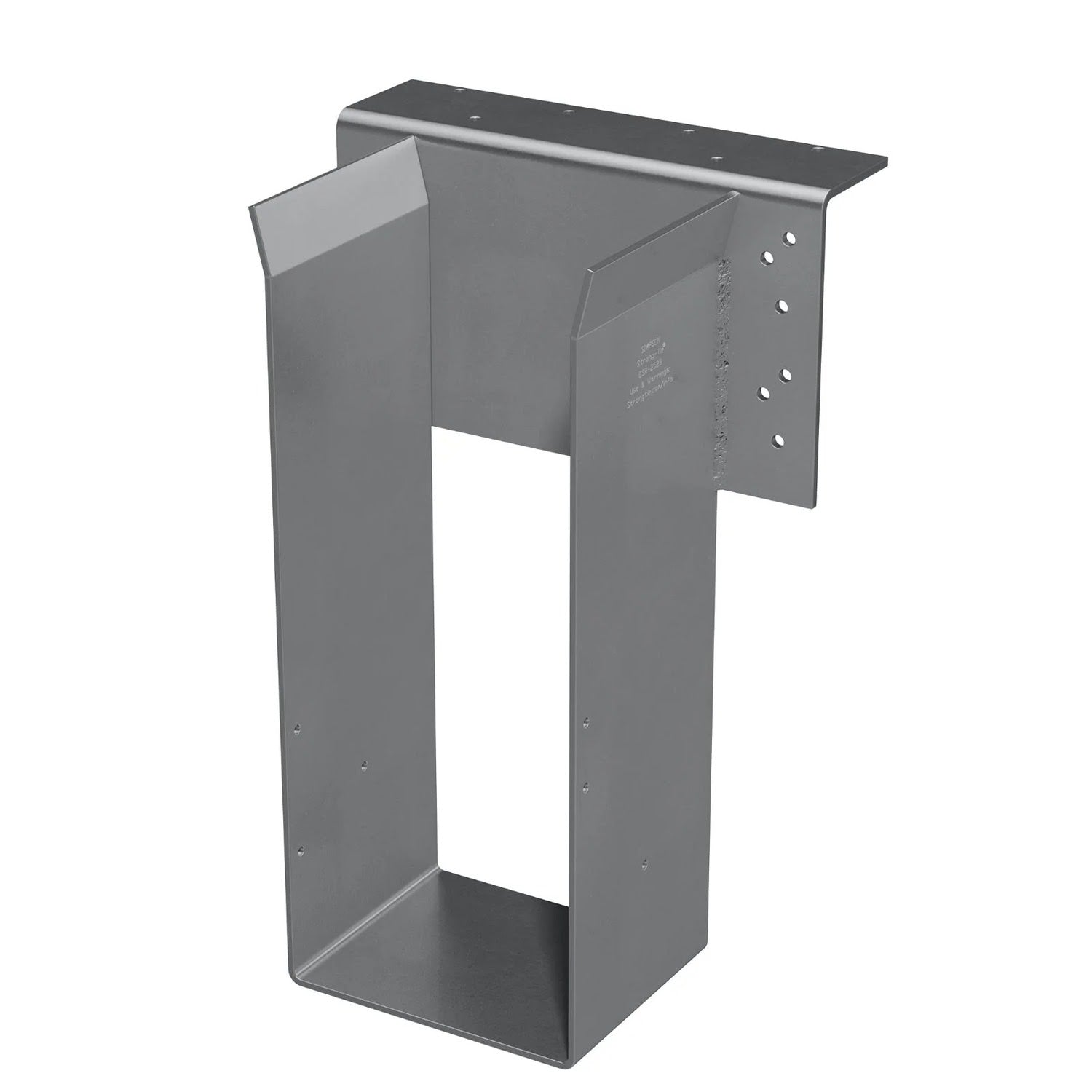

The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams. Engineered specifically for solid sawn lumber and structural composite lumber (SCL) like LVL, PSL, and LSL, this hanger delivers exceptional strength and stiffness where performance matters most.
Simpson Strong-Tie HGLTV414-2 Includes
- (1) Heavy Duty Top Flange I-Joist Hanger
Simpson Strong-Tie HGLTV414-2 Features
- High Load Capacity: Engineered to support heavy structural loads in demanding applications.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV414-2 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial builds.
- Garage and Basement Framing: Offers a high-capacity option for long joist runs or point-loaded conditions.

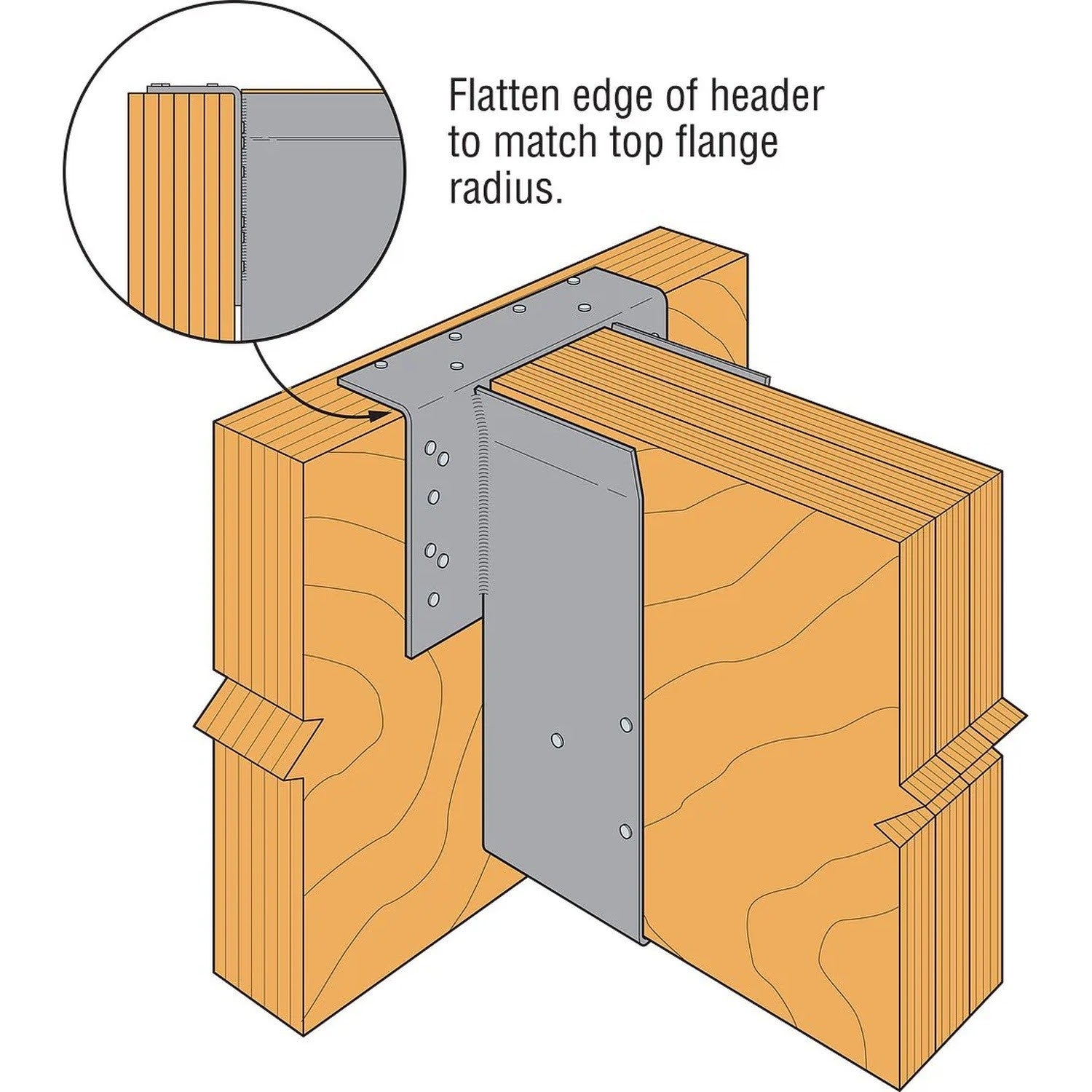

Simpson Strong-Tie HGLTV414-2 Installation Overview
- Use all specified fasteners and ensure the header can accommodate them.
- Install flush with the header for proper bearing and alignment.
- Follow building codes and engineered plans for installation.
- Not suitable for skewed or sloped applications.
- Use Simpson Strong-Tie screws or nails as specified.
Simpson Strong-Tie HGLTV414-2 Specifications
| Finish | Gray Paint |
| Fasteners required | Top - (6) 0.162" x 3-1/2" Nails, Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 14" |
| Joist size | 7" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 3-1/2" |
Toolup Part # :
820021
