Simpson Hangers | SKU:
HGLTV418-2

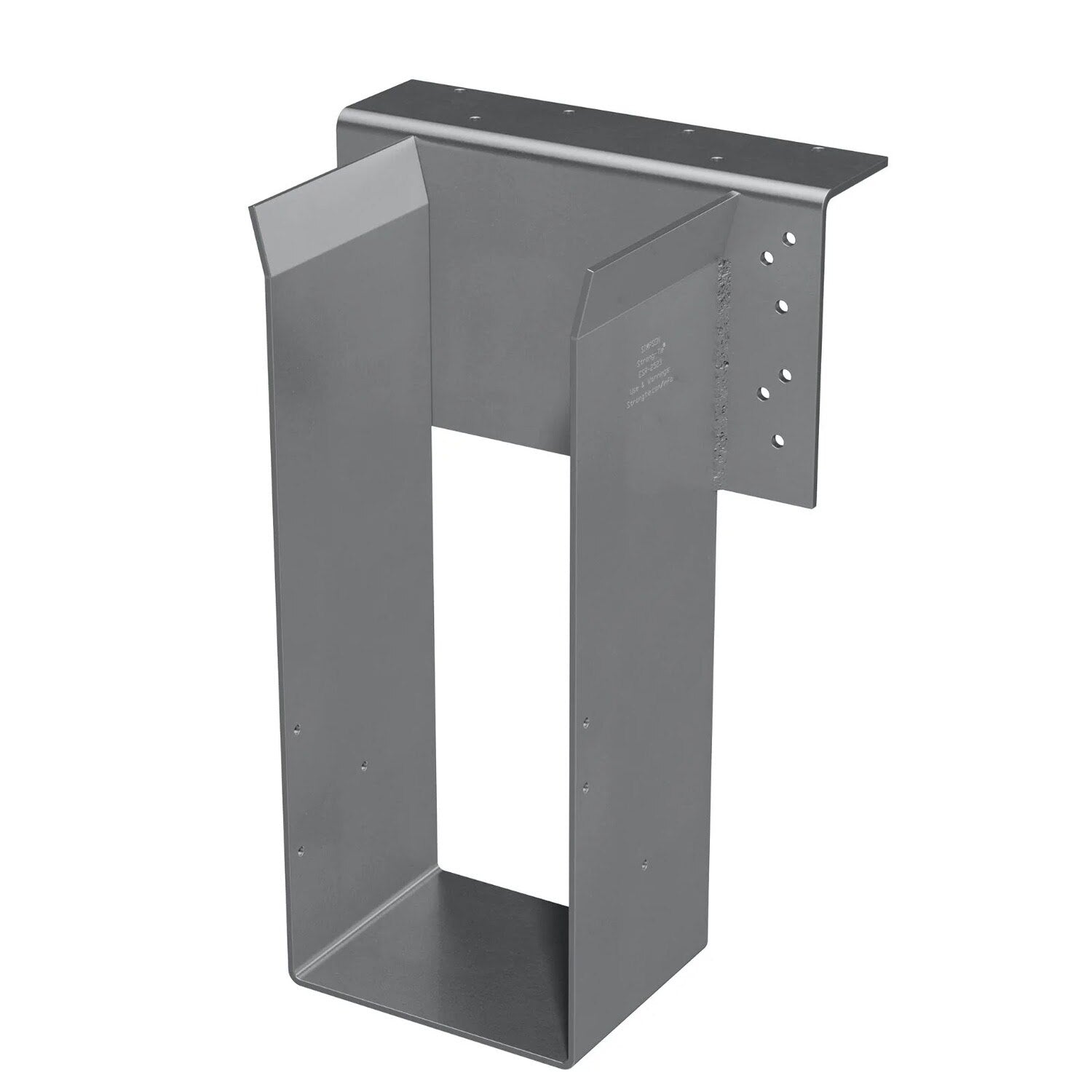

Simpson Strong-Tie HGLTV418-2 (3-1/2" x 18") High-Capacity Top-Flange Joist Hanger for Double Engineered Wood
$159.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGLTV418-2 Description
The Simpson Strong-Tie HGLTV418-2 is a high-capacity top-flange joist hanger designed for double 3-1/2" x 18" engineered wood, providing exceptional strength and stability.
Simpson Strong-Tie HGLTV418-2 Includes
- (1) HGLTV418-2 Joist Hanger
Simpson Strong-Tie HGLTV418-2 Features
- High load capacity for demanding applications
- Compatible with engineered lumber such as LVL, PSL, and LSL
- Reduces joist rotation for enhanced structural integrity
- Designed for top-flange mounting on beams and ledgers
- Heavy-duty steel construction
Simpson Strong-Tie HGLTV418-2 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.
Simpson Strong-Tie HGLTV418-2 Installation Overview
- Use all specified fasteners and verify header compatibility.

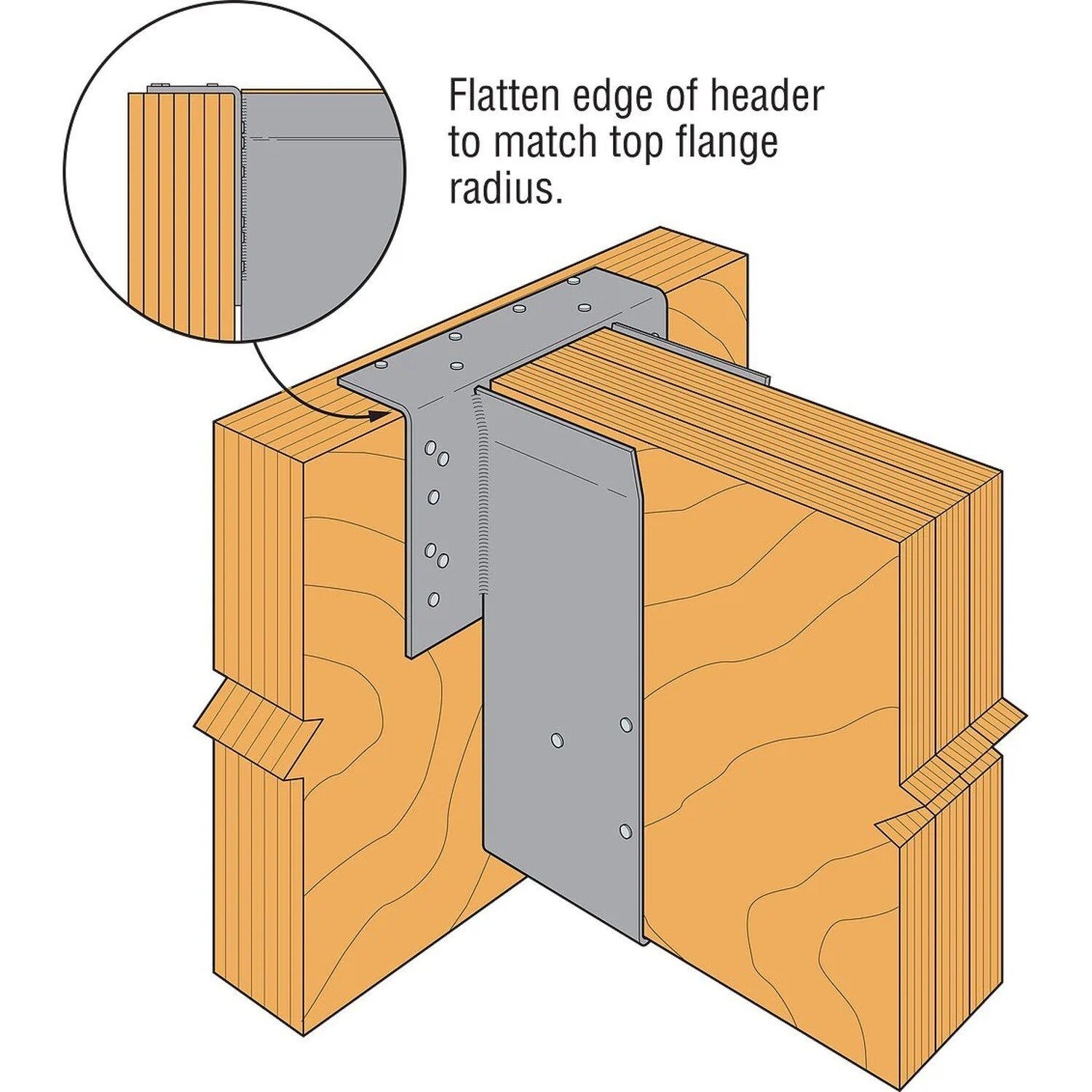

- Flatten edge of header to match top-flange radius.
- Bevel-cut the carried beam for skewed hangers.
- Install flush with the header for proper bearing and alignment.
- Ensure all installations meet applicable building codes and engineered plans.
Simpson Strong-Tie HGLTV418-2 Specifications
| Finish | Gray Paint |
| Fasteners required | Top - (6) 0.162" x 3-1/2" Nails, Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 18" |
| Joist size | 7" X 18" |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 3-1/2" |
NOTE: Ensure all fasteners are installed in designated holes to achieve full load capacity.
