Simpson Hangers | SKU:
HGLTV5.50/11.5

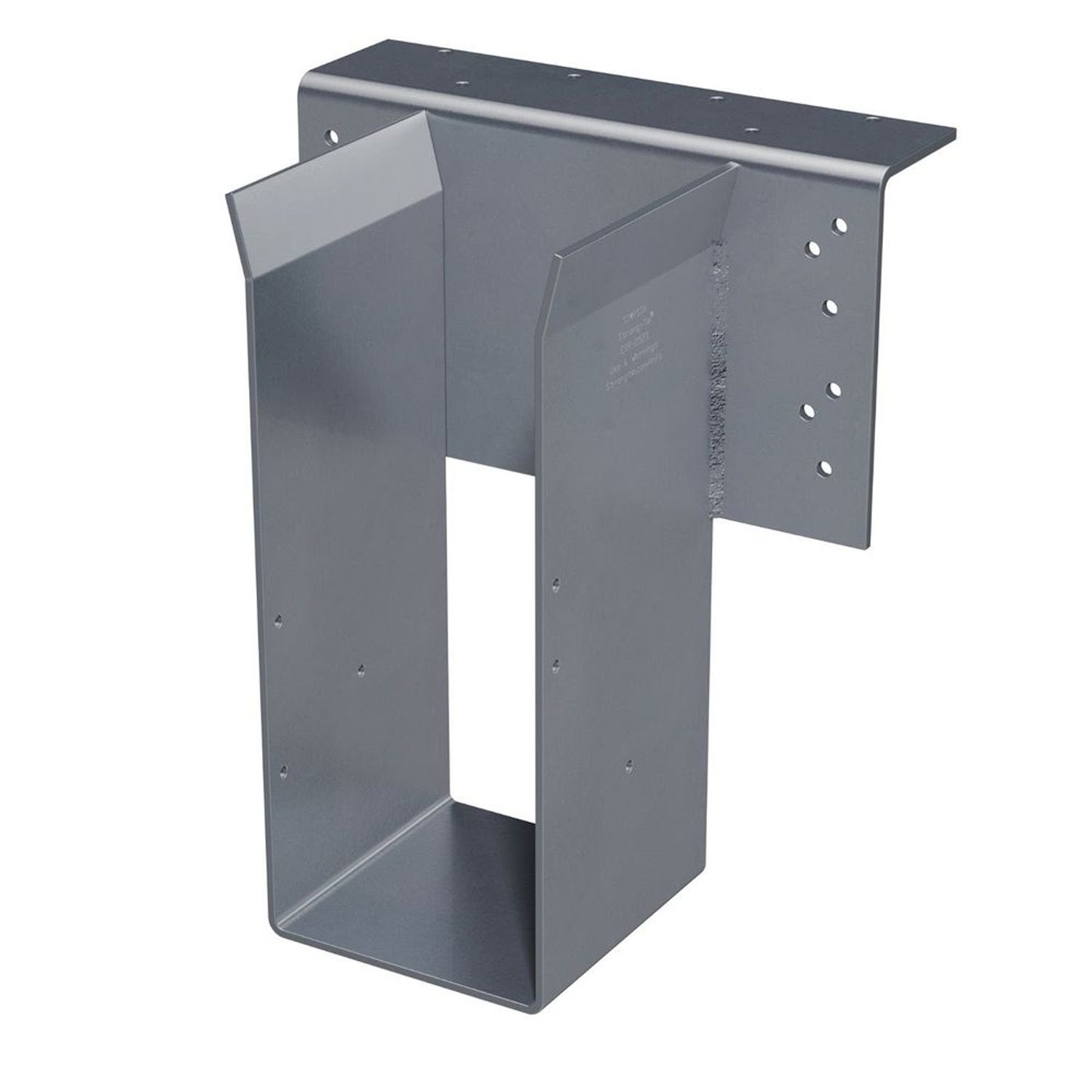

Simpson Strong-Tie HGLTV5.50/11.5 (5-1/2" x 11-1/2") Heavy-Duty Top-Flange Hanger for Engineered Wood
$175.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGLTV5.50/11.5 Description
The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams. Engineered specifically for solid sawn lumber and structural composite lumber (SCL) like LVL, PSL, and LSL, this hanger delivers exceptional strength and stiffness where performance matters most.
Simpson Strong-Tie HGLTV5.50/11.5 Includes
- (1) Heavy-Duty Top-Flange Hanger
Simpson Strong-Tie HGLTV5.50/11.5 Features
- High Load Capacity: Engineered to support heavy structural loads in demanding applications.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV5.50/11.5 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.
Simpson Strong-Tie HGLTV5.50/11.5 Installation Overview
- Use all specified fasteners and ensure the header can accommodate them.
- Install flush with the header for proper bearing and alignment.
- Fasteners must be installed into all designated holes for full load capacity.
- Verify all installations meet applicable building codes and engineered plans.
- Not designed for skewed or sloped applications.
Simpson Strong-Tie HGLTV5.50/11.5 Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| For Treated Lumber | No |
| Height | 11-1/2" |
| Joist size | 5-1/2" X 11-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 5-1/2" |
