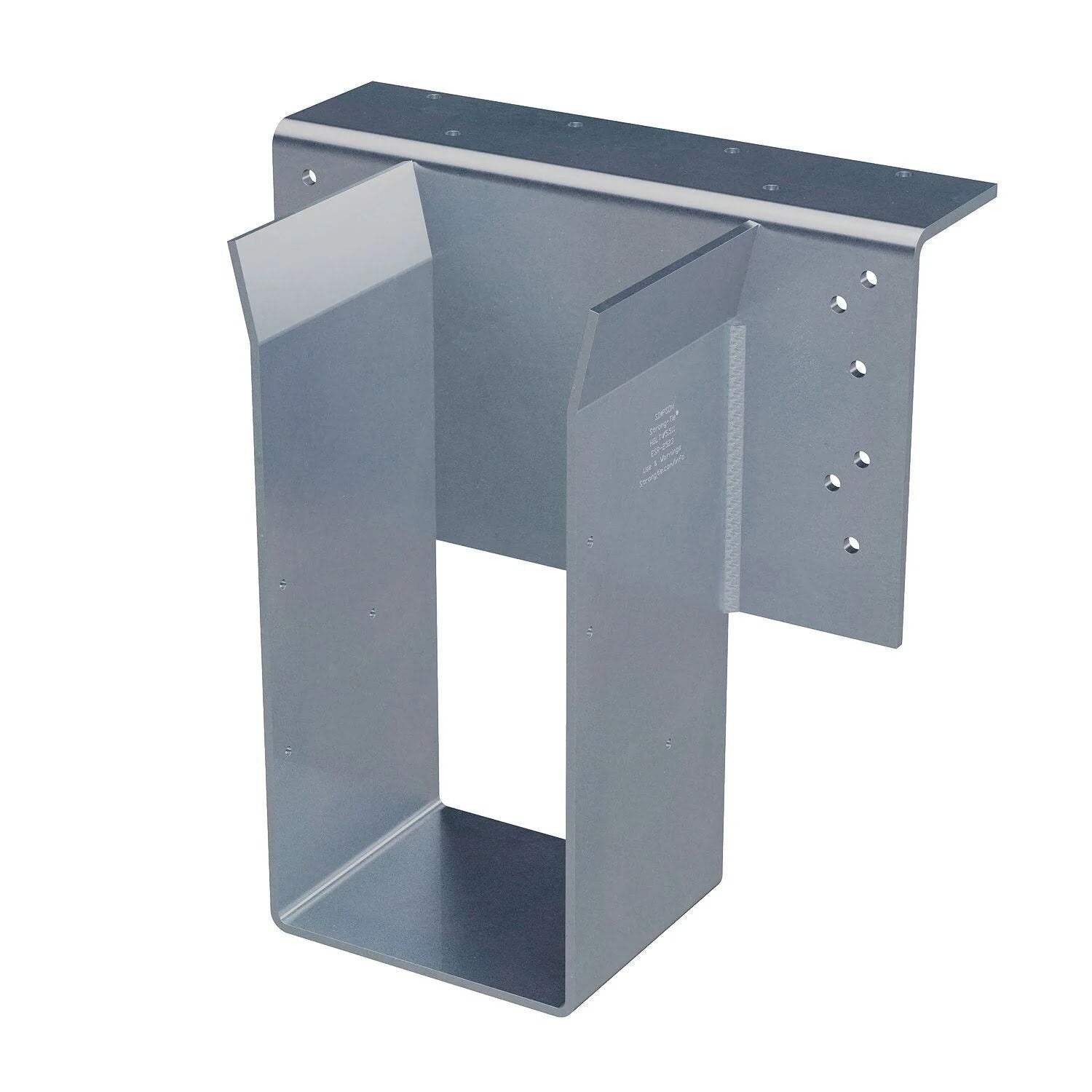

Simpson Strong-Tie HGLTV5.512 (5-1/4 in x 12 in) Heavy Top-Flange I-Joist Hanger for Engineered Lumber, Gray Paint

Simpson Strong-Tie HGLTV5.512 Features

• High load capacity for demanding structural applications
• Compatible with engineered lumber such as LVL, PSL, and LSL
• Heavy-gauge steel construction for durability
• Precision-formed top flange for a secure fit
• Reduces joist rotation under load

Simpson Strong-Tie HGLTV5.512 Applications

• Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
• Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
• Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
• Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

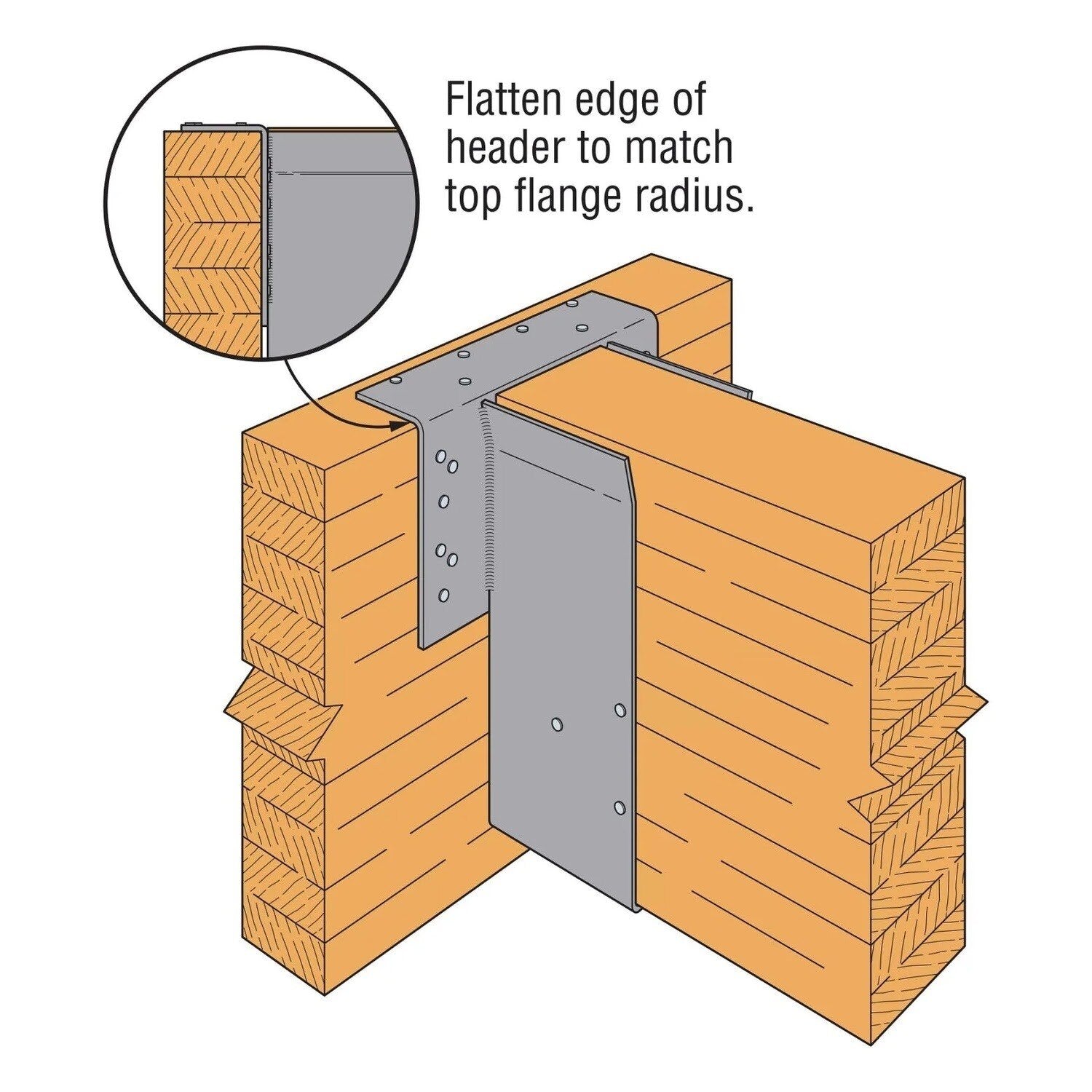

Simpson Strong-Tie HGLTV5.512 Installation Overview

1. Use all specified fasteners and ensure the header can accommodate them.
2. Install flush with the header for proper bearing and alignment.
3. Fasteners must be installed into all designated holes for full load capacity.
4. Verify all installations meet applicable building codes and engineered plans.
5. Not designed for skewed or sloped applications.
