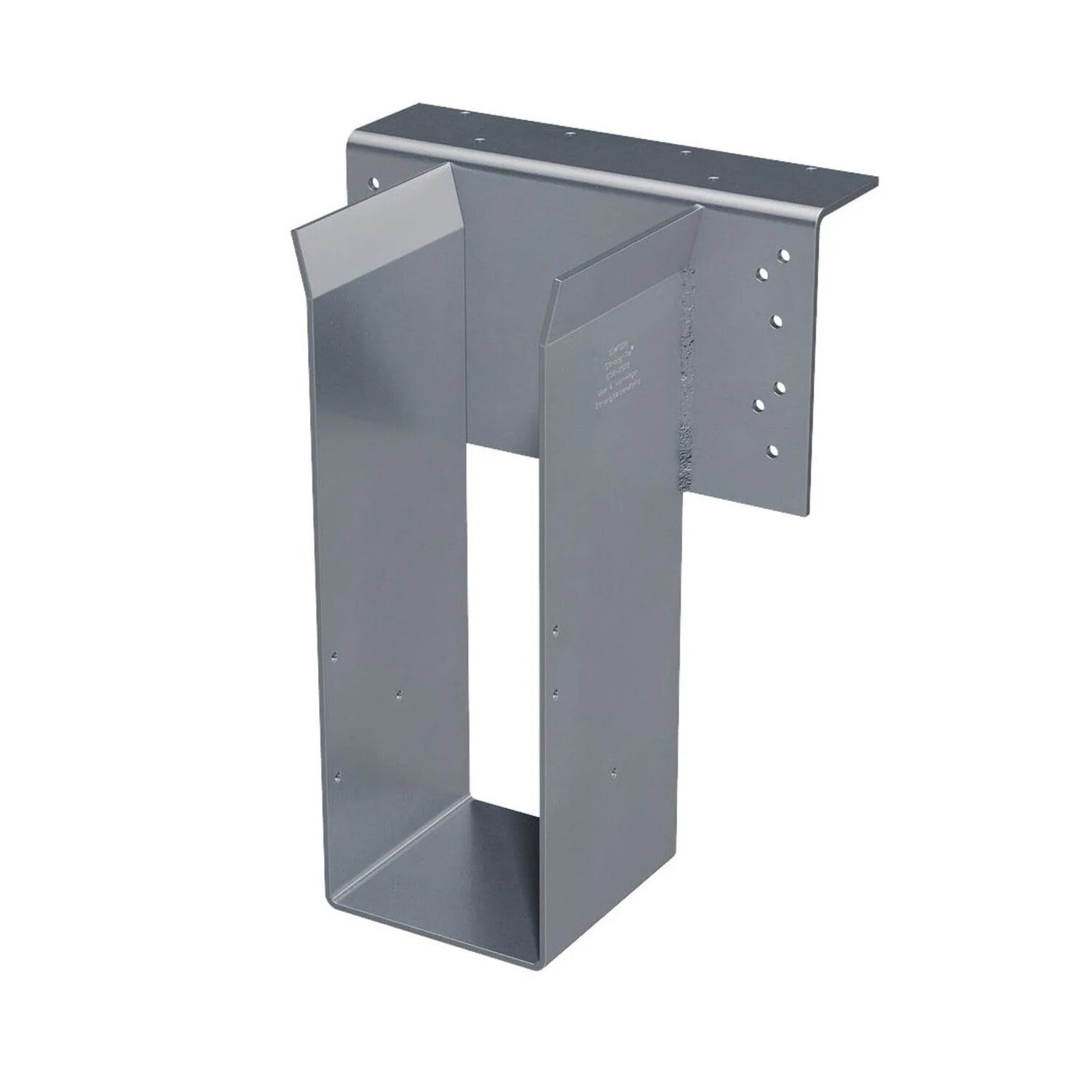

Simpson Strong-Tie HGLTV5.516 (5-1/4" x 16") Heavy Duty Top Flange I-Joist Hanger for Engineered Wood

Simpson Strong-Tie HGLTV5.516 Features

• High Load Capacity: Engineered to support heavy structural loads in demanding applications.
• Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
• Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
• Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
• Code Compliant: Meets industry performance standards for structural connectors.

Simpson Strong-Tie HGLTV5.516 Applications

• Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
• Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
• Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
• Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

Simpson Strong-Tie HGLTV5.516 Installation Overview

1. Use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or nails as specified.
2. Install fasteners into all designated holes for full load capacity.
3. Ensure installations meet applicable building codes and engineered plans.

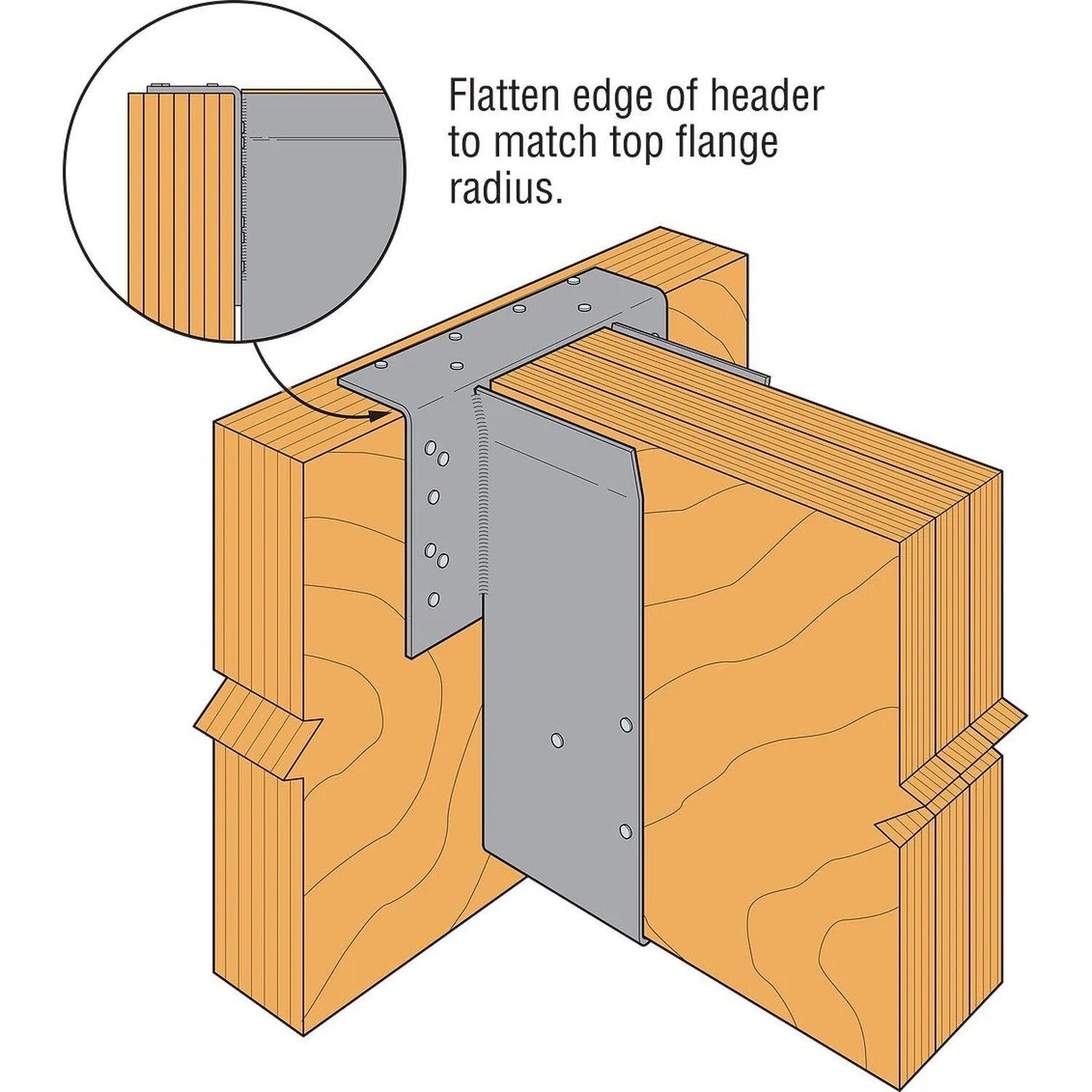

4. Install hanger flush with the header to ensure proper bearing and alignment.
5. Not suitable for skewed or sloped applications.
