Simpson Hangers | SKU:
HGLTV5.59

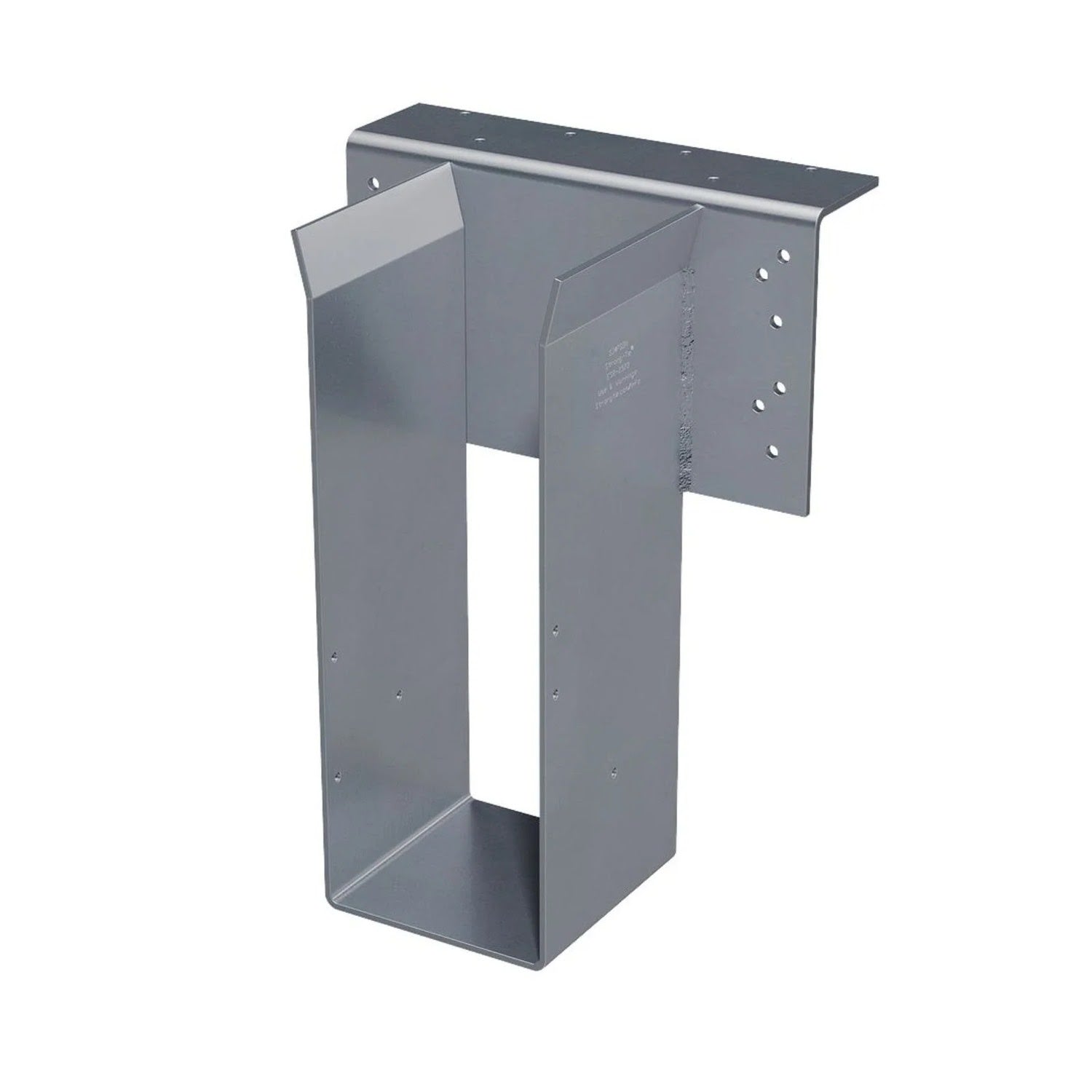

Simpson Strong-Tie HGLTV5.59 Heavy Duty Top Flange I-Joist Hanger for Engineered Wood Connections
$104.22
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGLTV5.59 Description
The Simpson Strong-Tie HGLTV Top-Flange Hanger is a high-capacity solution for connecting engineered wood members to supporting beams, designed for solid sawn lumber and structural composite lumber.
Simpson Strong-Tie HGLTV5.59 Includes
- (1) Simpson HGLTV5.59 Heavy Duty Top Flange I-Joist Hanger
Simpson Strong-Tie HGLTV5.59 Features
- High Load Capacity: Engineered to support heavy structural loads in demanding applications.
- Engineered Lumber Compatibility: Ideal for use with LVL, PSL, LSL, and other SCL materials.
- Strong, Secure Fit: Reduces joist rotation for enhanced structural integrity.
- Top-Flange Mounting: Designed for installation on supporting beams and ledgers.
- Code Compliant: Meets industry performance standards for structural connectors.
Simpson Strong-Tie HGLTV5.59 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

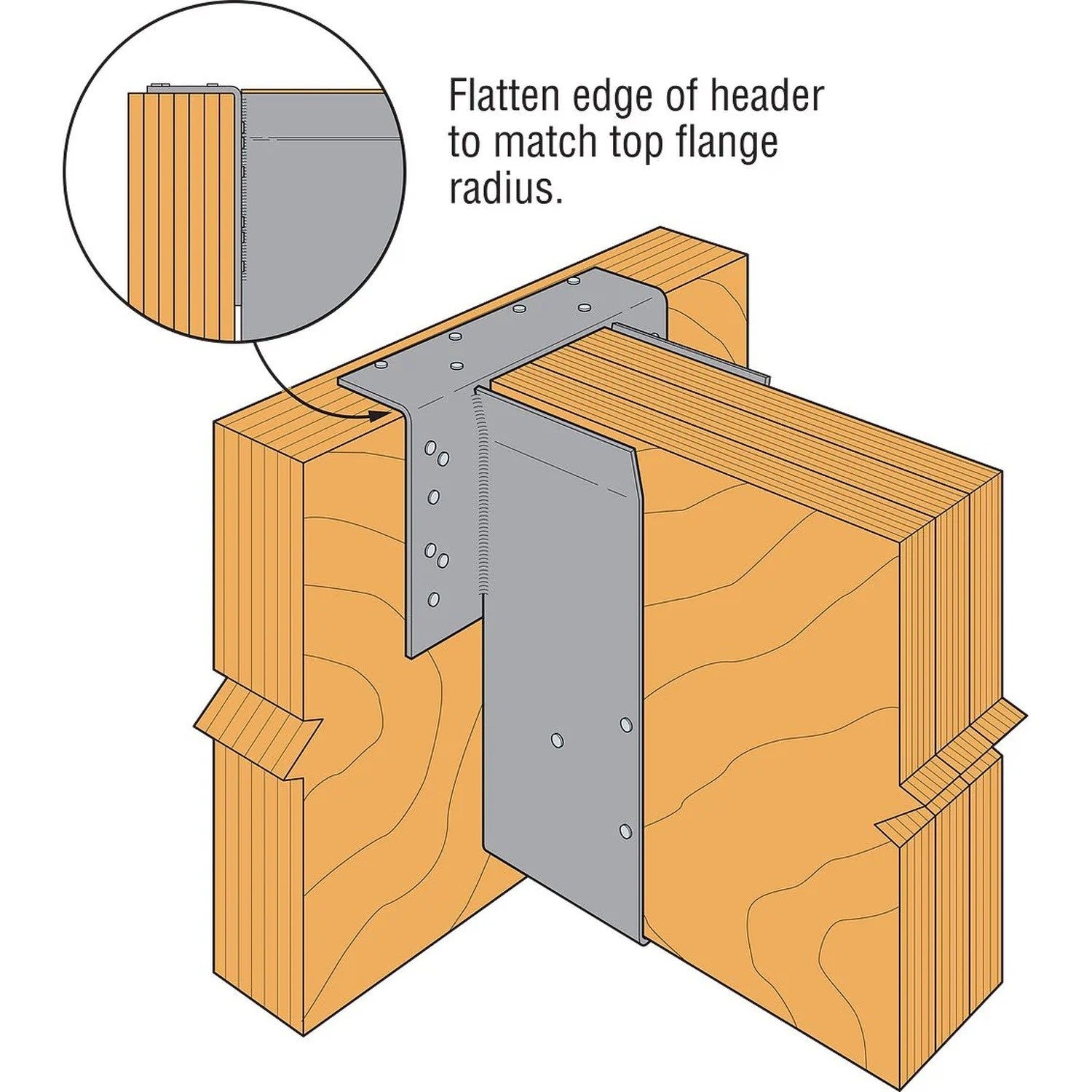

Simpson Strong-Tie HGLTV5.59 Installation Overview
- Use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or nails as specified.
- Install fasteners into all designated holes for full load capacity.
- Ensure installations meet applicable building codes and engineered plans.
- Install hanger flush with the header for proper bearing and alignment.
- Not suitable for skewed or sloped applications.

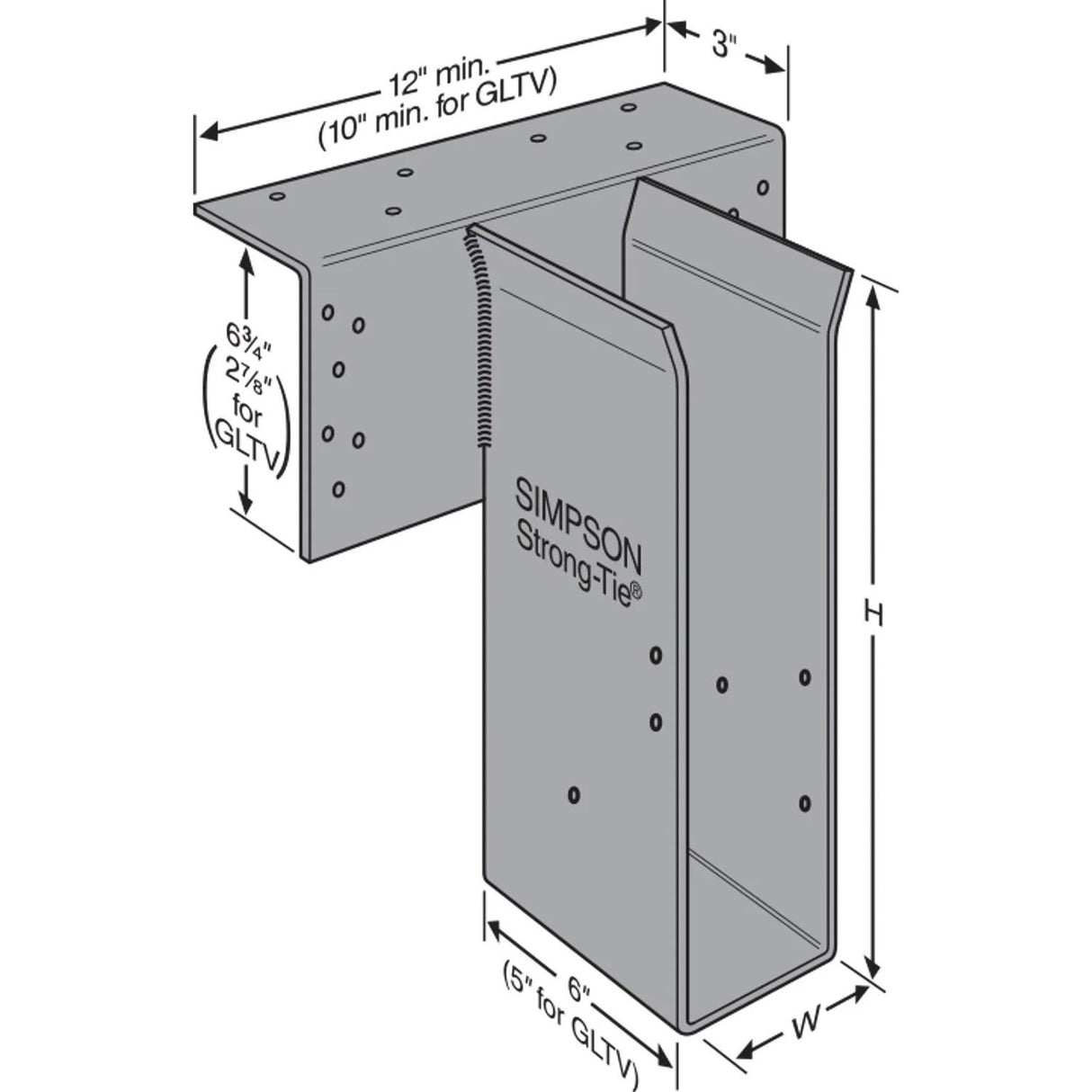

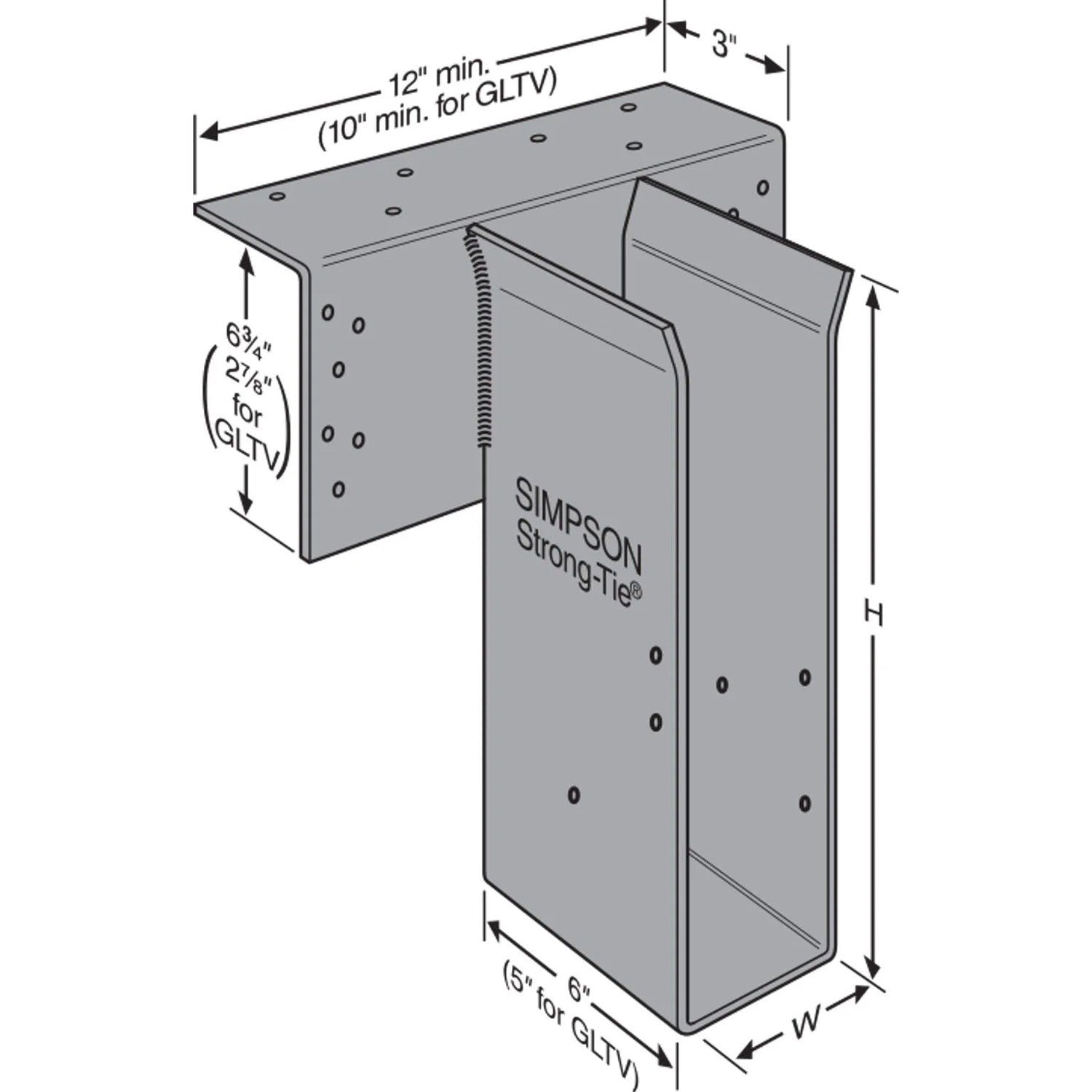

Simpson Strong-Tie HGLTV5.59 Specifications
| Material | Carbon Steel |
| Height | 9.5" |
| Joist size | 5-1/4" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | Stirrup: 7 Gauge; Top Flange: 3 Gauge |
| Width | 5.5625" |
NOTE: Ensure all fasteners are installed in designated holes to achieve full load capacity.
