Simpson Anchors | SKU:
HGT-3

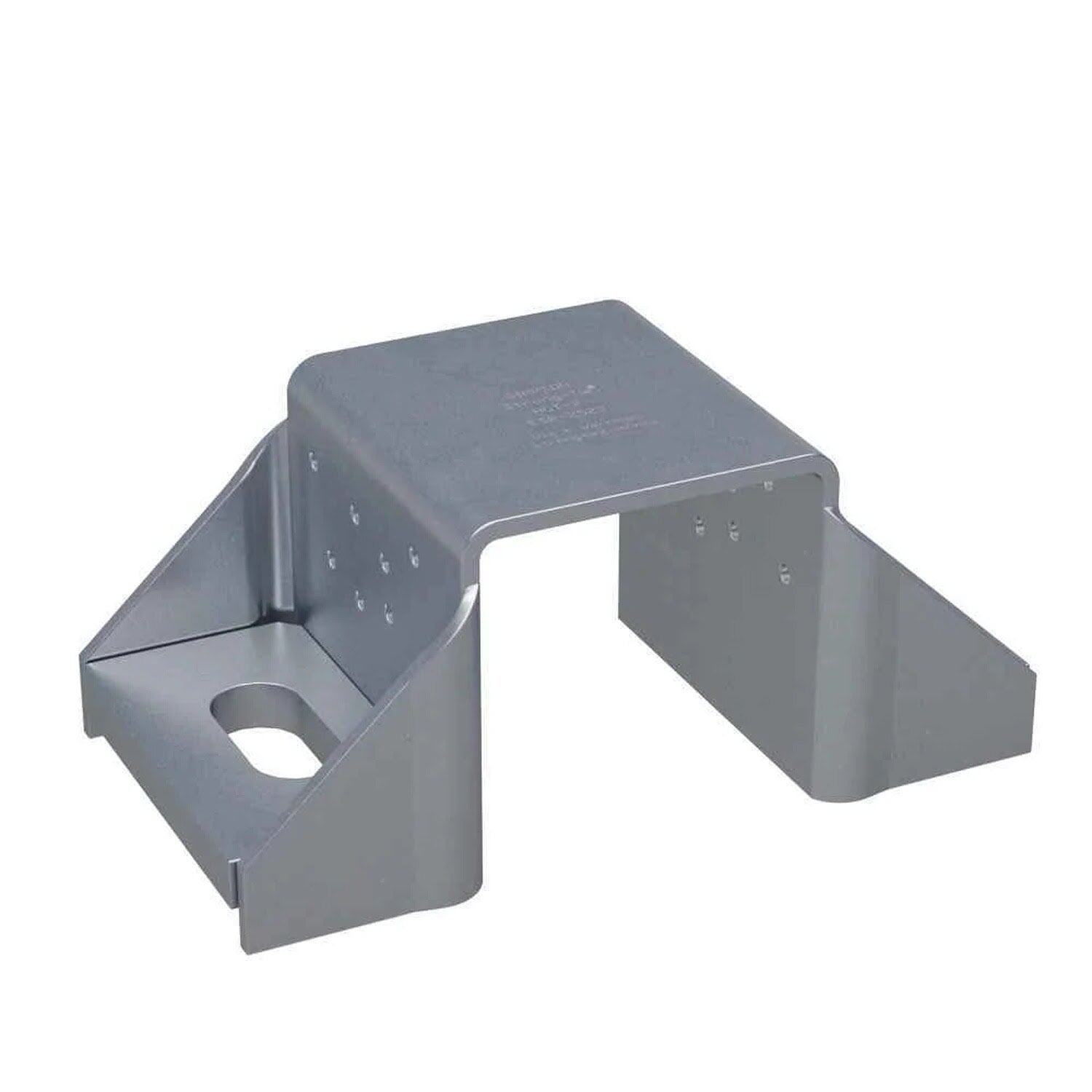

Simpson Strong-Tie HGT-3 (4-15/16 in.) Heavy Girder Tiedown for High-Wind Construction
$187.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGT-3 Description
The HGT-3 Girder Tiedown is designed for high-wind construction, providing reliable anchoring for girders and beams.
Simpson Strong-Tie HGT-3 Includes
- (1) HGT-3 Girder Tiedown
Simpson Strong-Tie HGT-3 Features
- Crescent washers supplied for adjustability during installation
- Load rated to resist high-wind forces
- Field adjustable for trusses with top chord slopes up to 8/12
Simpson Strong-Tie HGT-3 Applications
- High-wind construction requiring girder anchoring
- Moderate to high load applications in structural framing
Simpson Strong-Tie HGT-3 Installation Overview
- Use all specified fasteners as per guidelines
- Shim required for 2-ply girder or beam, fastened to act as one unit
- Attach to grouted concrete block with minimum one #5 rebar horizontal in the top lintel block
Simpson Strong-Tie HGT-3 Specifications
| Material | 7 gauge |
| Finish | Simpson Strong-Tie gray paint |
| Width | 4 15/16 in. |
| Height | 3 5/8 in. |
| Weight | 5.9 lb |
| Fasteners Required | (16) 0.148" x 3" Nails, (2) 3/4" Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
