Simpson Hangers | SKU:
HGUS26
Simpson Strong-Tie HGUS26 (5-3/8 in.) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$26.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGUS26 Description

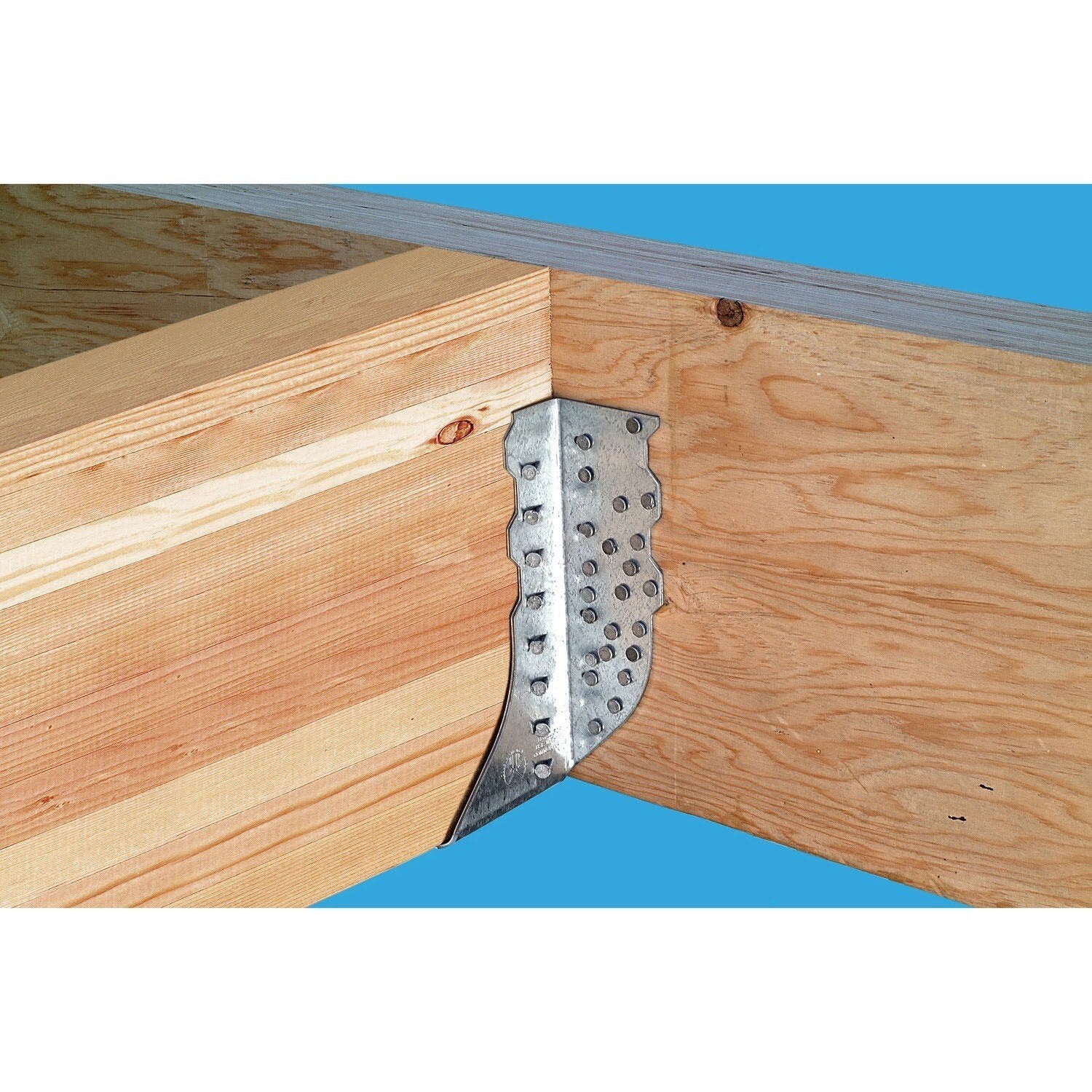

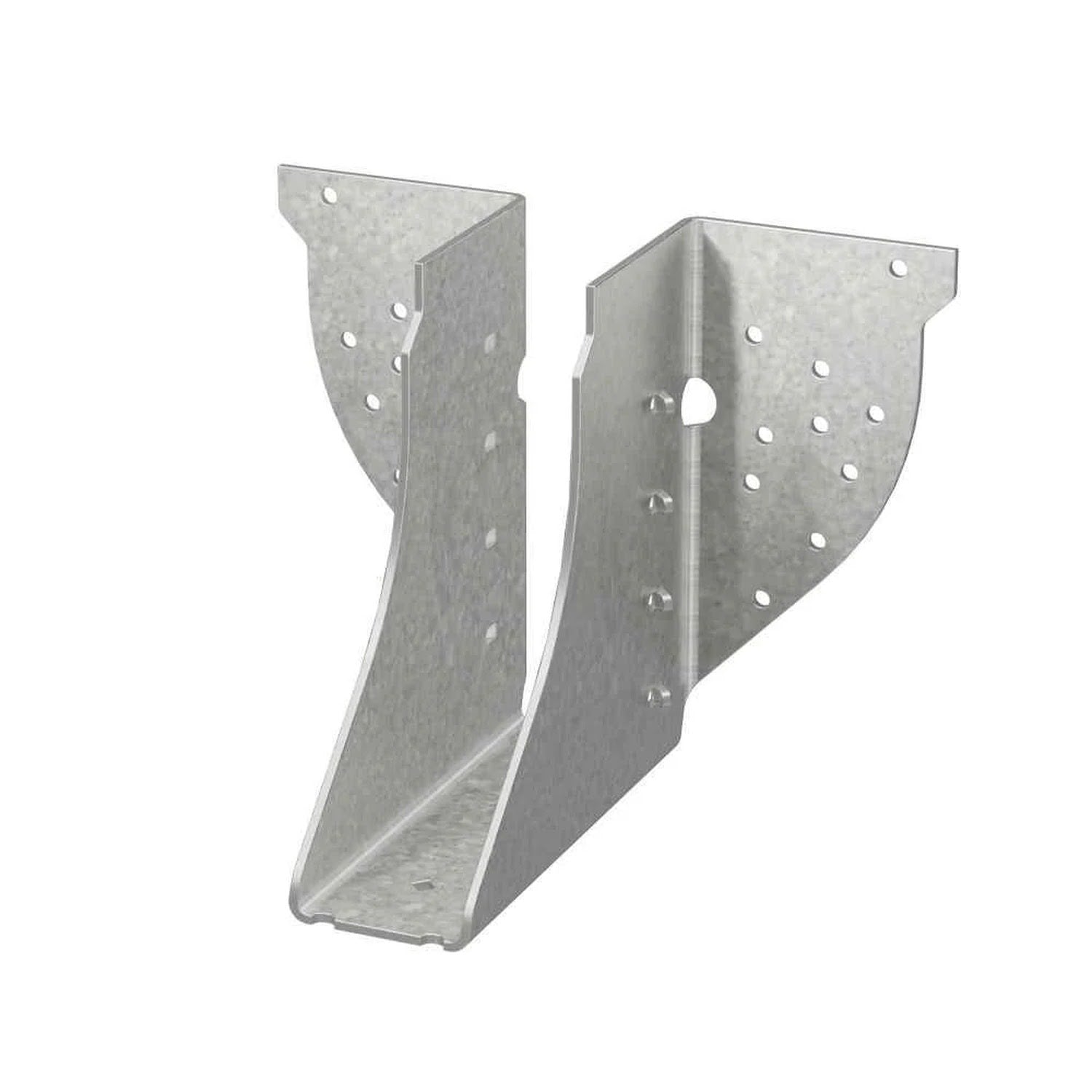

The Simpson Strong-Tie HGUS26 is a heavy-duty face mount hanger designed for 2x6 joists, offering robust support and durability for structural applications.
Simpson Strong-Tie HGUS26 Includes
- (1) 2x6 Face Mount Hanger
Simpson Strong-Tie HGUS26 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson Strong-Tie HGUS26 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.
Simpson Strong-Tie HGUS26 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson Strong-Tie HGUS26 Specifications
| Finish | G90 Galvanized |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 1-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
