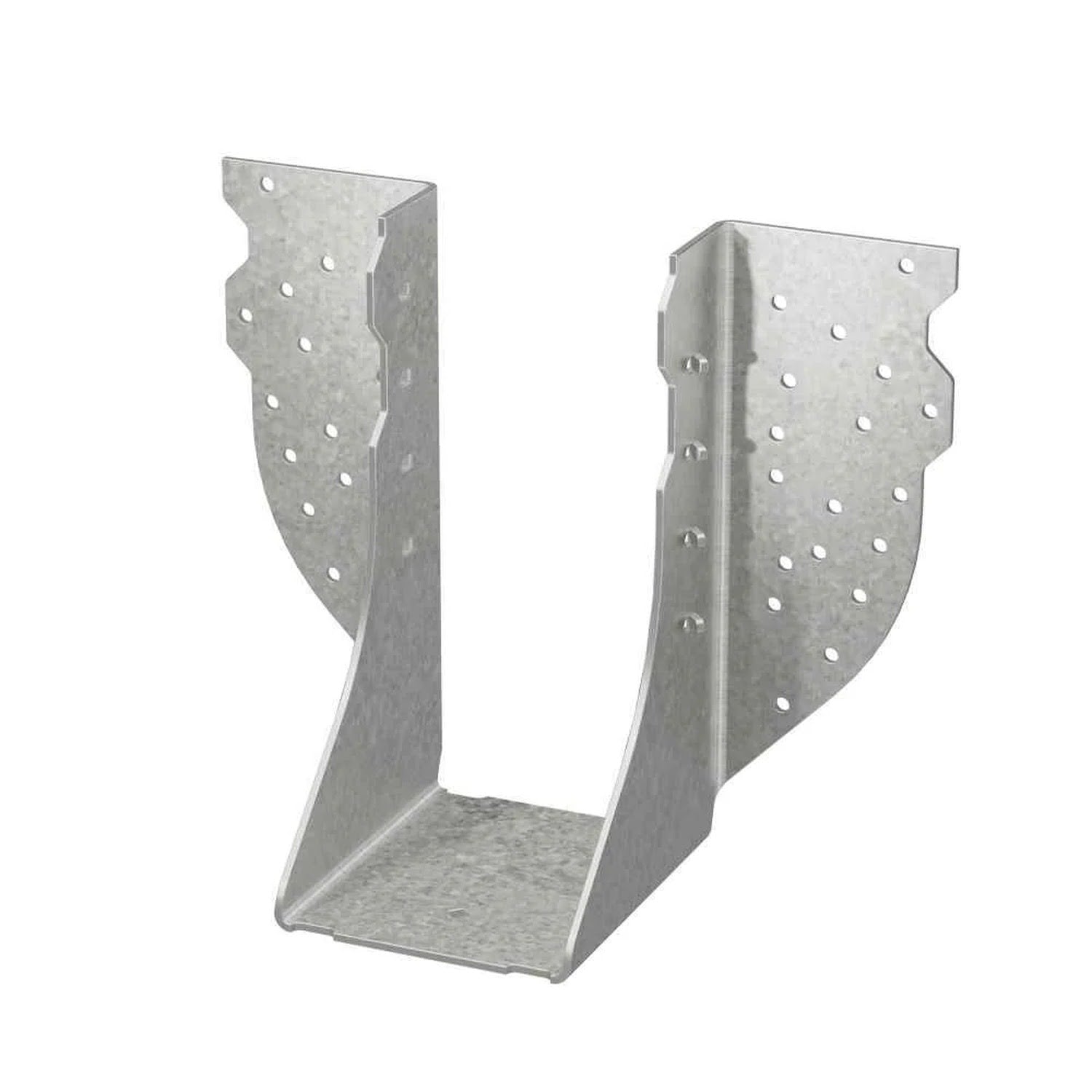

Simpson Strong-Tie HGUS28-2 (7-3/16 in.) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized

Simpson HGUS28-2 Features

• High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
• Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
• Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
• Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.

Simpson HGUS28-2 Applications

• Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
• Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
• Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
• Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.

Simpson HGUS28-2 Installation Overview

1. Fastener Requirements: Use all specified fasteners as per the manufacturer's guidelines.
2. Compatibility: Not designed for welded or nailer applications. Avoid using double-shear hangers with I-joists.
3. Carrying Members: For 3x carrying members, when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction.
