Simpson Hangers | SKU:
HGUS3.25/10

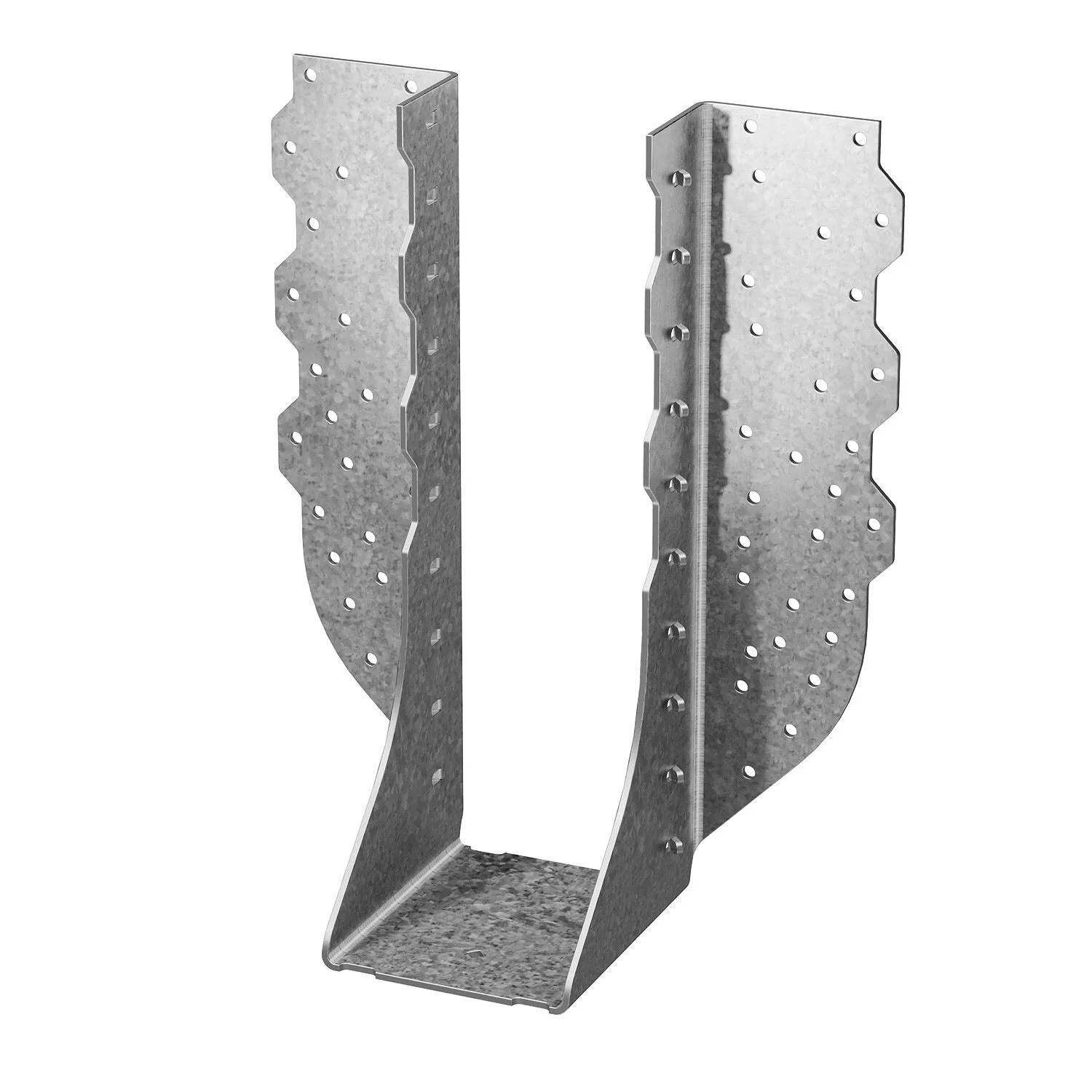

Simpson Strong-Tie HGUS3.25/10 (3-1/8" x 10") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$53.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGUS3.25/10 Description
The Simpson Strong-Tie HGUS3.25/10 is a heavy-duty galvanized face-mount joist hanger designed for 3-1/8" x 10" glulam beams, offering robust support and durability.
Simpson Strong-Tie HGUS3.25/10 Includes
- (1) HGUS3.25/10 Joist Hanger
Simpson Strong-Tie HGUS3.25/10 Features
- High load capacity for demanding structural applications
- Double-shear nailing for enhanced strength
- Durable 12-gauge galvanized steel construction
- Versatile installation after beam placement
Simpson Strong-Tie HGUS3.25/10 Applications
- Residential construction for secure beam connections
- Commercial projects for heavy load support
- Deck construction for reliable beam support
- Timber framing for strong and stable joints

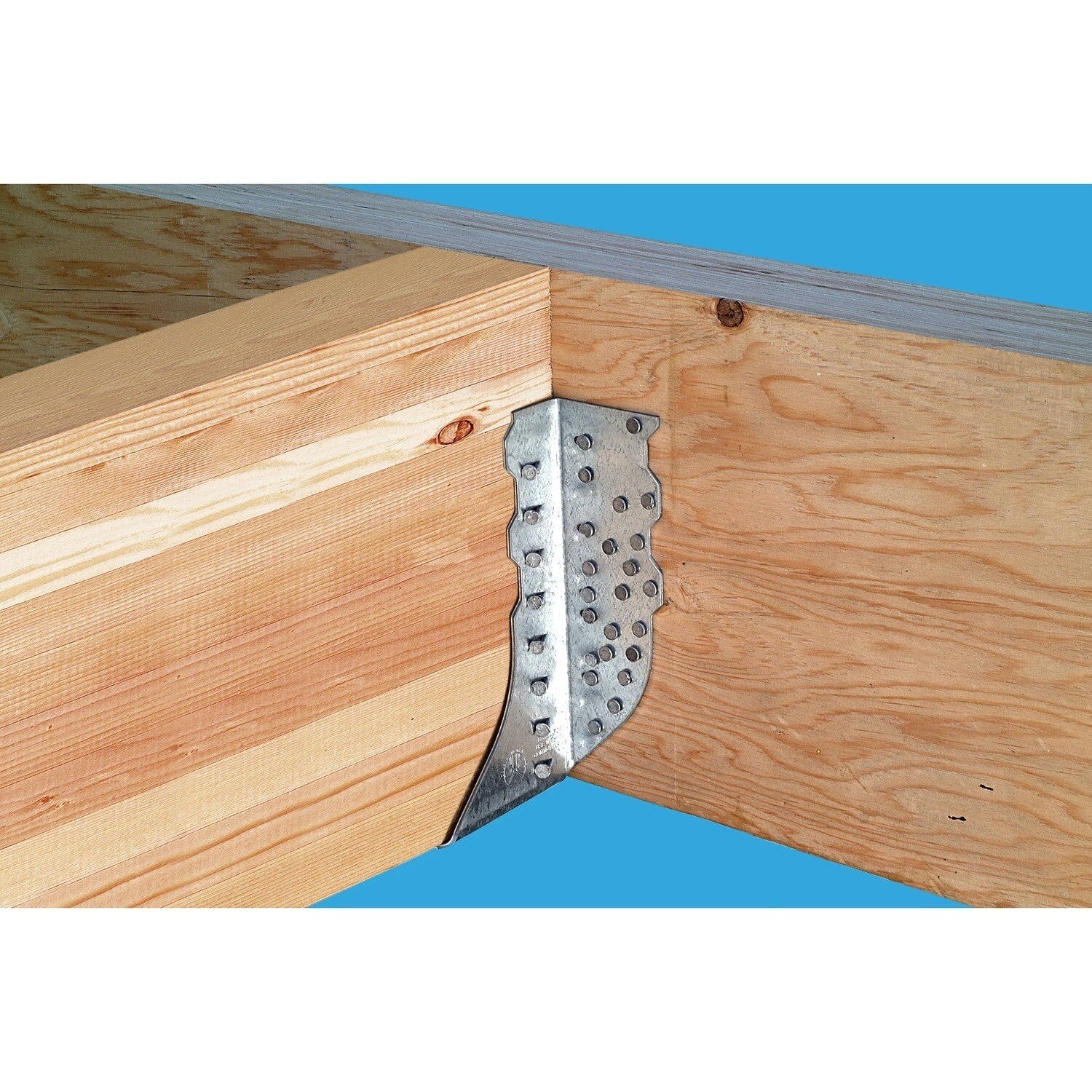

Simpson Strong-Tie HGUS3.25/10 Installation Overview
- Use all specified fasteners as per guidelines
- Drive joist nails at an angle into the header
- Avoid using with I-joists or for welded applications
- Follow specific nail size requirements for carrying members
Simpson Strong-Tie HGUS3.25/10 Specifications
| Material | 12 Gauge Steel |
| Finish | G90 Galvanized |
| Width | 3-1/4" |
| Height | 8-5/8" |
| Weight | 2.5 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
