Simpson Hangers | SKU:
HGUS410

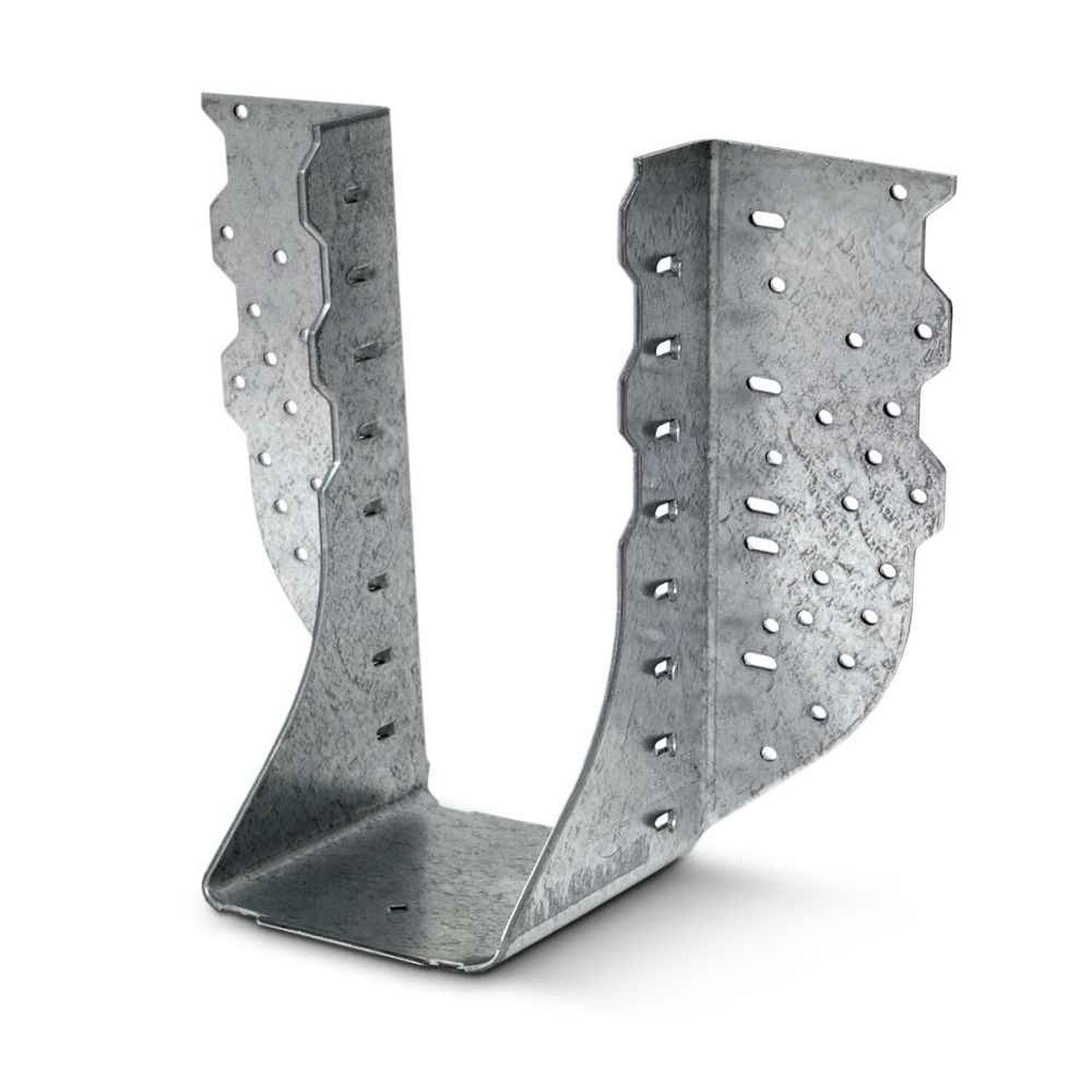

Simpson Strong-Tie HGUS410 (4x10) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$47.56
Unit price
/
Unavailable
Description
Description
Simpson HGUS410 Description
The Simpson HGUS410 Heavy Girder Hanger is designed for robust support in structural applications, featuring double-shear nailing for enhanced strength and stability.
Simpson HGUS410 Includes
- (1) Heavy Girder Hanger for 4x10 Nominal Lumber
Simpson HGUS410 Features
- High Load Capacity: Supports substantial weights for heavy-duty projects.
- Double-Shear Nailing: Distributes load through two points on each joist nail.
- Versatile Installation: Can be installed after the beam is secured in place.
- Durable Construction: Made from 12-gauge galvanized steel for corrosion resistance.
Simpson HGUS410 Applications
- Residential Construction: Secure connections for beams and girders in homes.
- Commercial Projects: Supports heavy loads in commercial buildings.
- Deck Construction: Reliable support for deck beams in outdoor structures.
- Timber Framing: Facilitates strong and stable joints in timber-framed structures.
Simpson HGUS410 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Drive joist nails at an angle through the joist or truss into the header.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS410 Specifications
| Material | 12 Gauge |
| Finish | G90 Galvanized |
| Height | 9-1/16" |
| Width | 3-5/8" |
| Joist Size | 4" X 10" |
| For Treated Lumber | No |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
