Simpson Hangers | SKU:
HGUS414
Simpson Strong-Tie HGUS414 (4x14) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$58.48
Unit price
/
Unavailable
Description
Description
Simpson HGUS414 Description

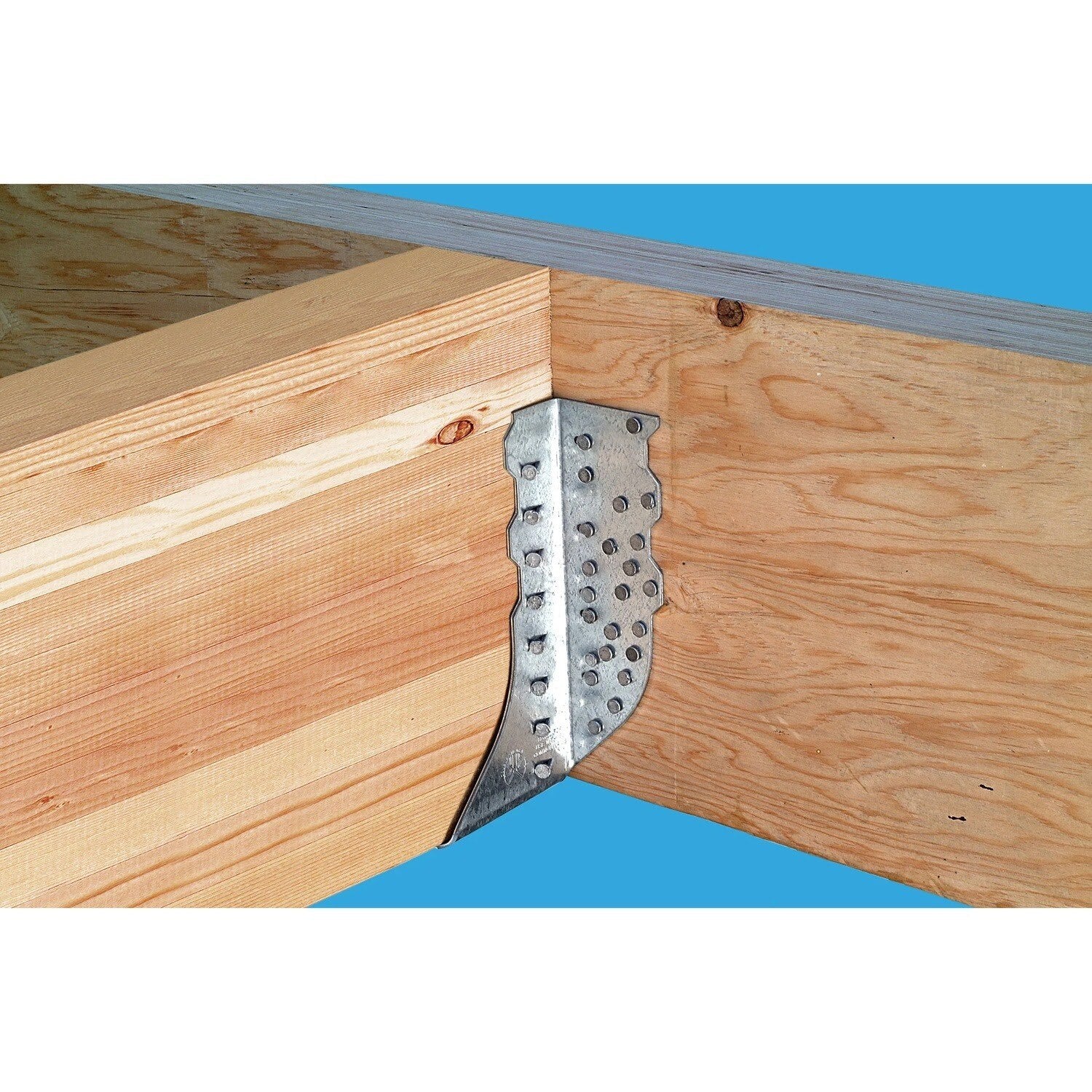

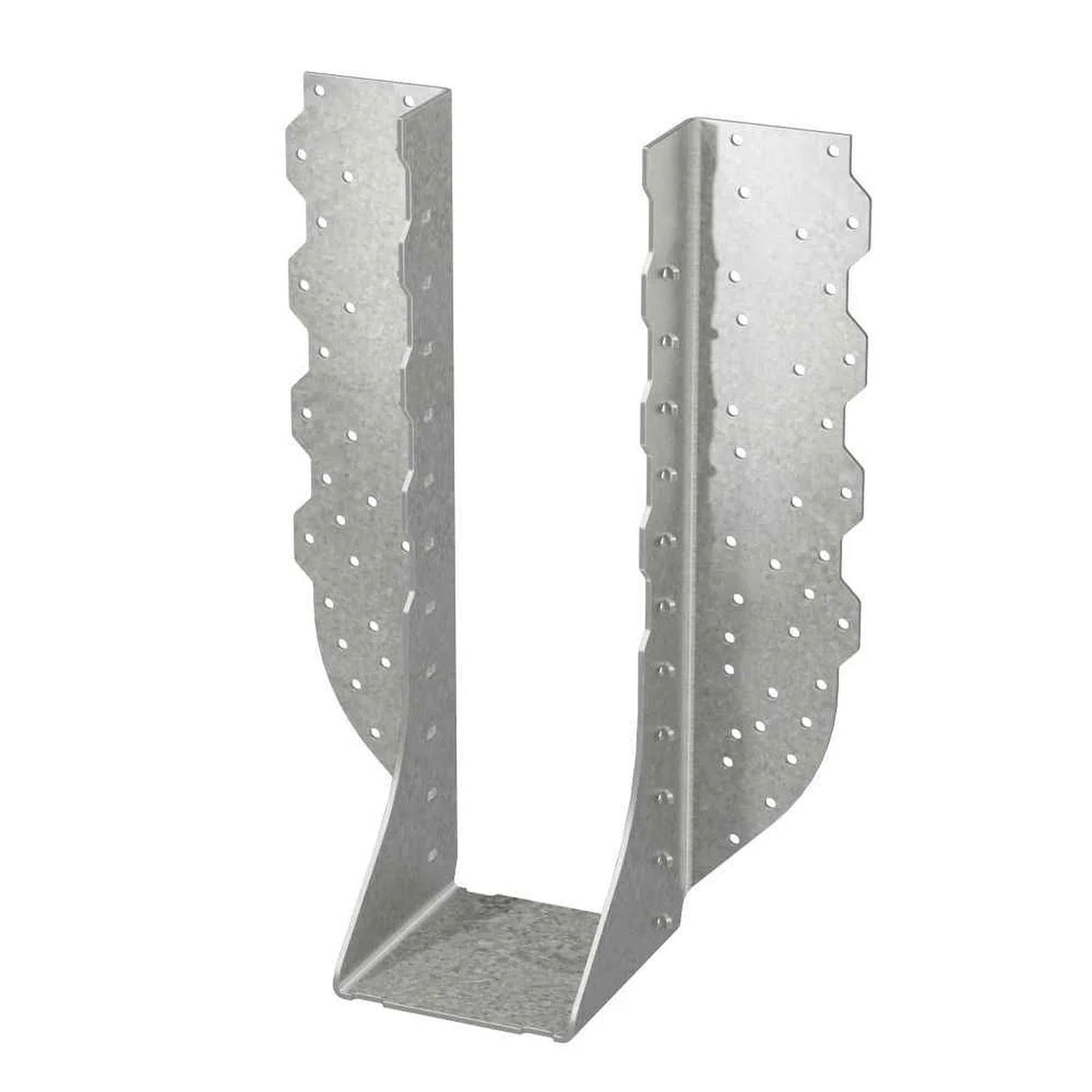

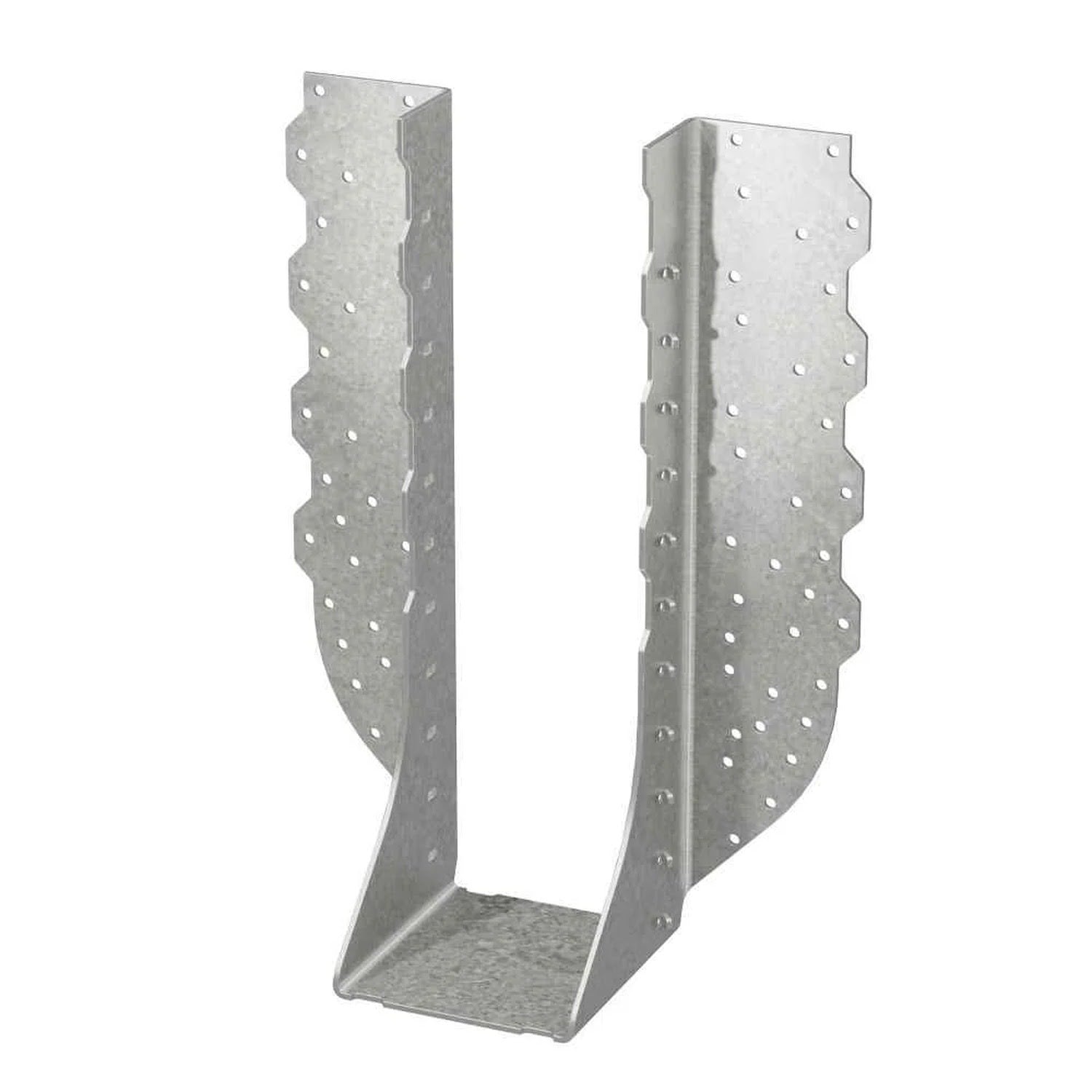

The Simpson HGUS414 4x14 Face Mount Hanger is designed for heavy-duty structural applications, offering high load capacity and durability.
Simpson HGUS414 Includes
- (1) 4x14 Face Mount Hanger
Simpson HGUS414 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson HGUS414 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.

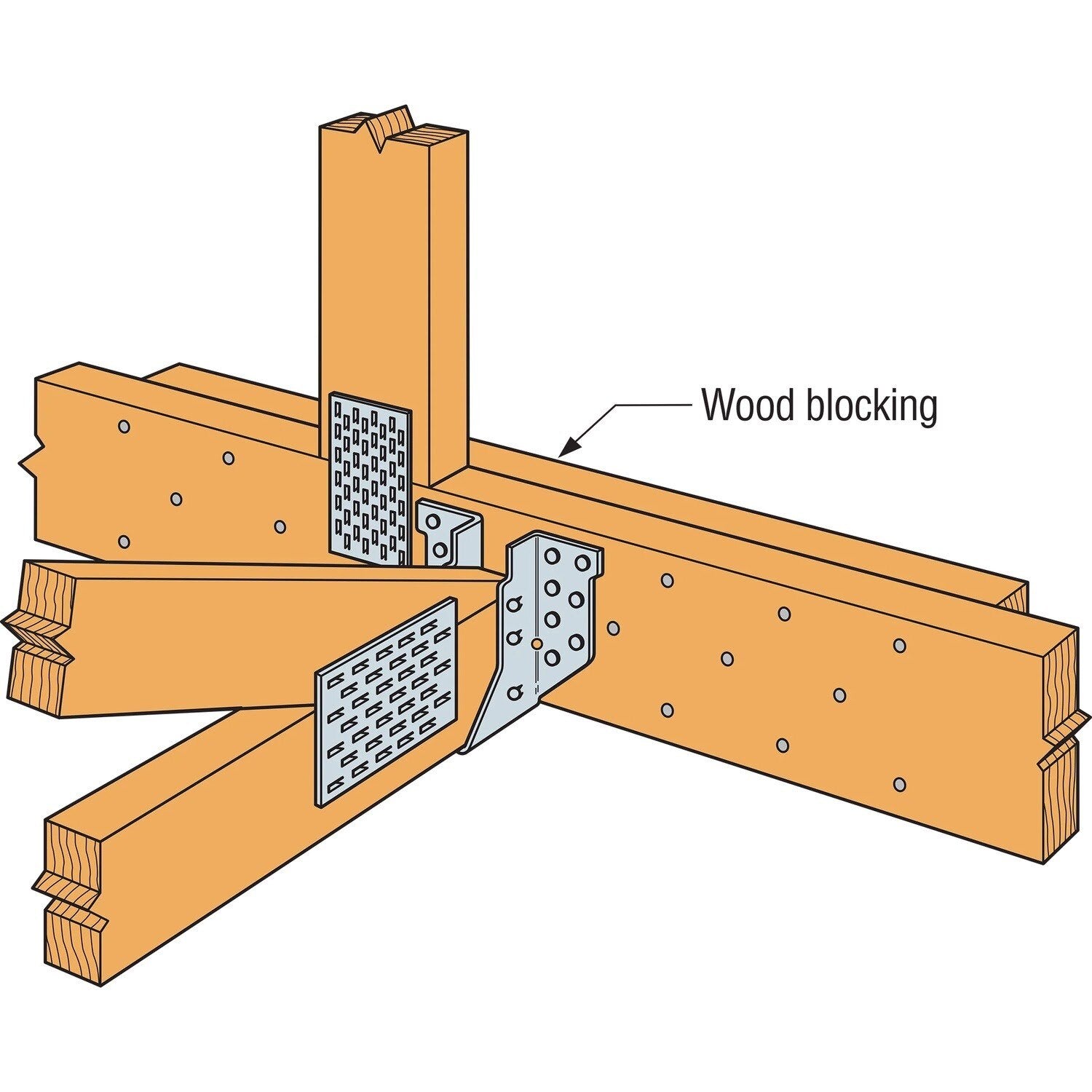

Simpson HGUS414 Installation Overview
- Fastener Requirements: Use all specified fasteners as per the manufacturer's guidelines.
- Compatibility: Not designed for welded or nailer applications.
- Carrying Members: For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS414 Specifications
| Finish | G90 Galvanized |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 12-7/16" |
| Joist size | 4" X 14" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
