Simpson Hangers | SKU:
HGUS5.25/12
Simpson Strong-Tie HGUS5.25/12 (5-1/8" x 12") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$75.02
$10,788.75
Unit price
/
Unavailable
Description
Description

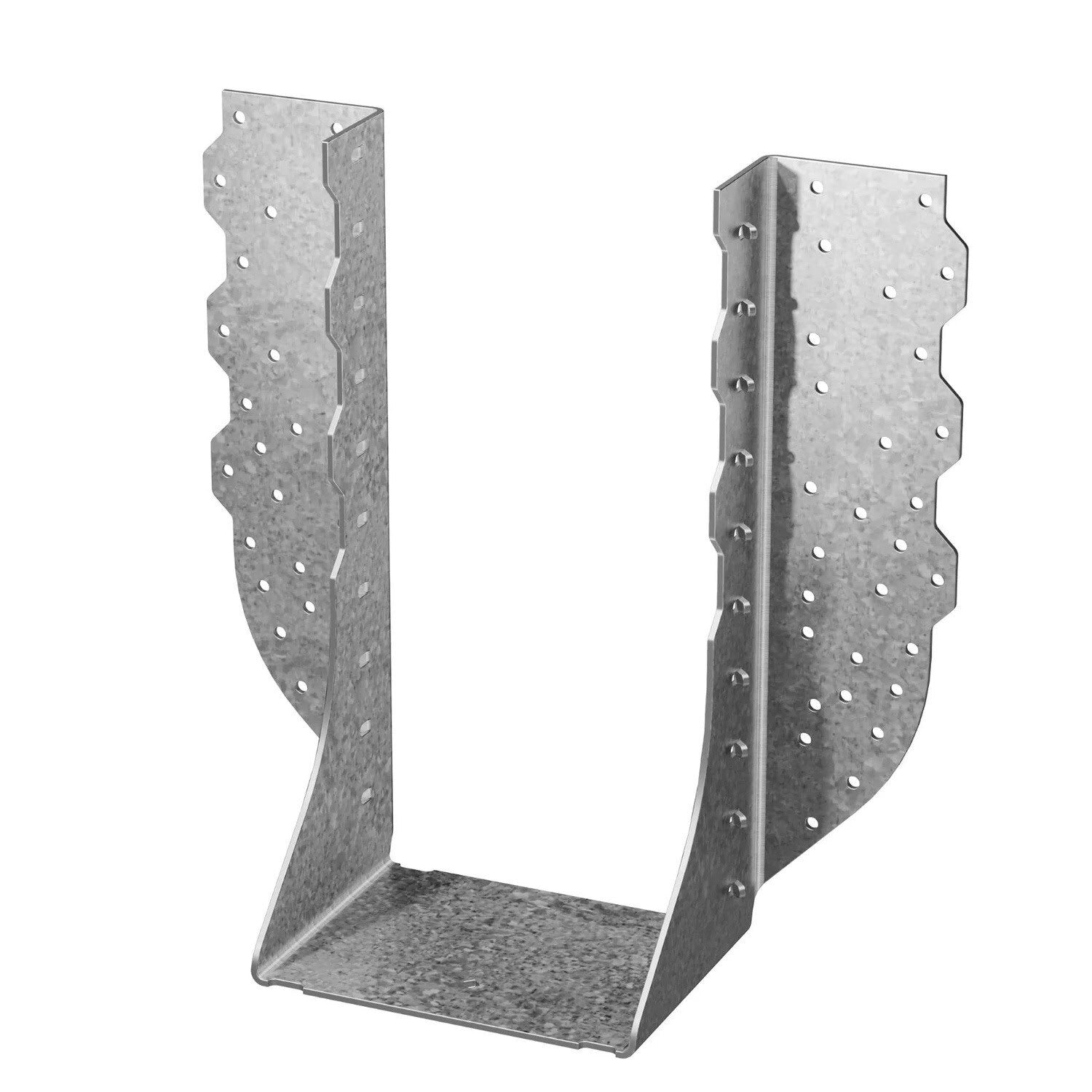

Simpson Strong-Tie HGUS5.25/12 Description
The Simpson Strong-Tie HGUS5.25/12 is a heavy-duty face mount hanger designed for robust structural support, featuring a G90 galvanized finish for durability.
Simpson Strong-Tie HGUS5.25/12 Includes
- (1) Heavy-Duty Face Mount Hanger
Simpson Strong-Tie HGUS5.25/12 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson Strong-Tie HGUS5.25/12 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.
Simpson Strong-Tie HGUS5.25/12 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson Strong-Tie HGUS5.25/12 Specifications
| Finish | G90 Galvanized |
| Carried Member Width | 5-1/8 Glulam |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 10-9/16" |
| Joist size | 5-1/4" X 12" |
| Width | 5-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
