Simpson Hangers | SKU:
HGUS5.50/12

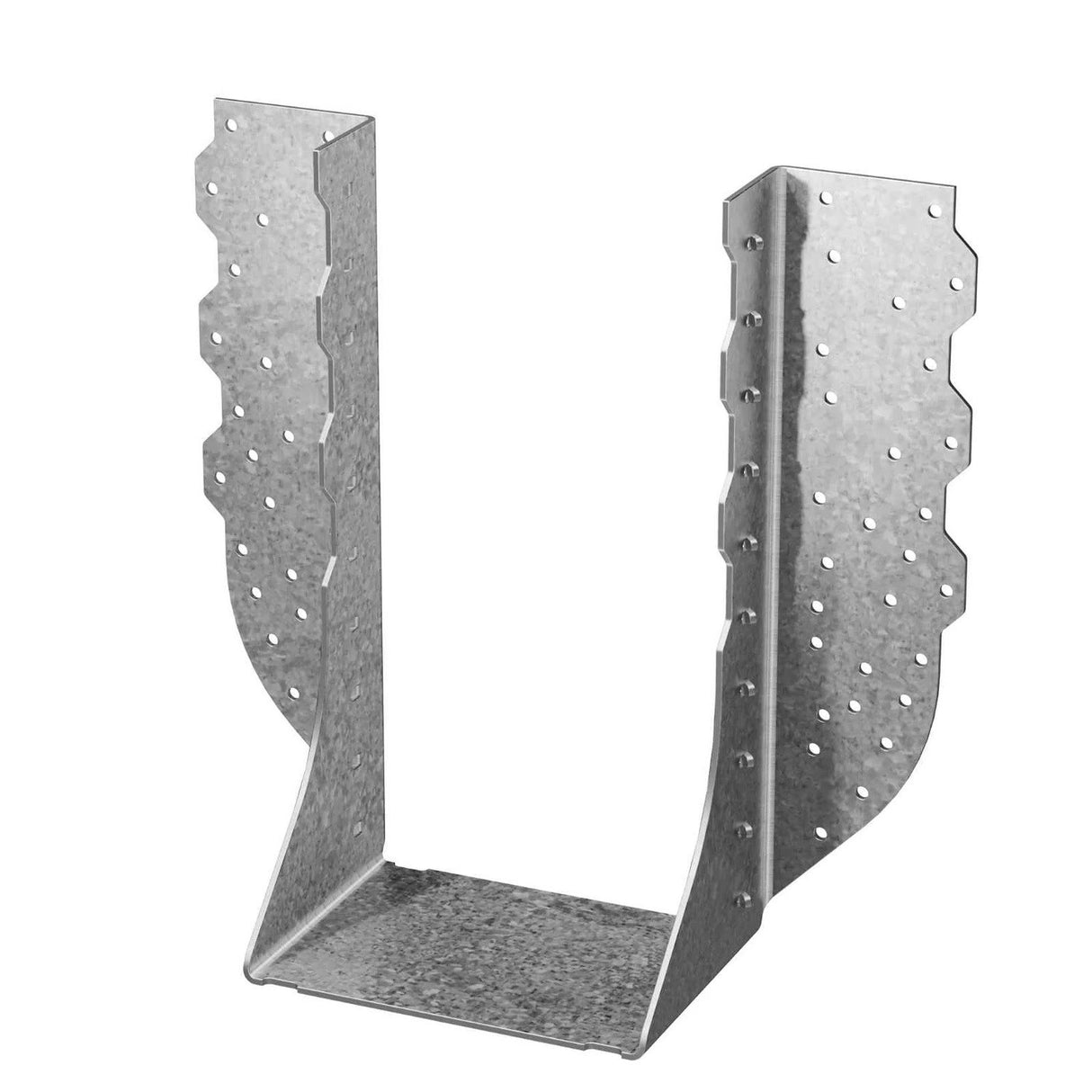

Simpson Strong-Tie HGUS5.50/12 (5-1/4" x 11-7/8") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$76.50
$11,002.50
Unit price
/
Unavailable
Description
Description
Simpson HGUS5.50/12 Description
The Simpson HGUS5.50/12 Face-Mount Joist Hanger is designed for engineered wood applications, offering high load capacity and durable galvanized construction.
Simpson HGUS5.50/12 Includes
- (1) Galvanized Face-Mount Joist Hanger for Engineered Wood
Simpson HGUS5.50/12 Features
- High Load Capacity
- Double-Shear Nailing for enhanced strength
- Versatile installation options
- Durable 12-gauge galvanized steel construction
Simpson HGUS5.50/12 Applications
- Residential Construction: Provides secure connections for beams and girders in homes.
- Commercial Projects: Supports heavy loads in commercial buildings.
- Deck Construction: Offers reliable support for deck beams.
- Timber Framing: Ideal for use in timber-framed structures.
Simpson HGUS5.50/12 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.

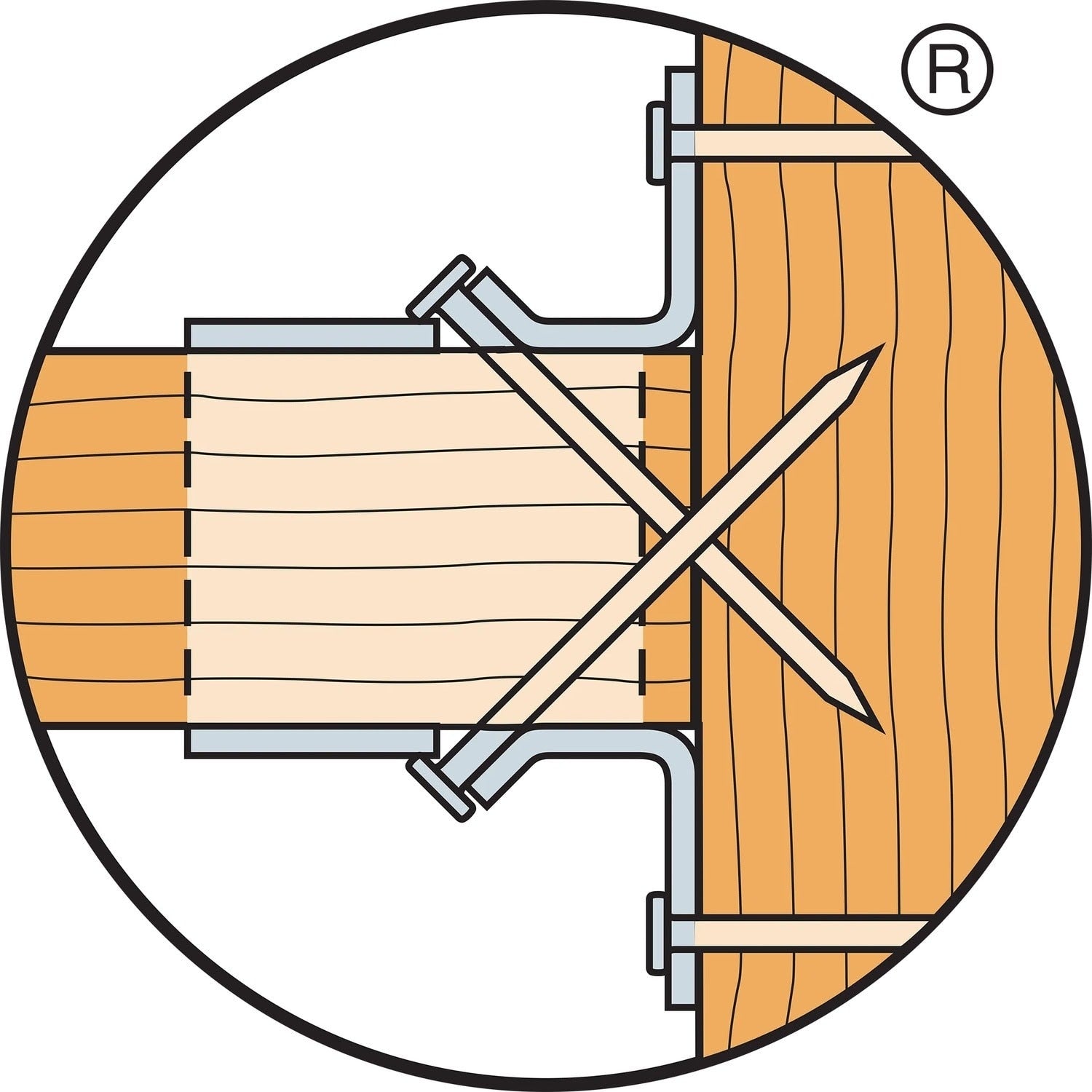

- Drive joist nails at an angle through the joist or truss into the header.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS5.50/12 Specifications
| Material | 12 ga. |
| Finish | G90 Galvanized |
| Height | 10-1/2" |
| Width | 5-1/2" |
| Joist size | 5-1/2" X 12" |
| For Treated Lumber | No |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
