Simpson Hangers | SKU:
HGUS5.50/14

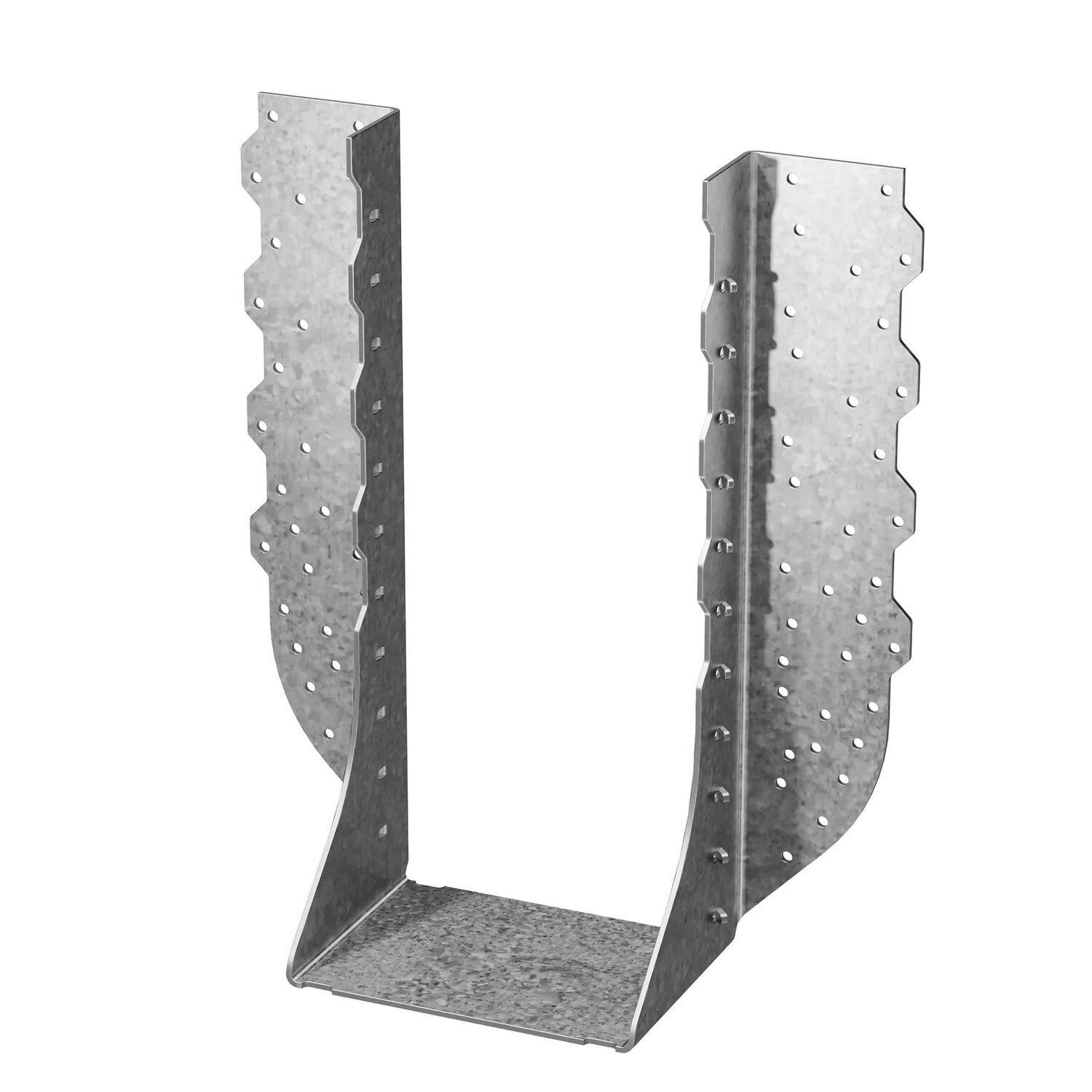

Simpson Strong-Tie HGUS5.50/14 (5-1/4" x 14") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$87.91
Unit price
/
Unavailable
Description
Description
Simpson HGUS5.50/14 Description

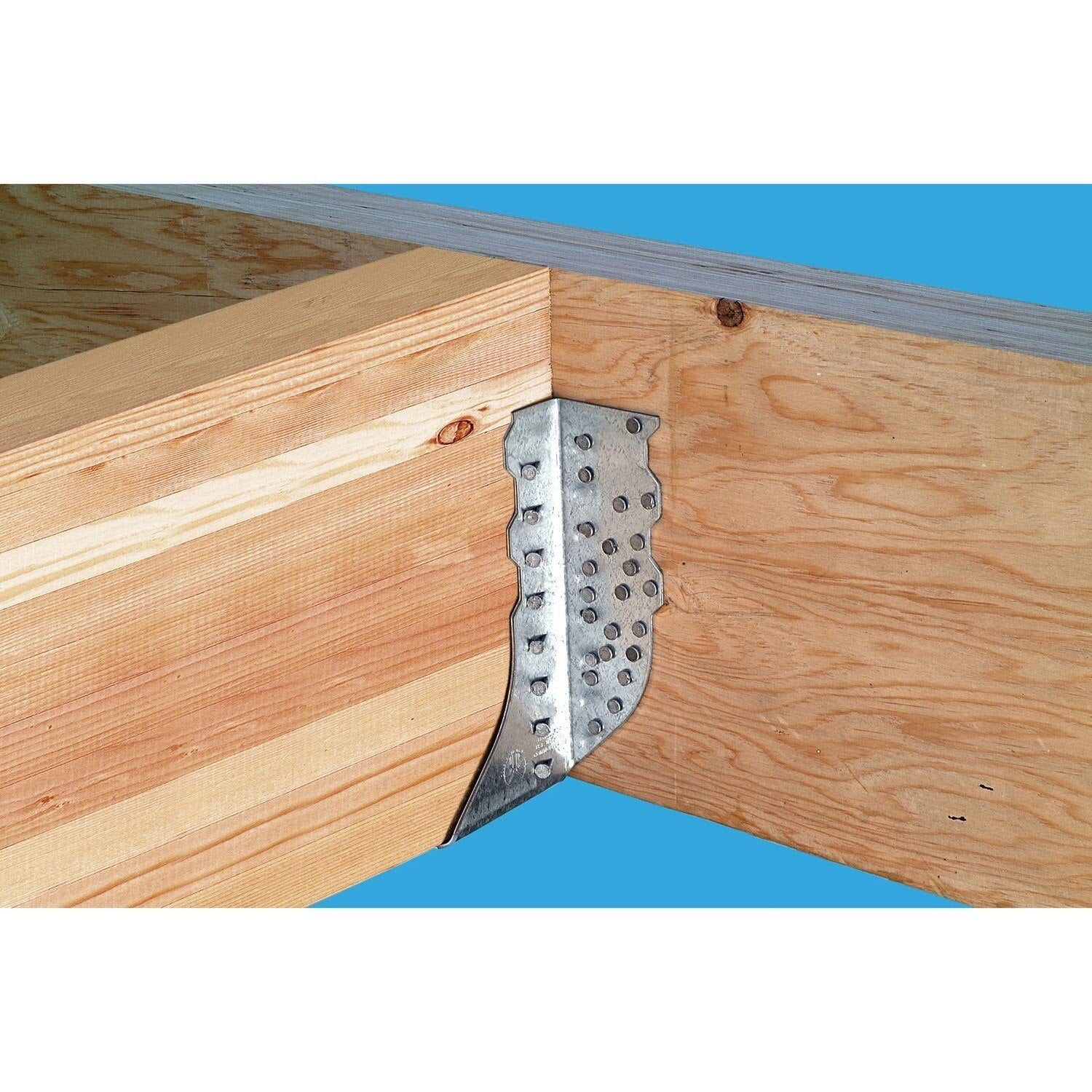

The Simpson HGUS5.50/14 Face-Mount Joist Hanger is designed for engineered wood applications, offering robust support and ease of installation.
Simpson HGUS5.50/14 Includes
- (1) Face-Mount Joist Hanger for Engineered Wood
Simpson HGUS5.50/14 Features
- High Load Capacity: Supports substantial weights for heavy-duty projects.
- Double-Shear Nailing: Distributes load through two points on each joist nail for enhanced strength.
- Versatile Installation: Can be installed after the beam is secured in place.
- Durable Construction: Made from 12-gauge galvanized steel for corrosion resistance.
Simpson HGUS5.50/14 Applications
- Residential Construction: Provides secure connections for beams and girders in homes.
- Commercial Projects: Supports heavy loads in commercial buildings.
- Deck Construction: Offers reliable support for deck beams.
- Timber Framing: Facilitates strong and stable joints in timber-framed structures.

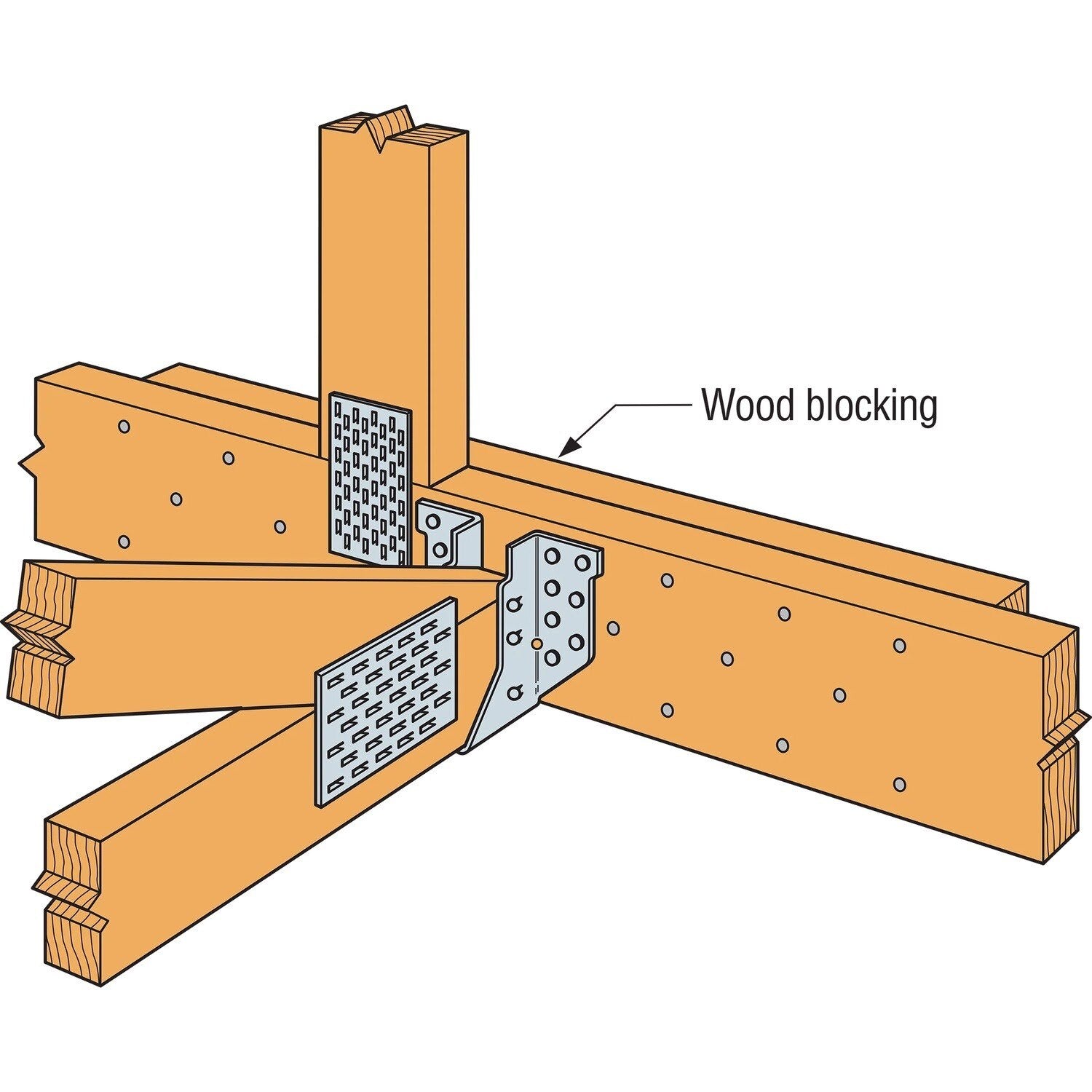

Simpson HGUS5.50/14 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Drive joist nails at an angle through the joist or truss into the header.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS5.50/14 Specifications
| Material | 12 Gauge Galvanized Steel |
| Finish | G90 Galvanized |
| Height | 12-1/2" |
| Width | 5-1/2" |
| Joist Size | 5-1/2" X 14" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
