Simpson Hangers | SKU:
HGUS6.88/14

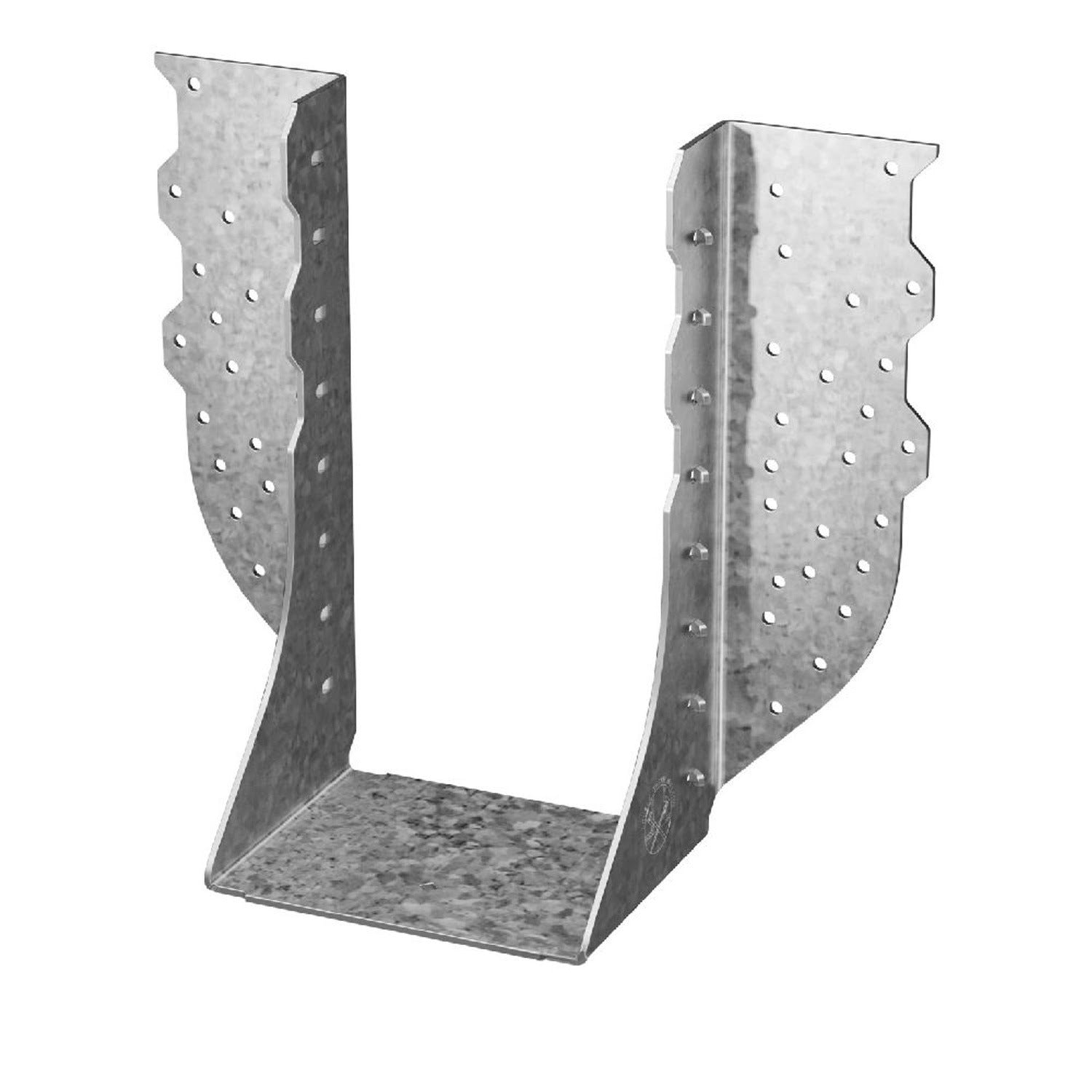

Simpson Strong-Tie HGUS6.88/14 (12-13/16") 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$94.59
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGUS6.88/14 Description
The Simpson Strong-Tie HGUS6.88/14 is a heavy-duty face mount hanger designed for engineered wood applications, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie HGUS6.88/14 Includes
- (1) HGUS6.88/14 Face Mount Hanger
Simpson Strong-Tie HGUS6.88/14 Features
- High load capacity for demanding structural applications
- Double-shear nailing for enhanced strength
- Durable 12-gauge galvanized steel construction
- Versatile installation options
Simpson Strong-Tie HGUS6.88/14 Applications
- Residential construction: Provides secure connections for beams and girders in homes.
- Commercial projects: Supports heavy loads in commercial buildings.
- Deck construction: Offers reliable support for deck beams.
- Timber framing: Ideal for use in timber-framed structures.
Simpson Strong-Tie HGUS6.88/14 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Drive joist nails at an angle through the joist or truss into the header.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson Strong-Tie HGUS6.88/14 Specifications
| Material | 12 ga. |
| Finish | G90 Galvanized |
| Height | 12-13/16" |
| Width | 6-7/8" |
| Joist size | 6-7/8" X 14" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
