Simpson Hangers | SKU:
HGUS7.25/10
Simpson Strong-Tie HGUS7.25/10 (7" x 9-1/2") G12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$75.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HGUS7.25/10 Description

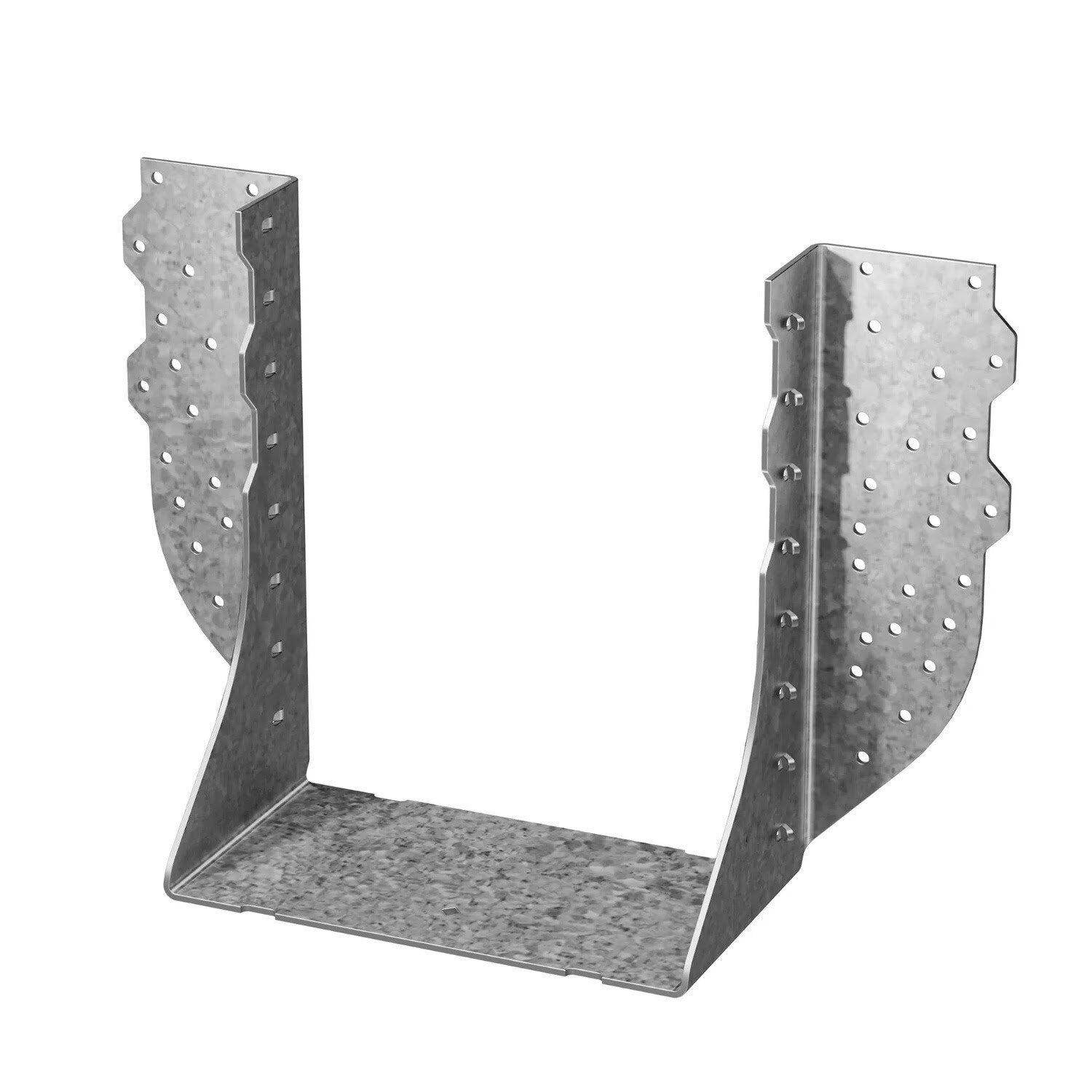

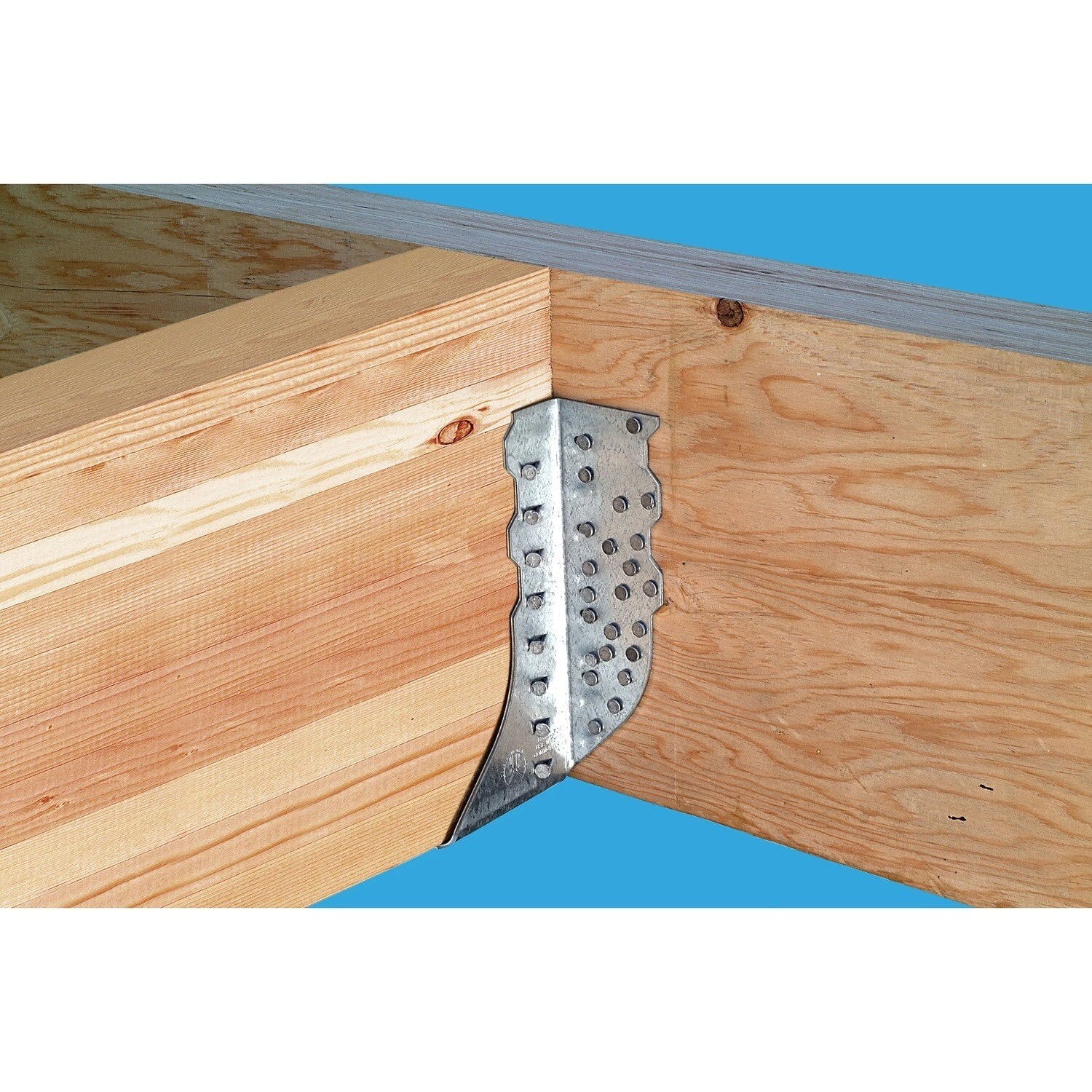

The Simpson Strong-Tie HGUS7.25/10 is a heavy-duty galvanized face-mount joist hanger designed for engineered wood applications, providing robust support and durability.
Simpson Strong-Tie HGUS7.25/10 Includes
- (1) HGUS7.25/10 Face-Mount Joist Hanger
Simpson Strong-Tie HGUS7.25/10 Features
- High load capacity for demanding structural applications
- Double-shear nailing for enhanced strength
- Durable 12-gauge galvanized steel construction
- Versatile installation after beam placement
Simpson Strong-Tie HGUS7.25/10 Applications
- Residential construction: Secure connections for beams and girders
- Commercial projects: Supports heavy loads in buildings
- Deck construction: Reliable support for deck beams
- Timber framing: Strong and stable joints

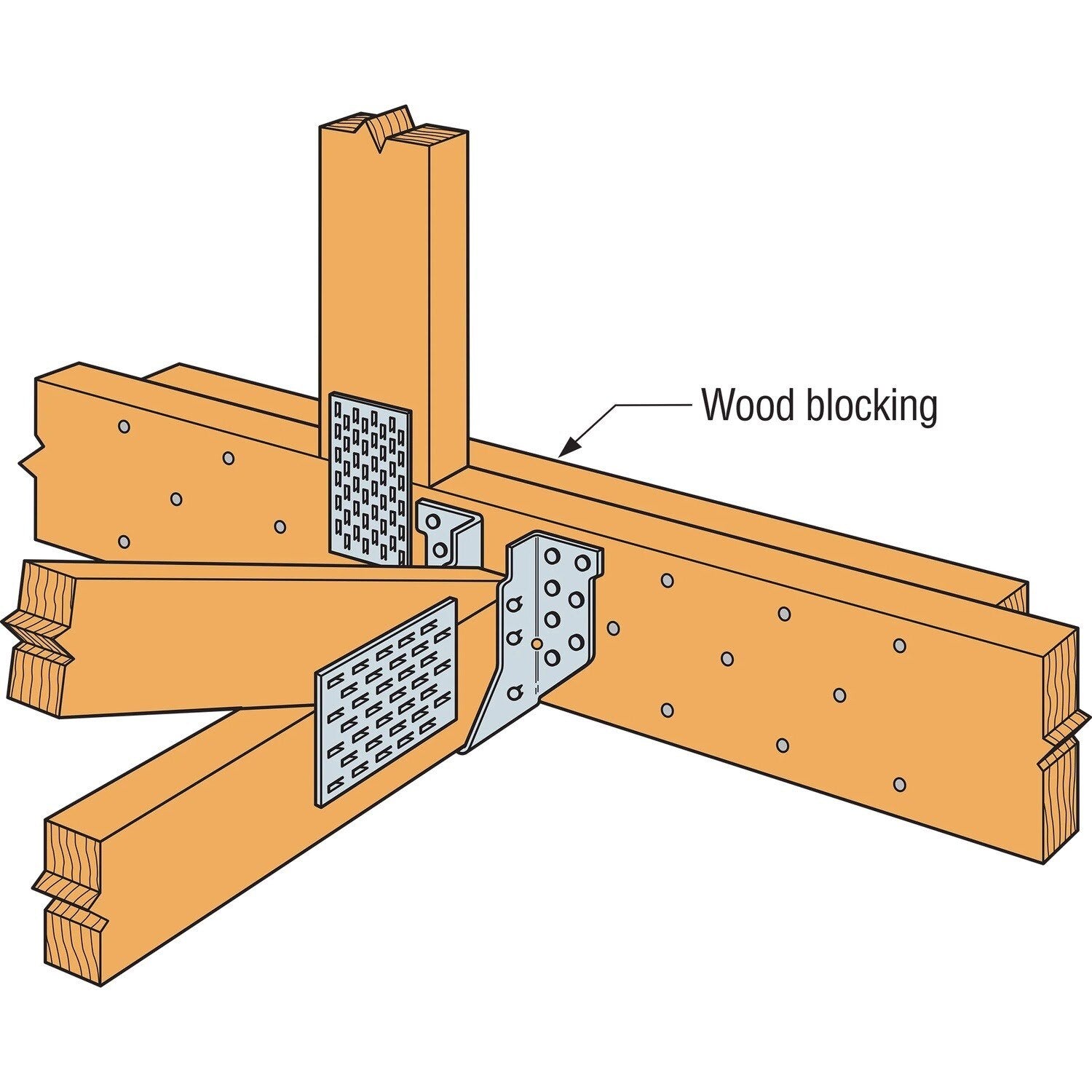

Simpson Strong-Tie HGUS7.25/10 Installation Overview
- Use all specified fasteners as per guidelines
- Drive joist nails at an angle into the header
- Avoid using with I-joists or welded applications
- Follow specific nail size requirements for carrying members
Simpson Strong-Tie HGUS7.25/10 Specifications
| Material | 12-gauge galvanized steel |
| Finish | G90 Galvanized |
| Height | 8-5/8" |
| Width | 7-1/4" |
| Joist size | 7-1/4" X 10" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
