Simpson Hangers | SKU:
HGUS7.25/12
Simpson Strong-Tie HGUS7.25/12 (7" x 11-7/8 in.) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
$86.41
Unit price
/
Unavailable
Description
Description
Simpson HGUS7.25/12 Description

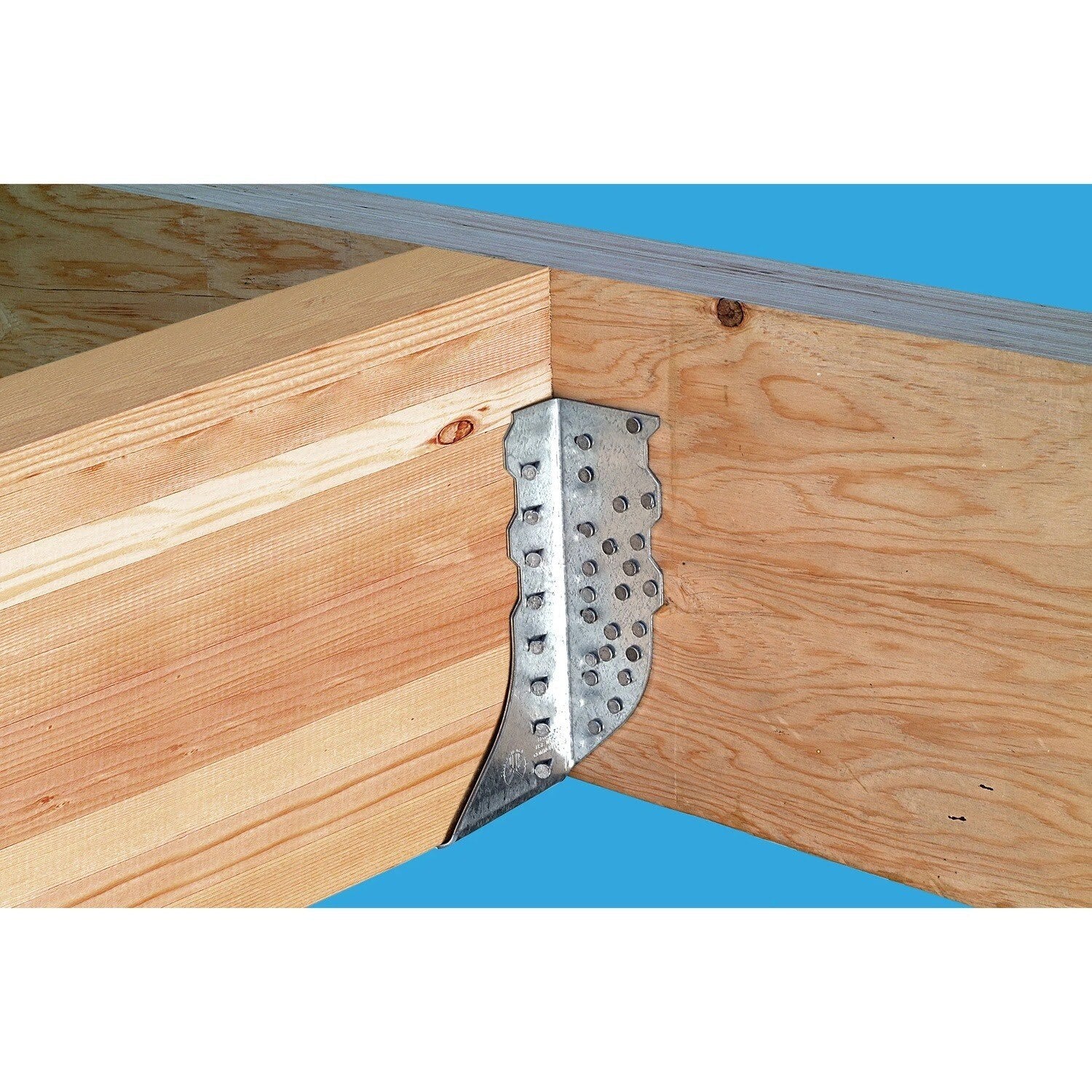

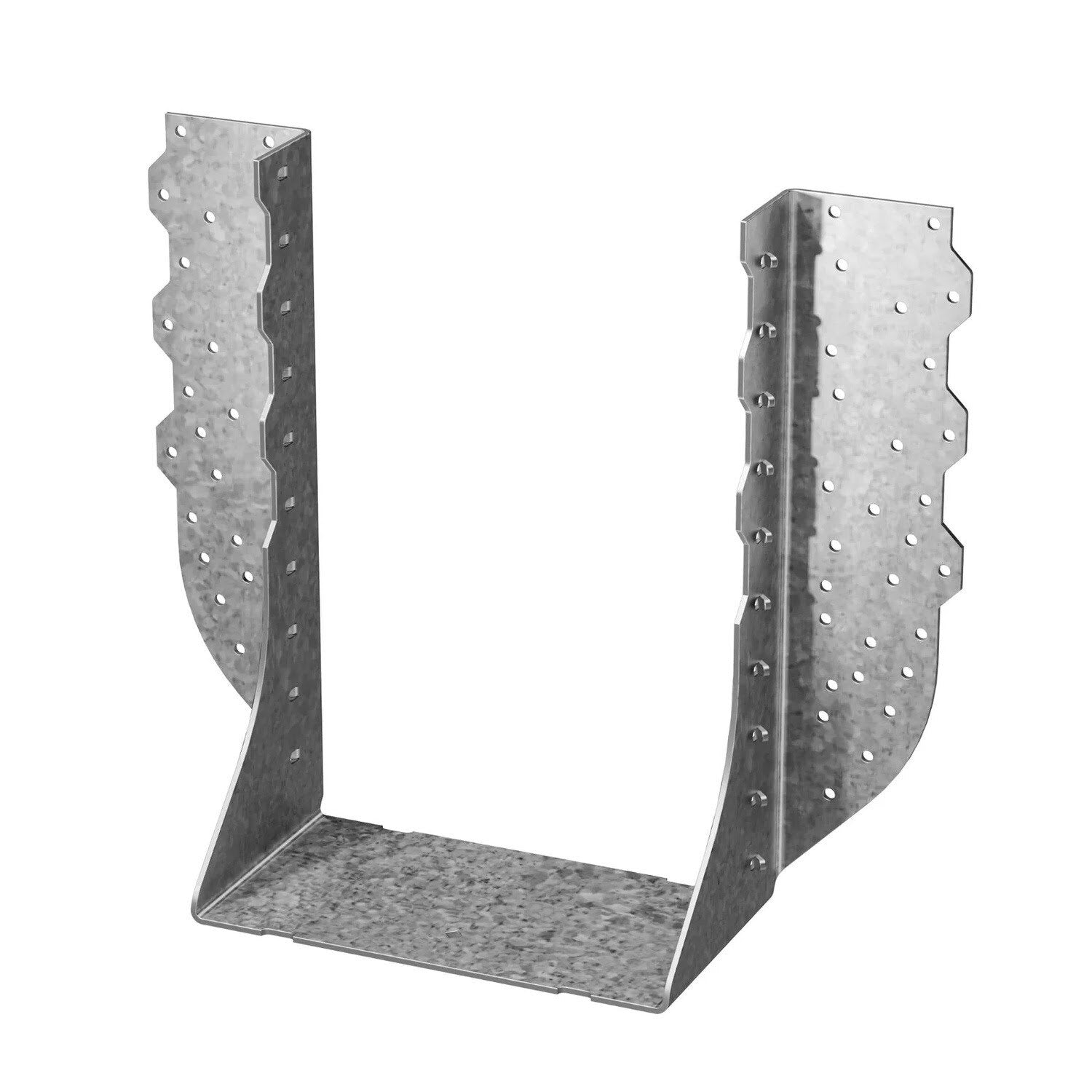

The Simpson HGUS7.25/12 Face Mount Hanger is designed for heavy-duty structural applications, offering high load capacity and durability.
Simpson HGUS7.25/12 Includes
- (1) Face Mount Hanger - G90 Galvanized
Simpson HGUS7.25/12 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson HGUS7.25/12 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.
Simpson HGUS7.25/12 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS7.25/12 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 10-5/8" |
| Joist size | 7-1/4" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 7-1/4" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
