Simpson Strong-Tie HHETA20 Description
The HHETA20 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie HHETA20 Includes
- (10) 0.148" x 1-1/2" Fasteners
Simpson Strong-Tie HHETA20 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for increased uplift resistance
- Designed for use with specified fasteners
- Compatible with single- and multi-ply trusses
- Durable G90 galvanized finish
Simpson Strong-Tie HHETA20 Applications
- Roof truss attachment to concrete walls
- Roof truss attachment to masonry walls
- Structural reinforcement in construction projects
Simpson Strong-Tie HHETA20 Installation Overview

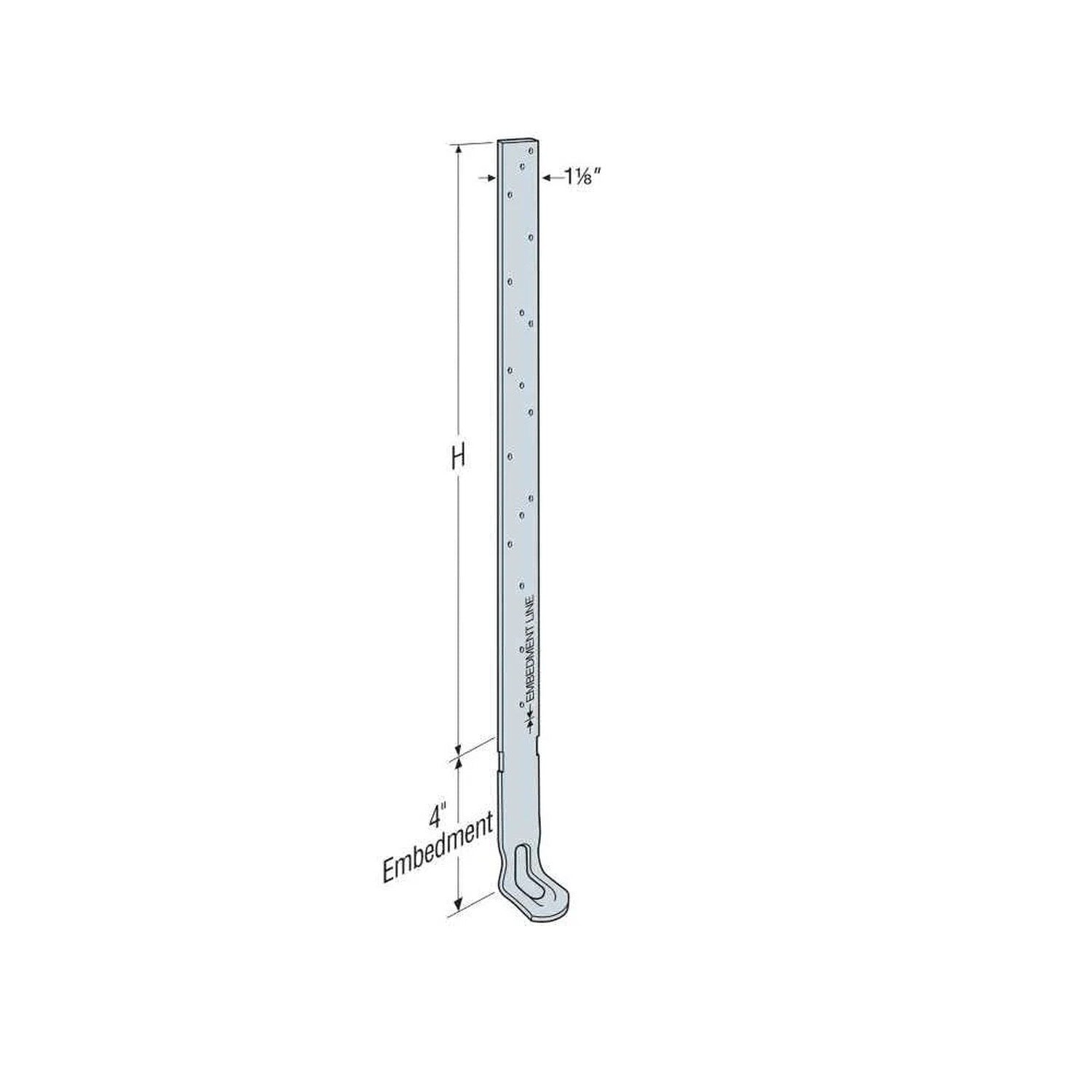

- Embed the anchor 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
- Ensure proper alignment and positioning of the anchor
- Use all specified fasteners for secure installation
- Avoid overlapping fasteners in double anchor installations
- Consult a Truss Engineer for shim design if misalignment occurs
Simpson Strong-Tie HHETA20 Specifications
| Fasteners required | (10) 0.148" x 1-1/2" |
| For Treated Lumber | No |
| Height | 16" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
823352
