Simpson Strong-Tie HHETA24 Description
The HHETA24 Embedded Truss Anchor provides a reliable solution for attaching roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie HHETA24 Includes
- (10) 0.148" x 1-1/2" Fasteners
Simpson Strong-Tie HHETA24 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for increased uplift resistance
- Designed for use with specified fasteners
- Compatible with single- and multi-ply trusses
Simpson Strong-Tie HHETA24 Applications
- Roof truss attachment to concrete walls
- Roof truss attachment to masonry walls
Simpson Strong-Tie HHETA24 Installation Overview

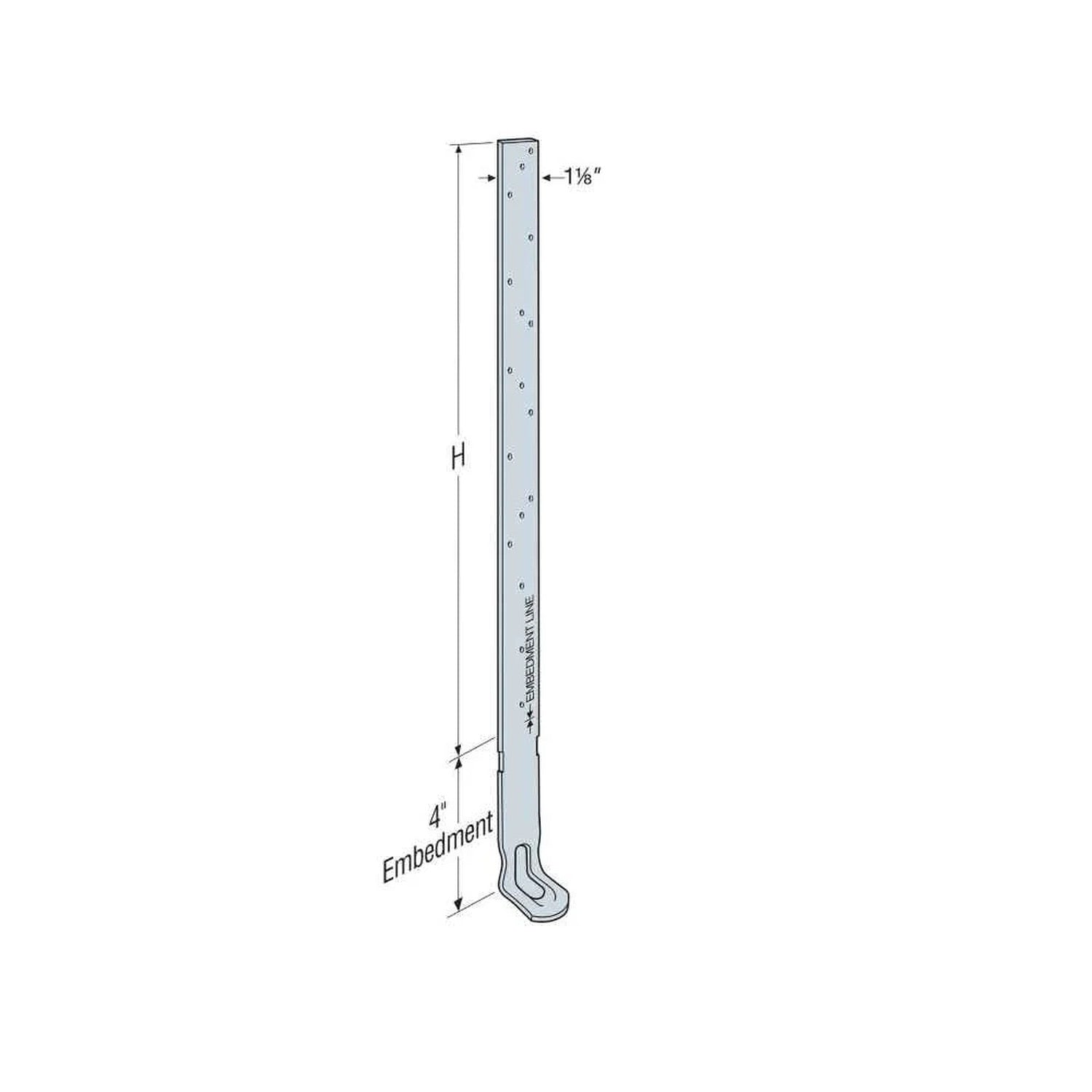

- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and use of specified fasteners
- Avoid overlapping fasteners in double embedded anchor installations
Simpson Strong-Tie HHETA24 Specifications
| Fasteners required | (10) 0.148" x 1-1/2" |
| For Treated Lumber | No |
| Height | 20" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
