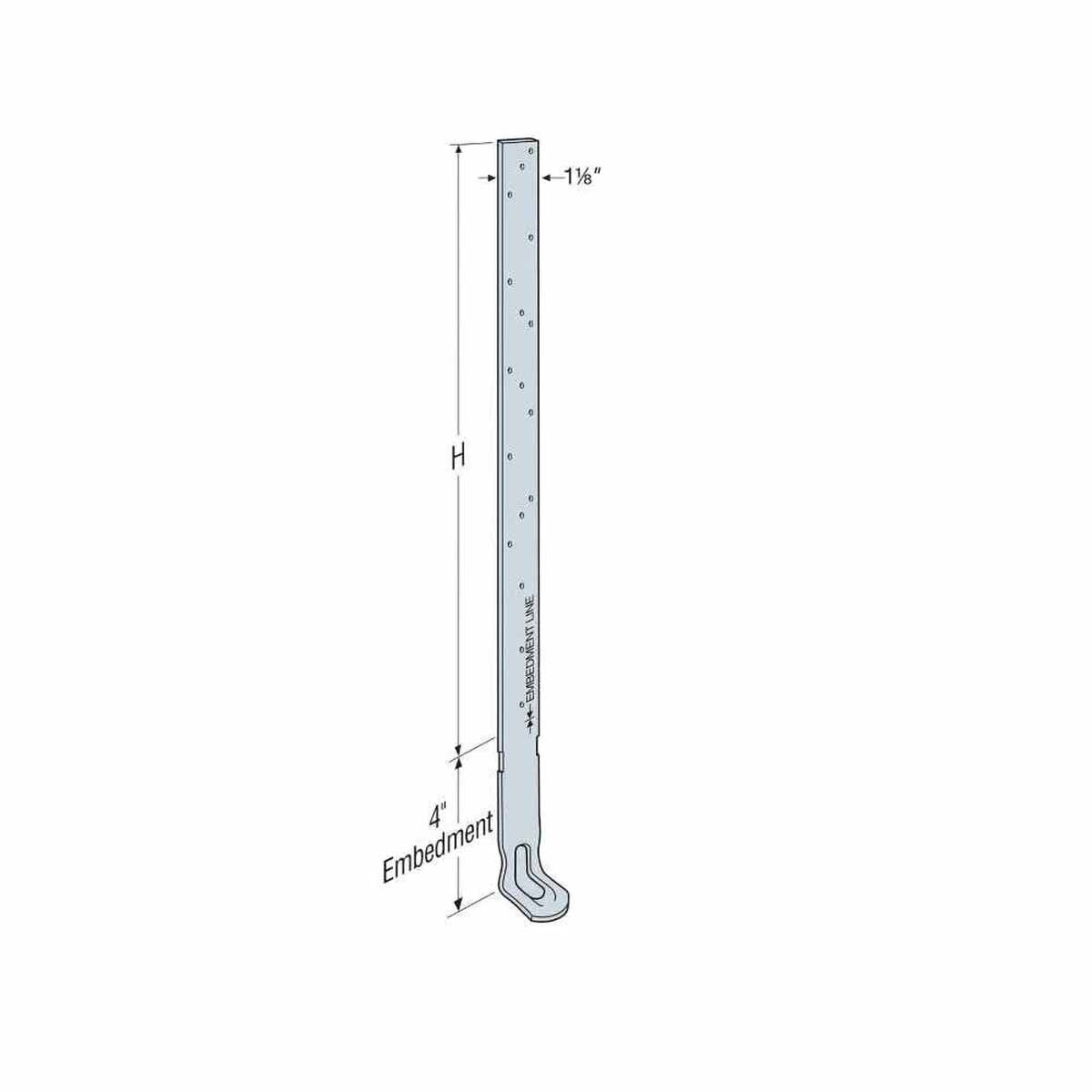

Simpson Strong-Tie HHETA40 Description
The HHETA40 is a heavy-duty 36-inch galvanized embedded truss anchor designed for secure attachment of roof trusses to concrete and masonry walls, ensuring stability in high-wind and seismic conditions.
Simpson Strong-Tie HHETA40 Includes
- (1) HHETA40 Embedded Truss Anchor
Simpson Strong-Tie HHETA40 Features
- Indented embedment line ensures accurate embedment depth
- Compatible with the Simpson Strong-Tie TSS and TBP8 moisture barrier plate
- Load rated for wind and seismic forces
Simpson Strong-Tie HHETA40 Applications
- High-Wind Construction: Securely attaches roof trusses to concrete and masonry walls
Simpson Strong-Tie HHETA40 Installation Overview
- Use all specified fasteners as per guidelines.
- Embed 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall.
- For mislocated truss anchors, provide a shim if the gap is between 1/8 inch and 1 1/2 inches.
- Ensure minimum spacing of single anchors is twice the embedment depth for full load.
- In double anchor installations, install anchors with spoons facing outward and straps spaced no more than 1/8 inch wider than the rafter/truss width.
Simpson Strong-Tie HHETA40 Specifications
| Material | 14 gauge |
| Finish | Galvanized |
| Height | 36 inches |
| Fasteners Required | (10) 0.148" x 1-1/2" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
